Plan 81647AB

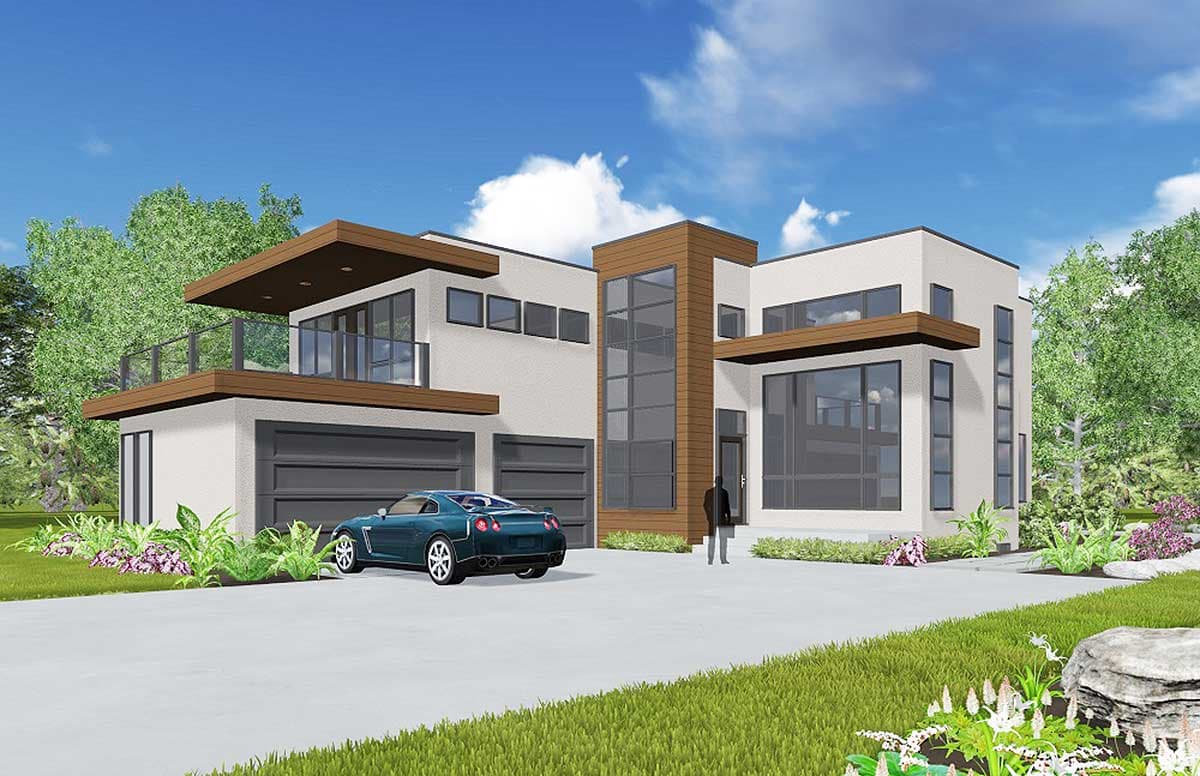

Modern Living With Private Master Suite Patio

Heated S.F.
2,593
Beds
3 - 4
Baths
2.5 - 3.5
Stories
2
Cars
3

Floor Plan

Plan 81647AB

Main Level
Main Level
2nd Floor
2nd Floor
Optionally Finished Lower Level
Optionally Finished Lower Level

Plan 81647AB

M-F 9am-5pm EST |

1-203-761-8500

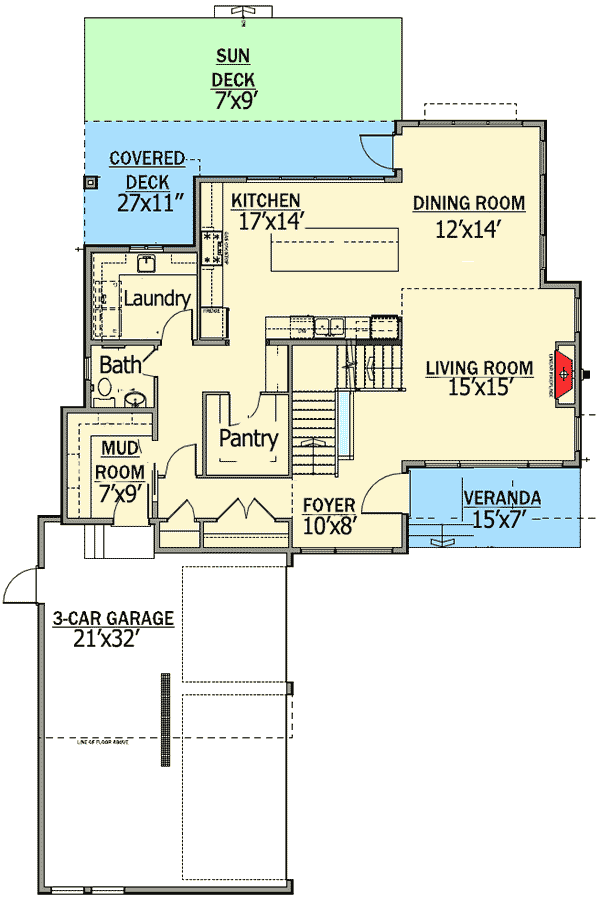

Main Level

Plan 81647AB: Modern Living With Private Master Suite Patio - Floor Plan - Main Level - Contemporary, Mid Century Modern, Modern, Northwest

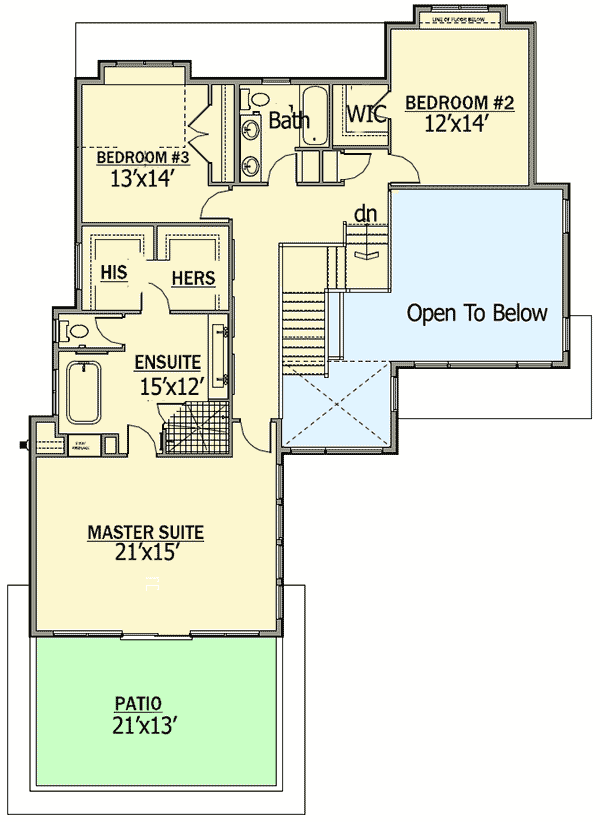

2nd Floor

Plan 81647AB: Modern Living With Private Master Suite Patio - Floor Plan - 2nd Floor - Contemporary, Mid Century Modern, Modern, Northwest

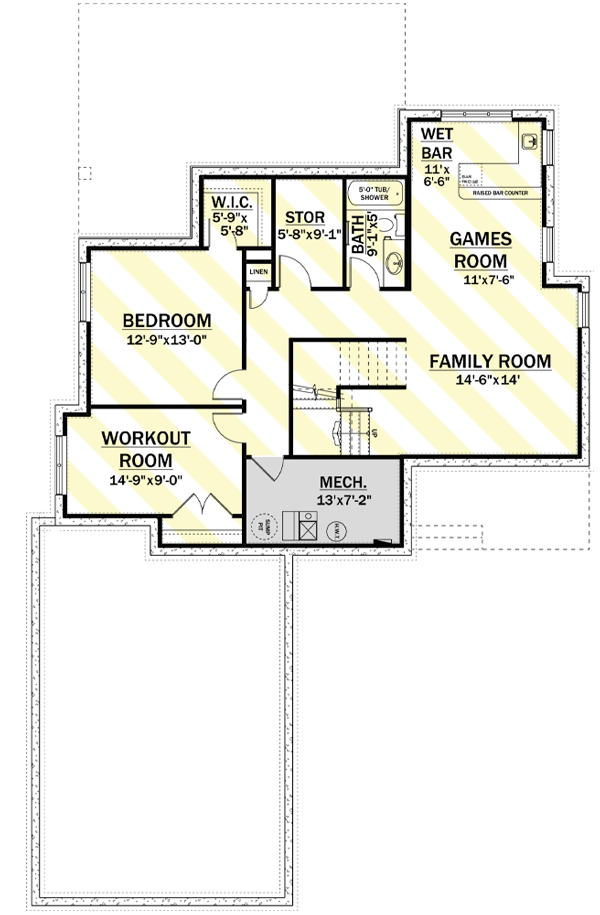

Optionally Finished Lower Level

Plan 81647AB: Modern Living With Private Master Suite Patio - Floor Plan - Optionally Finished Lower Level - Contemporary, Mid Century Modern, Modern, Northwest

Plan Details

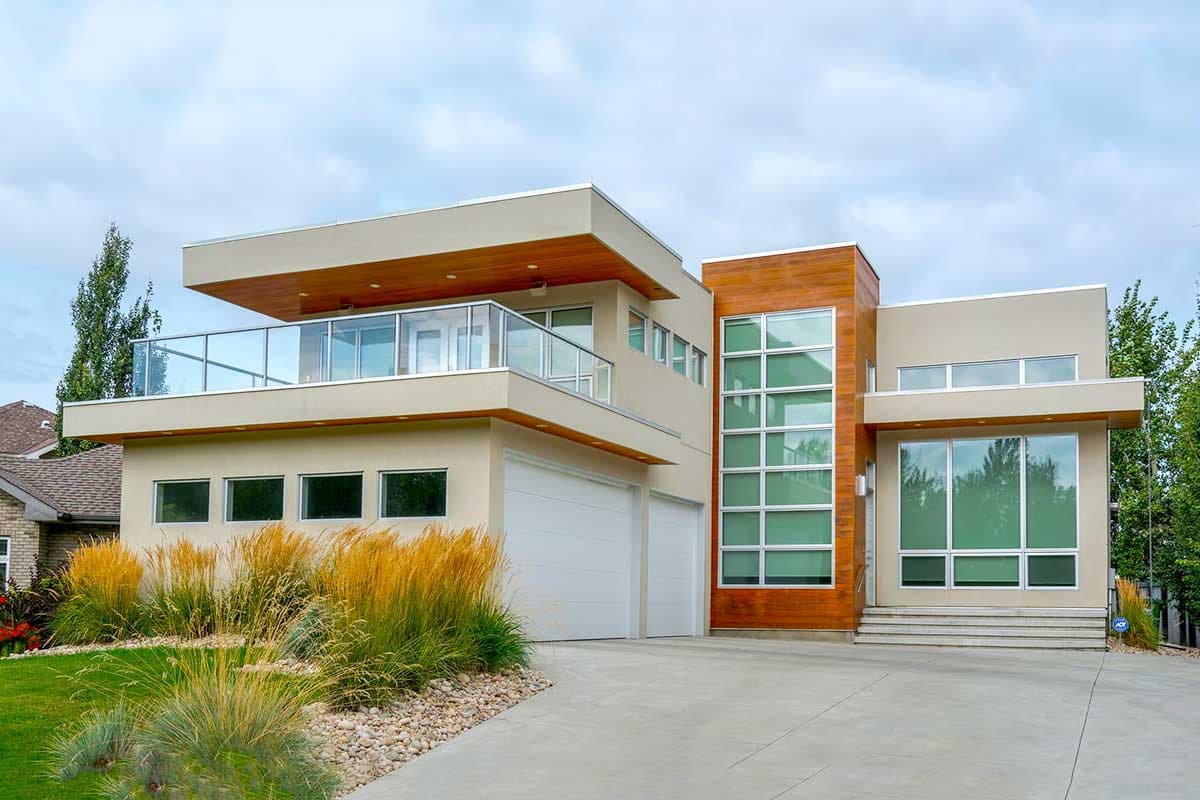

  • Dramatic clean lines and lots of glass make this Modern home plan a real stand out.
  • Both the two-story living room and the dining room are open to each other, giving you an easy flow from room to room.
  • The kitchen has an enormous island and a wall of windows that overlook the sun deck.
  • Upstairs, the master suite truly shines with its huge private patio and a trend-setting bathroom with a trough-style sink and compartmented walk-in closet.
  • Bedroom 3 has a vaulted ceiling while bedroom 2 gets a walk-in closet.

What's Included

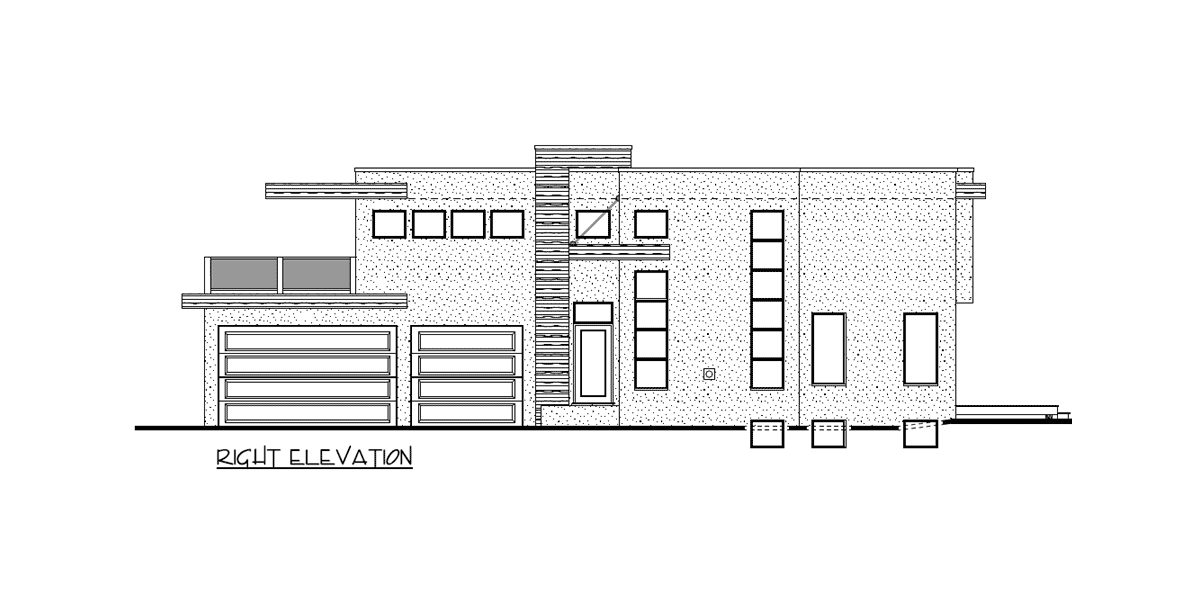

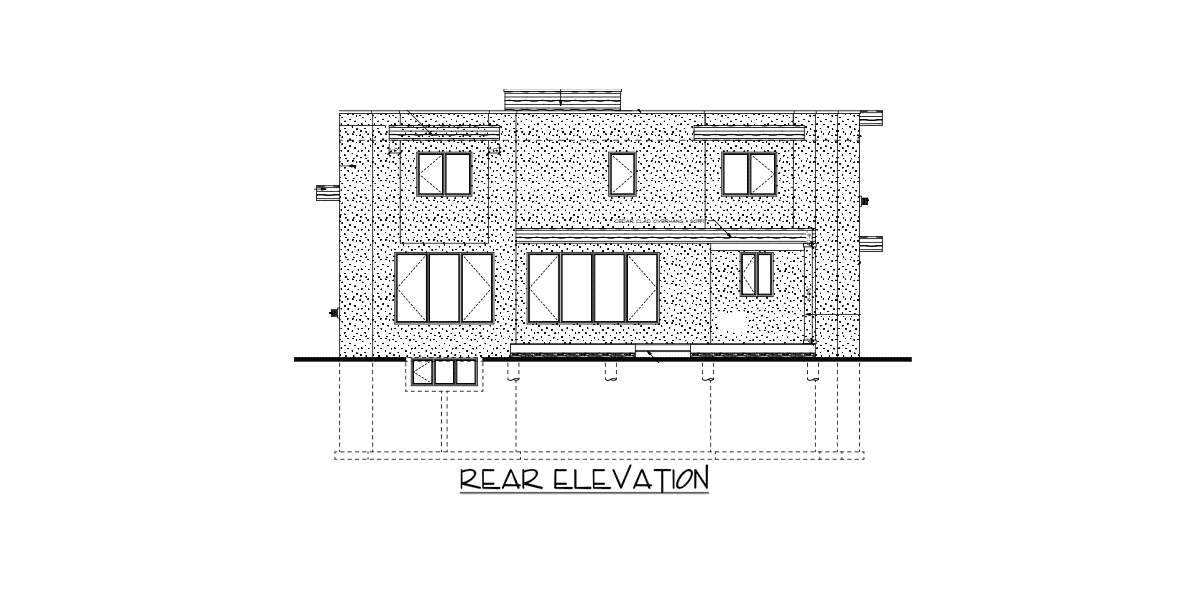

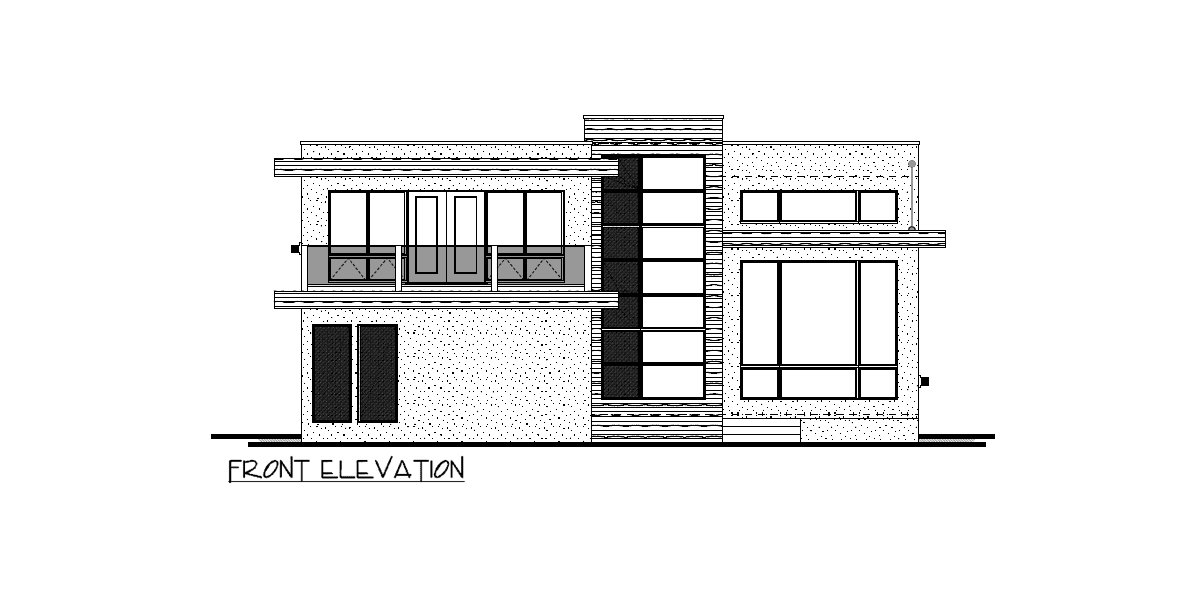

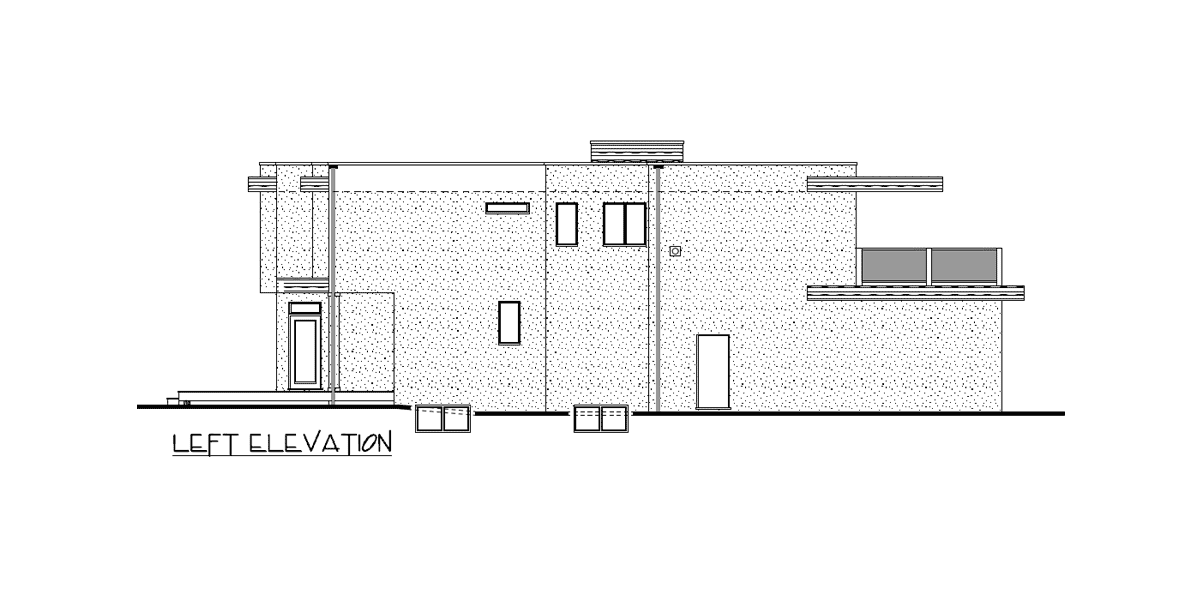

  • Elevations (Front, Rear, Left and Right)
  • Floor plans
  • Foundation plan
  • Cross section
  • Roof plan

We also include a list of building specifications, and notes for each page, with any important info the builder may need.

View Sample Plan

What's Not Included

  • Electrical plan
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

2,593 sq. ft.

1st Floor

1,276 sq. ft.

2nd Floor

1,317 sq. ft.

Optional Lower Level

1,024 sq. ft.

Porch, Rear

105 sq. ft.

Deck

439 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2 or 3

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

47' 0"

Depth

67' 0"

Max Ridge Height

25' 0"

Garage

Type

Attached

Area

683 sq. ft.

Count

3 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Framing Type

Truss

Architectural Style

Contemporary

Mid Century Modern

Modern

Northwest

Special Features

Breakfast Nook

Master Suite - Sitting Area

Master Suite - Upstairs

Mudroom

Two Story Great Room

Walk-in Pantry

Plan Collections

Canadian House Plans

Photo Gallery

Square Footage Breakdown

Total Heated Area

2,593 sq. ft.

1st Floor

1,276 sq. ft.

2nd Floor

1,317 sq. ft.

Optional Lower Level

1,024 sq. ft.

Porch, Rear

105 sq. ft.

Deck

439 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2 or 3

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

47' 0"

Depth

67' 0"

Max Ridge Height

25' 0"

Garage

Type

Attached

Area

683 sq. ft.

Count

3 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Framing Type

Truss

Architectural Style

Contemporary

Mid Century Modern

Modern

Northwest

Special Features

Breakfast Nook

Master Suite - Sitting Area

Master Suite - Upstairs

Mudroom

Two Story Great Room

Walk-in Pantry

Plan Collections

Canadian House Plans

Photo Gallery
