Modern Mediterranean-style House Plan with Pickleball-friendly Sports Court

Plan 623104DJ

  • 4,598

    Heated s.f.

  • 4-5

    Beds

  • 4.5 - 5.5

    Baths

  • 2

    Stories

  • 4

    Cars

  • The exterior of this luxurious Mediterranean-style house plan showcases contrasting stucco siding with a tile roof and low pitched hip rooflines.
  • A large covered from porch with a soaring 15' high ceiling greets guests into the home. Once inside the home, you'll find yourself in the entryway. Adjacent to the entryway is a beautiful formal living room.
  • An arched opening leads from the entry into the kitchen area. The kitchen includes a massive island with a snack ledge, a servery with a prep sink, and a walk-in pantry. The dining room and kitchen lead to a covered porch through 3 sets of French doors. The covered porch is perfect for entertaining guests with its outdoor kitchen with a built-in sink and grill.
  • The great room is warmed by a fireplace that is flanked by built-in bookshelves. The great room's soaring 2 story ceiling makes the space feel huge. The great room leads to a rear covered porch through a quad sliding door.
  • A short flight of stairs leads up to the private master suite. The master bedroom lies under a tall 16' trayed ceiling and has its own private balcony accessible through a quad sliding door. The master bathroom has a soaking tub, his/her vanities, and a walk-in closet with a washer and dryer.
  • Upstairs, you'll find 3 additional bedrooms. Each bedroom has access to its own bathroom and walk-in closet. A family room is warmed by a fireplace and has access to a covered deck with an outdoor fireplace. A hidden door leads from the hallway into a game room.
  • An optional finished basement adds an additional bedroom, 2 bathrooms, a family room, wet bar, rec room, and sports court perfect for practicing your hoops or for pickleball.
  • Back on the main floor, the homes massive 4 car garage accesses the home through a convenient mudroom with a bench and lockers.

Each plan set includes:


  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical wall section
  • Typical Stair section
  • Cabinets are shown on all plans.

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

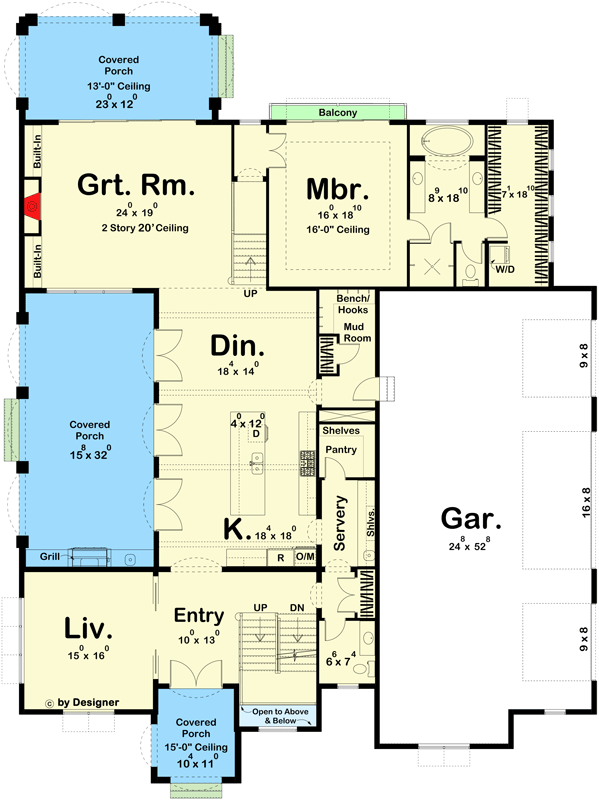

Modern Mediterranean-style House Plan with Pickleball-friendly Sports Court - 623104DJ floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

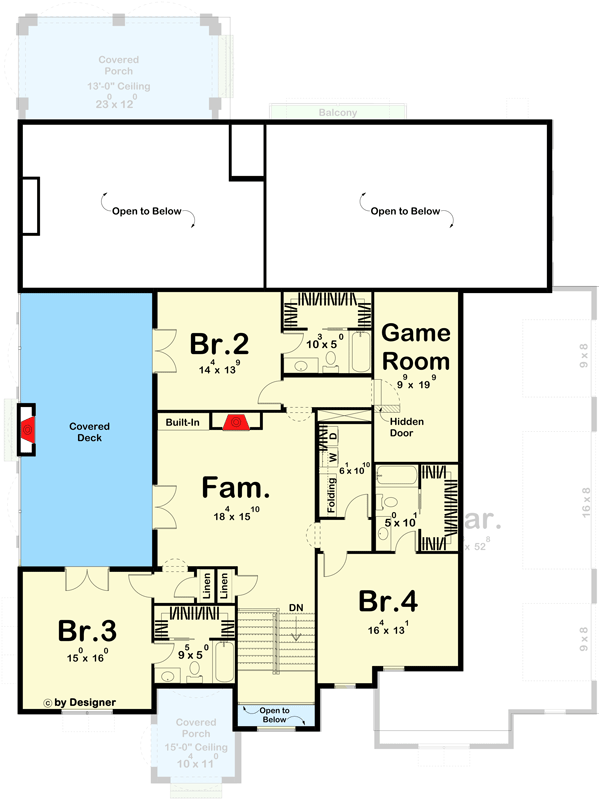

Modern Mediterranean-style House Plan with Pickleball-friendly Sports Court - 623104DJ floor plan - 2nd Floor

Optional Lower Level (+$250)

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

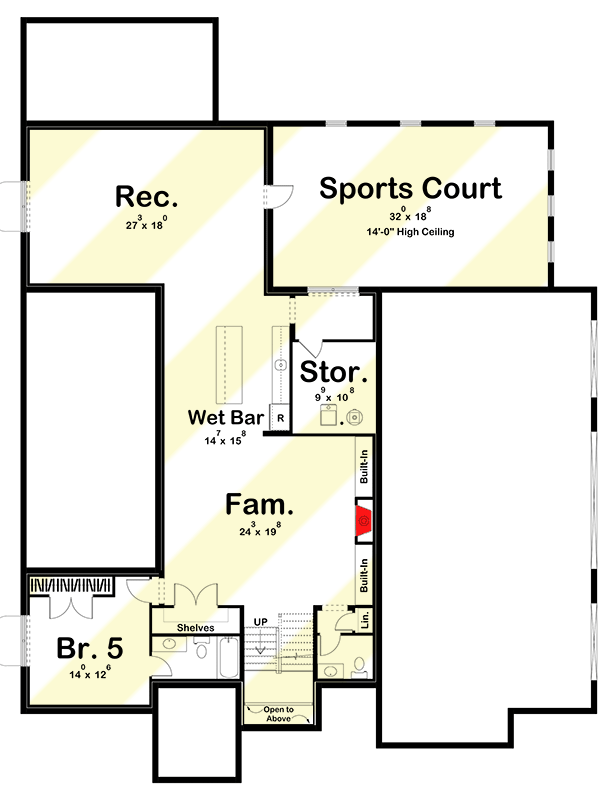

Modern Mediterranean-style House Plan with Pickleball-friendly Sports Court - 623104DJ floor plan - Optional Lower Level (+$250)

Plan details

Modern Mediterranean-style House Plan with Pickleball-friendly Sports Court

  • 4,598

    Heated s.f.

  • 4-5

    Beds

  • 4.5 - 5.5

    Baths

  • 2

    Floors

  • 4

    Car garage

Buy This Plan
  • PDF - Single-Build $2,200
  • 5 Sets + PDF $2,450
  • PDF - Unlimited Build $2,700
  • CAD + PDF - Single-Build $2,700
  • CAD - Unlimited Build $3,200
  • View all purchase option online

About This Plan

  • The exterior of this luxurious Mediterranean-style house plan showcases contrasting stucco siding with a tile roof and low pitched hip rooflines.
  • A large covered from porch with a soaring 15' high ceiling greets guests into the home. Once inside the home, you'll find yourself in the entryway. Adjacent to the entryway is a beautiful formal living room.
  • An arched opening leads from the entry into the kitchen area. The kitchen includes a massive island with a snack ledge, a servery with a prep sink, and a walk-in pantry. The dining room and kitchen lead to a covered porch through 3 sets of French doors. The covered porch is perfect for entertaining guests with its outdoor kitchen with a built-in sink and grill.
  • The great room is warmed by a fireplace that is flanked by built-in bookshelves. The great room's soaring 2 story ceiling makes the space feel huge. The great room leads to a rear covered porch through a quad sliding door.
  • A short flight of stairs leads up to the private master suite. The master bedroom lies under a tall 16' trayed ceiling and has its own private balcony accessible through a quad sliding door. The master bathroom has a soaking tub, his/her vanities, and a walk-in closet with a washer and dryer.
  • Upstairs, you'll find 3 additional bedrooms. Each bedroom has access to its own bathroom and walk-in closet. A family room is warmed by a fireplace and has access to a covered deck with an outdoor fireplace. A hidden door leads from the hallway into a game room.
  • An optional finished basement adds an additional bedroom, 2 bathrooms, a family room, wet bar, rec room, and sports court perfect for practicing your hoops or for pickleball.
  • Back on the main floor, the homes massive 4 car garage accesses the home through a convenient mudroom with a bench and lockers.

Floor Plans

  • Main Level

  • 2nd Floor

  • Optional Lower Level (+$250)

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,598 sq. ft.
  • 1st Floor: 2,750 sq. ft.
  • 2nd Floor: 1,848 sq. ft.
  • Porch, Combined: 885 sq. ft.
  • Porch, Rear: 276 sq. ft.
  • Porch, Front: 108 sq. ft.
  • Left Porch: 501 sq. ft.

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 4 or 5
  • Half bathrooms: 1 or 2

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 67' 0"
  • Depth: 89' 0"
  • Max ridge height: 34' 0"

Garage

  • Type: Attached
  • Area: 1305 sq. ft.
  • Count: 4 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss
