Plan 54246HU
Modern Mountain Home Plan Under 3000 Square Feet with Tandem 3-Car Garage
Heated S.F.
2,979
Beds
3-4
Baths
3
Stories
2
Cars
2
What's Included
Plan Details
  • This modern mountain home plan gives you 3 beds - plus a flex room that can be used as a fourth bedroom - 3 baths and 2,979 square feet of heated living space.

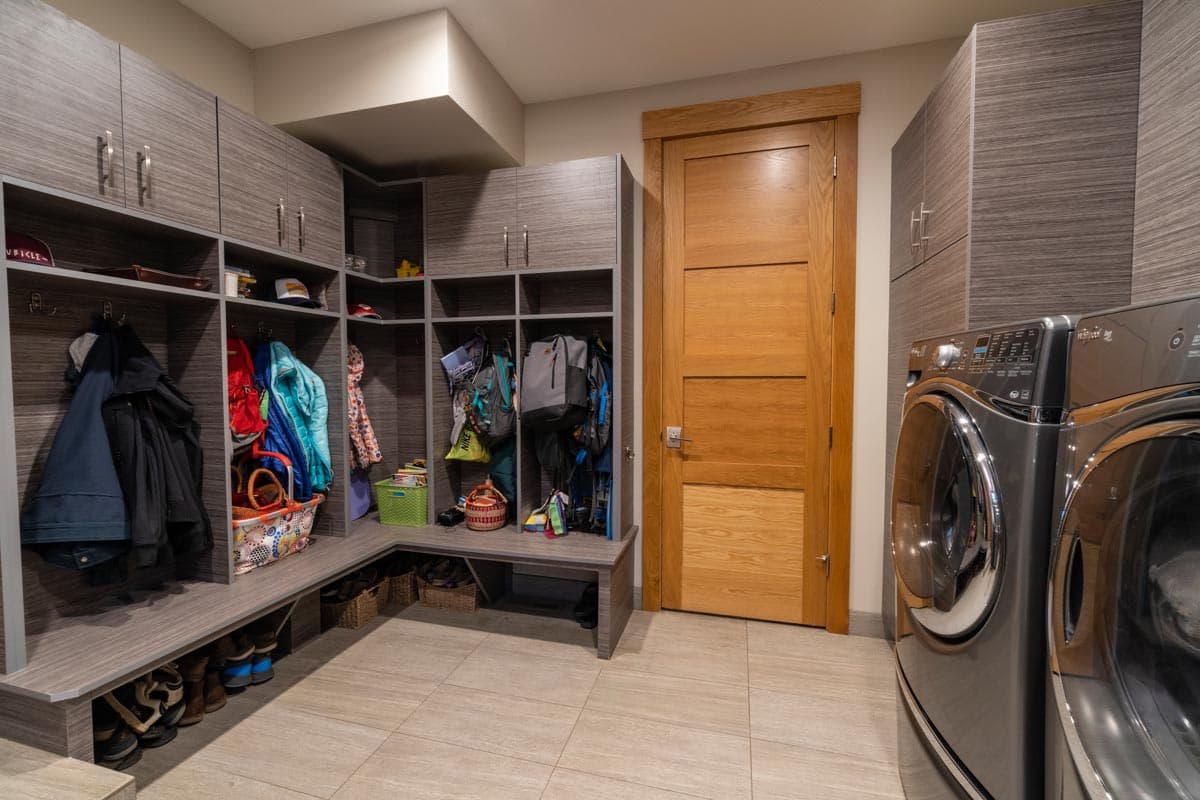

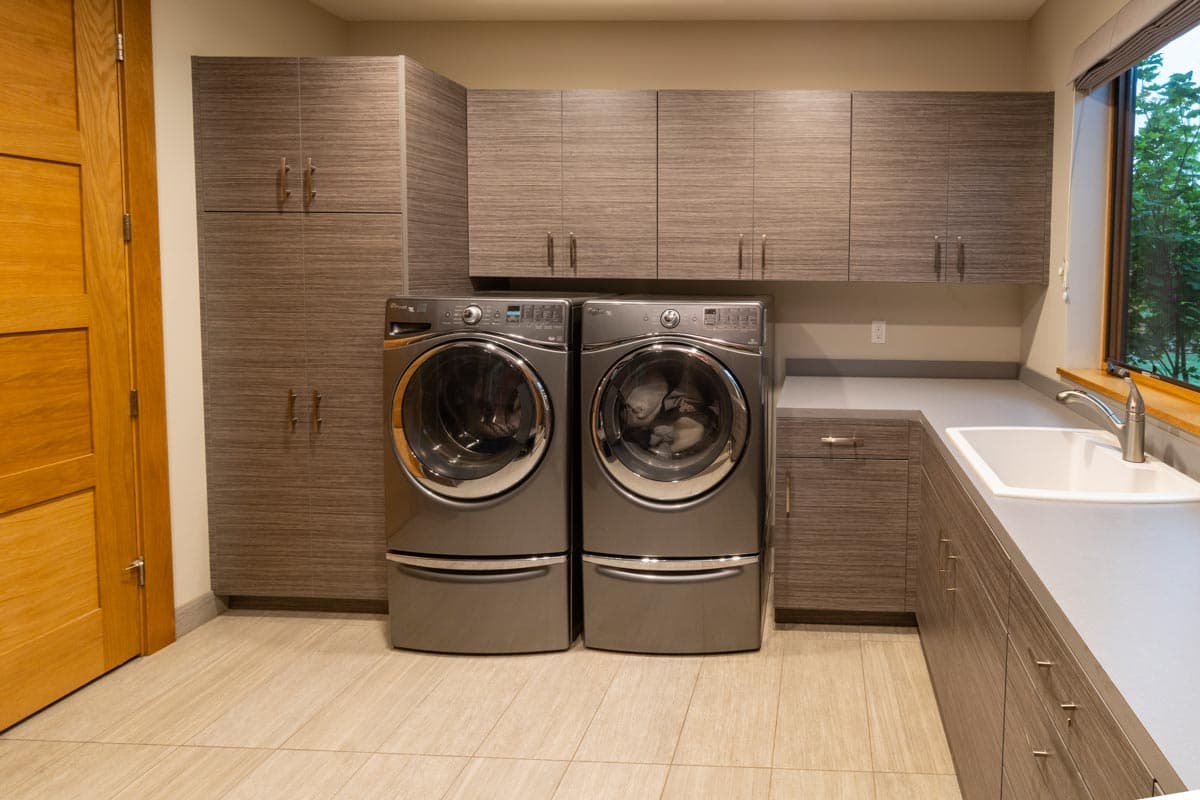

  • A 3-car garage fits two cars tandem style in the left and a single car on the right with a workshop in back that accesses the home through the oversized laundry/mudroom.

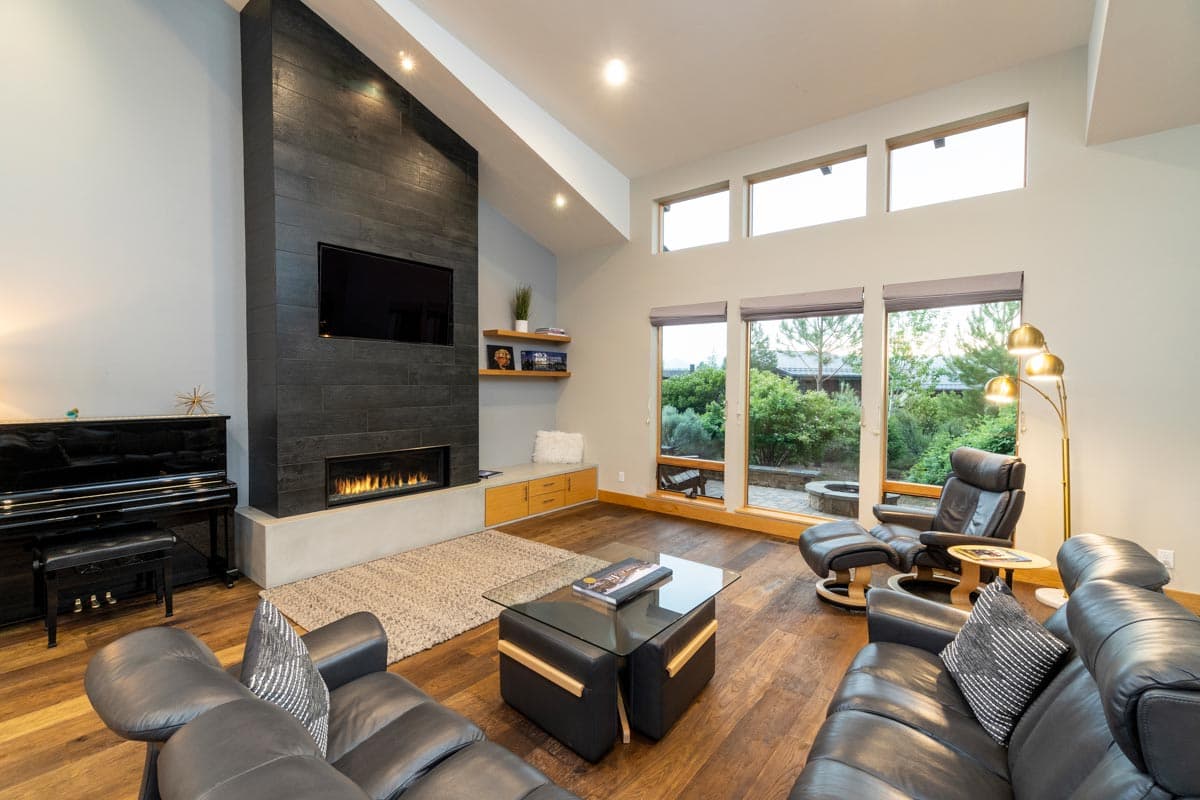

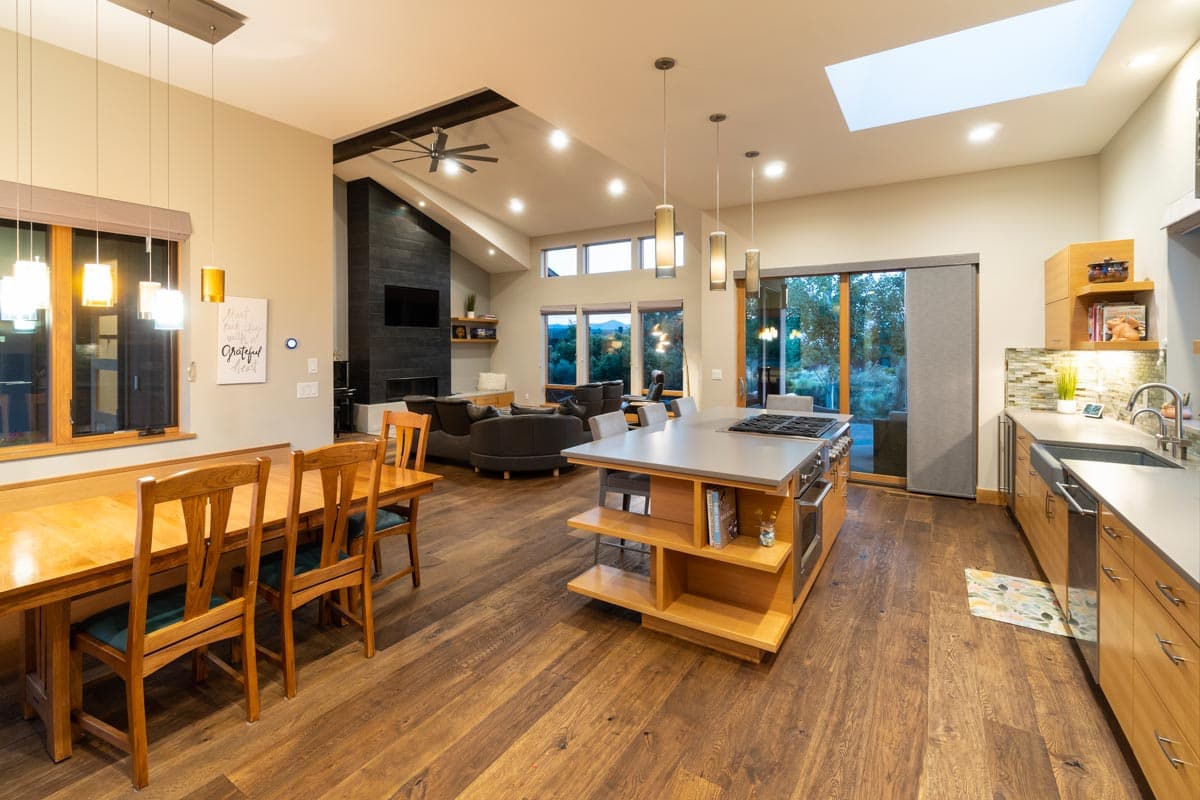

  • The great room has a 2-story ceiling and great views to the back. Enjoy the outdoor living room accessible from the room as well as through the collapsible wall in back of the kitchen.

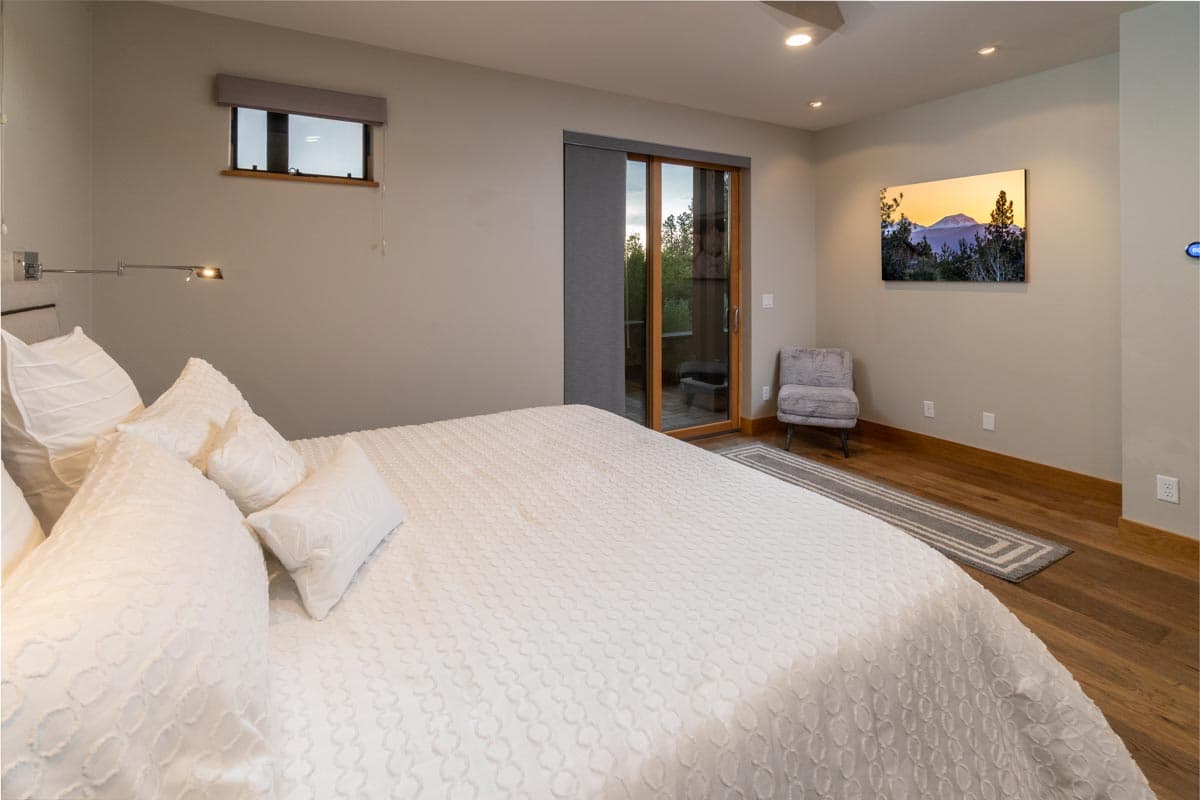

  • On the left, the private master suite has access to a terrace and has two walk-in closets and a bath with two vanities, a spa tub, walk-in shower and a private toilet room.
  • Two bedrooms on the second floor share a bathroom with two vanities and a playroom/study with built-ins.

What's Included
  • Cover sheet with renderings or photos
  • Site plan from original project for reference, with floor areas and drawing index
  • Main level architectural plan
  • Upper level architectural plan

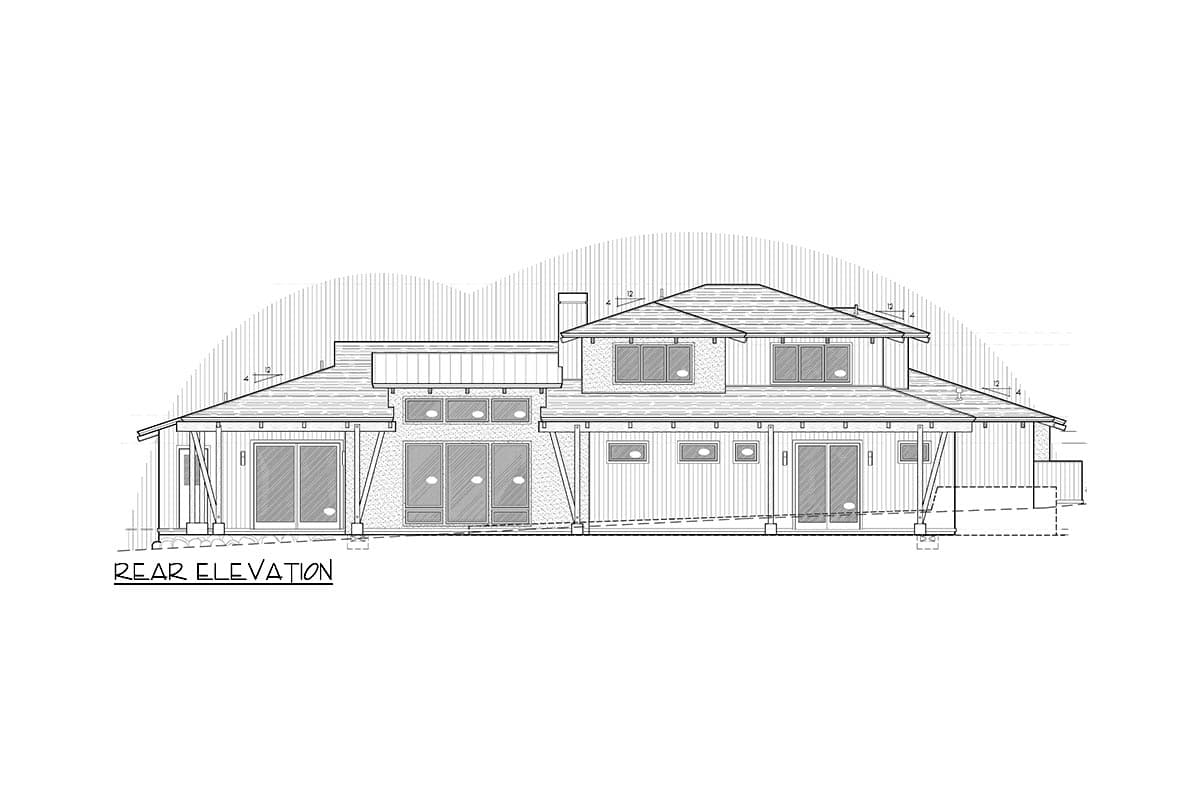

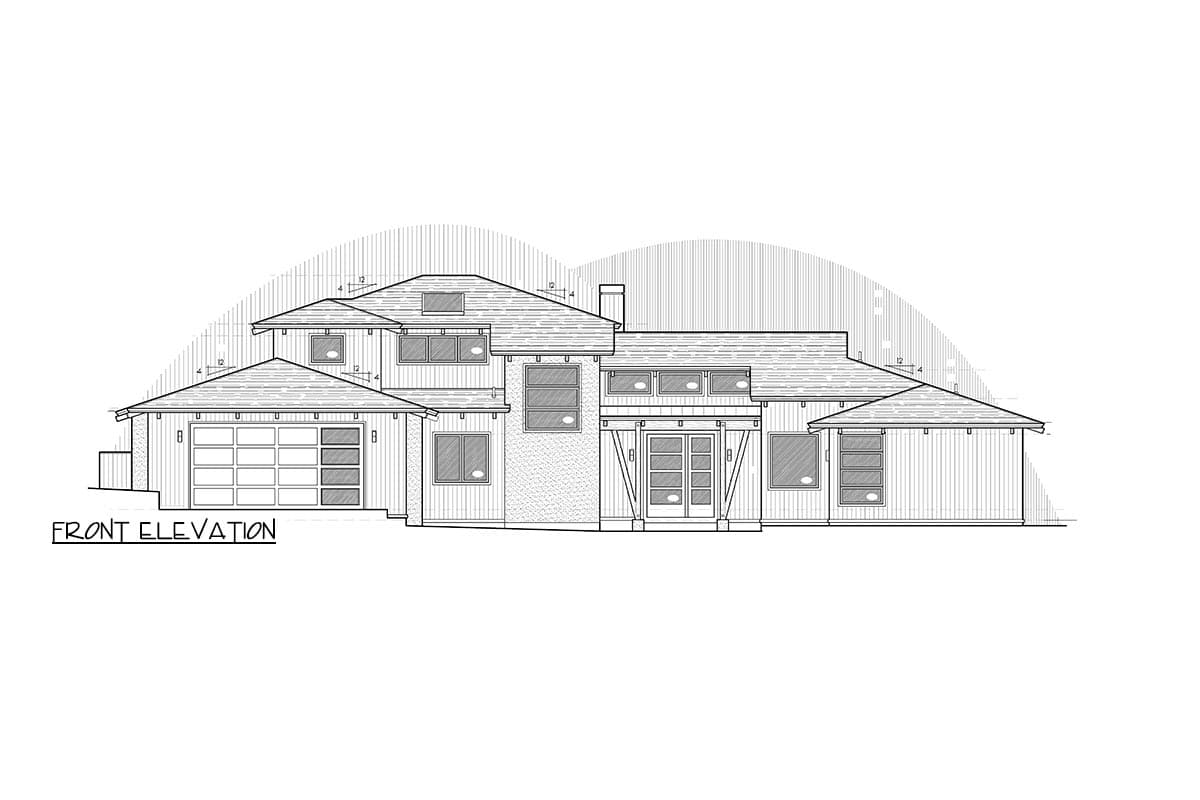

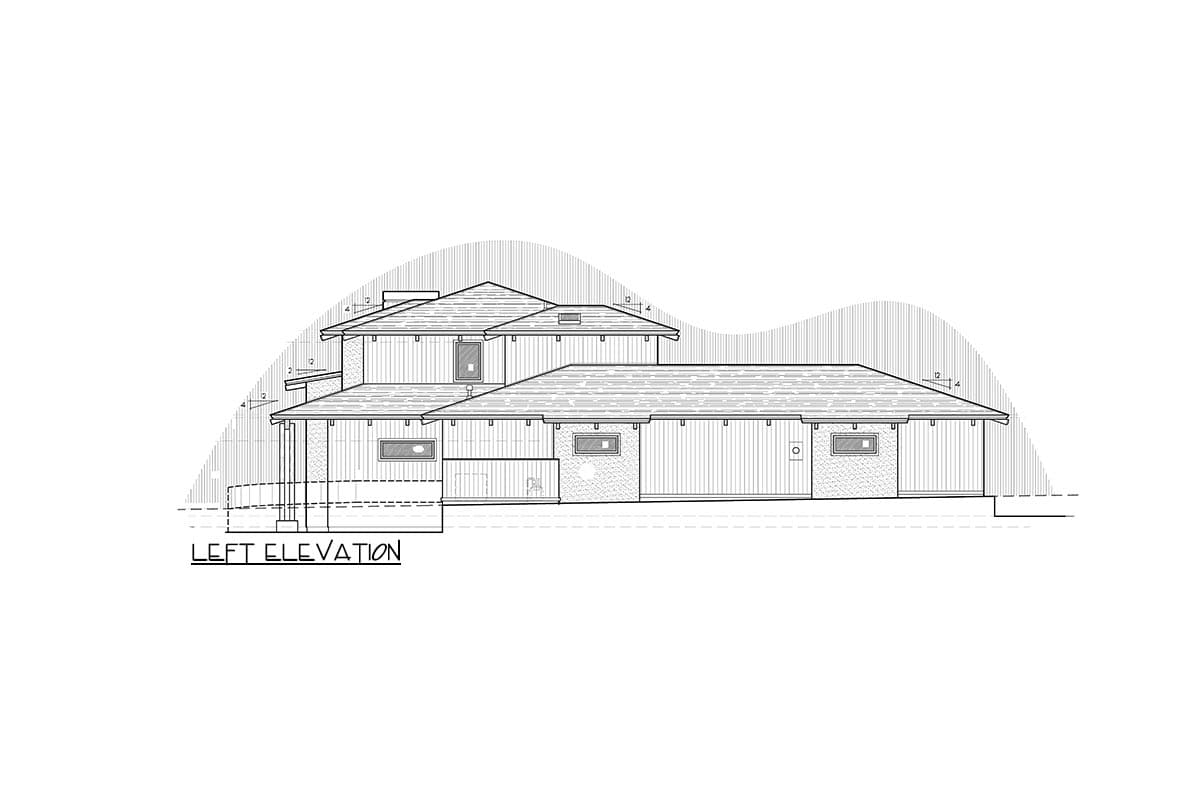

  • Elevations of four sides
  • Section drawings at ¼” scale
  • Typical construction details and framing details
  • Foundation and floor framing plan
  • Upper level floor and lower roof framing plan
  • Upper roof framing plan
  • Basic lighting plans for main and upper levels available for some plans.  Check availability.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Modern Mountain Home Plan Under 3000 Square Feet with Tandem 3-Car Garage

  • 2,979

    Heated s.f.

  • 3-4

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

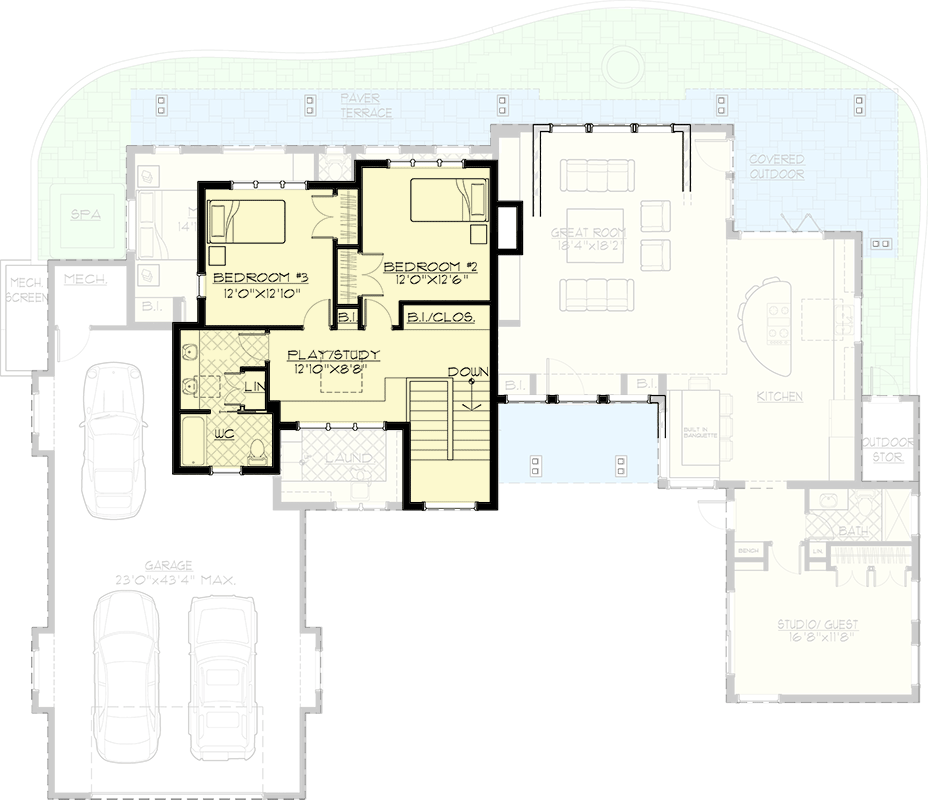

  • 2nd Floor
