Plan 785008KPH Modern Northwest 4-Bed House Plan with Second-Level Master

3,016 4 2.5 2 3
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Modern Northwest 4-Bed House Plan with Second-Level Master

Plan 785008KPH

  • 3,016

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • This modern, Northwest house plan features four bedrooms, a welcoming front porch, and an open floor plan.
  • A common, shared space on the main level is comprised of the family room and kitchen, while a quiet dining room allows for more intimate formal meals. A butler's pantry connects the dining room with the kitchen.
  • The oversized island in the kitchen provides ample workspace and a walk-in pantry adds storage space. A sliding door near the breakfast nook invites you to enjoy the back patio, while the family room boasts a fireplace and large windows for plenty of natural light.
  • Upstairs, your well-appointed master suite awaits through french doors, and features a sitting area, 5-fixture master bathroom, and a large walk-in closet with access to the laundry room.
  • Three additional bedrooms share a 4-fixture bathroom, and a bonus room offers versatility.

What is Included in Our Plans?

We work with hundreds of designer and architects who work in a variety of styles.  It is important to note their plan packages may contain different details so we strongly encourage you to contact us for the contents of any plan you may be interested in purchasing.

Below is a listing of sheets typically included in our plans:

Foundation Plan

shows the foundation details.

Floor Plan

shows the placement of interior walls and the dimensions for rooms, doors, windows, stairways, etc. of each level of the house.

Exterior Elevations

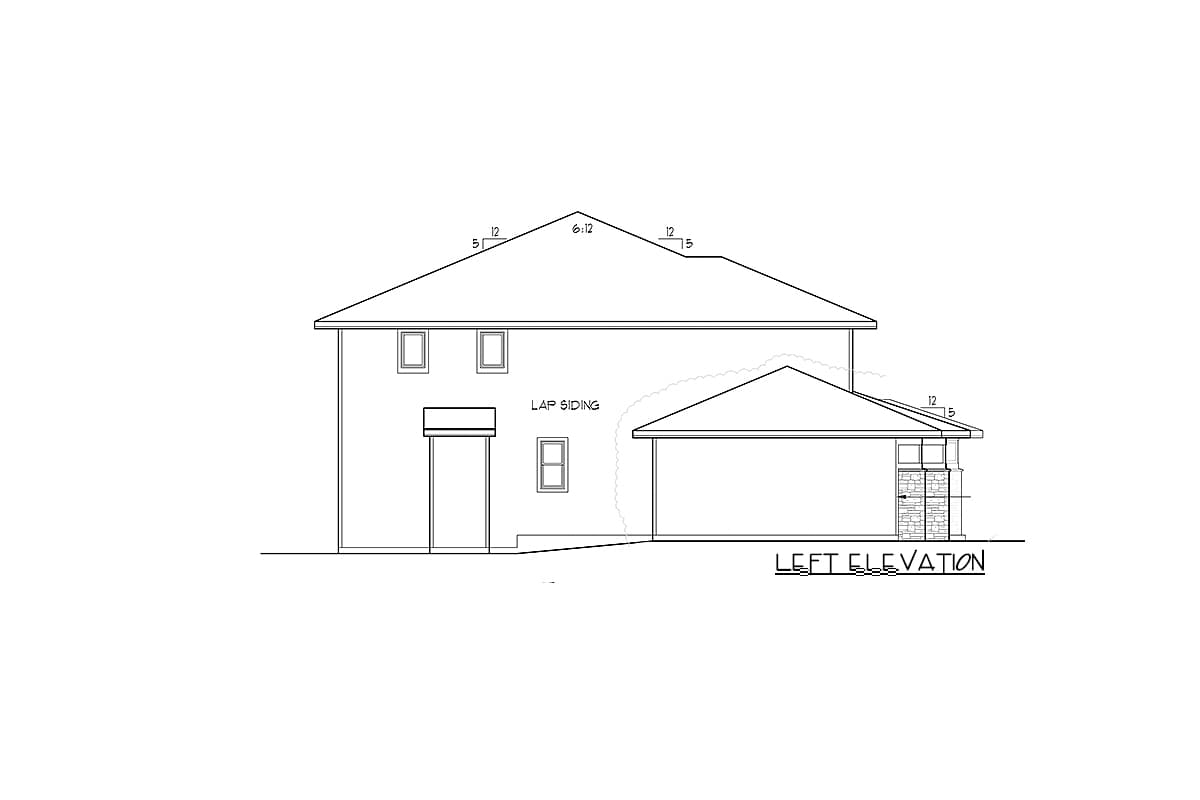

show the front, rear and sides of the house, including exterior materials, details and roof pitches.

Building Cross Section

shows details of the house as though it were cut in slices from the roof to the foundation. The cross sections detail the construction of the home, insulation, flooring and roofing.

Interior Elevations

show the details of cabinets such as those found in the kitchen, bathroom and utility room, fireplaces and other special interior features.

Roof Plan

provides a bird's eye view of the roof's valleys, ridges and dormers, if applicable

Electrical Plan (when available)

shows the suggested locations for fixtures and outlets. Please contact us to see if an electrical plan is included in the plan set.

Notes & Details

provides information for structural specifications, excavating and grading, masonry and concrete work, carpentry and wood specifications, thermal and moisture protection and specifications about drywall, tile, flooring, glazing, caulking and sealants.

What is not included in the plans:

  •           Architectural or Engineering Stamp
  •           Site Plan
  •           Mechanical Drawings (location of heating and air equipment and duct work)
  •           Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  •           Framing layouts with beam sizes and locations
  •           Energy calculations
  •           Materials list - MAY be available as a purchasable option under the "Options" tab

Building Code

Because of the wide range of requirements throughout states and municipalities, it is possible that the plans may not have all of the information required by your building department. If this is the case, we recommend hiring a local design professional or engineer who can assist bringing the plans up to your local building code.

Engineering

Some states require that a licensed architect or engineer review and stamp the plans. If this is the case where you will be building, a local professional will be able to assist you.

Important Extras: Sold separately

Readable Reverse Plans

The layout is reversed and all the writing is corrected so you can read the writing. With this option, all of your sets will appear the way you want to build the home. This option is available for an additional charge.

Mirror Reverse Plans

The lettering and dimensions will read backwards, so you will need to order at least one set non-reversed as a reference copy.

Itemized List of Materials (when available)

Includes the quantity, type and size of materials needed to build your home.

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Modern Northwest 4-Bed House Plan with Second-Level Master - 785008KPH floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

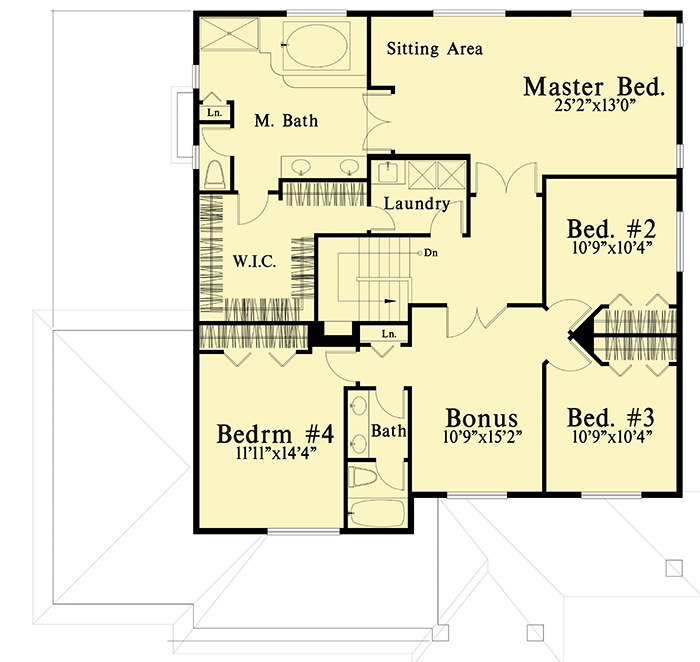

Modern Northwest 4-Bed House Plan with Second-Level Master - 785008KPH floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,016 sq. ft.
  • 1st Floor: 1,393 sq. ft.
  • 2nd Floor: 1,623 sq. ft.
  • Porch, Rear: 140 sq. ft.
  • Porch, Front: 178 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 51' 11"
  • Depth: 52' 0"

Garage

  • Type: Attached
  • Area: 706 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 5 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Modern Northwest 4-Bed House Plan with Second-Level Master

  • 3,016

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,495
  • 5 Sets + PDF $1,695
  • CAD - Single-Build $2,995
  • View all purchase option online

About This Plan

  • This modern, Northwest house plan features four bedrooms, a welcoming front porch, and an open floor plan.
  • A common, shared space on the main level is comprised of the family room and kitchen, while a quiet dining room allows for more intimate formal meals. A butler's pantry connects the dining room with the kitchen.
  • The oversized island in the kitchen provides ample workspace and a walk-in pantry adds storage space. A sliding door near the breakfast nook invites you to enjoy the back patio, while the family room boasts a fireplace and large windows for plenty of natural light.
  • Upstairs, your well-appointed master suite awaits through french doors, and features a sitting area, 5-fixture master bathroom, and a large walk-in closet with access to the laundry room.
  • Three additional bedrooms share a 4-fixture bathroom, and a bonus room offers versatility.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,016 sq. ft.
  • 1st Floor: 1,393 sq. ft.
  • 2nd Floor: 1,623 sq. ft.
  • Porch, Rear: 140 sq. ft.
  • Porch, Front: 178 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 51' 11"
  • Depth: 52' 0"

Garage

  • Type: Attached
  • Area: 706 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 5 on 12
  • Framing Type: Truss
Plan 785008KPH
View this and more for this plan by visiting www.architechtecturaldesigns.com/785008KPH
|
Need Help? 800-854-7852
|
Plan 785008KPH
