Plan 270021AF Modern Northwest Home Plan with Two-Story Great Room

4,132 4 3.5 2 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Modern Northwest Home Plan with Two-Story Great Room

Plan 270021AF

  • 4,132

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • Oversized windows define this modern Northwest home plan, while allowing an abundance of natural to fill the interior. The main level consists of an open concept living space, spacious back deck ideal for grilling and dining outdoors, and a quiet study for the work-at-home resident.
  • The grand kitchen is a cook's dream, and includes loads of workspace, a centered island with a bar sink, and a nearby walk-in pantry.
  • Upstairs, French doors reveal the master bedroom, which features a large picture window to take advantage of the rearward views. Barn doors grant access to the 5-fixture ensuite with a walk-in closet.
  • Bedrooms 2 and 3 share a Jack-and-Jill bath, and the laundry room is conveniently located on the second level to help streamline the chore.
  • The walk-out lower level is where you'll find the fourth bedroom, along with a sizable recreation room, wine cellar, full bath, and spacious covered patio.

This house plan has 11 pages as follows:


Title sheet
Foundation plan
Basement floor
Main floor
Upper floor plan
Roof plan

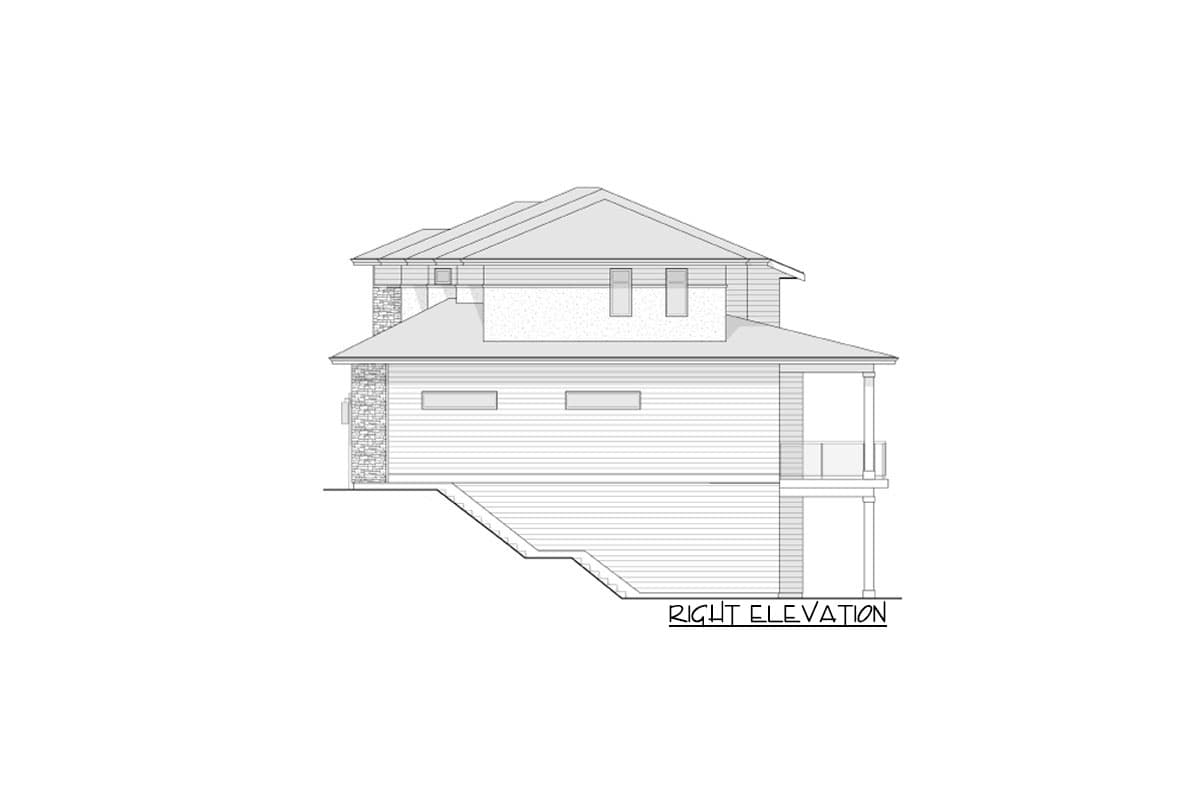

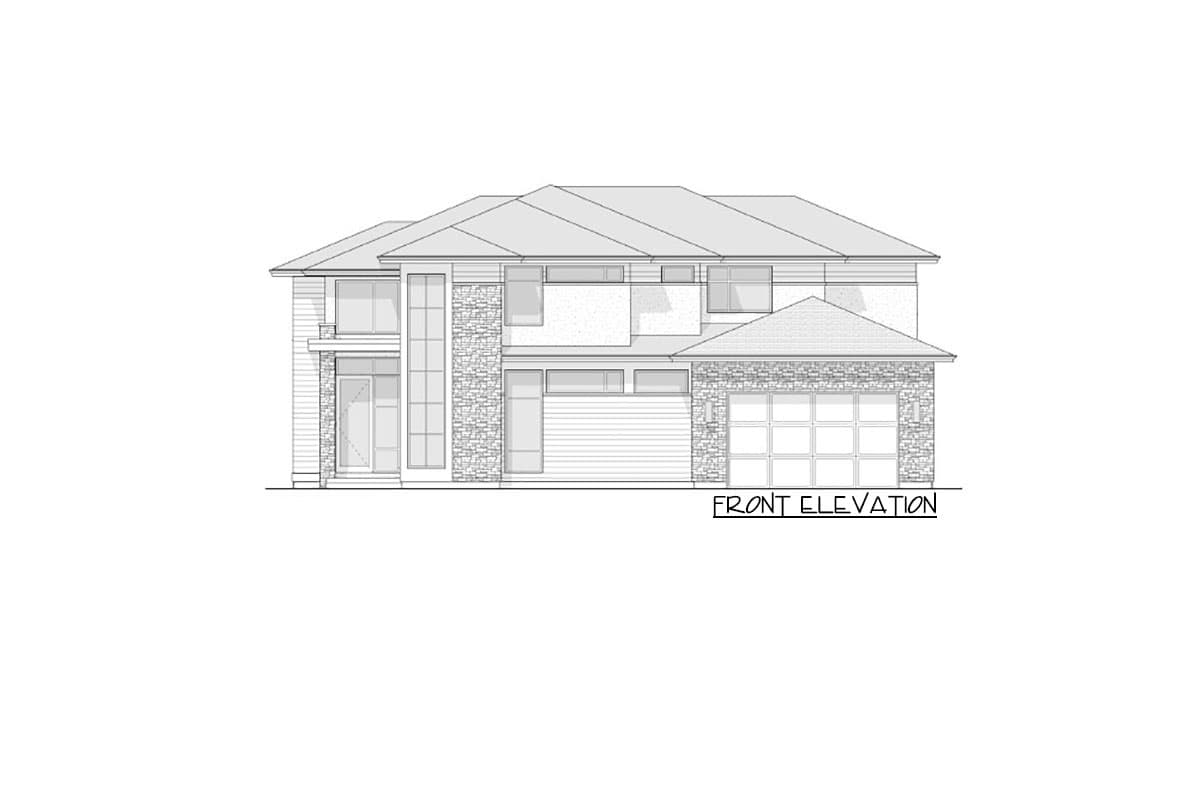

Exterior elevations (2 pages)
Sections
Details (2 pages)

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

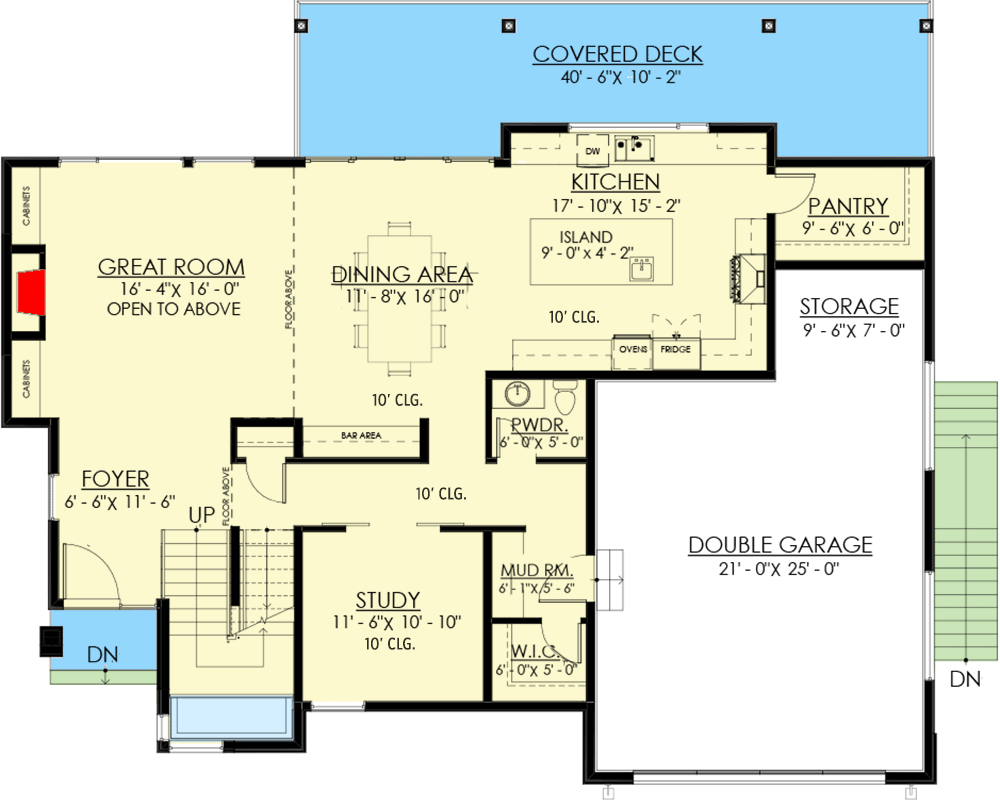

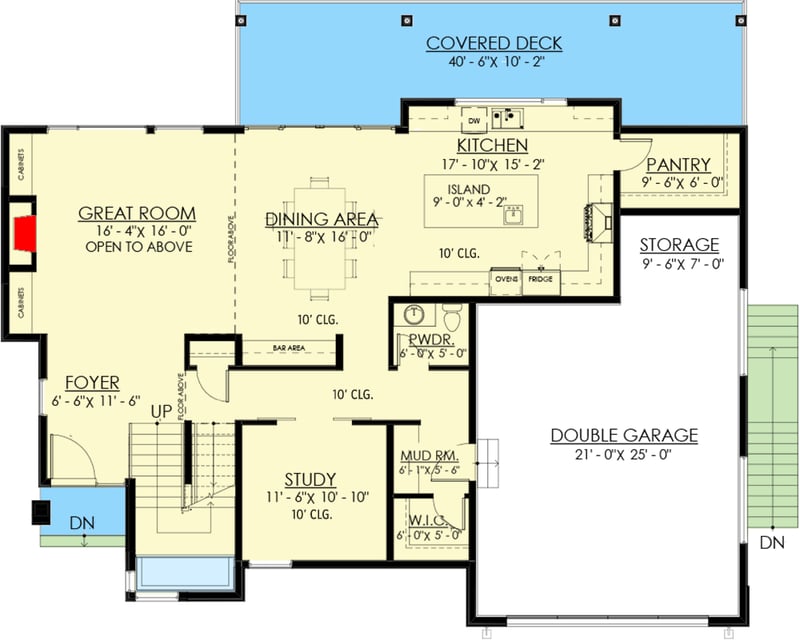

Modern Northwest Home Plan with Two-Story Great Room - 270021AF floor plan - Main Level

Second Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

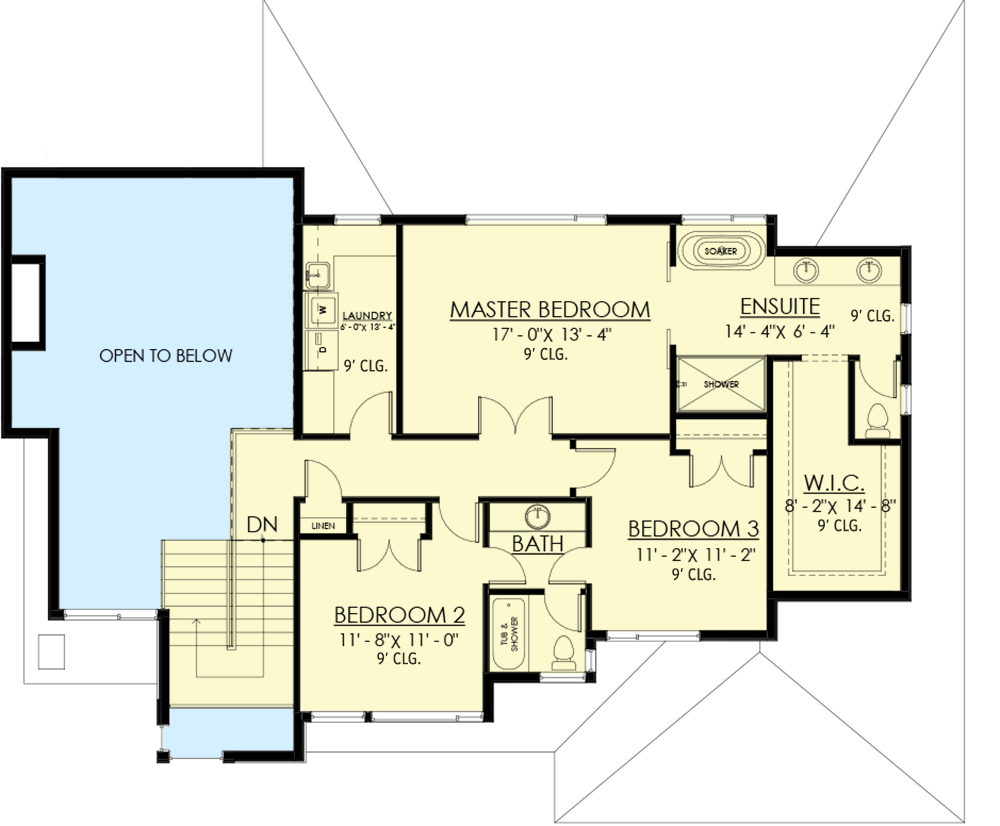

Modern Northwest Home Plan with Two-Story Great Room - 270021AF floor plan - Second Level

Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

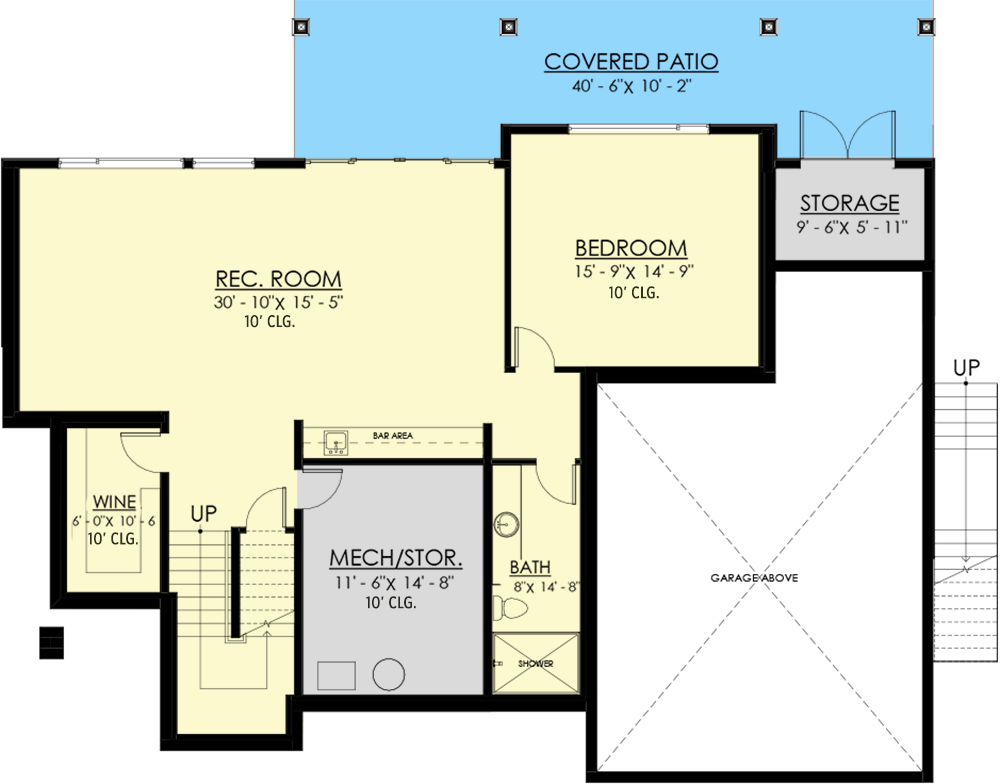

Modern Northwest Home Plan with Two-Story Great Room - 270021AF floor plan - Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 4,132 sq. ft.
  • Lower Level: 1,510 sq. ft.
  • 1st Floor: 1,503 sq. ft.
  • 2nd Floor: 1,119 sq. ft.
  • Deck: 374 sq. ft.
  • Porch, Front: 27 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Walkout
  • Optional Foundations: Slab, Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 59' 0"
  • Depth: 41' 8"
  • Max ridge height: 28' 2"

Garage

  • Type: Attached
  • Area: 621 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 10' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 5 on 12
  • Secondary Pitch: 6 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Modern Northwest Home Plan with Two-Story Great Room

  • 4,132

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,895
  • CAD Unlimited + PDF $2,895
  • View all purchase option online

About This Plan

  • Oversized windows define this modern Northwest home plan, while allowing an abundance of natural to fill the interior. The main level consists of an open concept living space, spacious back deck ideal for grilling and dining outdoors, and a quiet study for the work-at-home resident.
  • The grand kitchen is a cook's dream, and includes loads of workspace, a centered island with a bar sink, and a nearby walk-in pantry.
  • Upstairs, French doors reveal the master bedroom, which features a large picture window to take advantage of the rearward views. Barn doors grant access to the 5-fixture ensuite with a walk-in closet.
  • Bedrooms 2 and 3 share a Jack-and-Jill bath, and the laundry room is conveniently located on the second level to help streamline the chore.
  • The walk-out lower level is where you'll find the fourth bedroom, along with a sizable recreation room, wine cellar, full bath, and spacious covered patio.

Floor Plans

  • Main Level

  • Second Level

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,132 sq. ft.
  • Lower Level: 1,510 sq. ft.
  • 1st Floor: 1,503 sq. ft.
  • 2nd Floor: 1,119 sq. ft.
  • Deck: 374 sq. ft.
  • Porch, Front: 27 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Walkout
    • Optional Foundations: Slab, Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 59' 0"
  • Depth: 41' 8"
  • Max ridge height: 28' 2"

Garage

  • Type: Attached
  • Area: 621 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 5 on 12
  • Secondary Pitch: 6 on 12
  • Framing Type: Truss
Plan 270021AF
View this and more for this plan by visiting www.architechtecturaldesigns.com/270021AF
|
Need Help? 800-854-7852
|
Plan 270021AF
