Plan 22564DR Modern One-Story House Plan with Laundry Chute to Basement

Modern One-Story House Plan with Laundry Chute to Basement

Plan 22564DR

  • 1,421

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 1

    Stories

  • This modern ranch house plan with a skillion roof gives you one-level living and the convenience of a laundry chute to the basement laundry room.
  • Enter off the covered porch to the foyer and with mud room giving you room to store coats and shoes and other personal gear. The open-concept floor plan combines the kitchen, dining room, and living room.
  • A large, multi-purpose island offers seating for informal meals, and a walk-in pantry sits within reach for easy access.
  • Sliding doors in the dining room lead to good-sized porch for outdoor enjoyment.
  • The master suite has a walk-in closet and shares the bathroom - with dual vanities and laundry chute - with the second bedroom.
  • Related Plan: Get a smaller one-bed version with house plan 22550DR (1,221 sq. ft.).

Each plan includes the following:

* 4 Elevations
* Foundation Plan
* Main Floor Plan
* Upper Floor Plans (if applicable)
* Roof Plan
* Truss Diagrams & Building Section
* Construction Details
* Typical Wall Section

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

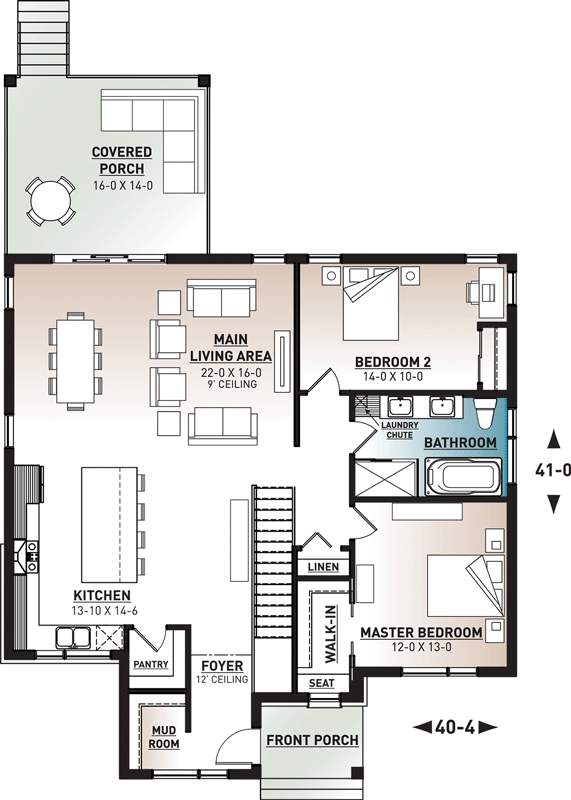

Modern One-Story House Plan with Laundry Chute to Basement - 22564DR floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

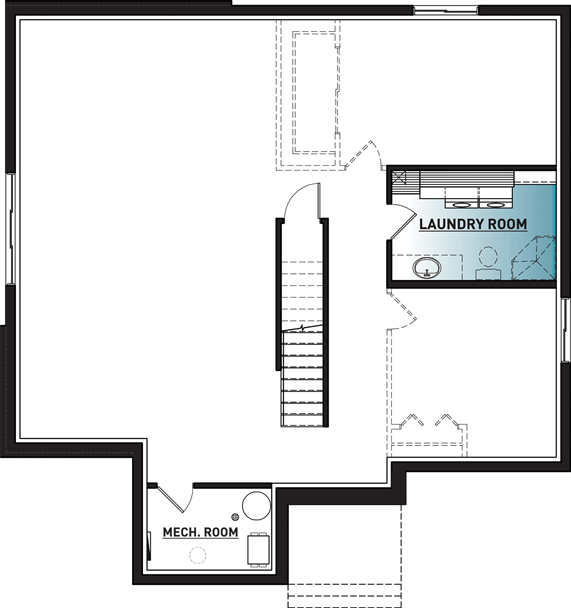

Modern One-Story House Plan with Laundry Chute to Basement - 22564DR floor plan - Lower Level

Plan details

Modern One-Story House Plan with Laundry Chute to Basement

  • 1,421

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 1

    Floors

Buy This Plan
  • Reproducible Set $1,055
  • PDF - Single-Build $1,055
  • 5 Sets + PDF $1,180
  • CAD - Single-Build $1,655
  • View all purchase option online

About This Plan

  • This modern ranch house plan with a skillion roof gives you one-level living and the convenience of a laundry chute to the basement laundry room.
  • Enter off the covered porch to the foyer and with mud room giving you room to store coats and shoes and other personal gear. The open-concept floor plan combines the kitchen, dining room, and living room.
  • A large, multi-purpose island offers seating for informal meals, and a walk-in pantry sits within reach for easy access.
  • Sliding doors in the dining room lead to good-sized porch for outdoor enjoyment.
  • The master suite has a walk-in closet and shares the bathroom - with dual vanities and laundry chute - with the second bedroom.
  • Related Plan: Get a smaller one-bed version with house plan 22550DR (1,221 sq. ft.).

Floor Plans

  • Main Level

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,421 sq. ft.
  • 1st Floor: 1,421 sq. ft.
  • Porch, Rear: 224 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Walkout, Daylight, Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 40' 4"
  • Depth: 41' 0"
  • Max ridge height: 20' 2"

Ceiling Heights

  • Floor / Height: Lower Level / 8' 0" First Floor / 9' 0"

Roof

  • Primary Pitch: 3 on 12
  • Secondary Pitch: 3 on 12
