Plan 270050AF

Modern Pool House with Studio or Gym

Heated S.F.
266
Beds
0
Baths
1
Stories
1

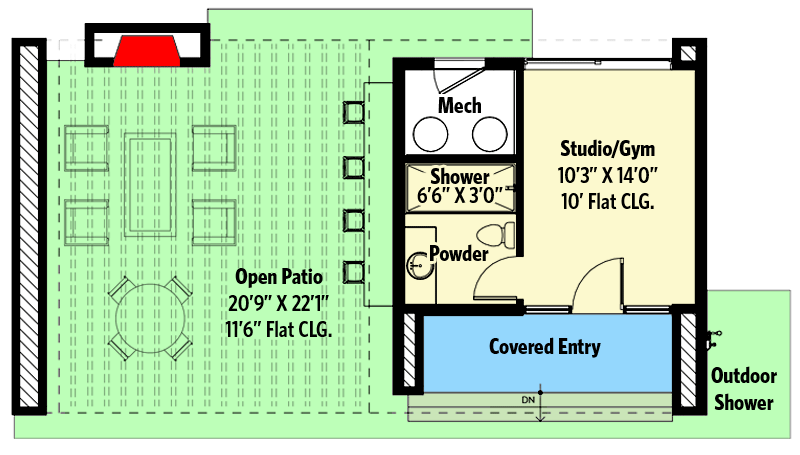

Floor Plan

Plan 270050AF

Main Level
Main Level

Plan 270050AF

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 270050AF: Modern Pool House with Studio or Gym - Floor Plan - Main Level - Contemporary, Mid Century Modern, Modern, Northwest

Plan Details

  • Simple, clean lines add to the modern appeal of this stunning pool house.
  • The covered lounge area is generously sized and boasts a fireplace and bar with casual seating.
  • The right side of the pool house presents a studio, or gym, with a full bathroom.
  • An outdoor shower provides the perfect spot to wash off after a workout or swim.

What's Included

  • Foundation Plan
  • Floor Plan(s) with Door and Window Opening Sizes
  • Roof Plan showing pitches, valleys, ridges

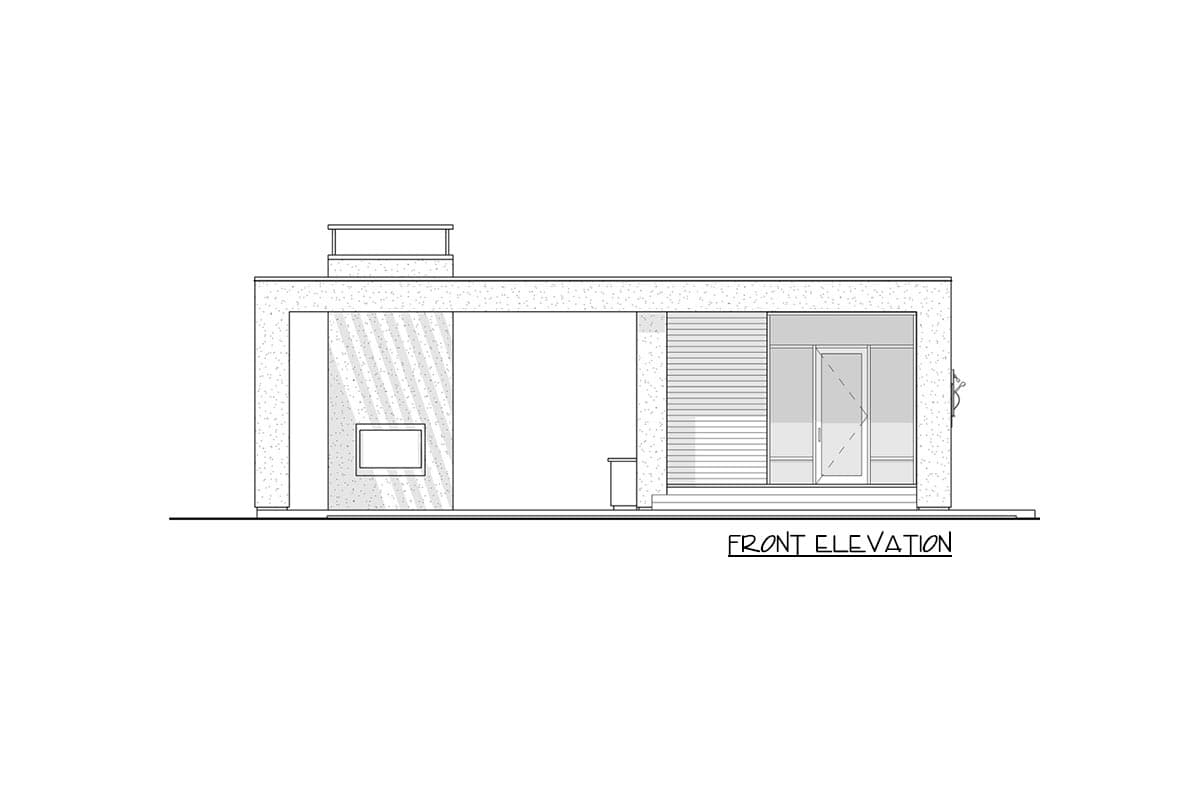

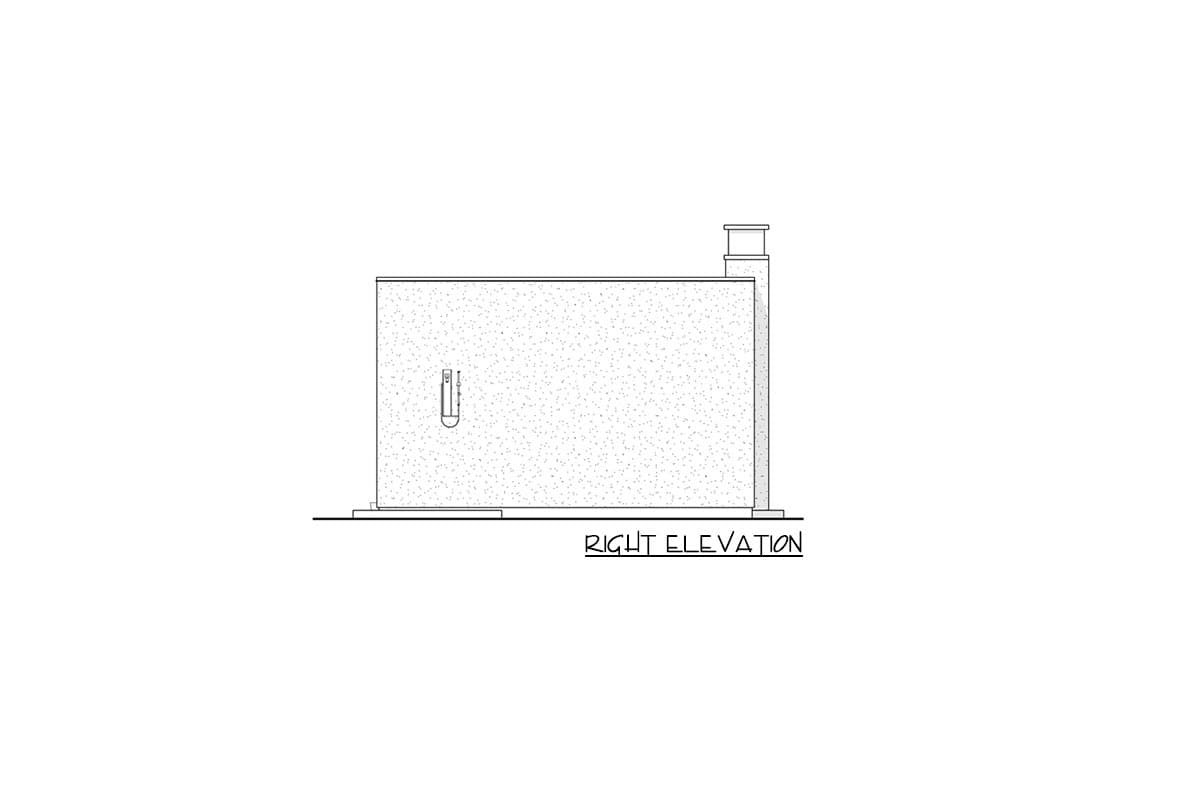

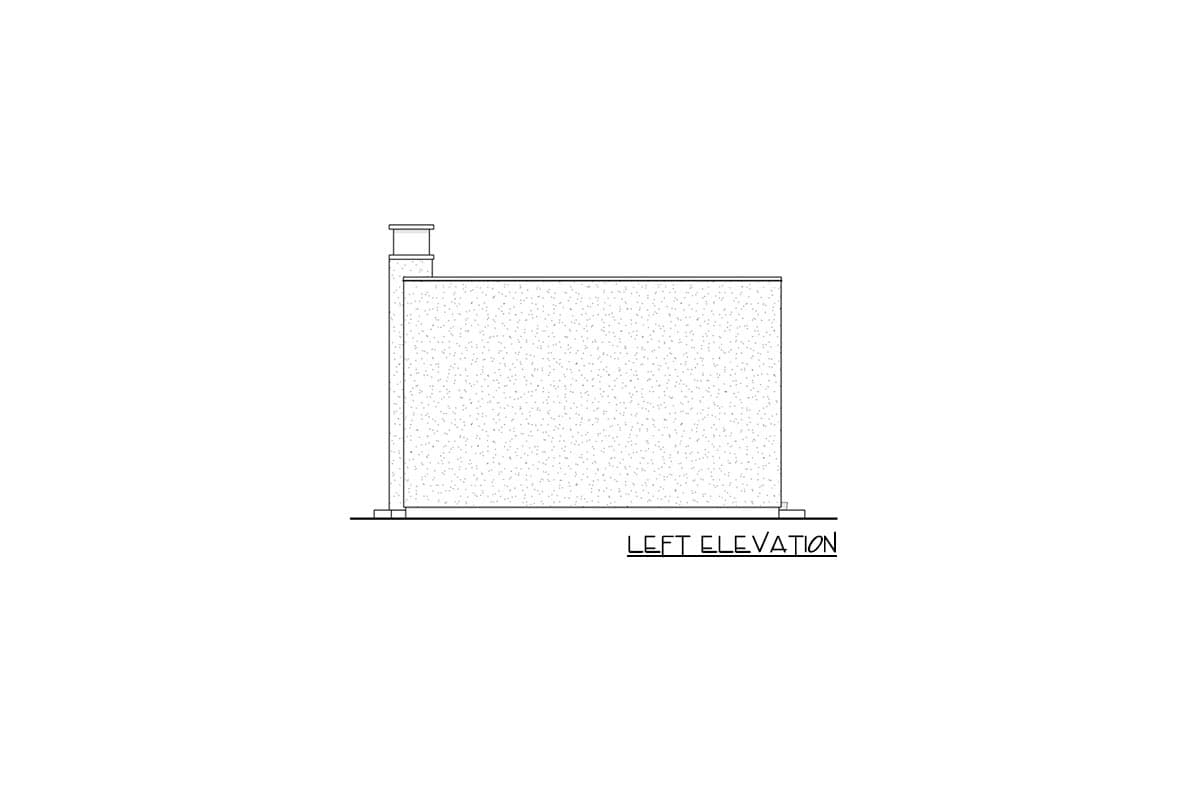

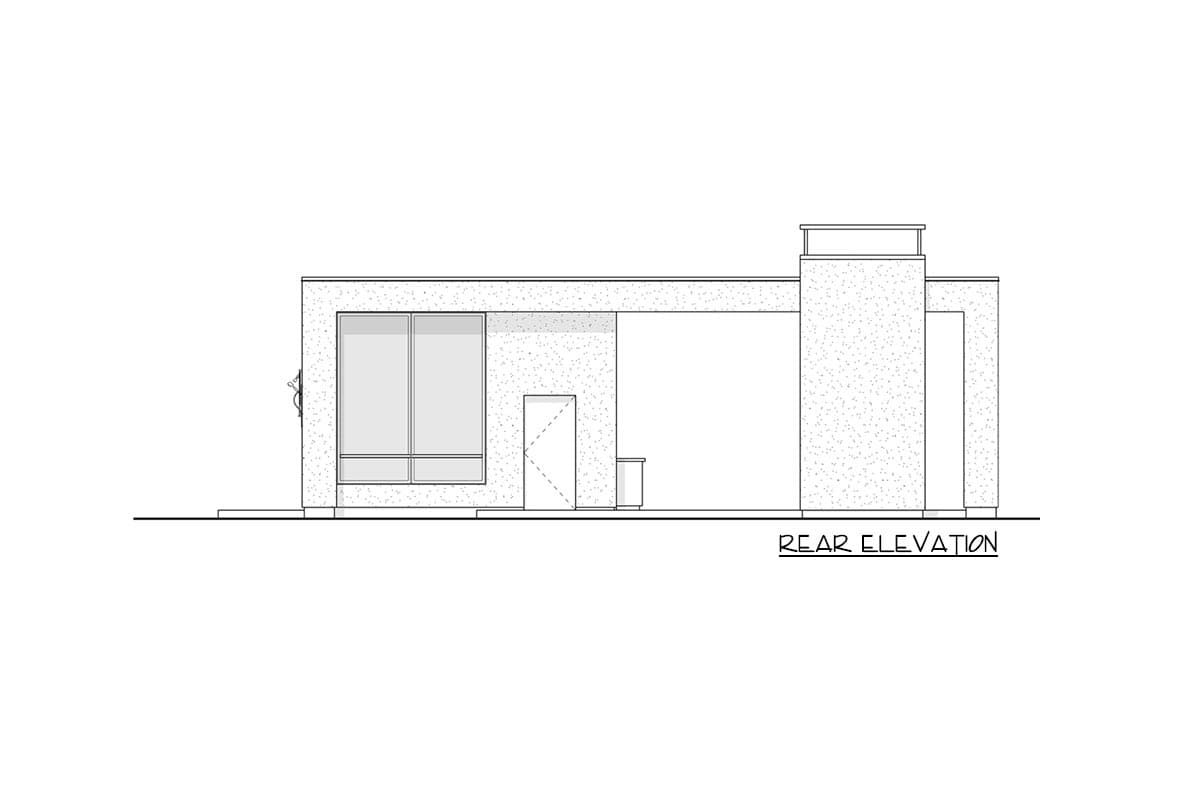

  • Exterior Elevations
  • Building Section
  • Typical Construction Details/Sections

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Framing - layouts with beam sizes and locations
  • Electrical plan
  • Plumbing Details
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Energy calculations - handled locally when required
  • Renderings, photography, or marketing imagery

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

266 sq. ft.

1st Floor

266 sq. ft.

Porch, Front

83 sq. ft.

Deck

453 sq. ft.

Deck & Porch

536 sq. ft.

Beds/Baths

Bedrooms

0

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 2"

Depth

22' 6"

Max Ridge Height

14' 0"

Ceiling Heights

First Floor

10'

Roof Details

Framing Type

Stick

Architectural Style

Contemporary

Mid Century Modern

Modern

Northwest

Special Features

Game/Rec Room

Home Office

Outdoor Fireplace

Plan Collections

Canadian House Plans

Home Office

Pool House
