Modern Prairie-Style Split-Level Home Plan

Plan 62756DJ

  • 2,066

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • This beautiful Modern Prairie style split-level home plan has a unique floor plan that makes the living area feel larger. On the main floor, you will find a great kitchen with a walk-in pantry and an island with a breakfast bar. The great room includes a fireplace and has 3 windows with views of the back yard. There is also a convenient laundry room on the main level.
  • On the upper level, you will find 4 bedrooms that are very well appointed. The master bedroom includes a walk-in closet and master bathroom. Bedrooms 2, 3, and 4 share a centrally located hall bathroom.
  • On the lower level, the house is accessible from the 2 car garage through a practical mudroom with a bench and lockers. Downstairs you will also find a 2nd living area.

Each plan set includes:


  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical wall section
  • Typical Stair section
  • Cabinets are shown on all plans.

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

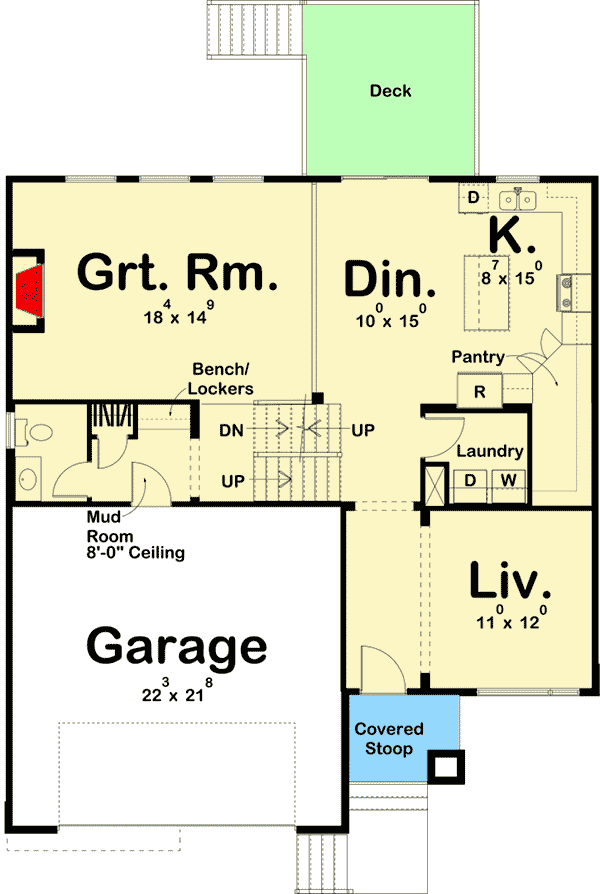

Modern Prairie-Style Split-Level Home Plan - 62756DJ floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

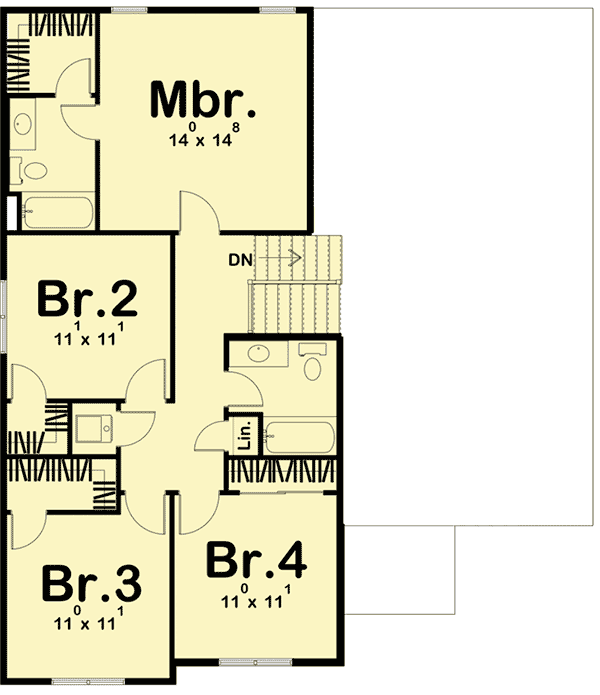

Modern Prairie-Style Split-Level Home Plan - 62756DJ floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,066 sq. ft.
  • 1st Floor: 1,100 sq. ft.
  • 2nd Floor: 956 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Basement
  • Optional Foundations: Walkout, Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 40' 0"
  • Depth: 57' 0"

Garage

  • Type: Attached
  • Area: 501 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 8' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 4 on 12

Architectural Style
