Plan 22493DR Modern Ranch Home Plan with Vaulted Interior

1,604 3 1 1 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Modern Ranch Home Plan with Vaulted Interior

Plan 22493DR

  • 1,604

    Heated s.f.

  • 3

    Beds

  • 1

    Baths

  • 1

    Stories

  • 2

    Cars

  • Gorgeous vaulted and beamed ceilings make this three bedroom Northwest house plan a delight to live in.
  • The metal roofing and timber trim add to the curb appeal.
  • Everyone in the huge open great room area can enjoy the fireplace and a wall of windows overlooks the back covered patio.
  • Three bedrooms are clustered on the right and share a conveniently located laundry room.
  • It makes a great vacation getaway or a small permanent home.
  • Related Plan: Get 2 bedrooms with house plan 22495DR or remove the garage and get 2 bedrooms with house plan 22468DR. And get a version with a finished lower level with house plan 22579DR.

Each plan includes the following:

* 4 Elevations
* Foundation Plan
* Main Floor Plan
* Upper Floor Plans (if applicable)
* Roof Plan
* Building Section
* Construction Details
* Typical Wall Section

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

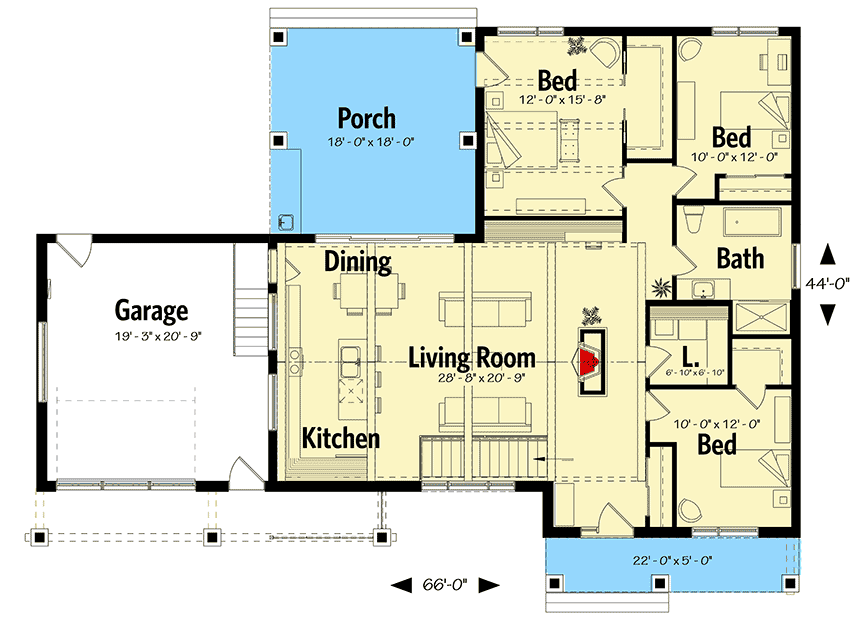

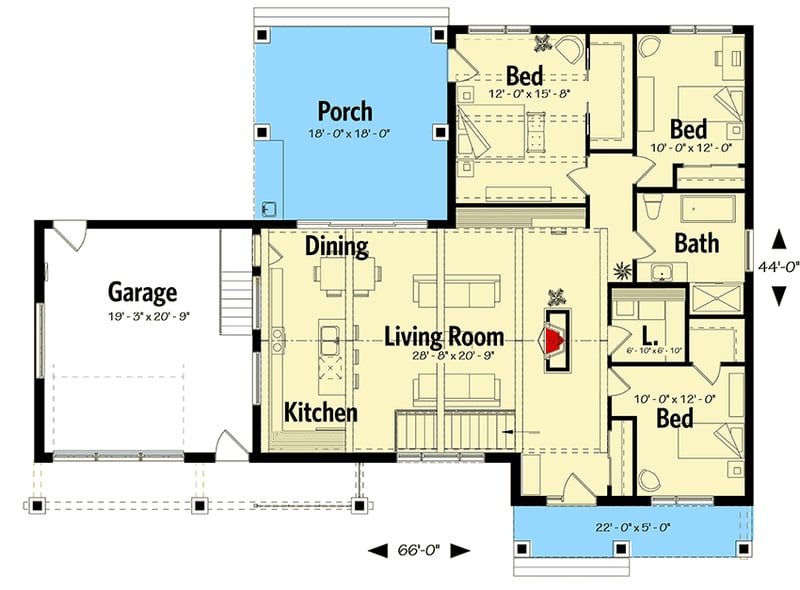

Modern Ranch Home Plan with Vaulted Interior - 22493DR floor plan - Main Level

Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

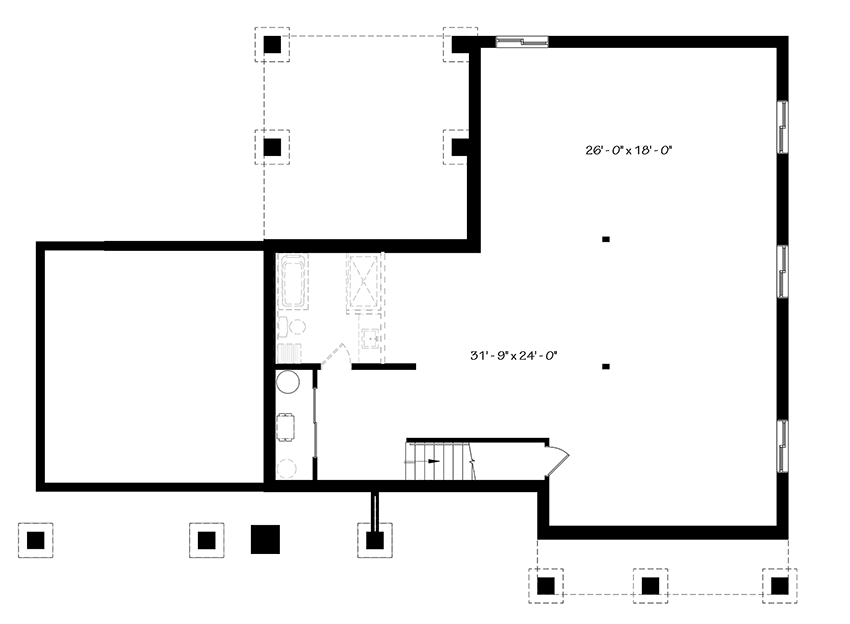

Modern Ranch Home Plan with Vaulted Interior - 22493DR floor plan - Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,604 sq. ft.
  • 1st Floor: 1,604 sq. ft.
  • Porch, Combined: 110 sq. ft.
  • Basement Unfinished: 1,604 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 1

Foundation Type

  • Standard Foundations: Basement
  • Optional Foundations: Slab, Monolithic Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 66' 0"
  • Depth: 44' 0"
  • Max ridge height: 22' 2"

Garage

  • Type: Attached
  • Area: 440 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Modern Ranch Home Plan with Vaulted Interior

  • 1,604

    Heated s.f.

  • 3

    Beds

  • 1

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,450
  • 3 Sets + PDF $1,575
  • CAD + PDF - Single-Build $2,050
  • View all purchase option online

About This Plan

  • Gorgeous vaulted and beamed ceilings make this three bedroom Northwest house plan a delight to live in.
  • The metal roofing and timber trim add to the curb appeal.
  • Everyone in the huge open great room area can enjoy the fireplace and a wall of windows overlooks the back covered patio.
  • Three bedrooms are clustered on the right and share a conveniently located laundry room.
  • It makes a great vacation getaway or a small permanent home.
  • Related Plan: Get 2 bedrooms with house plan 22495DR or remove the garage and get 2 bedrooms with house plan 22468DR. And get a version with a finished lower level with house plan 22579DR.

Floor Plans

  • Main Level

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,604 sq. ft.
  • 1st Floor: 1,604 sq. ft.
  • Porch, Combined: 110 sq. ft.
  • Basement Unfinished: 1,604 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Monolithic Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 66' 0"
  • Depth: 44' 0"
  • Max ridge height: 22' 2"

Garage

  • Type: Attached
  • Area: 440 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Truss
Plan 22493DR
View this and more for this plan by visiting www.architechtecturaldesigns.com/22493DR
|
Need Help? 800-854-7852
|
Plan 22493DR
