Plan 818003JSS

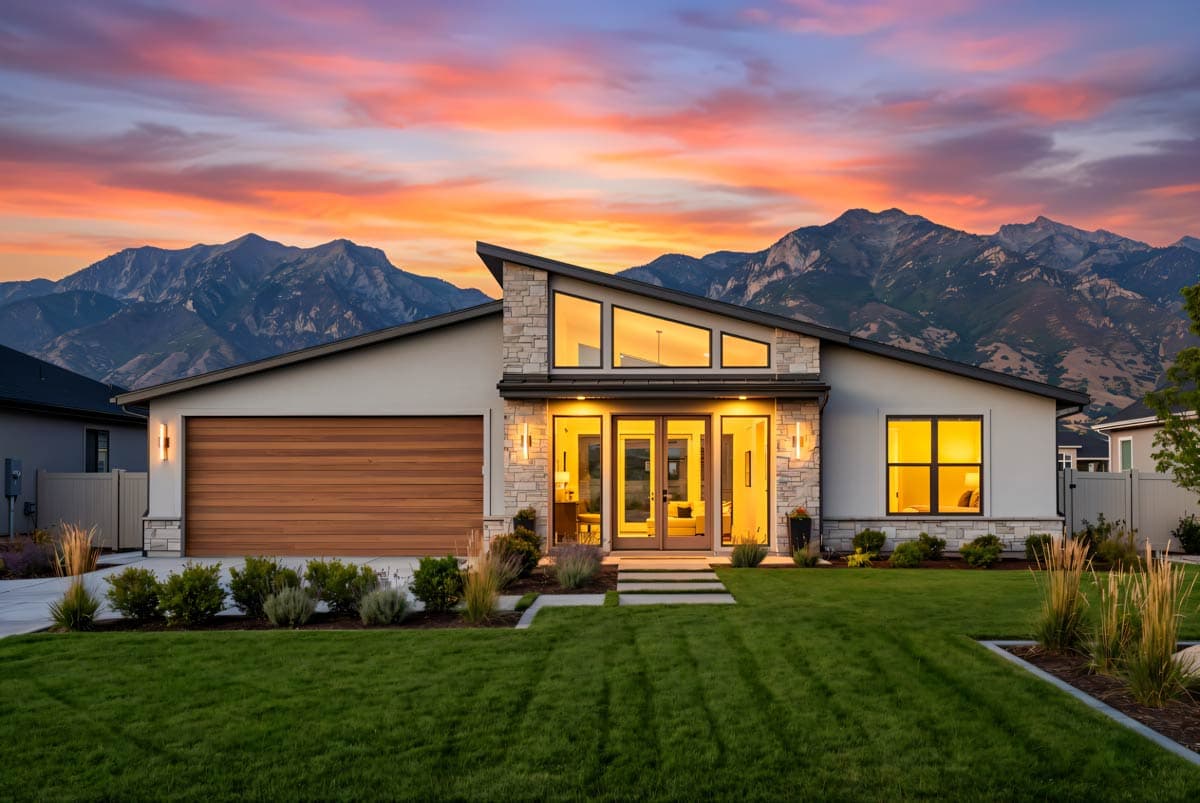

Modern Ranch House Plan with Vaulted Family Room
Heated S.F.
2,047
Beds
4
Baths
3
Stories
1
Cars
2
Plan Details
  • This 4-bed modern ranch home plan gives you 4 bedrooms in just over 2,000 square feet of heated living space.
  • French doors open to the family room with fireplace with a 15'-high vaulted ceiling sloping down from right to left.
  • The center portion is open front giving you views from the kitchen sink to the windows in front of the family room.
  • The primary bedroom is on the left side of the home and has a five-fixture bath and a large walk-in closet. Across the home, you'll find three more bedrooms and two baths, with Beds 2 and 3 sharing a Jack and Jill bath.
  • A large back porch - 17'5" by 17'4" - can be used as an outdoor living room.
  • Inside the garage entry, a mudroom with lockers helps manage clutter.
What's Included
  • Foundation plan
  • Detailed floorplans
  • Roof plan

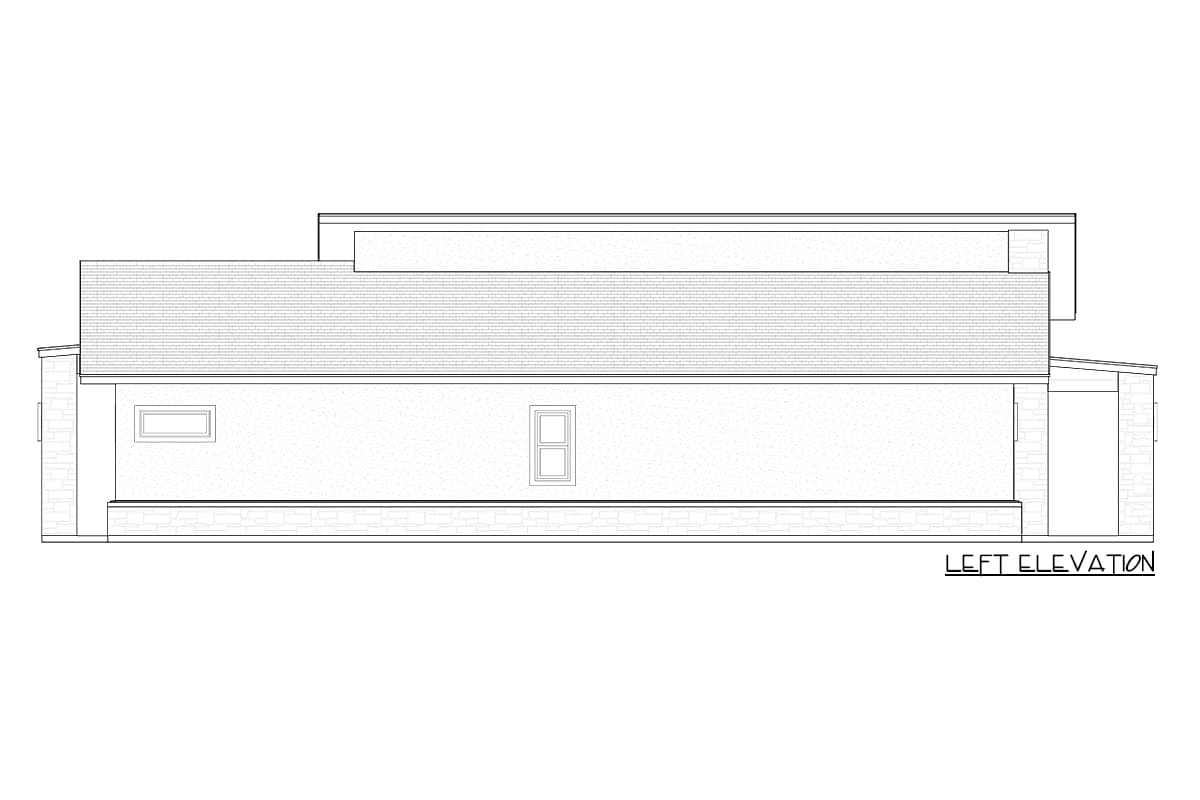

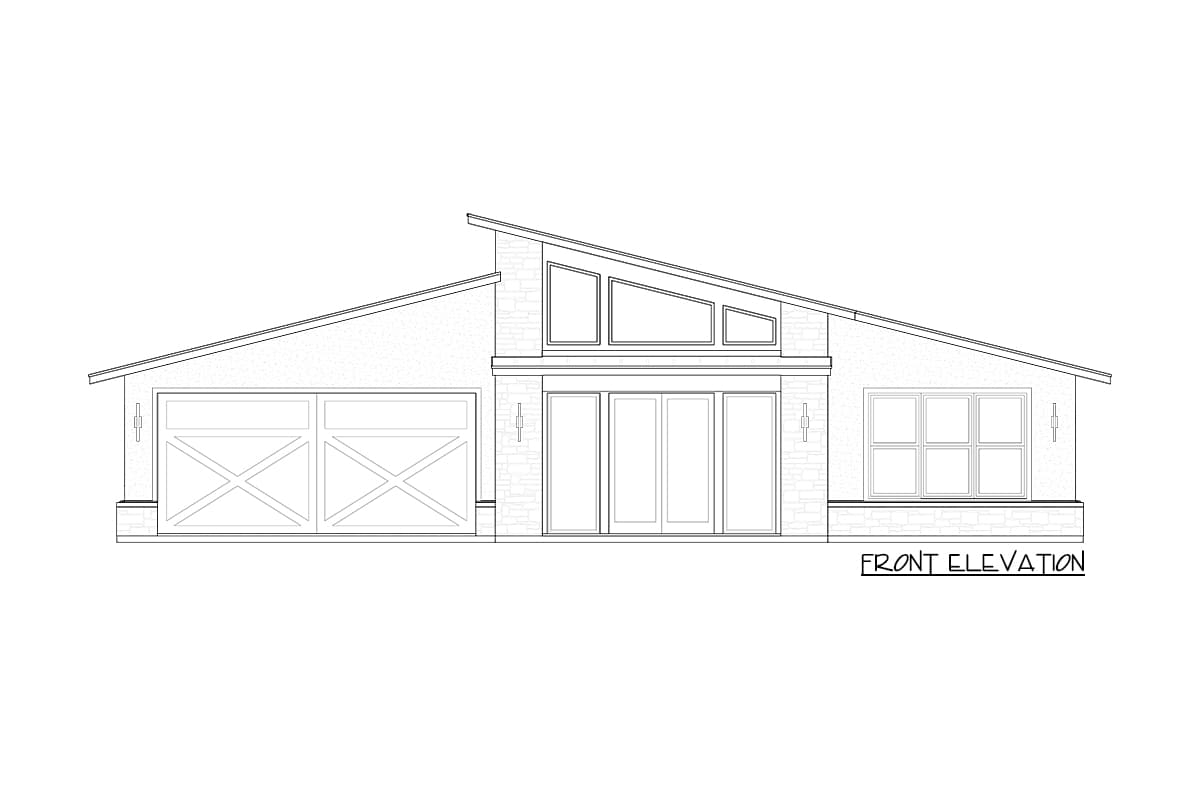

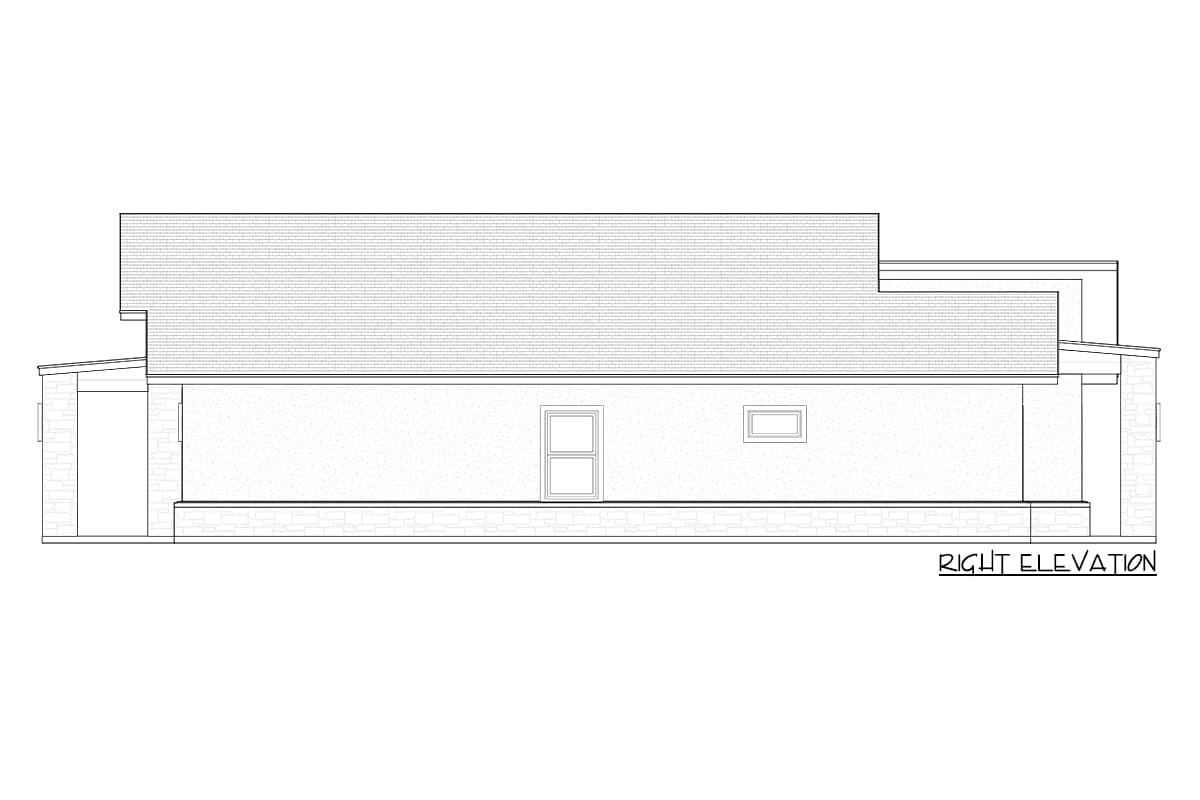

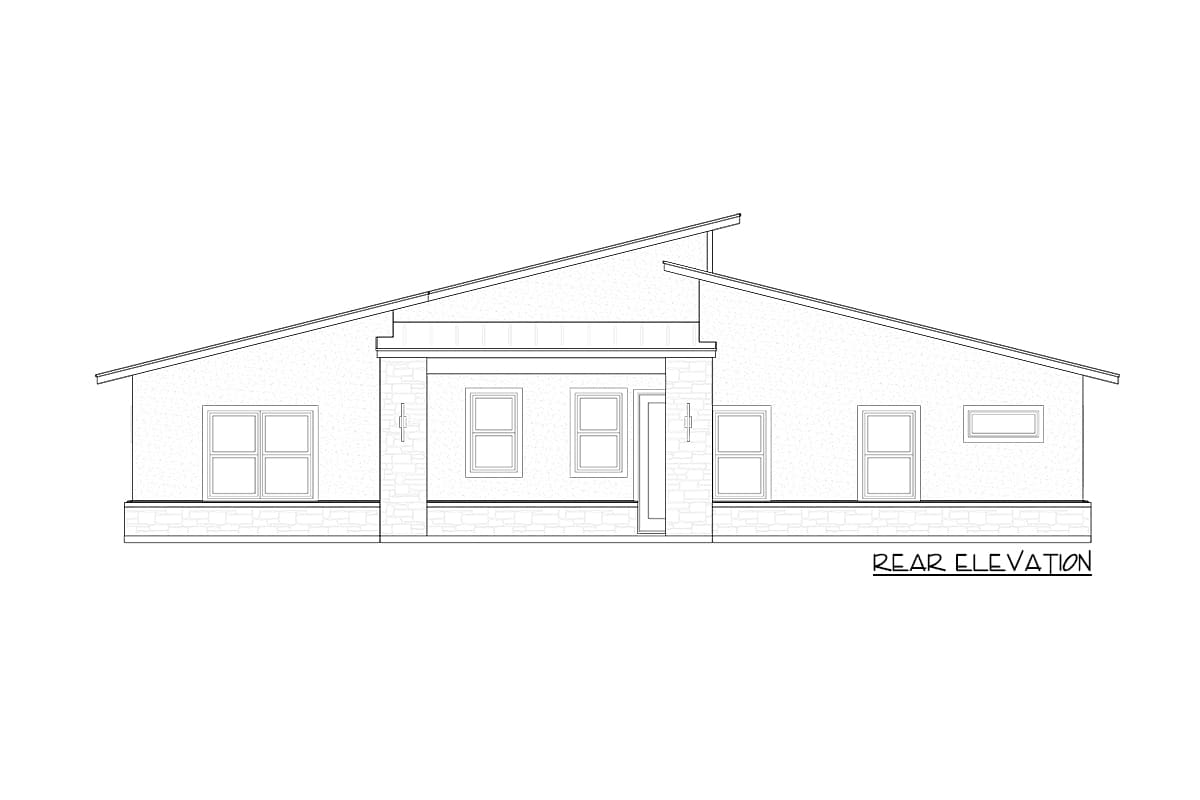

  • Four elevations
  • Electrical schematic
  • Cross section(s)
  • Rafter plan and ceiling joist plans (Beam, joist, and rafters to be sized locally by an engineer or framer)
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Modern Ranch House Plan with Vaulted Family Room

  • 2,047

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

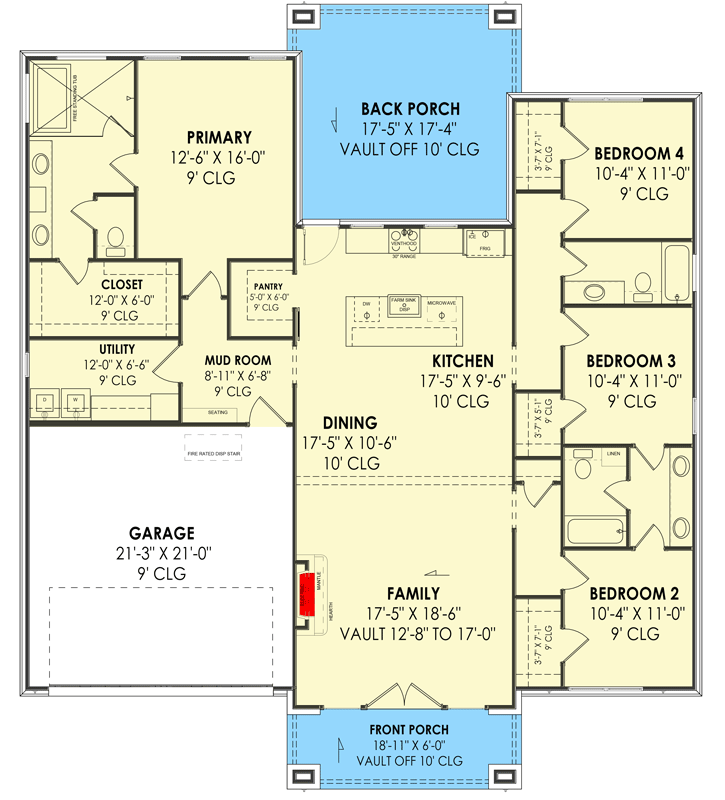

  • Main Level

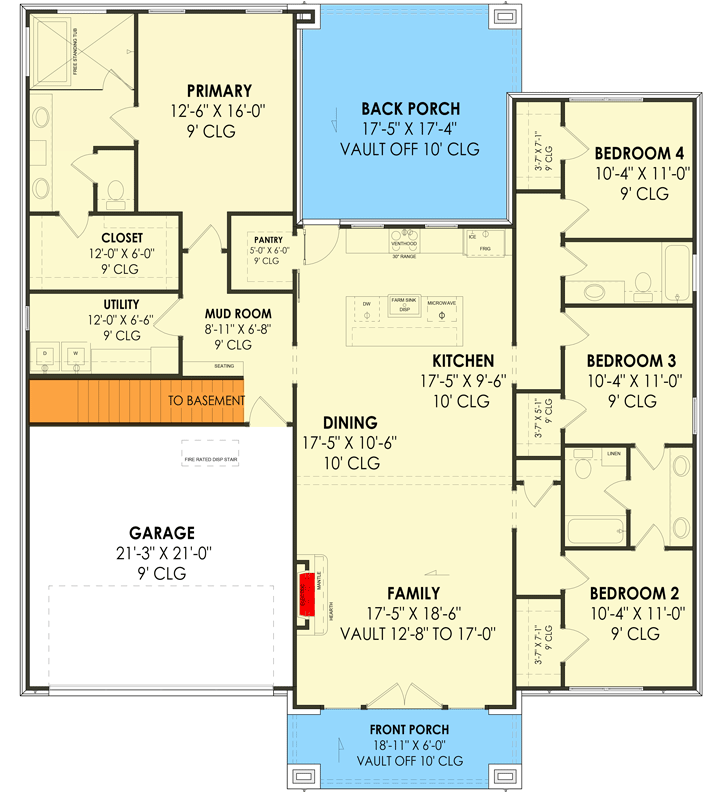

  • Optional

Plan Details

Square Footage Breakdown

  • Total: 2,047 sq. ft.
  • 1st Floor: 2,047 sq. ft.

Dimensions

  • Width: 55' 0"
  • Depth: 63' 4"
  • Max ridge height: 18' 6"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3

Garage

  • Type: Attached
  • Area: 467 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Monolithic Slab
    • Optional Foundations: Walkout, Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 3 on 12
  • Secondary Pitch: 1 on 12
  • Framing Type: Stick
