Plan 818039JSS
Modern Ranch Plan with Over 2,600 Square Feet of Living Space
Heated S.F.
2,617
Beds
3
Baths
2
Stories
1
Cars
3
Flyer
What's Included
Plan Details
  • Oversized windows on the exterior of this Modern Ranch House Plan ensure a light and airy interior throughout the 2,617 square feet of living space.
  • A linear fireplace adds to the family room and formal entry, while and an oversized opening creates a seamless transition into the eat-in kitchen.
  • U-shaped cabinetry surrounds a prep island in the kitchen and a hidden walk-in pantry with natural light maximizes storage space.
  • The bedrooms consume the right wing of the design with the largest reserved for the rear-facing primary suite. A barn door conceals the primary ensuite that boasts a wet room and walk-in closet.
  • Three bays can be found in the garage including an extra-deep bay for larger vehicles. Step inside from the garage to find built-in cubbies in the family foyer.
  • Related Plan: Get a 4-bed version with house plan 818049JSS (3,029 sq. ft.).
What's Included
  • Foundation plan
  • Detailed floorplans
  • Roof plan
  • Four elevations
  • Electrical schematic
  • Cross section(s)
  • Rafter plan and ceiling joist plans (Beam, joist, and rafters to be sized locally by an engineer or framer)
Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Modern Ranch Plan with Over 2,600 Square Feet of Living Space

  • 2,617

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 3

    Car garage

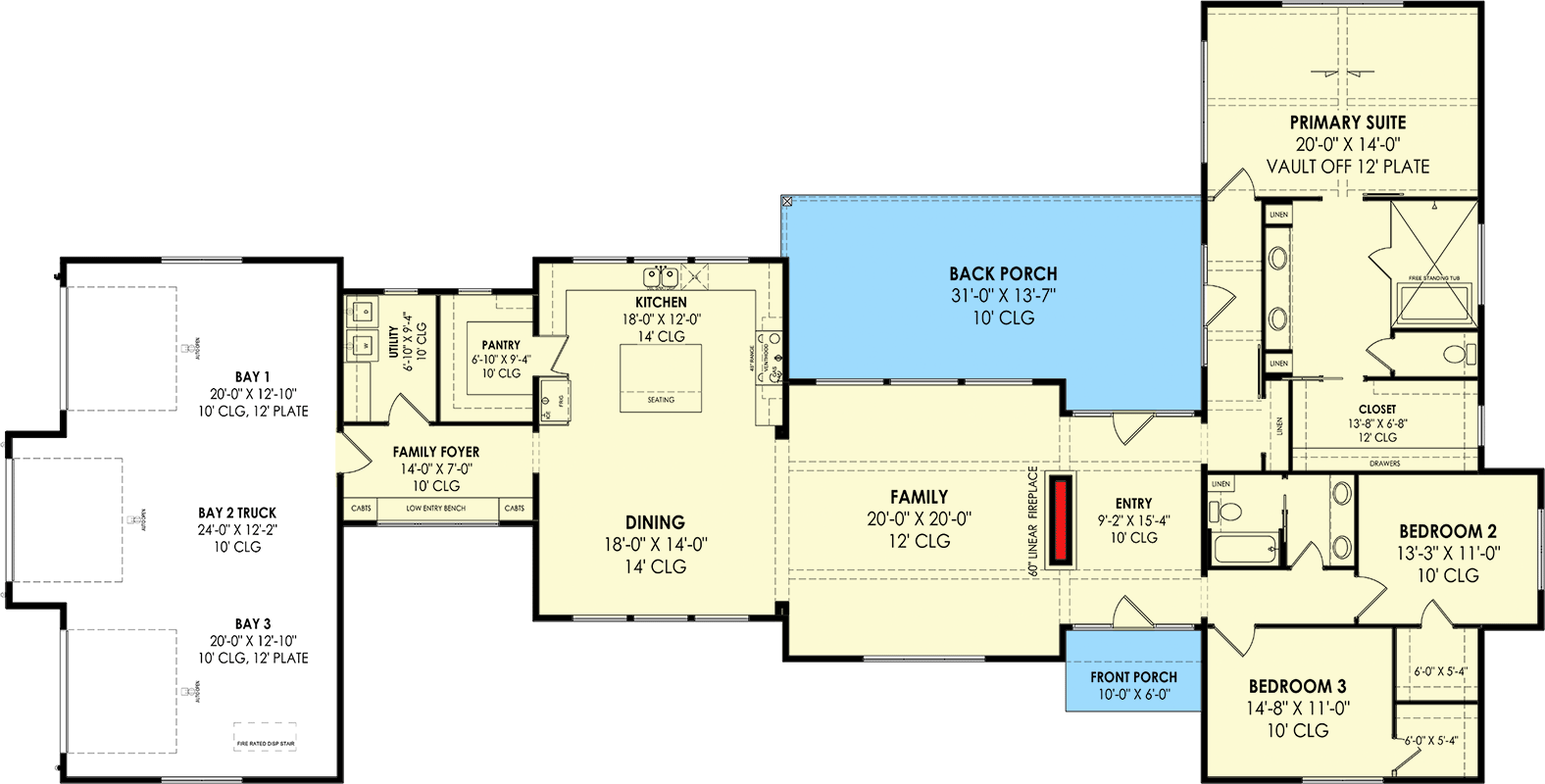

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 2,617 sq. ft.
  • 1st Floor: 2,617 sq. ft.

Dimensions

  • Width: 113' 8"
  • Depth: 57' 10"
  • Max ridge height: 24' 7"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 858 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Monolithic Slab
    • Optional Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 3 on 12
  • Framing Type: Stick
