Plan 83908JW

Modern Split-Bed Country House Plan

Heated S.F.

2,144

Beds

4

Baths

2

Stories

1

Cars

2

What's Included

Floor Plan

Main Level

Reverse Floor Plan

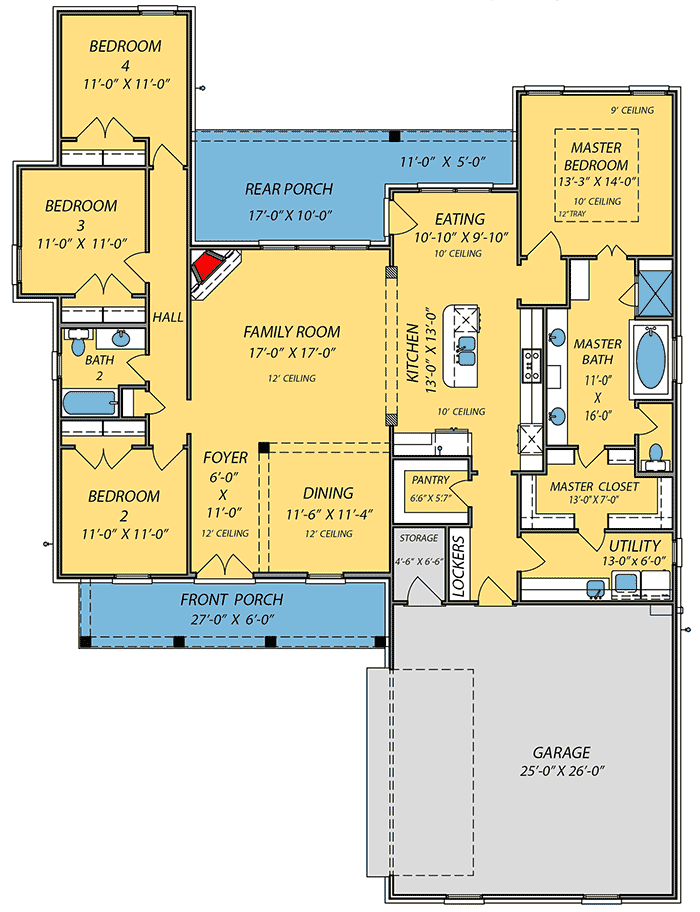

Modern Split-Bed Country House Plan - 83908JW floor plan - Main Level

Plan Details

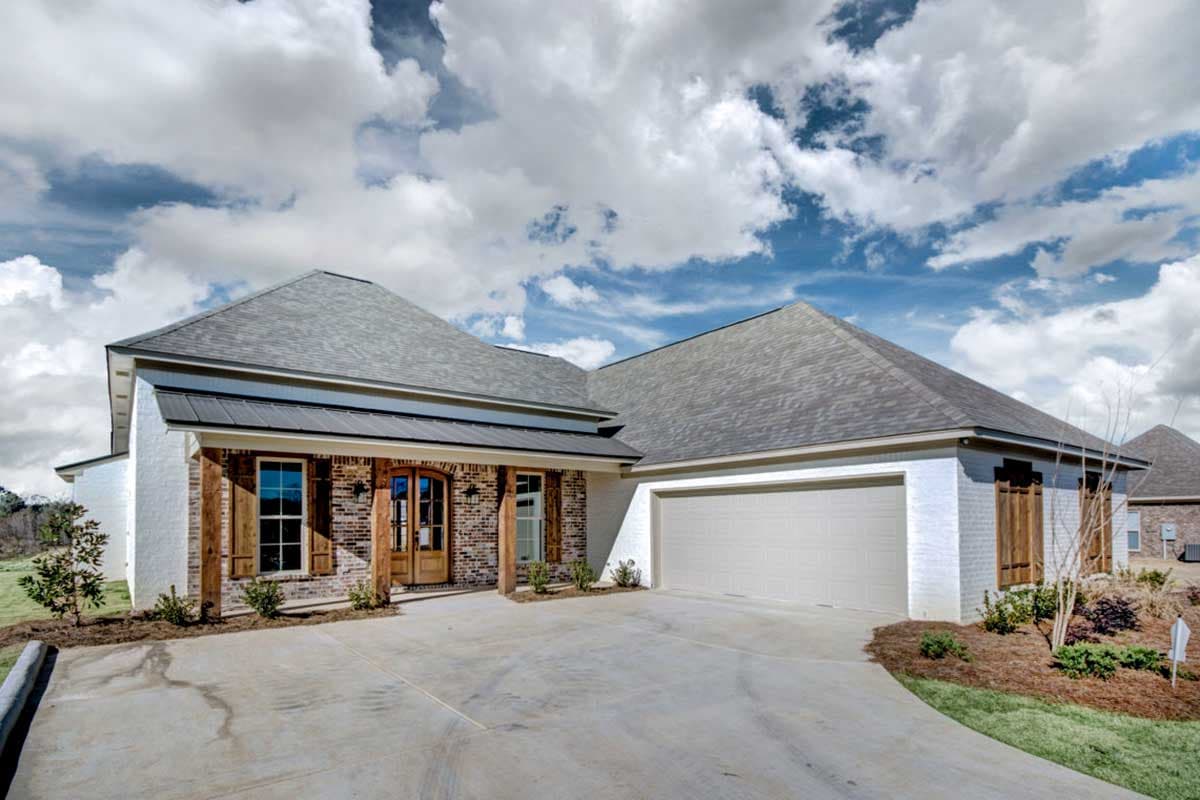

This appealing country-inspired 4-bedroom home plan features an inviting covered front porch with a metal roof and a 2-car garage.

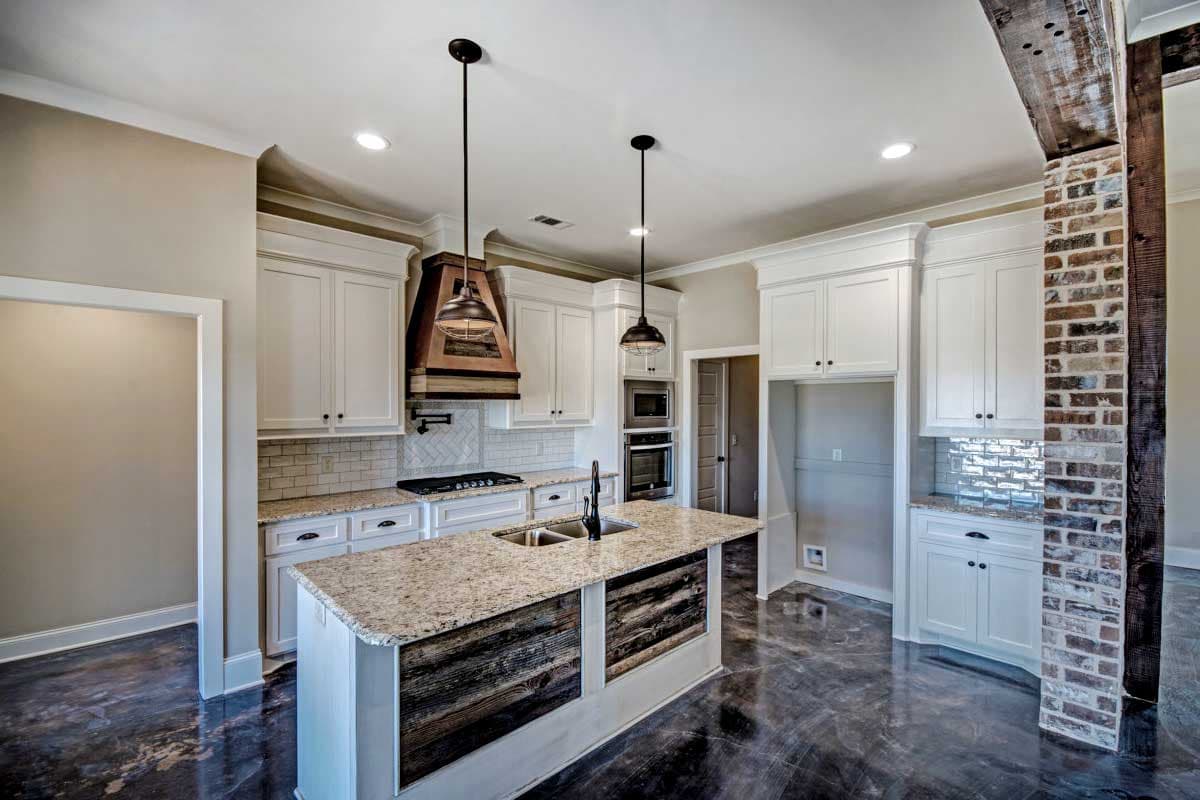

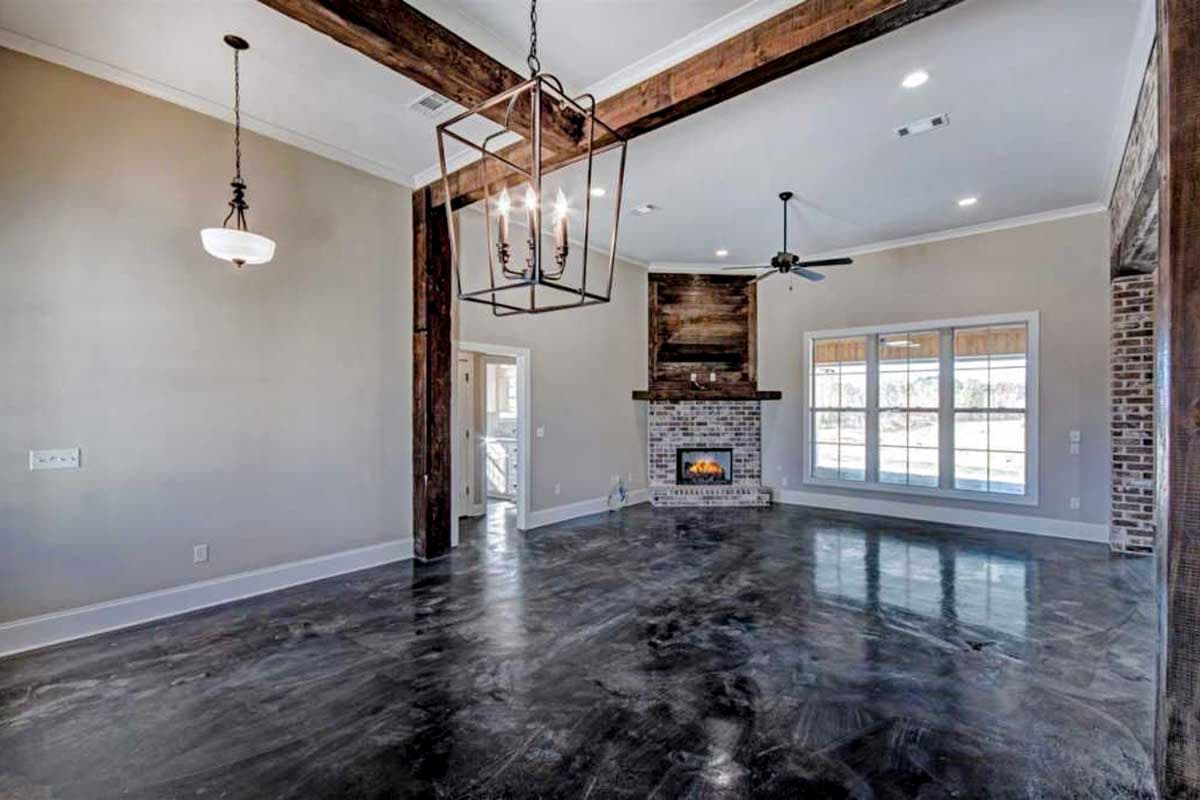

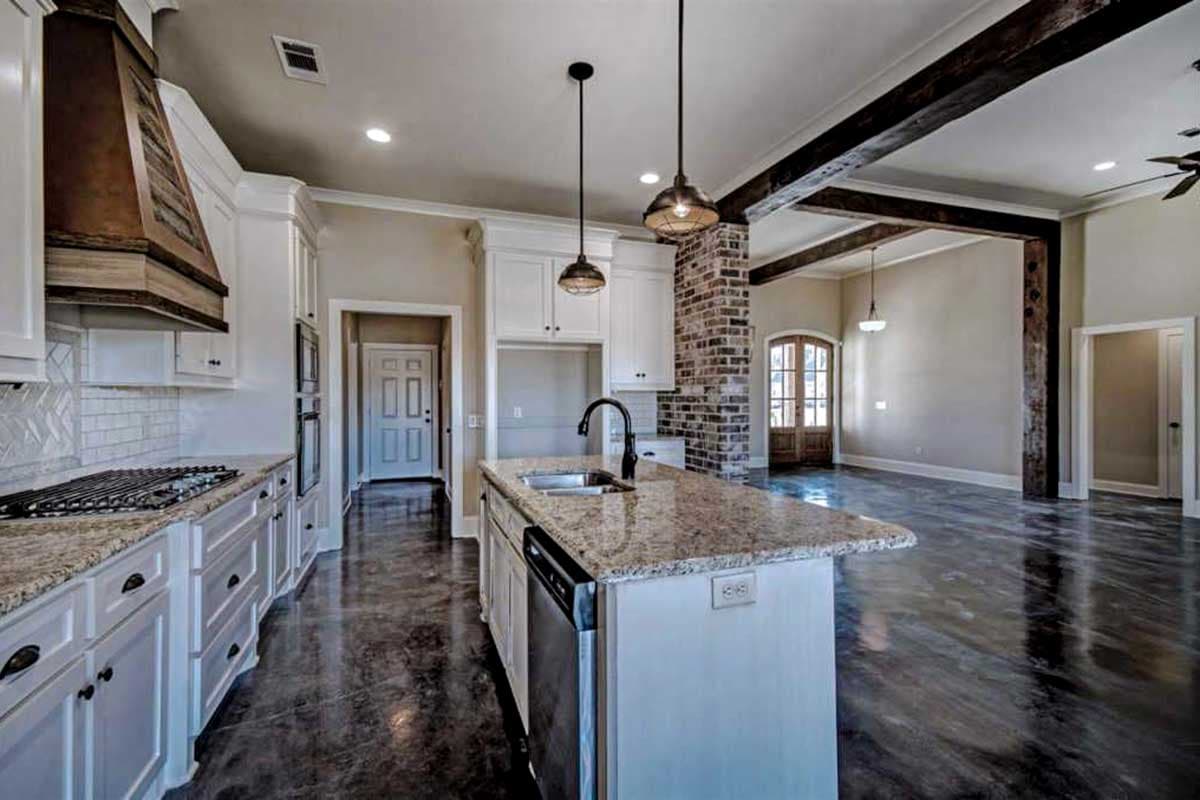

Inside, a spacious family room with a fireplace welcomes you. Designed for efficiency and convenience, the well-appointed kitchen features a breakfast bar and a walk-in pantry. An airy breakfast nook opens to a large rear porch.

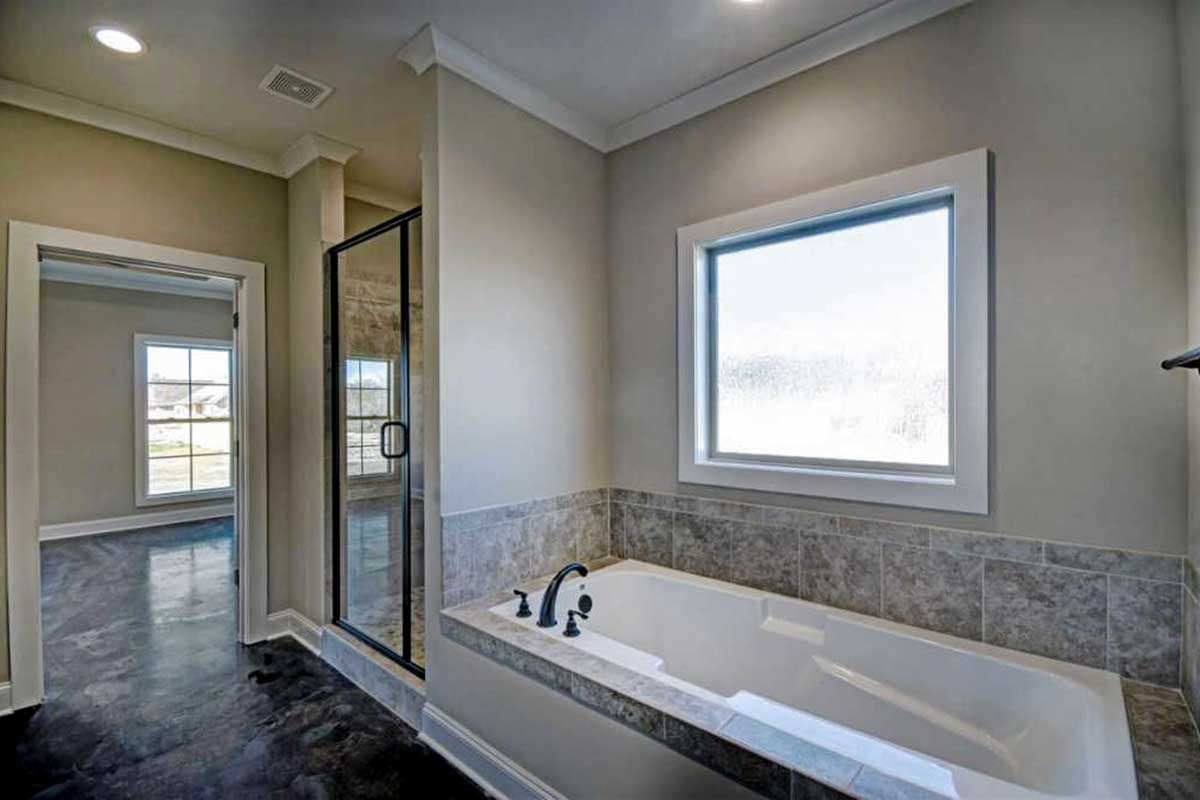

In your private master suite, you’ll find an elegant tray ceiling, a 5-piece bath with a walk-in shower, and a generously sized master closet with laundry access.
On the opposite side of the home, three additional bedrooms share a full bath.
Related: Get house plan 83924JW in reverse (2,248 sq ft)

What's Included

Elevations - Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
Main Floor Plan - Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc
Second Floor Plan (if any) - Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan - Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
Roof Framing Plan - Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
Section - Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
Electrical Plan - A schematic layout of all lighting, switches and electrical outlets.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Square Footage Breakdown

Total Heated Area:

2,144 sq. ft.

1st Floor:

2,144 sq. ft.

Porch, Combined:

392 sq. ft.

Beds/Baths

Bedrooms:

4

Full bathrooms:

2

Foundation Type

Standard Foundations:

Monolithic Slab

Optional Foundations:

Walkout, Basement

Need A Different Foundation?

Request A Modification Quote

Exterior Walls

Standard Type(s):

2x4

Optional Type(s):

2x6

Dimensions

Width:

55' 0"

Depth:

78' 4"

Garage

Type:

Attached

Area:

642 sq. ft.

Count:

2 Cars

Entry Location:

Courtyard

Ceiling Heights

First Floor

9'

Roof Details

Framing Type:

Stick

Architectural Style

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.


Modern Split-Bed Country House Plan 2,144 Heated s.f. 4 Beds 2 Baths 1 Floors 2 Car garage Floor Plan Main Level Plan Details Square Footage Breakdown Total: 2,144 sq. ft. 1st Floor: 2,144 sq. ft. Dimensions Width: 55' 0" Depth: 78' 4" Beds/Baths Bedrooms: 4 Full bathrooms: 2 Garage Type: Attached Area: 642 sq. ft. Count: 2 Cars Entry Location: Courtyard Foundation Type Standard Foundations: Monolithic Slab Optional Foundations: Walkout, Basement Exterior Walls Standard Type(s): 2x4 Optional Type(s): 2x6 Ceiling Heights Floor / Height: First Floor / 9' 0" All house plans are copyright ©2024 by the architects and designers represented on our web site Modern Split-Bed Country House Plan 2,144 Heated s.f. 4 Beds 2 Baths 1 Floors 2 Car garage Modern Split-Bed Country House Plan 2,144 Heated s.f. 4 Beds 2 Baths 1 Floors 2 Car garage Plan Details Square Footage Breakdown Total: 2,144 sq. ft. 1st Floor: 2,144 sq. ft. Dimensions Width: 55' 0" Depth: 78' 4" Beds/Baths Bedrooms: 4 Full bathrooms: 2 Garage Type: Attached Area: 642 sq. ft. Count: 2 Cars Entry Location: Courtyard Foundation Type Standard Foundations: Monolithic Slab Optional Foundations: Walkout, Basement Exterior Walls Standard Type(s): 2x4 Optional Type(s): 2x6 Ceiling Heights Floor / Height: First Floor / 9' 0" Main Level
