Plan 51882HZ
Modern Texas Ranch House Plan with Flex Room and Master Suite Access to Laundry Room
Heated S.F.
2,574
Beds
3
Baths
2.5
Stories
1
Cars
2
Flyer
What's Included
Floor Plan
PRINT PLANS
Main Level
Reverse Floor Plan

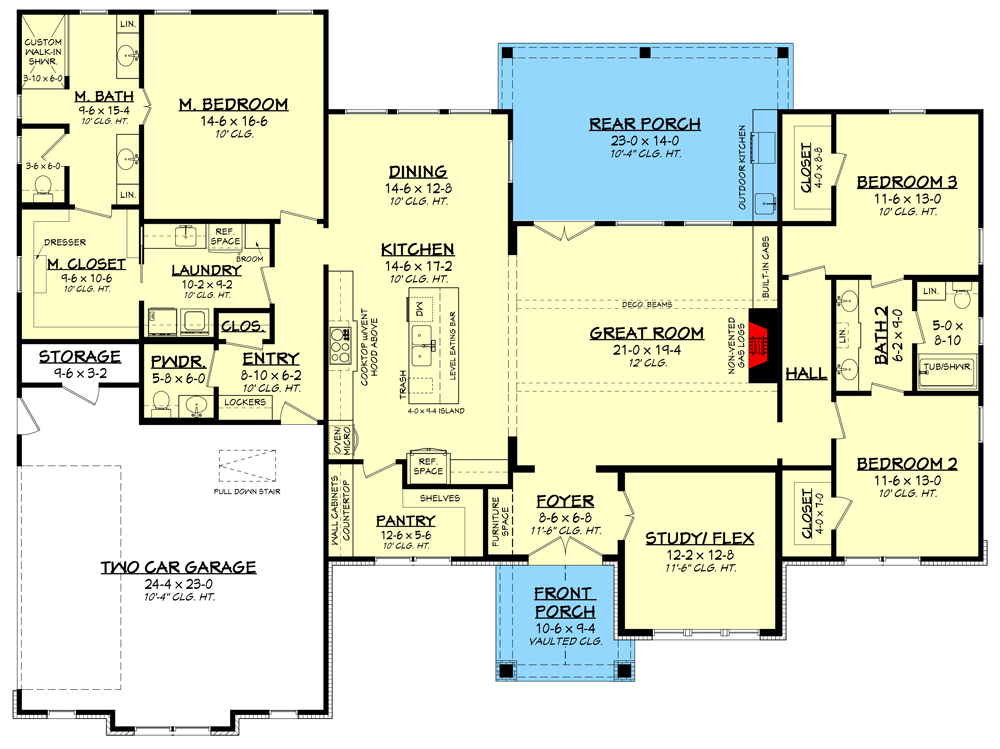

Modern Texas Ranch House Plan with Flex Room and Master Suite Access to Laundry Room - 51882HZ floor plan - Main Level

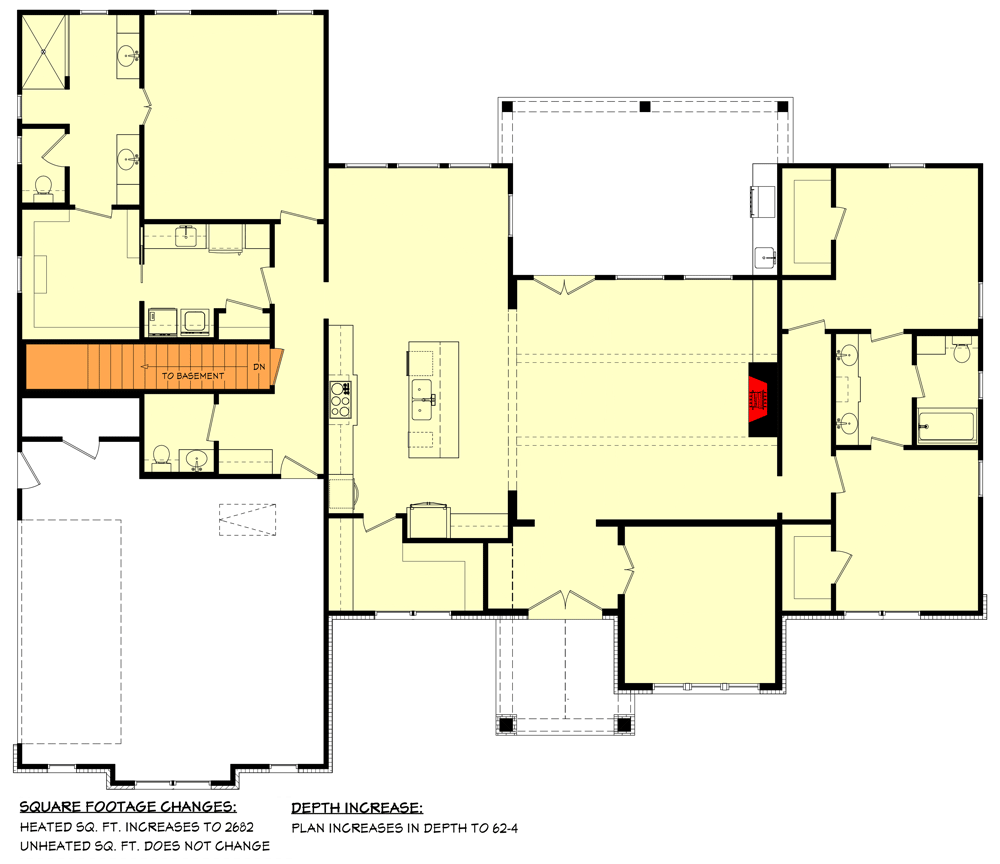

Main Level - Basement Stair Location
Reverse Floor Plan
Modern Texas Ranch House Plan with Flex Room and Master Suite Access to Laundry Room - 51882HZ floor plan - Main Level - Basement Stair Location
Plan Details
  • Enjoy one-story living with this attractive modern texas-style ranch house plan with a stone and board and batten exterior. It gives you 3 beds, a flex room and one of the larger pantries we've seen in home this size.
  • The foyer opens to the airy great room with a 12' ceiling with decorative beams and access to the rear porch with an outdoor kitchen.
  • A large island (4' wide and 9'4" deep) in the kitchen has an eating bar, dual sinks, a dishwasher and storage for trash. It is open to both the dining room and the great room.
  • A split bedroom layout maximizes your privacy. The master bedroom has two vanities, a private toilet and a walk-in shower. The walk-in closet gives you great storage and as an added bonus has direct access to the laundry room.
  • A 2-car garage is accessible from the side and a mudroom is conveniently located with built-in lockers and a closet to help control clutter.
  • Related Plan: Get an alternate version with house plan 51794HZ.
What's Included
This house plan has 12 pages as follows:

Page 1  Cover Sheet with abbreviations, rendering, sheet index
Page 2  Foundation Plan and Details
Page 3  Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)

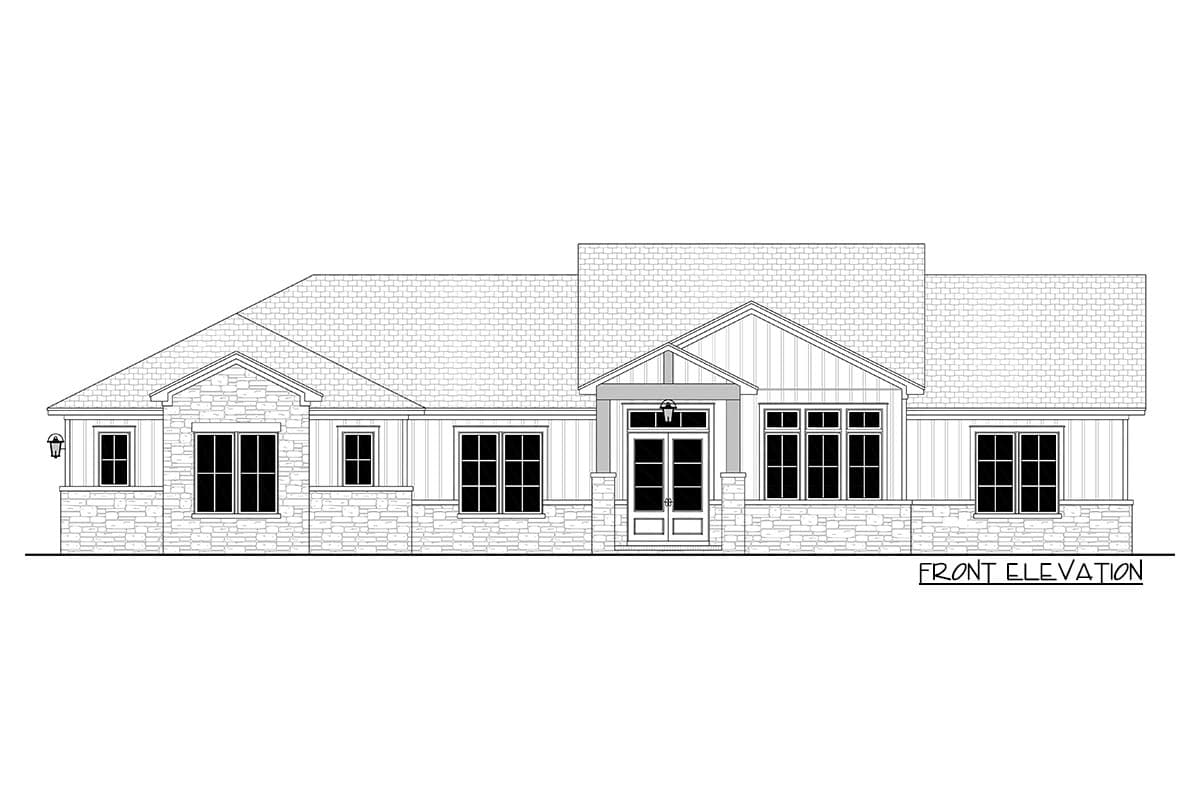

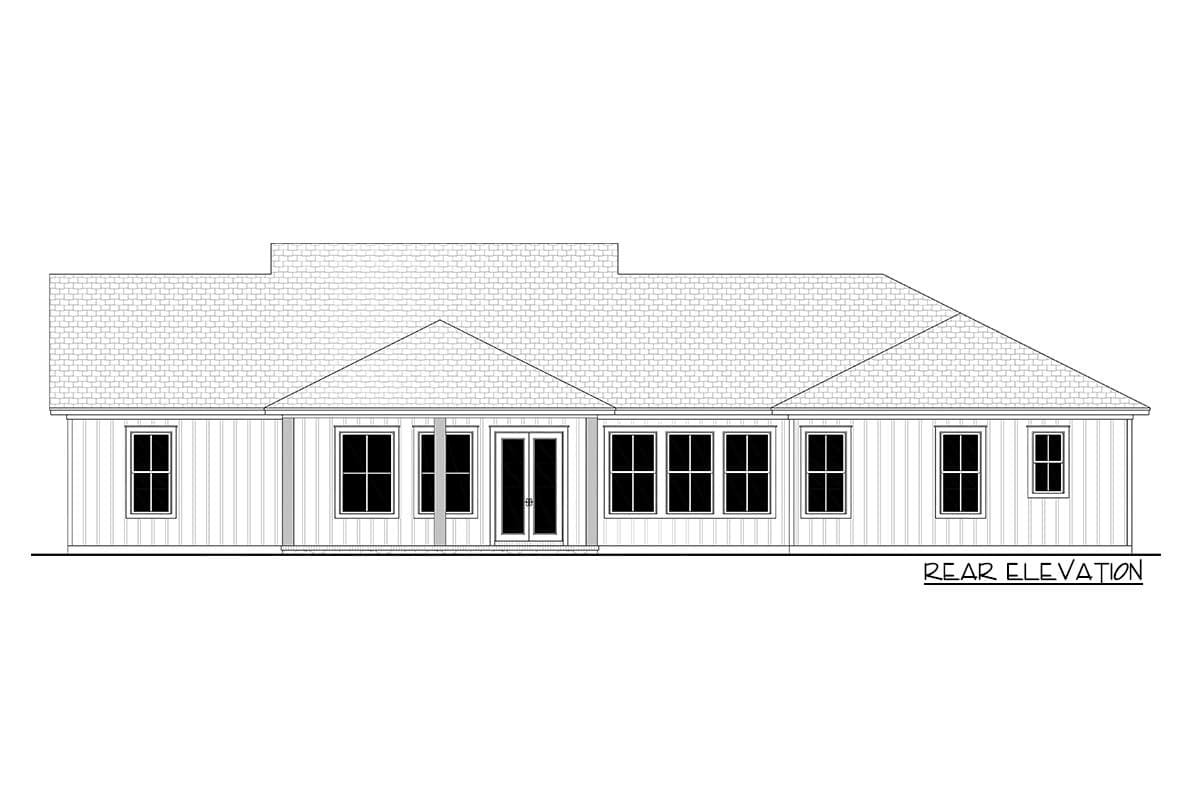

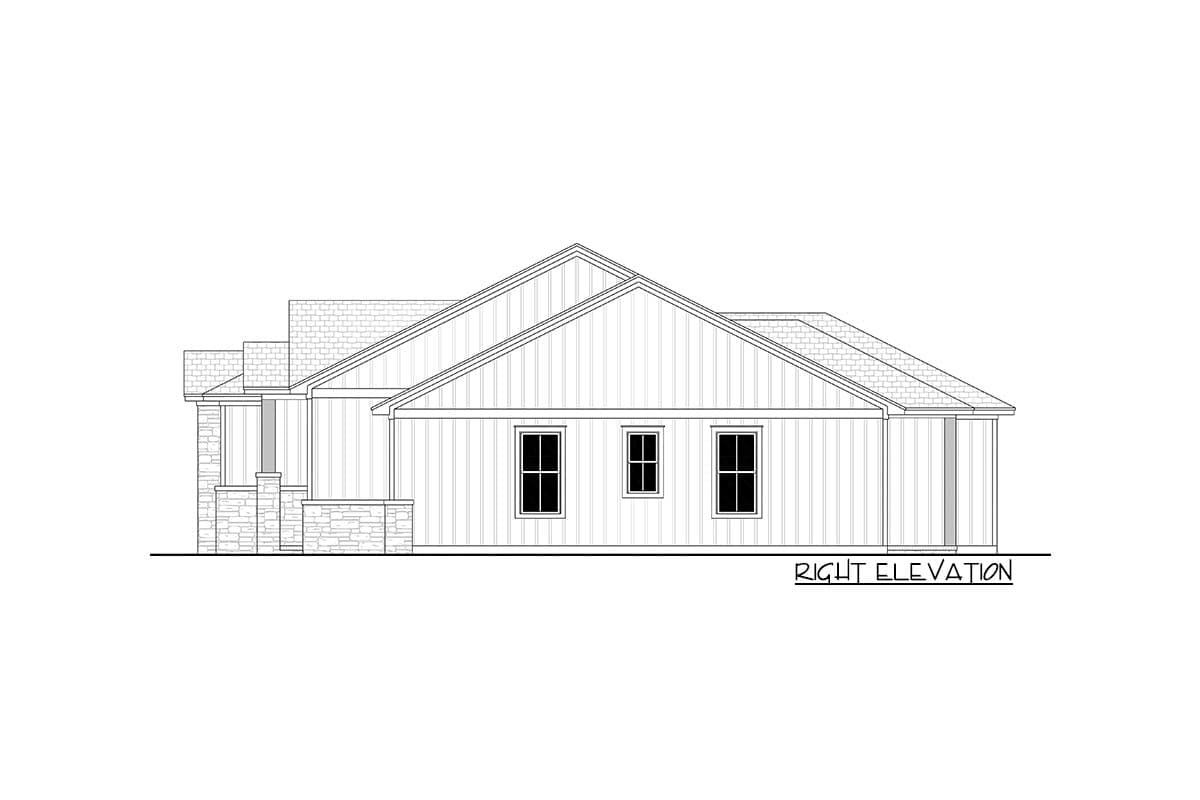

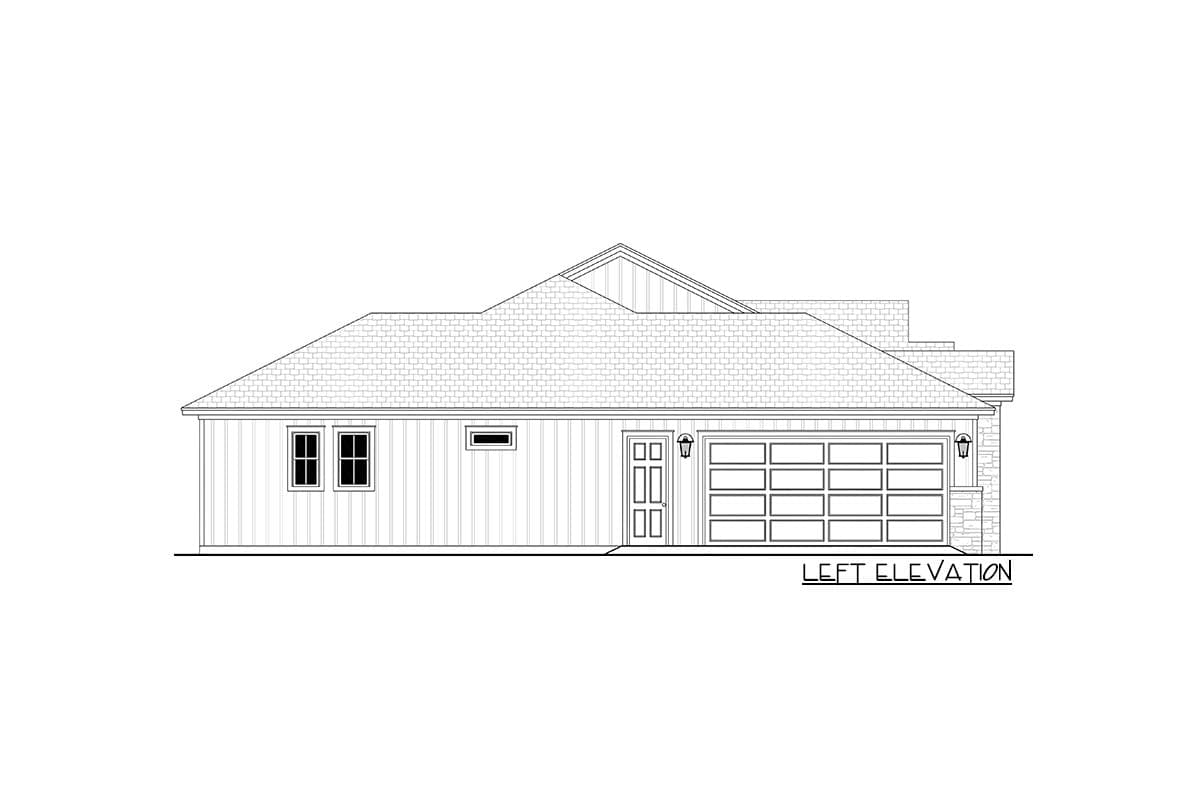

Page 4  Exterior views with additional notes and details
Page 5  Exterior views with additional notes and details
Page 6  Cross Section & kitchen cabinet views
Page 7  Roof plan and span charts with additional notes
Page 8  Electrical plan
Page N1 Code Information
Page N2 Code Information
Page N3 Code Information
Page N4 Energy Code Information

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
