Plan 680167VR

Modern Triplex House Plan with an RV Garage

Heated S.F.
4,056
Units
3
Width
Depth

Floor Plan

Plan 680167VR

Ground Floor
Ground Floor
Second Floor
Second Floor

Plan 680167VR

M-F 9am-5pm EST |

1-203-761-8500

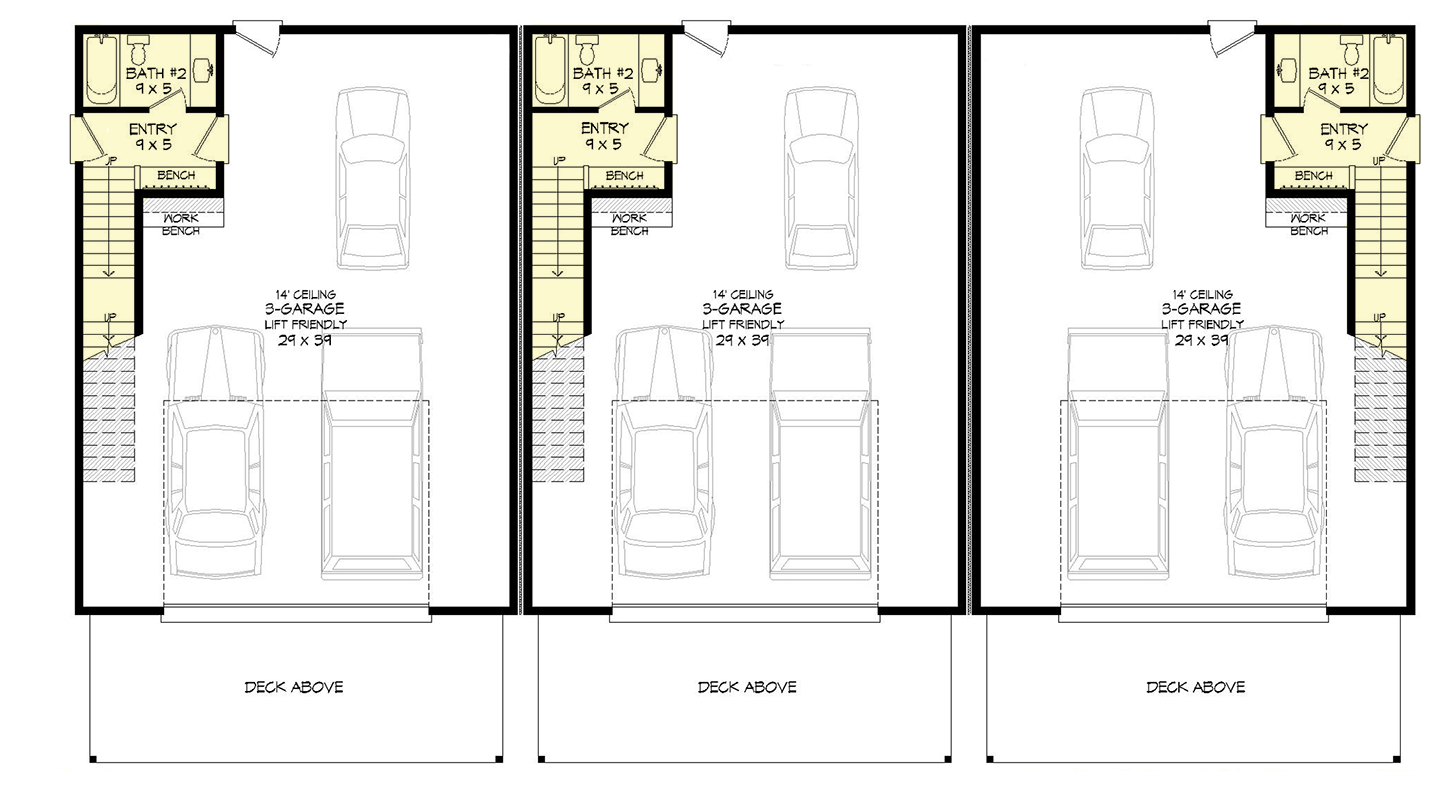

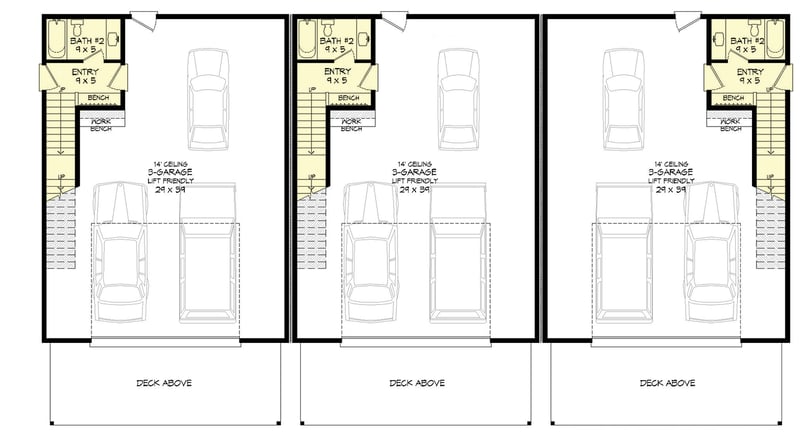

Ground Floor

Plan 680167VR: Modern Triplex House Plan with an RV Garage - Floor Plan - Ground Floor - Contemporary, Mid Century Modern, Modern

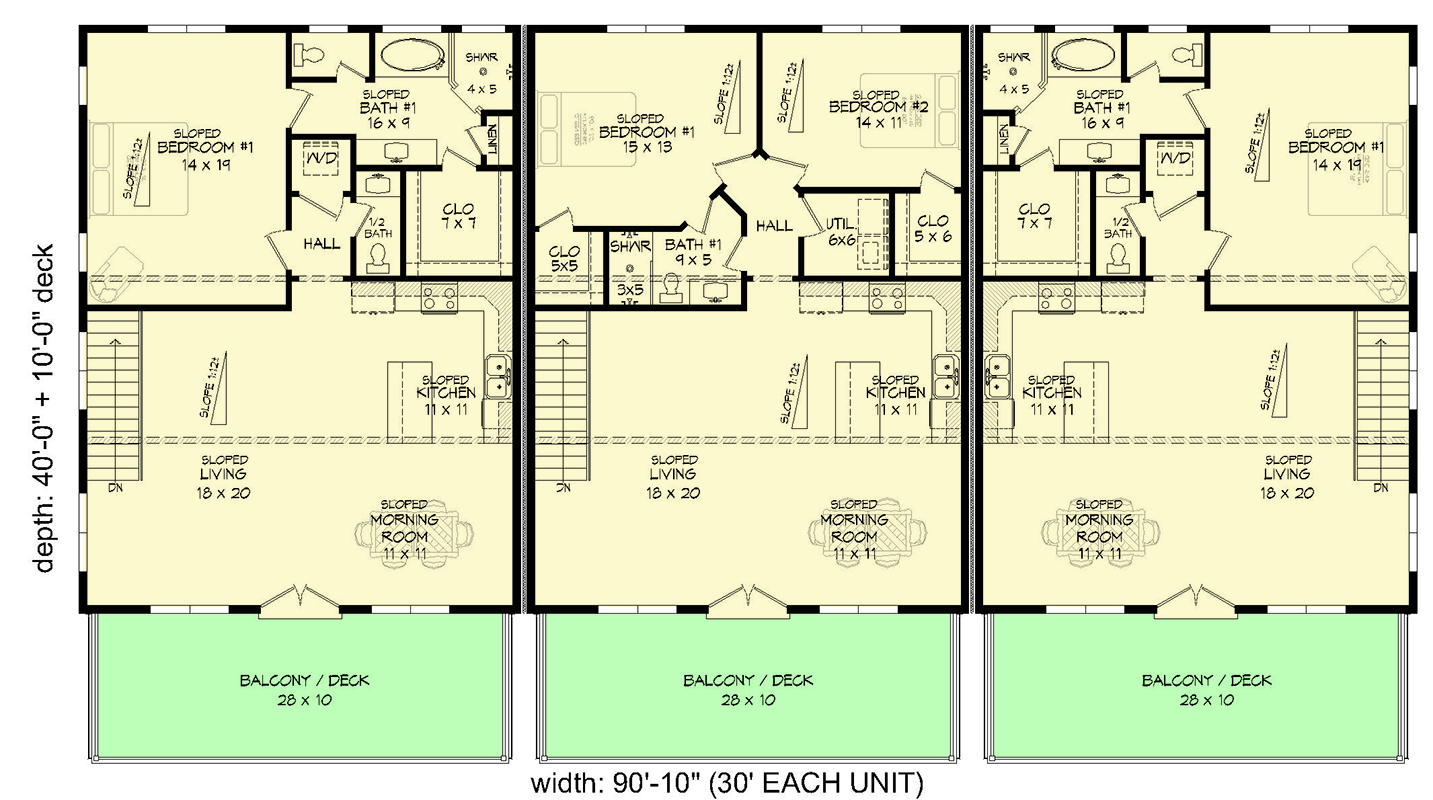

Second Floor

Plan 680167VR: Modern Triplex House Plan with an RV Garage - Floor Plan - Second Floor - Contemporary, Mid Century Modern, Modern

Plan Details

  • This modern triplex house plan is the three-family version of the duplex house plan 68571VR. The home gives you matching 1,352 sq. ft. units (152 sq. ft. on the ground floor and 1,200 sq. ft. on the upper floor).
  • The ground floor is dedicated to parking for your RV vehicle or trucks (or cars). Park tandem and get a couple vehicles under roof.
  • Upstairs, the living area is brightly lit from the wall of windows and has soaring ceilings. The front living area is vaulted and has an open floor plan.
  • Three bedrooms are clustered in the middle and back part of the home.
  • French doors access the deck in front.
  • Related Plan:  Get a duplex version with house plan 68571VR,
Unit A
Heated Area
1,352Sq. Ft.
152 Sq. Ft. 1st
1200 Sq. Ft. 2nd
Beds
1Beds
Baths
2Full Baths
1Half Bath
Cars
Drive Under
1048 Sq. Ft.
Dimensions
30'width
50'depth
28'height
Unfinished Areas
1048 Sq. Ft. Garage
Unit B
Heated Area
1,352Sq. Ft.
3600 Sq. Ft. 1st
1200 Sq. Ft. 2nd
Beds
2Beds
Baths
2Full Baths
Cars
Drive Under
1048 Sq. Ft.
Dimensions
30'width
50'depth
28'height
Unfinished Areas
1048 Sq. Ft. Garage
Unit C
Heated Area
1,352Sq. Ft.
1200 Sq. Ft. 1st
Beds
1Beds
Baths
2Full Baths
1Half Bath
Cars
Drive Under
1048 Sq. Ft.
Dimensions
30'width
50'depth
28'height
Unfinished Areas
1048 Sq. Ft. Garage

What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions
  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • Building license: A single-use license for construction at one location only

View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

4,056 sq. ft.

Lower Level

456 sq. ft.

1st Floor

3,600 sq. ft.

Balcony / Veranda

840 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

6

Half bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

90' 10"

Depth

50' 0"

Max Ridge Height

28' 6"

Garage

Type

Attached

Area

3144 sq. ft.

Count

8 Cars

Entry Location

Front

Ceiling Heights

Lower Level

14'

First Floor

8'

Roof Details

Primary Pitch

1 on 12

Architectural Style

Contemporary

Mid Century Modern

Modern

Special Features

Bedrooms - Clustered

Laundry - Upstairs

Master Suite - Upstairs

Two Story Great Room

Square Footage Breakdown

Total Heated Area

4,056 sq. ft.

Lower Level

456 sq. ft.

1st Floor

3,600 sq. ft.

Balcony / Veranda

840 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

6

Half bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

90' 10"

Depth

50' 0"

Max Ridge Height

28' 6"

Garage

Type

Attached

Area

3144 sq. ft.

Count

8 Cars

Entry Location

Front

Ceiling Heights

Lower Level

14'

First Floor

8'

Roof Details

Primary Pitch

1 on 12

Architectural Style

Contemporary

Mid Century Modern

Modern

Special Features

Bedrooms - Clustered

Laundry - Upstairs

Master Suite - Upstairs

Two Story Great Room
