Plan 801160PM
Modern Triplex with 3 Bed 1 Bath Units - 1384 Sq Ft Ea
Heated S.F.
4,152
Units
3
Width
36'
Depth
40'
What's Included
Plan Details
  • This modern triplex house plan gives you 3 full-floor units, each with 1,384 square feet of heated living with 3 beds and 1 bath.
  • This multi-family home plan is perfect to generate some extra income or to house the whole family. Each unit has its own private entrance.
  • Each unit has three bedrooms, one of which being the master bedroom with a walk-in closet. The living room, the dining room and the kitchen are all open-concept.

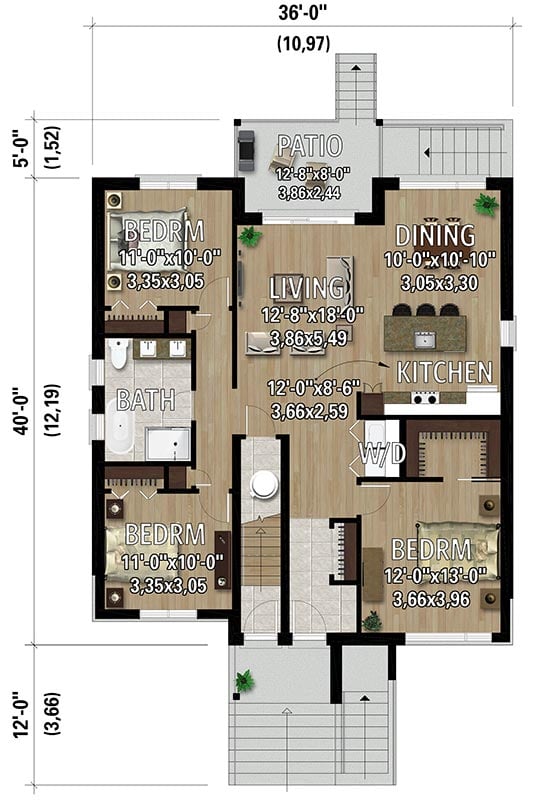

Unit Main Floor
1,384 Sq. Ft.
1384 Sq. Ft. 1st Floor
3 Beds
1 Full Bath
None
36' w 40' d 32' h

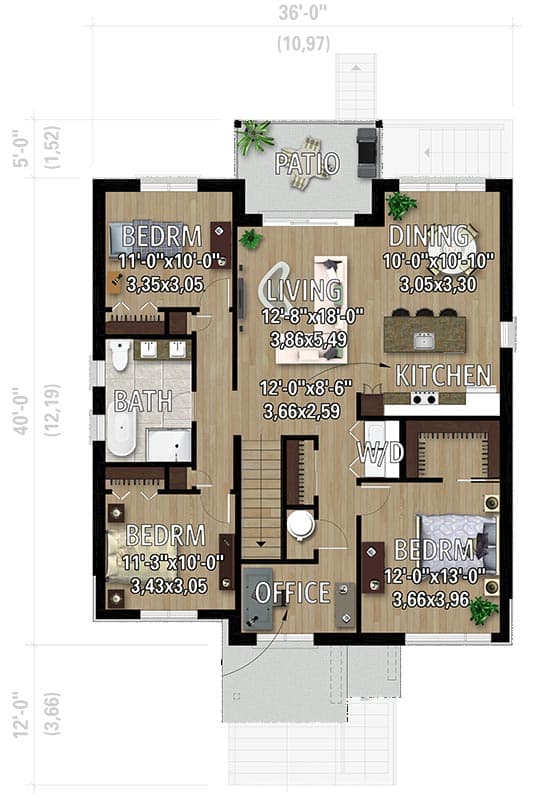

Unit Second Floor
1,384 Sq. Ft.
1384 Sq. Ft. 2nd Floor
3 Beds
1 Full Bath
None
36' w 40' d 32' h

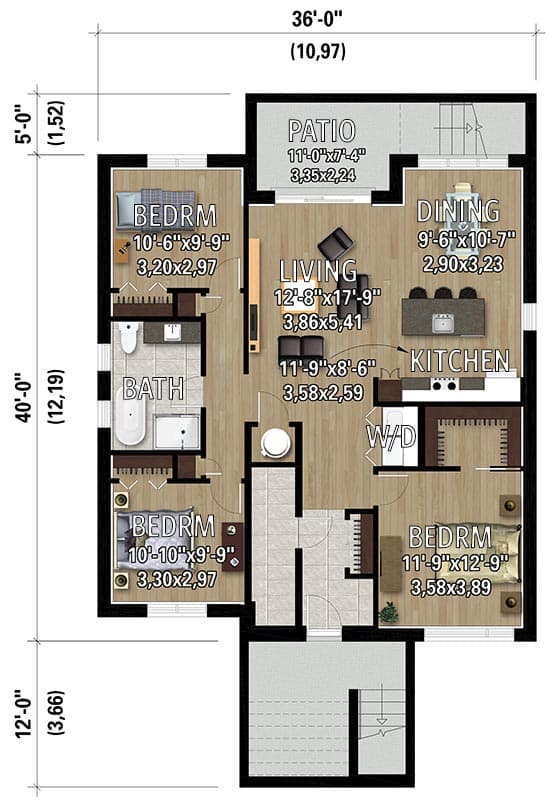

Unit Lower Level
1,384 Sq. Ft.
1384 Sq. Ft. Lower Level
3 Beds
1 Full Bath
None
36' w 40' d 32' h
What's Included
Please note this plan is designed to the National Building Code of Canada.

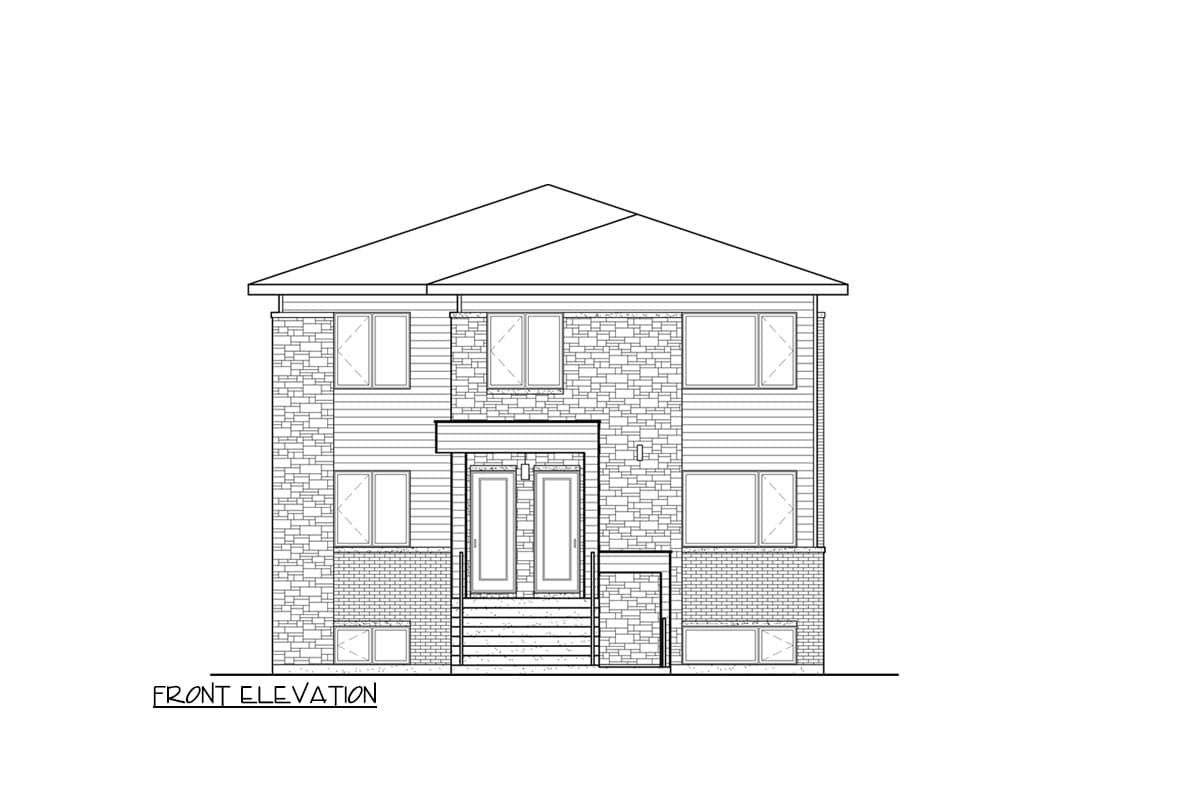

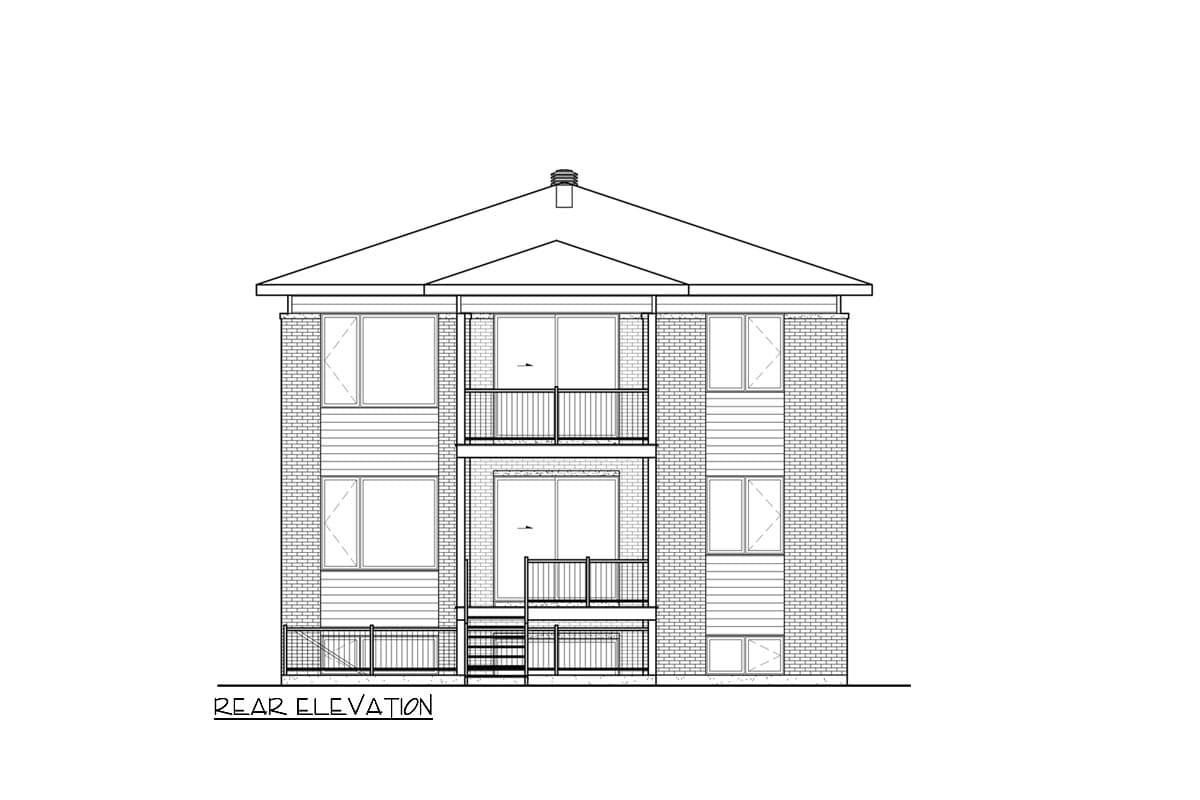

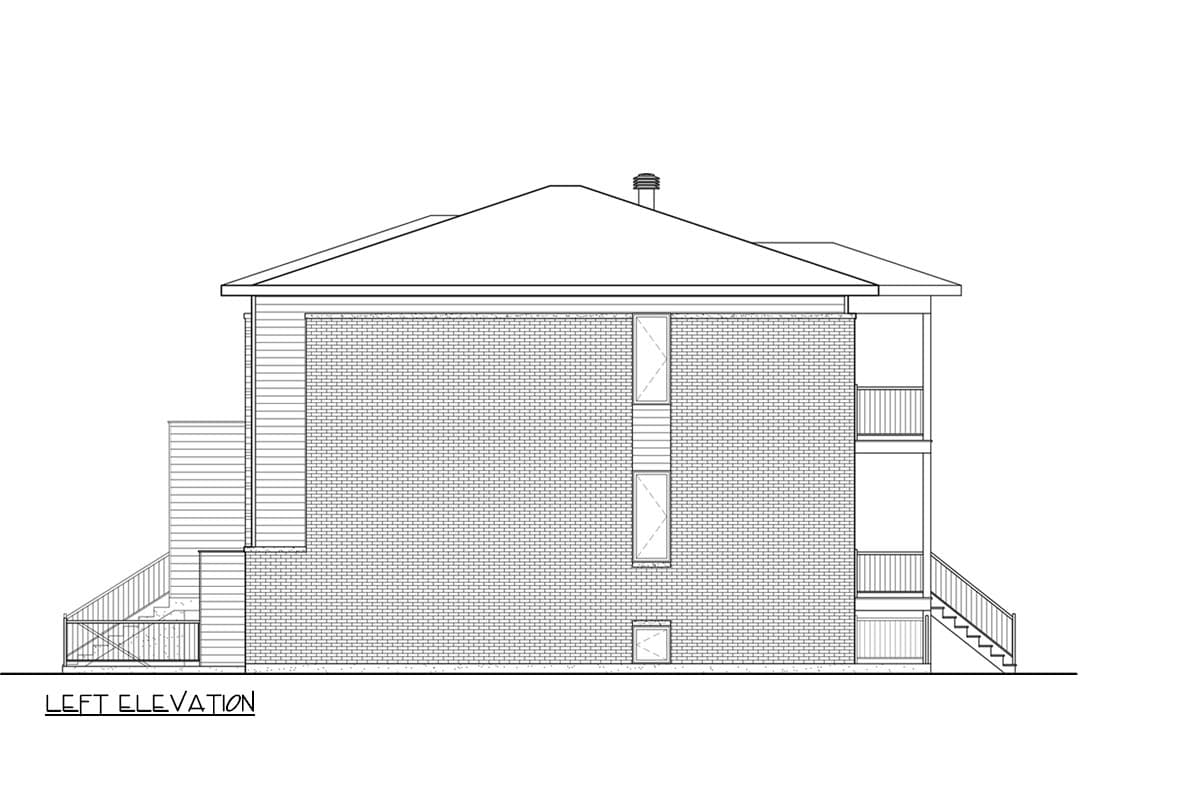

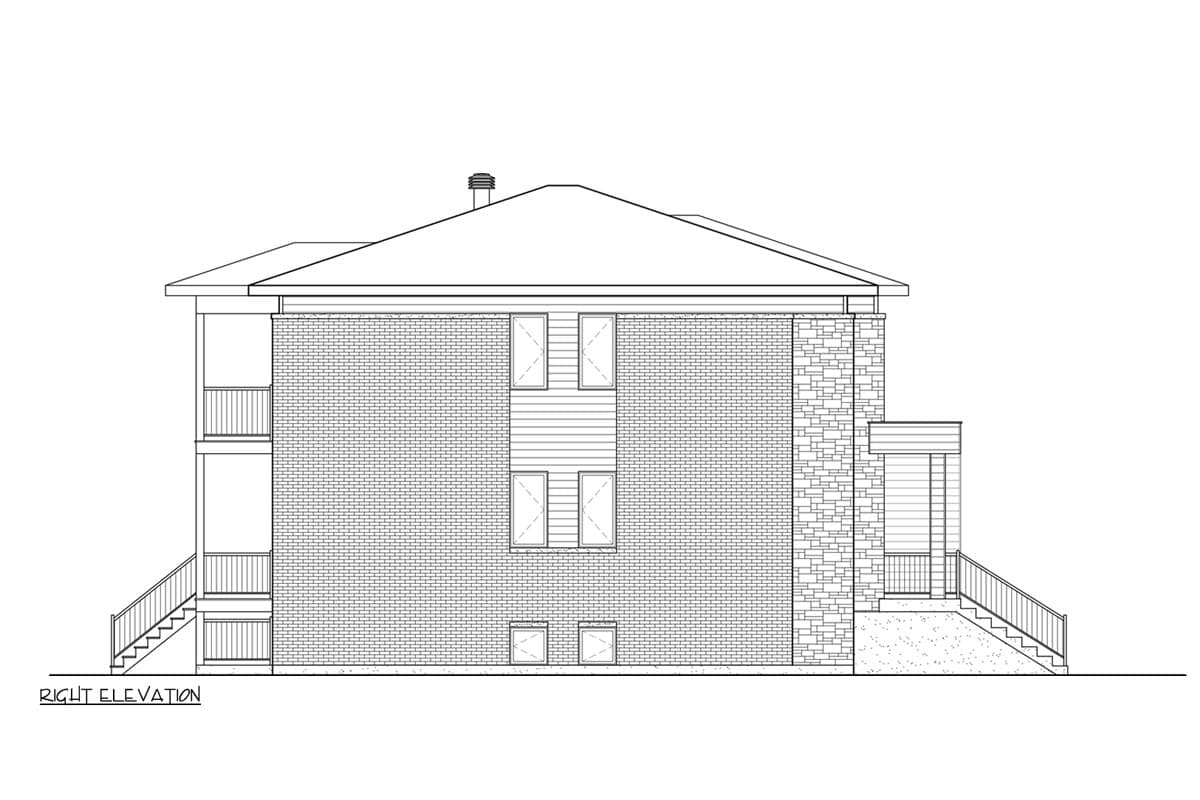

  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
