Plan 64474SC Mountain Craftsman Home Plan with Optional Bonus Level

3,476 3 2.5 - 3.5 1 3
1 Client
Album Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Mountain Craftsman Home Plan with Optional Bonus Level

Plan 64474SC

  • 3,476

    Heated s.f.

  • 3

    Beds

  • 2.5 - 3.5

    Baths

  • 1

    Stories

  • 3

    Cars

  • Exquisite craftsman detailing provides a flavorful exterior on this mountain home plan, complete with a bonus level above the garage that includes an exercise room and covered deck.
  • Once inside, the formal entry leads into the heart of the home, comprised of an open floor plan connected by a double-sided fireplace. An oversized island offers ample seating for casual meals and conversation, and a hidden pantry wraps around the corner, maximizing workspace.
  • The serene master suite offers luxury at every turn, with a sizable sitting room that provides access to the back deck. Pass two walk-in closets on your way to the 5-fixture en suite, featuring a soaking tub and double commode rooms.
  • Just inside from the angled, 3-car garage, a breezeway with a mudroom grants access to a powder bath, large laundry room, and office nook.
  • Spread out on the lower level, which boasts a vast recreation room, two bedrooms and a 4-fixture bath.

This plan includes the following details:

  • Cover Sheet - project statistics, including square footages, 3D images (typically), general notes and drawings sheet index.
  • Foundation/basement plan - showing room/wall layout, beams, posts and joist direction, and often electrical outlets, switches and light locations.
  • Main Level Plan - floor plan rooms and walls dimensioned, window and door sizes noted, plumbing, millwork locations and other general notes.
  • Upper Level Plan (if needed) - same information as Main Level.
  • Roof Plan - layout with pitch markers, dimensions and notes.
  • Main Level Electrical Plan - electrical outlets, switches and light locations shown.
  • Upper Level Electrical Plan (if needed) - electrical outlets, switches and light locations shown.
  • Exterior Elevations - Elevations of the Front and Right side with notes, dimensions and material designations.
  • Exterior Elevations - Elevations of the Back and Left side with notes, dimensions and material designations.
  • Sections and details - One or more building sections to show vertical relationships and construction plate heights, details as needed.
  • Interior Elevations and Details - mostly millwork, fireplace and other items that need additional explanation, details as needed.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

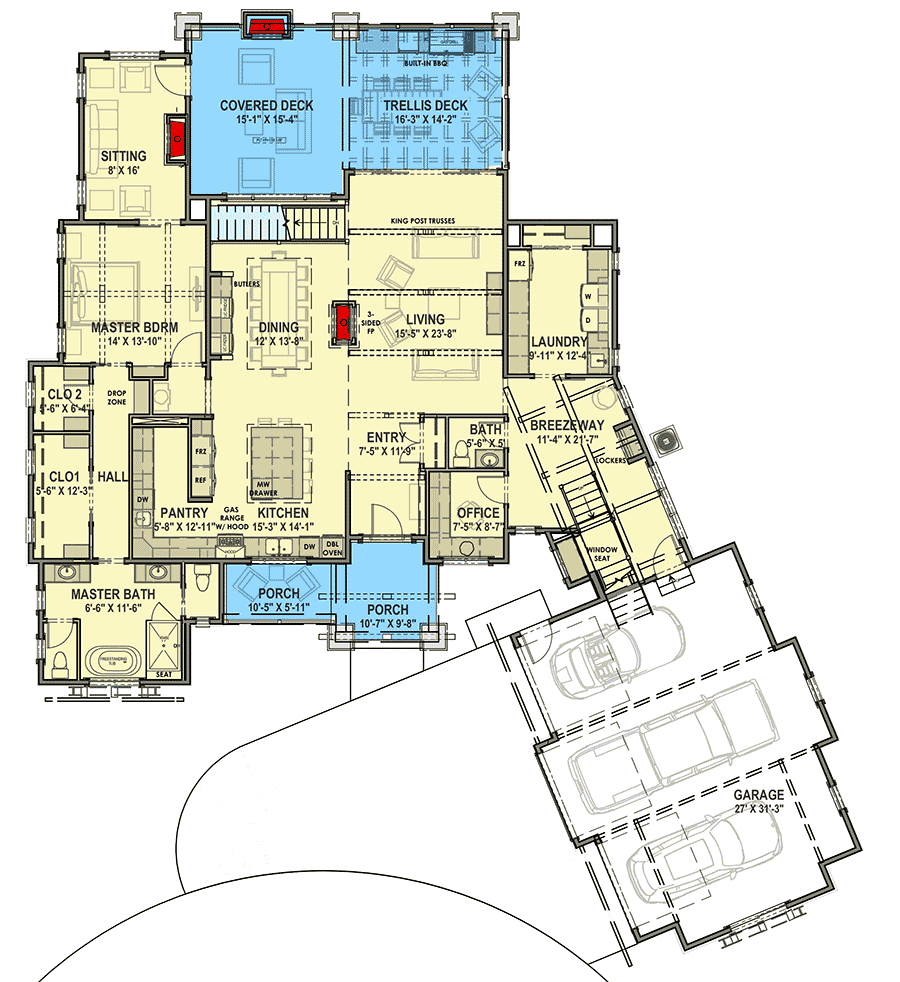

Mountain Craftsman Home Plan with Optional Bonus Level - 64474SC floor plan - Main Level

Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

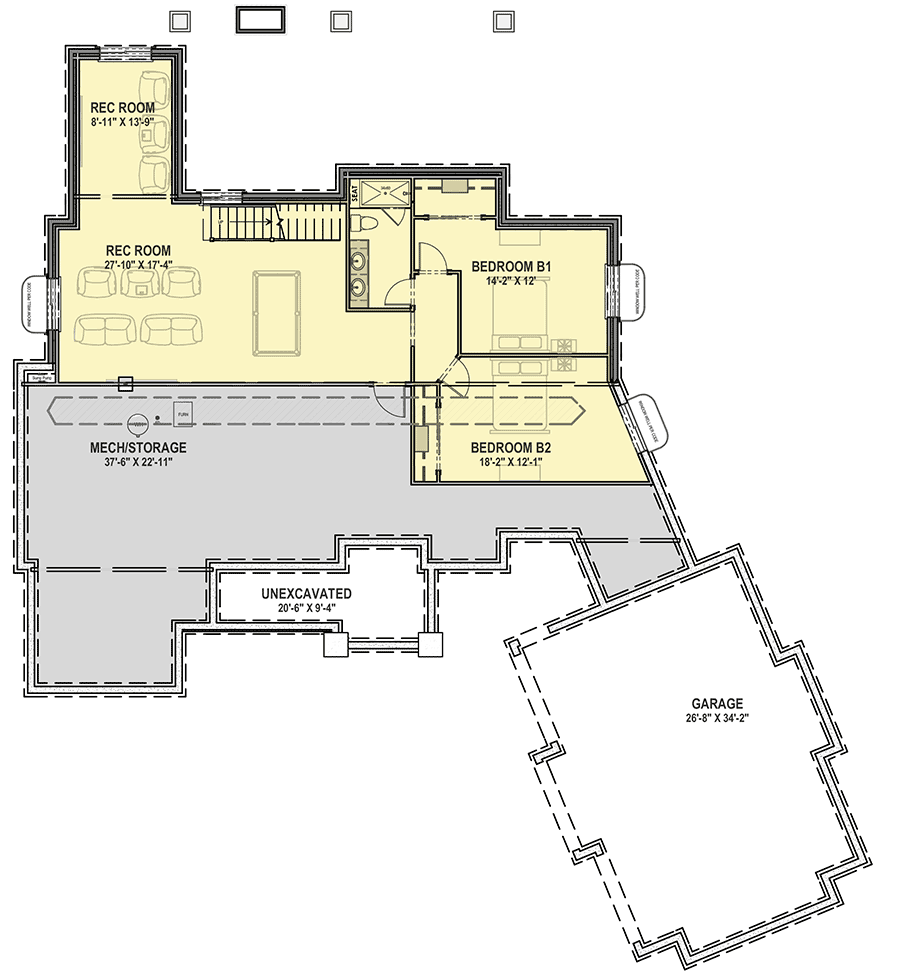

Mountain Craftsman Home Plan with Optional Bonus Level - 64474SC floor plan - Lower Level

Optional Bonus Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

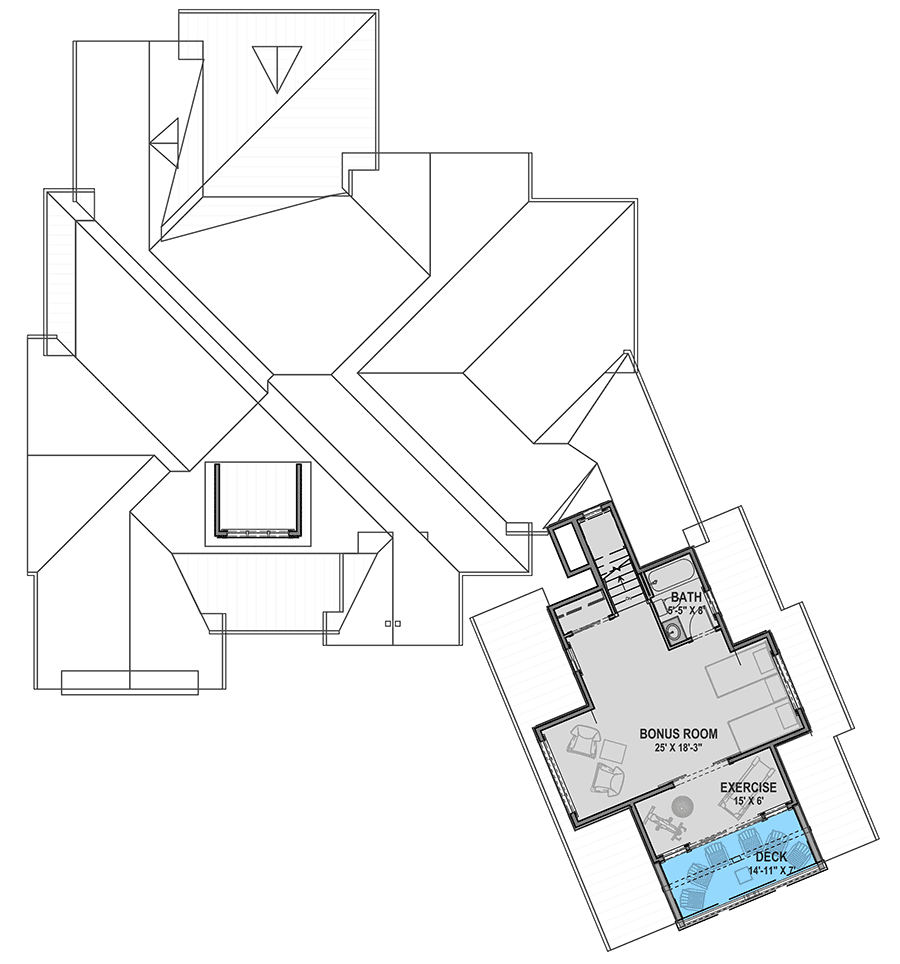

Mountain Craftsman Home Plan with Optional Bonus Level - 64474SC floor plan - Optional Bonus Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,476 sq. ft.
  • Lower Level: 1,034 sq. ft.
  • 1st Floor: 2,442 sq. ft.
  • Deck: 237 sq. ft.
  • Porch, Rear: 251 sq. ft.
  • Porch, Front: 159 sq. ft.
  • Bonus: 556 sq. ft.
  • Optional Lower Level: 1,034 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Basement
  • Optional Foundations: Walkout, Slab, Daylight, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 82' 6"
  • Depth: 93' 0"
  • Max ridge height: 25' 6"

Garage

  • Type: Attached
  • Area: 871 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Roof Details

  • Primary Pitch: 7 on 12
  • Secondary Pitch: 4 on 12

Architectural Style

Special features

Plan Collections

Mountain Craftsman Home Plan with Optional Bonus Level

  • 3,476

    Heated s.f.

  • 3

    Beds

  • 2.5 - 3.5

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,595
  • PDF - Unlimited Build $2,095
  • CAD + PDF - Single-Build $2,195
  • CAD + PDF - Unlimited Build $2,895
  • View all purchase option online

About This Plan

  • Exquisite craftsman detailing provides a flavorful exterior on this mountain home plan, complete with a bonus level above the garage that includes an exercise room and covered deck.
  • Once inside, the formal entry leads into the heart of the home, comprised of an open floor plan connected by a double-sided fireplace. An oversized island offers ample seating for casual meals and conversation, and a hidden pantry wraps around the corner, maximizing workspace.
  • The serene master suite offers luxury at every turn, with a sizable sitting room that provides access to the back deck. Pass two walk-in closets on your way to the 5-fixture en suite, featuring a soaking tub and double commode rooms.
  • Just inside from the angled, 3-car garage, a breezeway with a mudroom grants access to a powder bath, large laundry room, and office nook.
  • Spread out on the lower level, which boasts a vast recreation room, two bedrooms and a 4-fixture bath.

Floor Plans

  • Main Level

  • Lower Level

  • Optional Bonus Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,476 sq. ft.
  • Lower Level: 1,034 sq. ft.
  • 1st Floor: 2,442 sq. ft.
  • Deck: 237 sq. ft.
  • Porch, Rear: 251 sq. ft.
  • Porch, Front: 159 sq. ft.
  • Bonus: 556 sq. ft.
  • Optional Lower Level: 1,034 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Walkout, Slab, Daylight, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 82' 6"
  • Depth: 93' 0"
  • Max ridge height: 25' 6"

Garage

  • Type: Attached
  • Area: 871 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Roof

  • Primary Pitch: 7 on 12
  • Secondary Pitch: 4 on 12
Plan 64474SC
View this and more for this plan by visiting www.architechtecturaldesigns.com/64474SC
|
Need Help? 800-854-7852
|
Plan 64474SC
