Mountain Craftsman with Wraparound Deck and Drive-Under Garage

Plan 68890VR

  • 2,742

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 2

    Stories

  • 2

    Cars

  • The vertical board and batten draws your gaze upward to the gabled peaks of this Mountain Craftsman home plan designed for a sloping lot, complete with a stone-wrapped chimney flanked by oversized windows providing superior views.
  • A deck surrounds much of the main floor and has entry points from the mudroom, great room and master bedroom.
  • A vaulted ceiling above the open living space makes the room feel more spacious and french doors provide easy access to the wraparound deck.
  • The smart floor plan provides a main-level master bedroom with a wet room in the ensuite and a shortcut into the laundry room from the walk-in closet.
  • Upstairs, you'll find Bedroom 2 and an office / loft.
  • The basement gives you 681 square feet of expansion space, a mechanical room and parking for 2 cars.
  • Related Plan: Get a ground level garage with plan 68806VR.

This plan set has the following details:

a) Floor Plans: House plan drawings indicating dimensions for construction

b) Roof Plan: Drawings indicating roof slopes and unique conditions

c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim

d) Building Sections: Drawings cut through important locations in the structure

e) Construction Details: Drawings showing specific construction of building elements at a large scale

f) Kitchen and bath elevations (excluded on garage plans)

g) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)

h) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure

i) A building license: A single-use license for construction at one location only


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

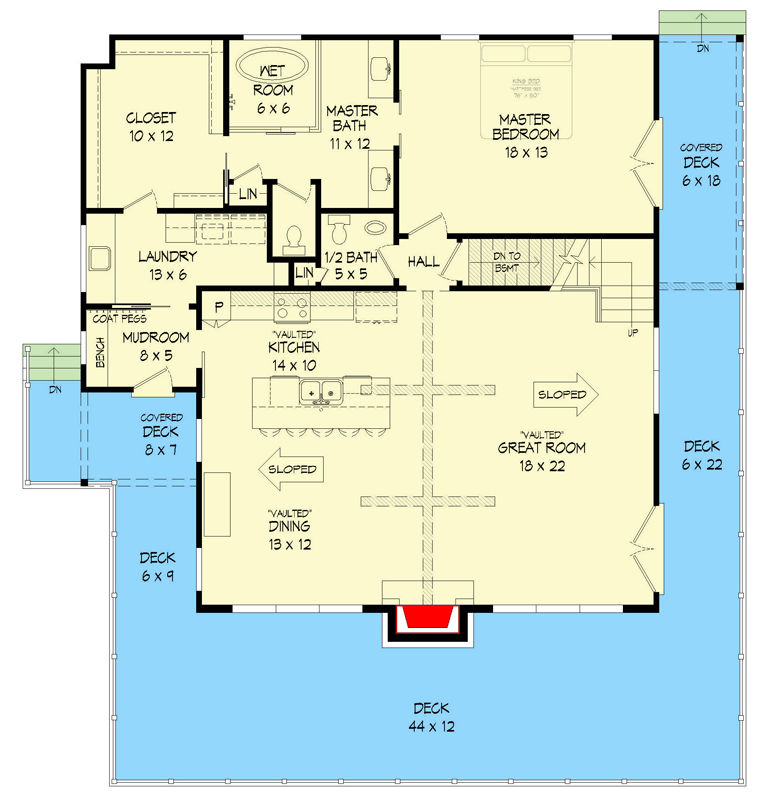

Mountain Craftsman with Wraparound Deck and Drive-Under Garage - 68890VR floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

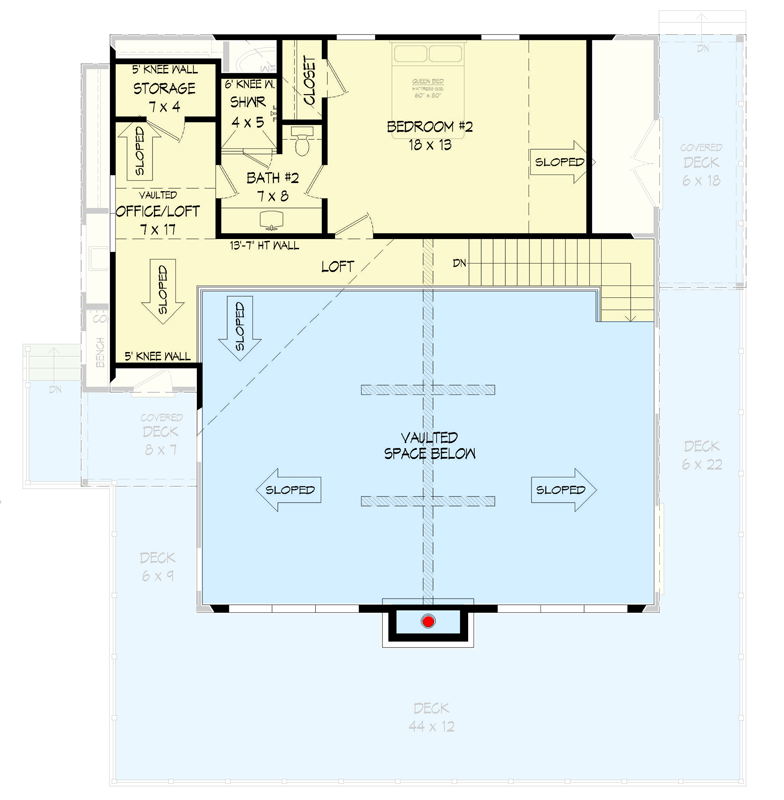

Mountain Craftsman with Wraparound Deck and Drive-Under Garage - 68890VR floor plan - 2nd Floor

Basement

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

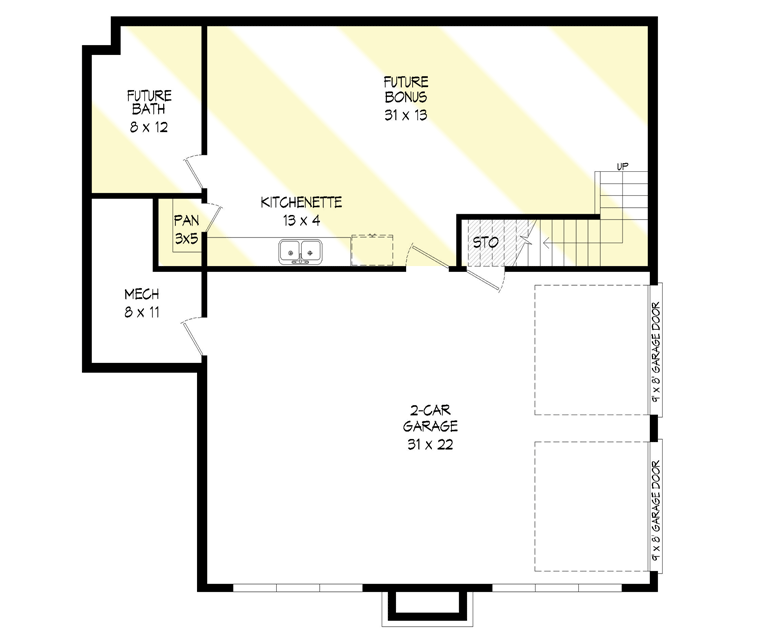

Mountain Craftsman with Wraparound Deck and Drive-Under Garage - 68890VR floor plan - Basement

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,742 sq. ft.
  • 1st Floor: 1,489 sq. ft.
  • 2nd Floor: 572 sq. ft.
  • Deck: 887 sq. ft.
  • Optional Lower Level: 681 sq. ft.
  • Basement Unfinished: 86 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Walkout
  • Optional Foundations: Basement, Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 46' 0"
  • Depth: 52' 0"
  • Max ridge height: 26' 10"

Garage

  • Type: Drive Under, Attached
  • Area: 722 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Roof Details

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Stick

Architectural Style

Special features
