Plan 81723AB

Multi-Generational Modern Farmhouse with Lower-level Apartment - 3130 Sq Ft

Name: Plan 81723AB: Multi-Generational Modern Farmhouse with Lower-level Apartment - 3130 Sq Ft
Brand: Architectural Designs
SKU: 81723AB
Price: 1372.75 USD
Availability: InStock

Heated S.F.

3,130

Beds

3 - 6

Baths

3.5

Stories

Floor Plan

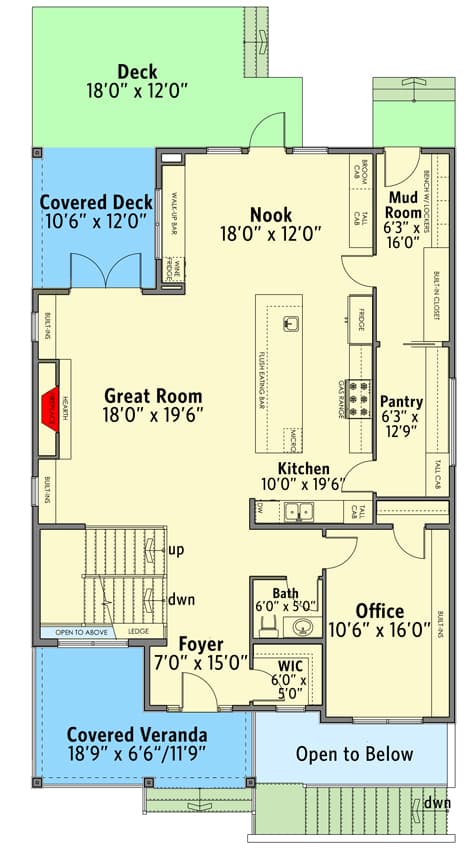

Main Level

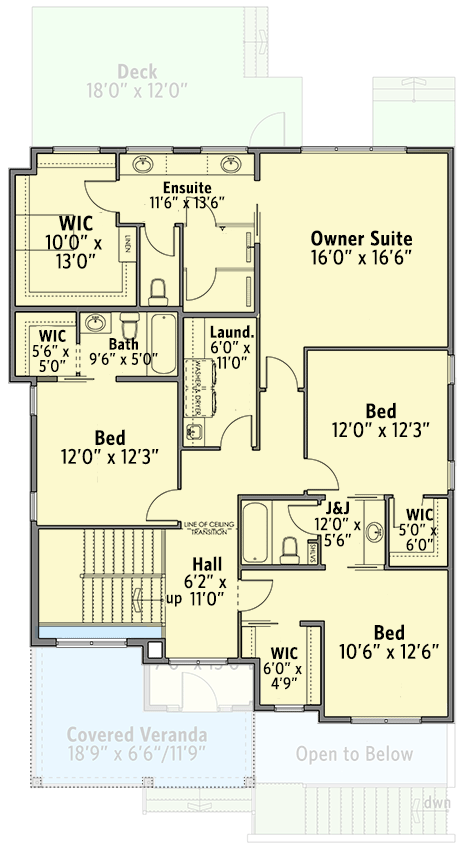

2nd Floor

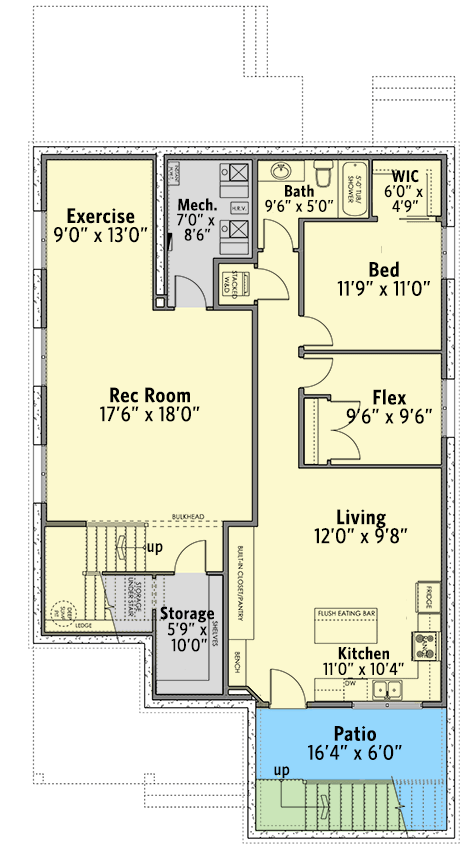

Lower Level

Plan Details

A modernized exterior compliments the smart floor plan of this Multi-Generational two-story home plan that delivers a lower-level apartment with exterior access, a full kitchen, bathroom, two bedrooms, and a laundry closet.
A covered veranda welcomes you into the main level with a powder bath and home office to the right. The combined great room / kitchen / dining nook can be found a few steps further with access to a rear deck.
The elongated kitchen island offers a flush eating bar and a pass-through pantry seamlessly connects to the mudroom.
Four bedrooms reside upstairs, including the owner suite with a wet room and walk-in closet in the ensuite. Two of the family bedrooms share a Jack-and-Jill bathroom.
A rec / exercise room and dedicated storage space downstairs completes the design.

What's Included

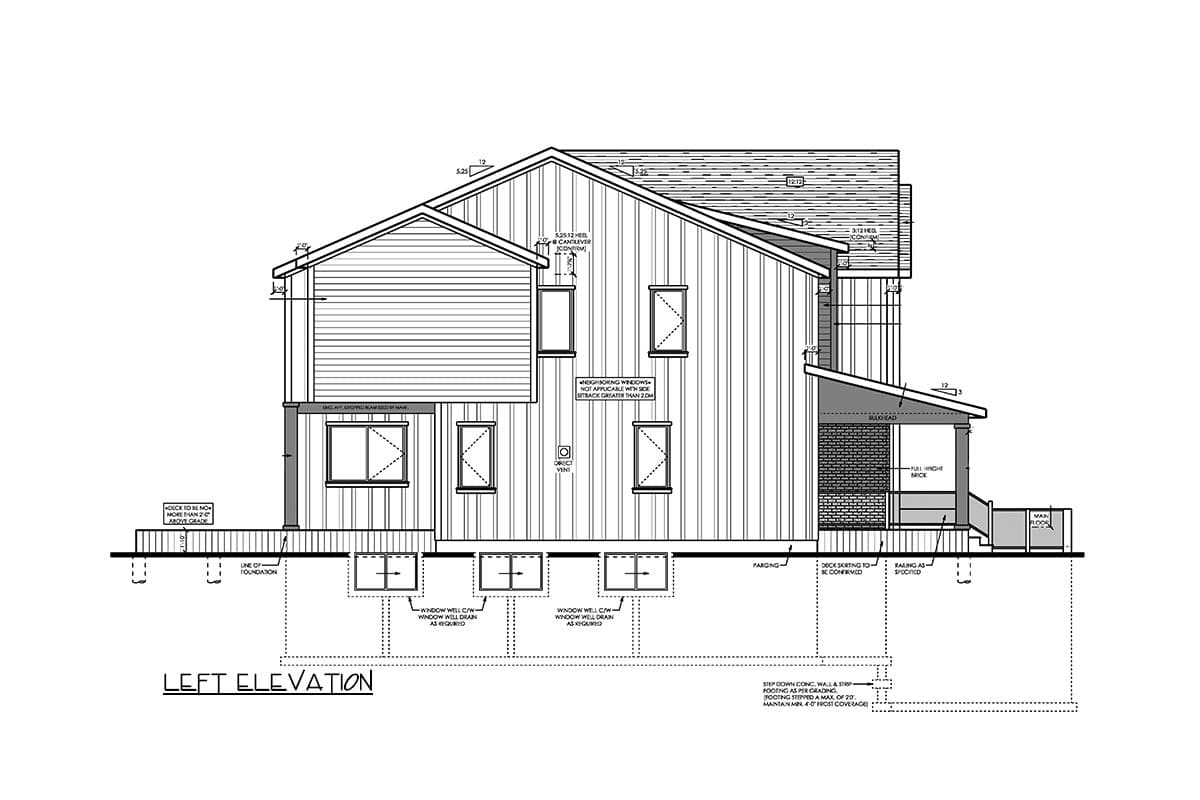

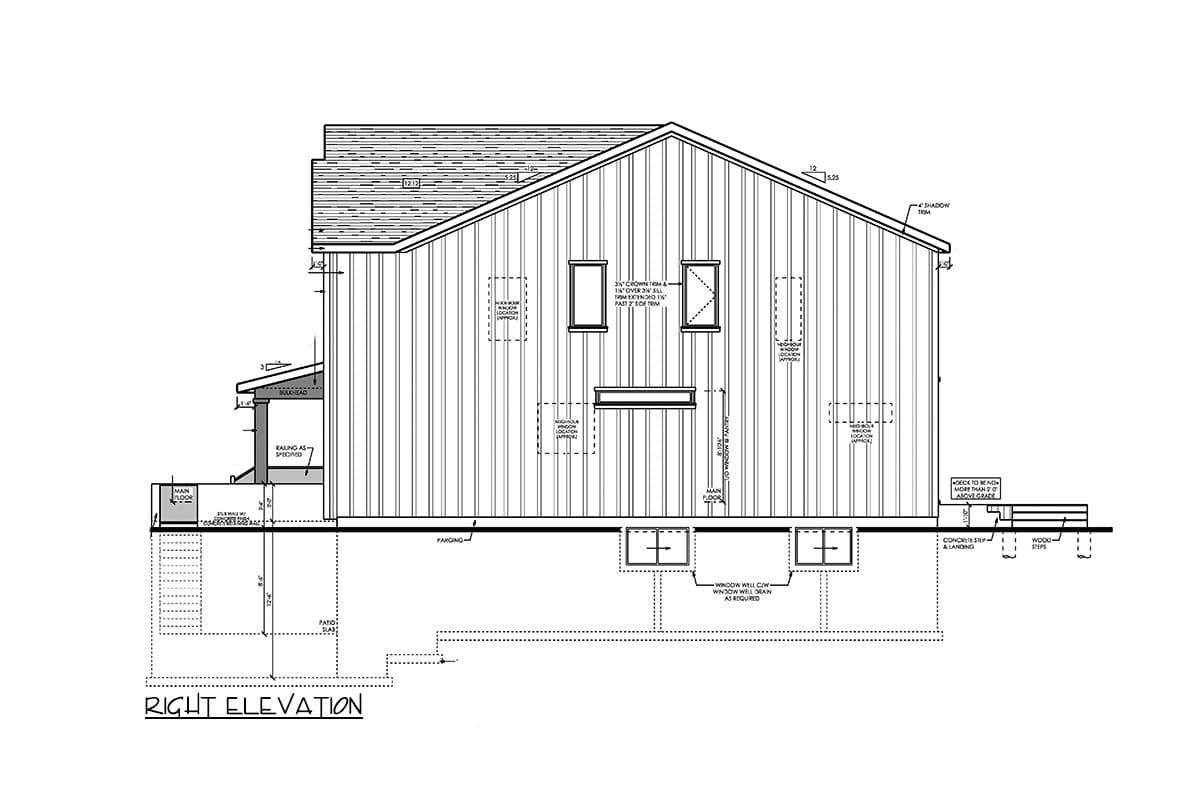

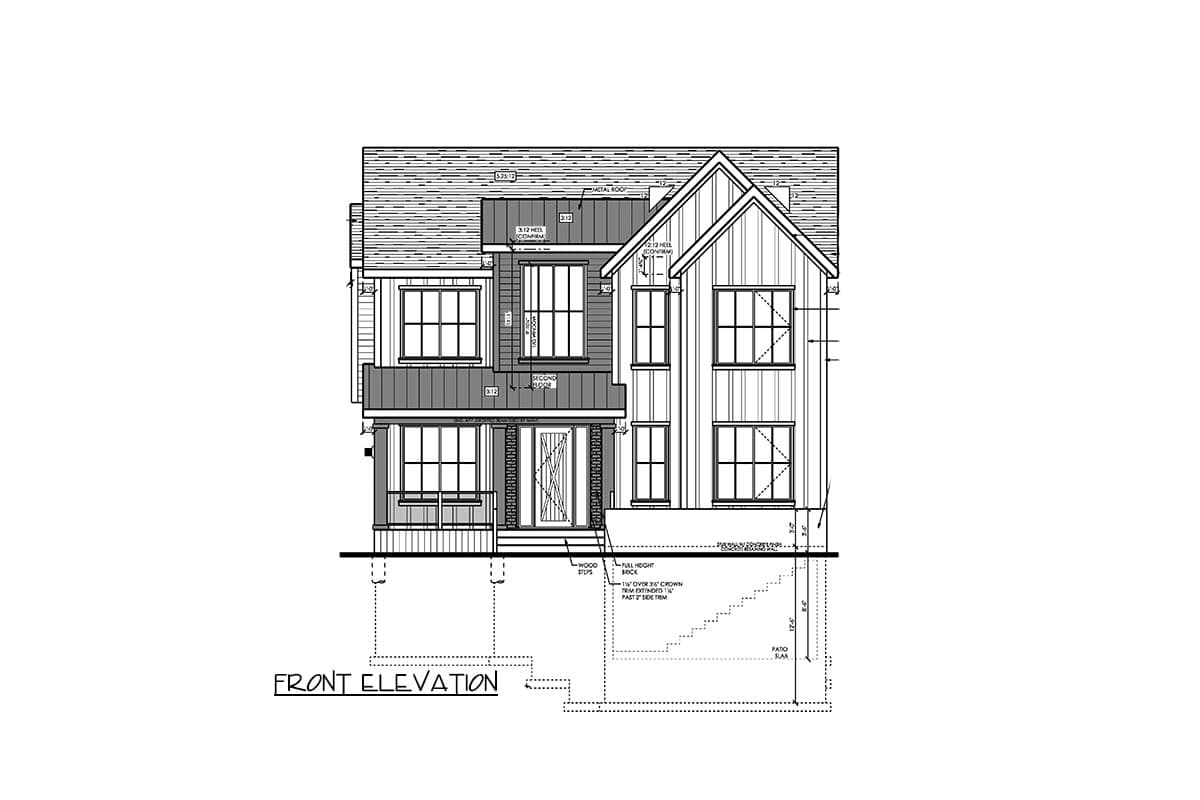

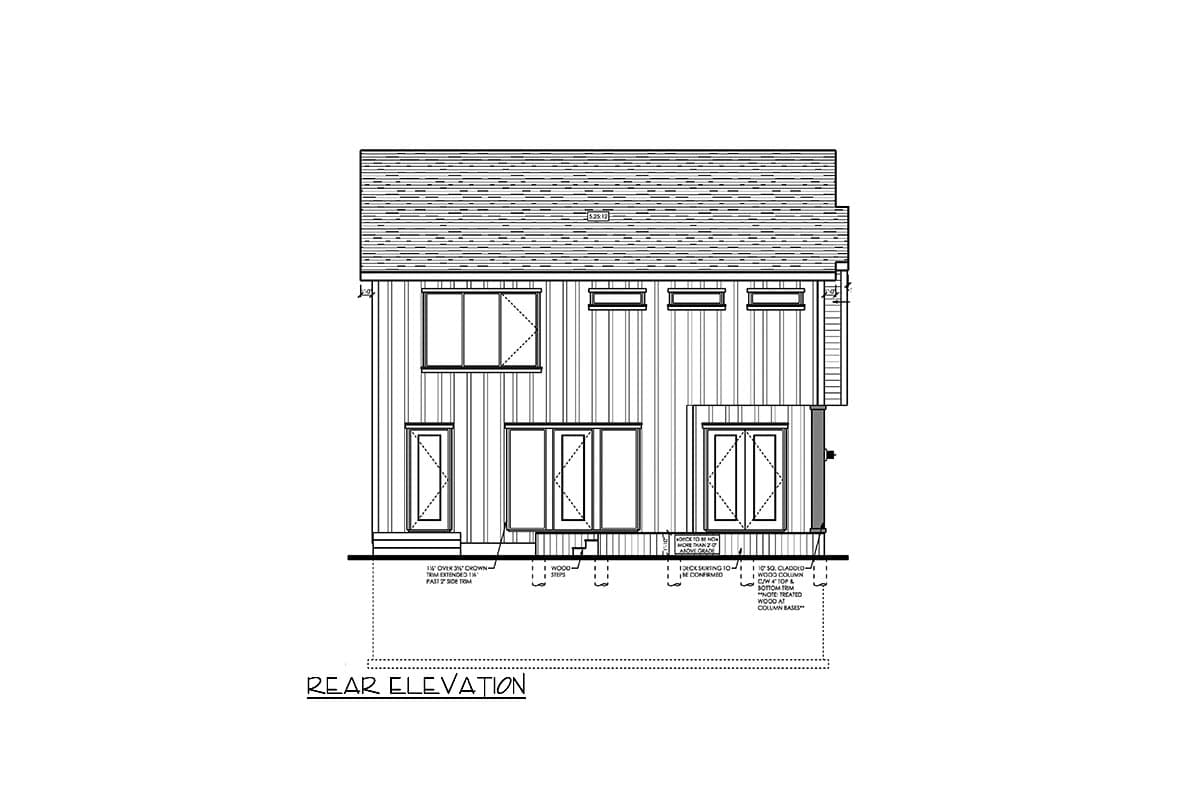

Elevations (Front, Rear, Left and Right)
Floor plans
Foundation plan
Cross section
Roof plan

We also include a list of building specifications, and notes for each page, with any important info the builder may need.

View Sample Plan

What's Not Included

Electrical plan
Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
