Multi-Generational New American House Plan with 1-Bed Apartment
Heated S.F.
2,440
Beds
4
Baths
3
Stories
1
Cars
2
What's Included
Plan Details
  • This multi-generational, New American house plan combines two homes into one; enjoy the main portion and use the other for your parents or a child who needs a safe place to get their start from.
  • Three gables, a welcoming front porch, and a 2-car garage turned discretely to the side give this home plan great curb appeal.
  • The main portion has a larger common space combining a living room, dining room, and kitchen (with an island and a true walk-in pantry), along with 3 bedrooms, while the smaller portion has a kitchen/living room combination and single bedroom.
  • A huge covered porch off the living room of the main home gives you a great space to tell stories and share the views all while being protected overhead by a roof.
  • Related Plan: Find a slightly smaller plan with 22587DR.


What's Included
Each plan includes the following:

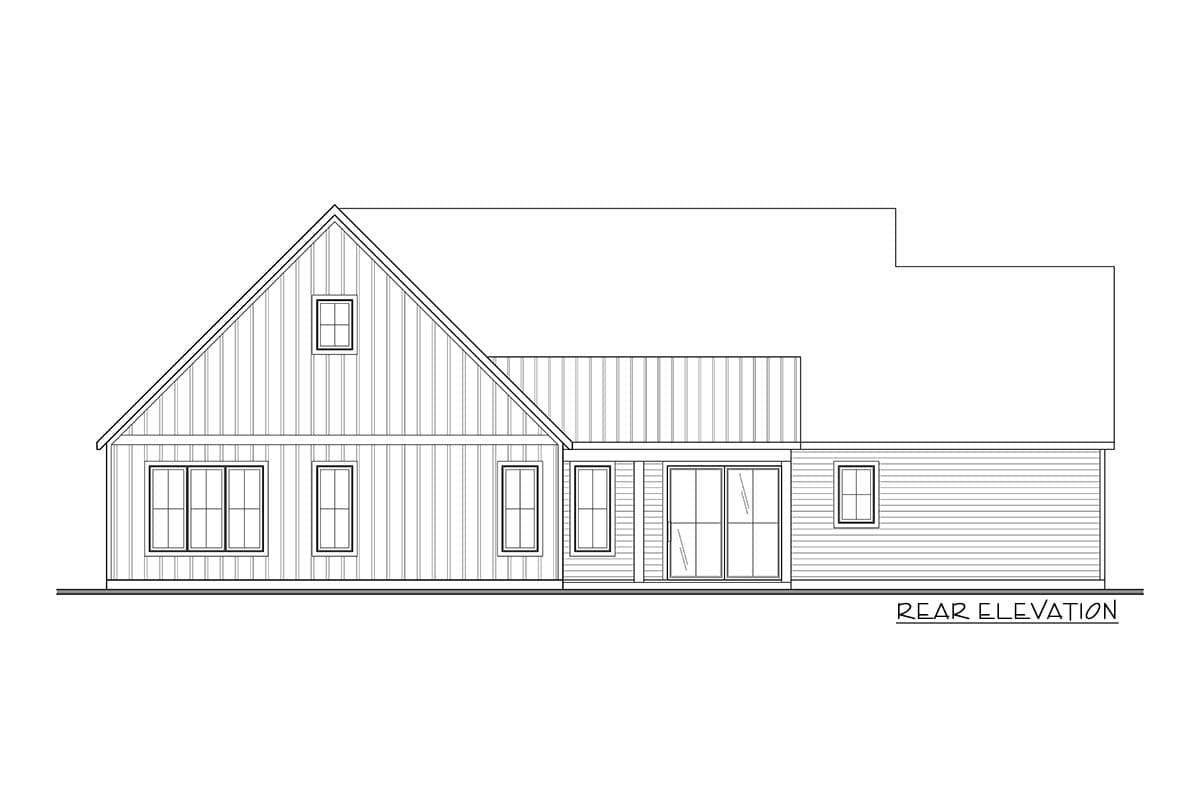

* 4 Elevations
* Foundation Plan
* Main Floor Plan
* Upper Floor Plans (if applicable)
* Roof Plan
* Building Section
* Construction Details
* Typical Wall Section

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Multi-Generational New American House Plan with 1-Bed Apartment

  • 2,440

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 1

    Floors

  • 2

    Car garage

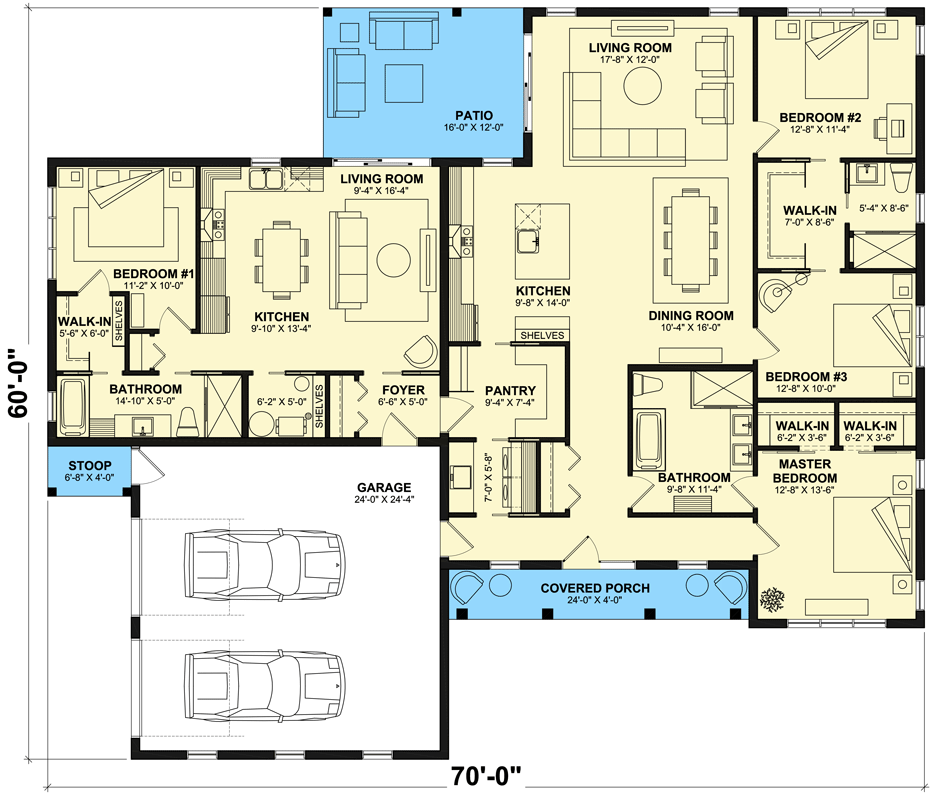

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 2,440 sq. ft.
  • 1st Floor: 2,440 sq. ft.

Dimensions

  • Width: 70' 0"
  • Depth: 60' 0"
  • Max ridge height: 26' 4"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3

Garage

  • Type: Attached
  • Area: 650 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Stem Wall
    • Optional Foundations: Monolithic Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6
