Plan 100314GHR

Exclusive

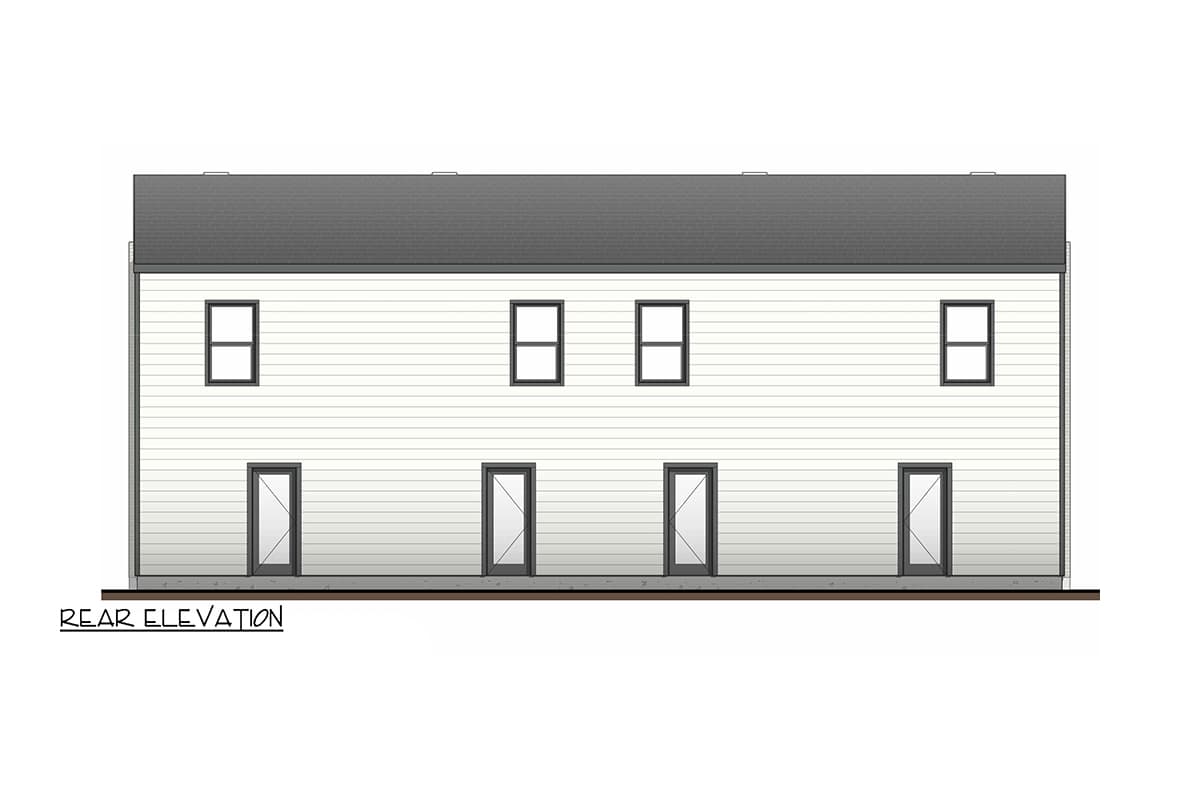

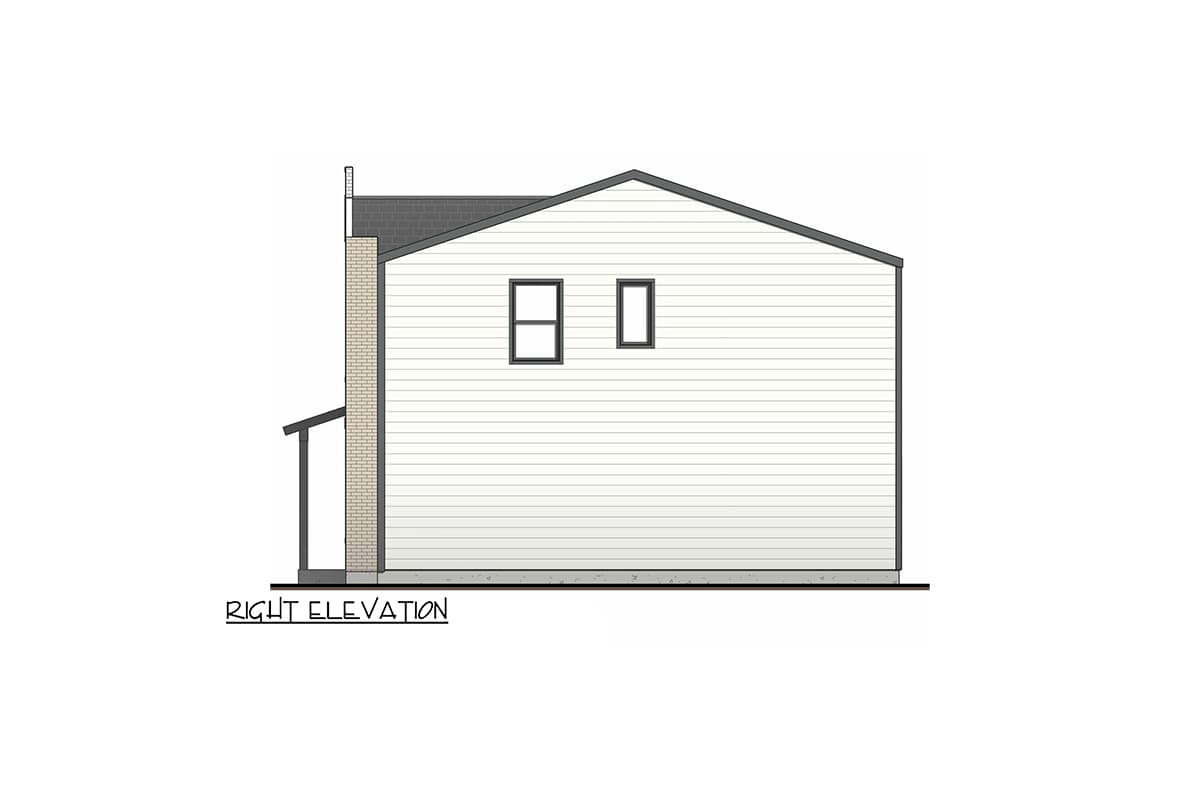

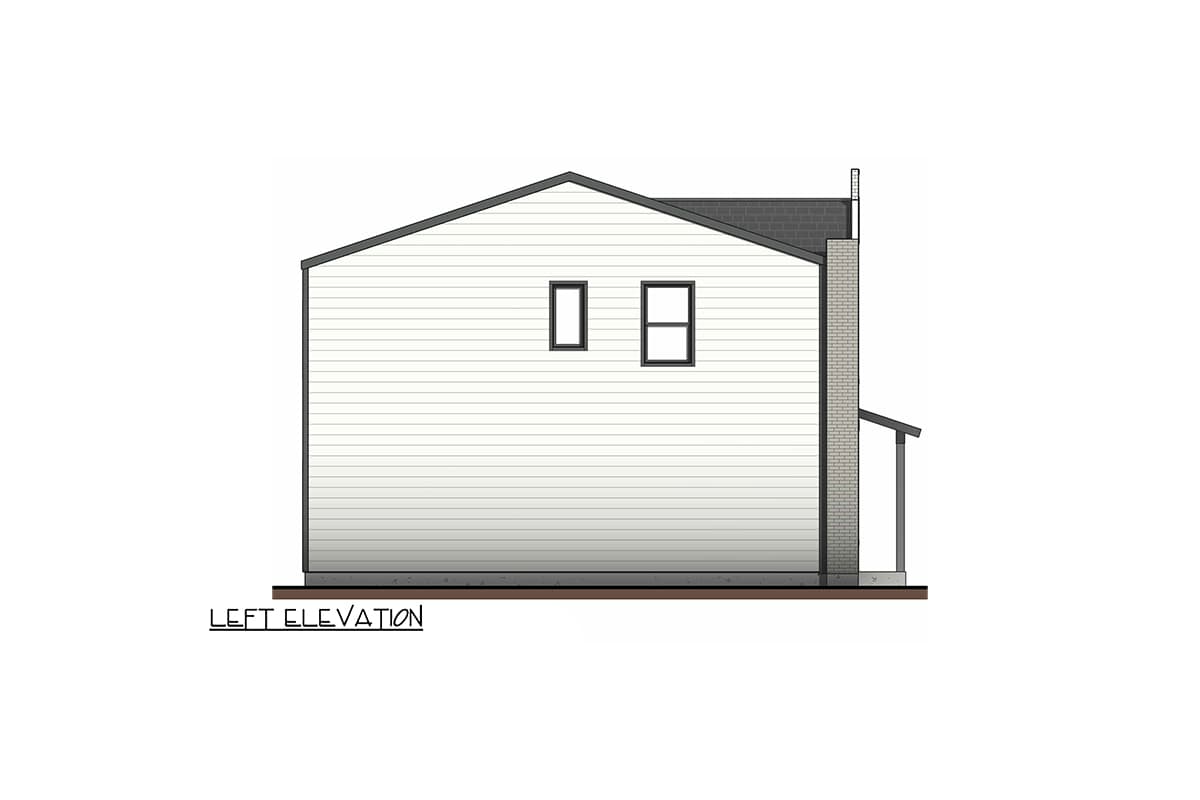

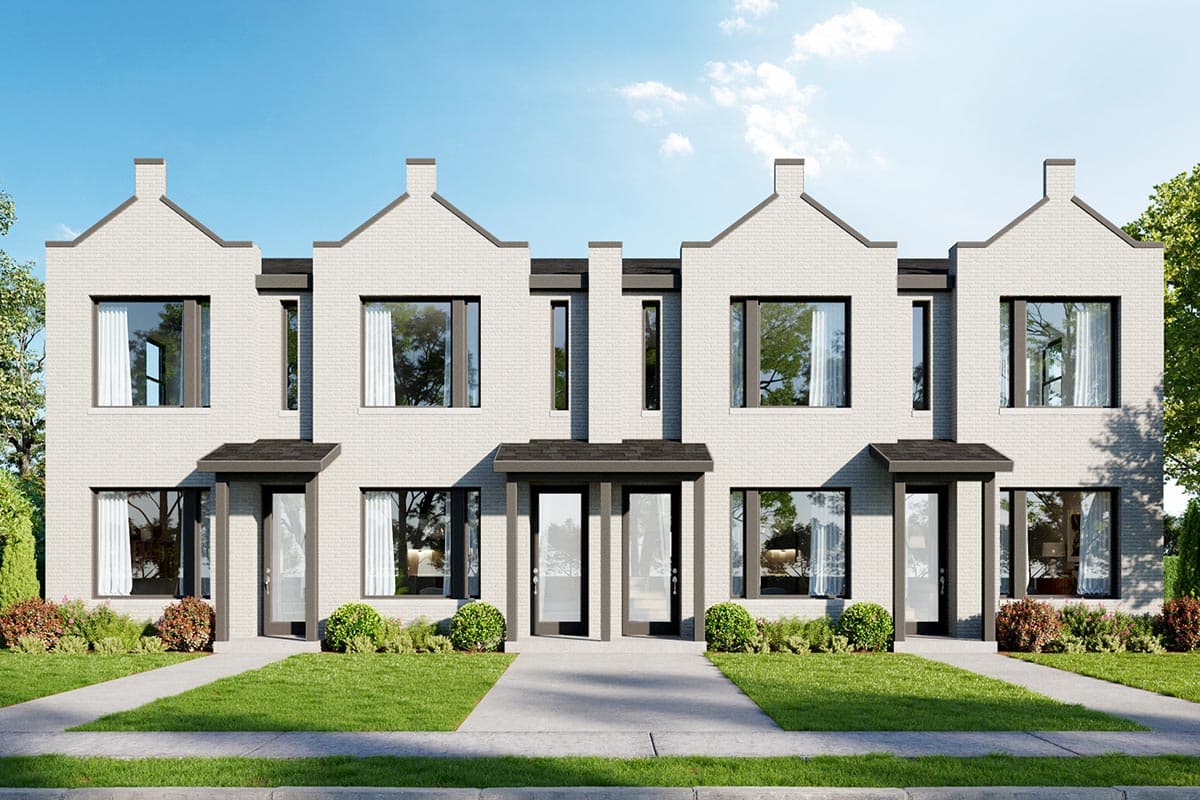

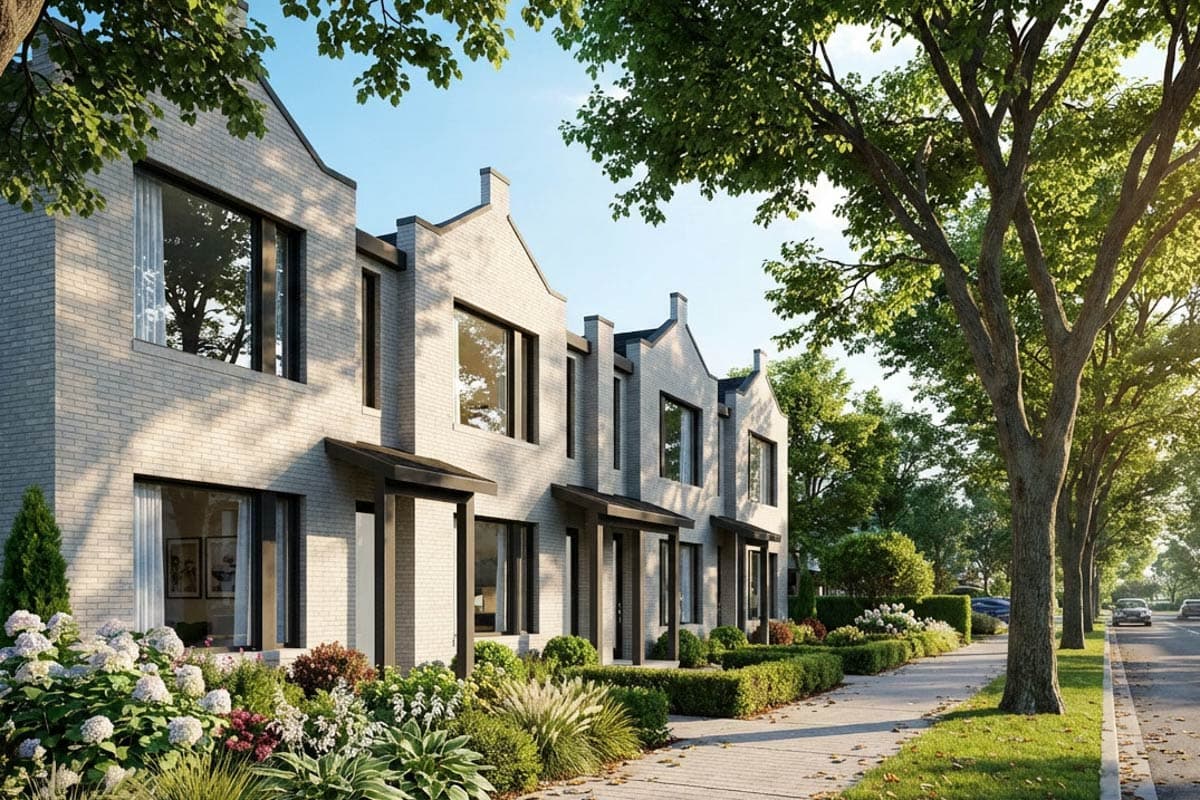

Multifamily Fourplex Plan with 2-Bedroom End Units and 1-Bedroom Middle Units

Heated S.F.
3,585
Units
4
Width
Depth

Floor Plan

Plan 100314GHR

Main Level
Main Level
2nd Floor
2nd Floor

Plan 100314GHR

M-F 9am-5pm EST |

1-203-761-8500

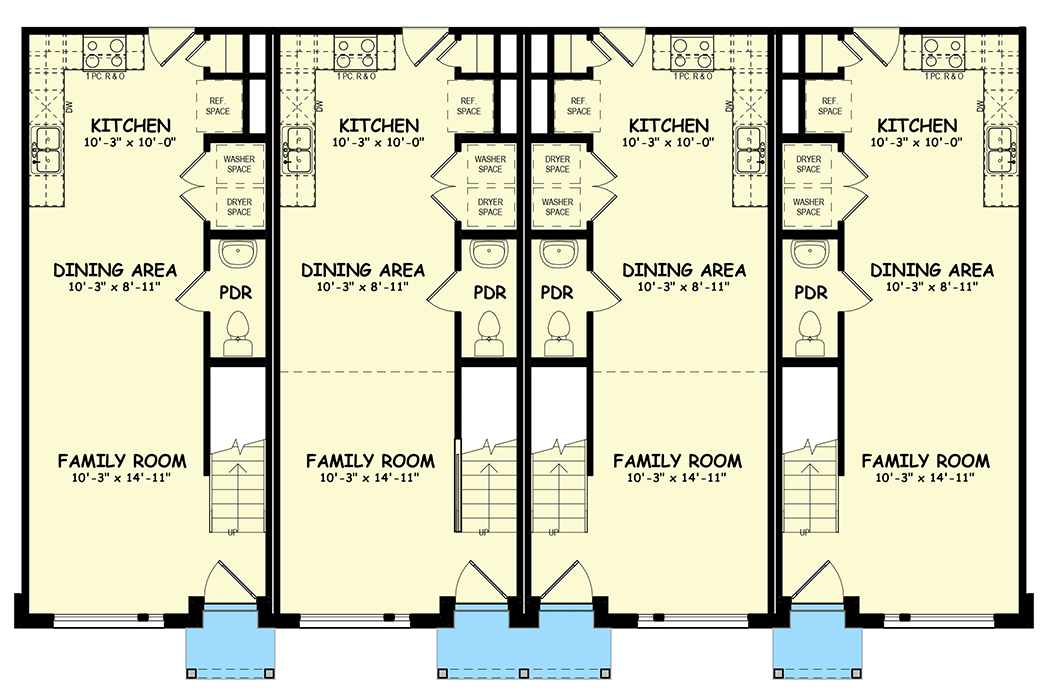

Main Level

Plan 100314GHR: Multifamily Fourplex Plan with 2-Bedroom End Units and 1-Bedroom Middle Units - Floor Plan - Main Level - European, Southwest, Spanish, Transitional

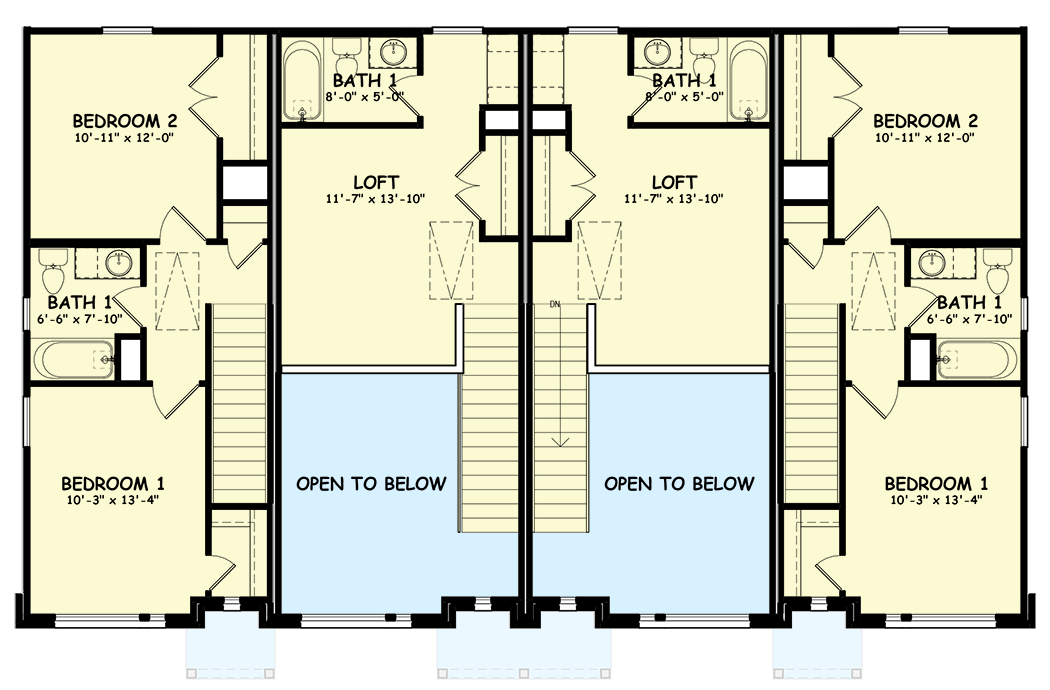

2nd Floor

Plan 100314GHR: Multifamily Fourplex Plan with 2-Bedroom End Units and 1-Bedroom Middle Units - Floor Plan - 2nd Floor - European, Southwest, Spanish, Transitional

Plan Details

  • This thoughtfully designed fourplex plan delivers an efficient and highly rentable multi-family configuration ideal for developers, builders or investors seeking a balance of spacious living and footprint economy. The building features four units with a smart layout that maximizes functional living space while maintaining architectural appeal and construction efficiency.
  • The two end units are generous 2-bedroom, 1.5-bath residences spanning approximately 1,013 square feet each. These units offer a well-proportioned two-story layout with living spaces on the main floor and private bedroom areas upstairs. The inclusion of a half bath on the main level increases flexibility for residents and enhances rental appeal.
  • The center-units of the building are two 1-bedroom, 1.5-bath units, each providing approximately 780 square feet of heated living area. These middle units incorporate efficient floor planning with essential living spaces on the ground floor and a private bedroom and bath suite above. This unit mix supports diverse tenant needs while optimizing rental income potential.
  • Overall, the fourplex totals approximately 3,585 square feet of heated living area and presents a compact yet versatile design suited to urban and suburban lots alike. Its configuration supports multiple income streams, making it a strategic choice for rental investment or mixed-use residential development.
Unit A
Heated Area
1,013Sq. Ft.
504 Sq. Ft. 1st
509 Sq. Ft. 2nd
Beds
2Beds
Baths
1Full Bath
1Half Bath
Dimensions
14' 6"width
35'depth
25'height
Unit B
Heated Area
780Sq. Ft.
504 Sq. Ft. 1st
276 Sq. Ft. 2nd
Beds
1Beds
Baths
1Full Bath
1Half Bath
Dimensions
14' 6"width
35'depth
25' 4"height
Unit C
Heated Area
780Sq. Ft.
504 Sq. Ft. 1st
276 Sq. Ft. 2nd
Beds
1Beds
Baths
1Full Bath
1Half Bath
Dimensions
14' 6"width
35'depth
25' 4"height
Unit D
Heated Area
1,013Sq. Ft.
504 Sq. Ft. 1st
509 Sq. Ft. 2nd
Beds
2Beds
Baths
1Full Bath
1Half Bath
Dimensions
14' 6"width
35'depth
25'height

What's Included

  • Cover sheet with area, door & window schedules
  • Dimensioned floorplans with general notes, window & door sizes
  • Interior cabinet elevation
  • Foundation outline (perimeter dimensions only. All other construction details to be handled locally based on site and soil conditions)
  • Roof plan (Birdseye view with pitches)
  • Cornice details
  • Exterior elevations (4 sides)
  • Building sections (if applicable)
  • Electrical plans
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,585 sq. ft.

1st Floor

2,016 sq. ft.

2nd Floor

1,568 sq. ft.

Porch, Front

75 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Half bathrooms

4

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

58' 6"

Depth

35' 0"

Max Ridge Height

25' 4"

Ceiling Heights

First Floor

9' 1"

Second Floor

9' 1"

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

4 on 12

Framing Type

Stick

Architectural Style

European

Southwest

Spanish

Transitional

Special Features

Laundry - Main Level

Loft

Master Suite - Upstairs

Two Story Great Room

Plan Collections

Exclusive

Square Footage Breakdown

Total Heated Area

3,585 sq. ft.

1st Floor

2,016 sq. ft.

2nd Floor

1,568 sq. ft.

Porch, Front

75 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Half bathrooms

4

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

58' 6"

Depth

35' 0"

Max Ridge Height

25' 4"

Ceiling Heights

First Floor

9' 1"

Second Floor

9' 1"

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

4 on 12

Framing Type

Stick

Architectural Style

European

Southwest

Spanish

Transitional

Special Features

Laundry - Main Level

Loft

Master Suite - Upstairs

Two Story Great Room

Plan Collections

Exclusive
