Narrow Colonial Home Plan with Stacked Front Porches

Plan 370033SEN

  • 1,730

    Heated s.f.

  • 3-4

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • Stacked front porches add to the curb appeal on this Colonial home plan, while the elongated footprint makes this design perfect for narrow plot lines.
  • The great room opens to the eat-in kitchen where you'll find a central island and pantry closet.
  • The double garage is accessible from the rear and provides room for a shop, and a powder bath and coat closet are conveniently located just inside.
  • A forward-facing bedroom rounds out the main level and can double as a study or home office.
  • Upstairs, discover three bedrooms, including the master suite, and a loft that provides access to the covered deck.

Each plan set includes the following:


  • COVER SHEET
  • GENERAL NOTES
  • ELEVATIONS
  • FOUNDATION PLAN
  • FLOOR PLANS AND NOTES
  • BUILDING SECTION
  • ROOF PLAN
  • ELECTRICAL PLAN
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

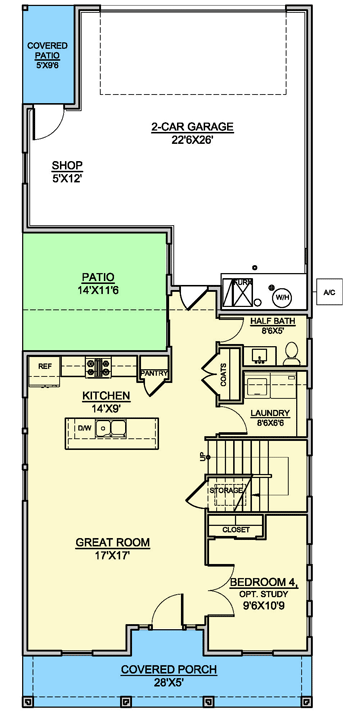

Narrow Colonial Home Plan with Stacked Front Porches - 370033SEN floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

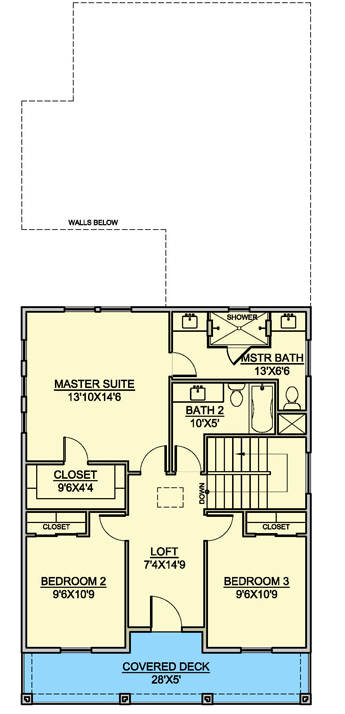

Narrow Colonial Home Plan with Stacked Front Porches - 370033SEN floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,730 sq. ft.
  • 1st Floor: 876 sq. ft.
  • 2nd Floor: 854 sq. ft.
  • Deck: 154 sq. ft.
  • Porch, Front: 158 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl
  • Optional Foundations: Walkout, Slab, Daylight, Basement

Exterior Walls

  • Standard Type(s): 2x6
  • Optional Type(s): 2x6

Dimensions

  • Width: 28' 0"
  • Depth: 68' 0"
  • Max ridge height: 31' 4"

Garage

  • Type: Attached
  • Area: 661 sq. ft.
  • Count: 2 Cars
  • Entry Location: Rear

Ceiling Heights

  • Floor / Height: Lower Level / 7' 9" First Floor / 9' 1" Second Floor / 9' 1"

Roof Details

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 5 on 12
  • Framing Type: Truss

Architectural Style

Special features

Narrow Colonial Home Plan with Stacked Front Porches

  • 1,730

    Heated s.f.

  • 3-4

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $995
  • 5 Sets + PDF $1,095
  • 8 Sets + PDF $1,195
  • CAD + PDF - Single-Build $1,499
  • View all purchase option online
