Narrow Lot Contemporary House Plan
Heated S.F.
1,296
Beds
2
Baths
1.5
Stories
2
What's Included
Plan Details
  • Angled windows off the two-story living room give this Contemporary house plan an interesting look.
  • The two bedroom home is designed to fit on a narrow lot, coming in at less than 33' wide.
  • The open layout makes the home feel larger.
  • Combining the powder room with the washer and dryer saves on space.
  • Pocket doors in the big walk-in closet in the large foyer is another space saver.
  • Sliding glass door open to a spacious open deck in back.
  • Both bedrooms are high up on the second floor and they share a hall bathroom.
What's Included
This house plan set has the following details:
  1. Cover sheet with general notes

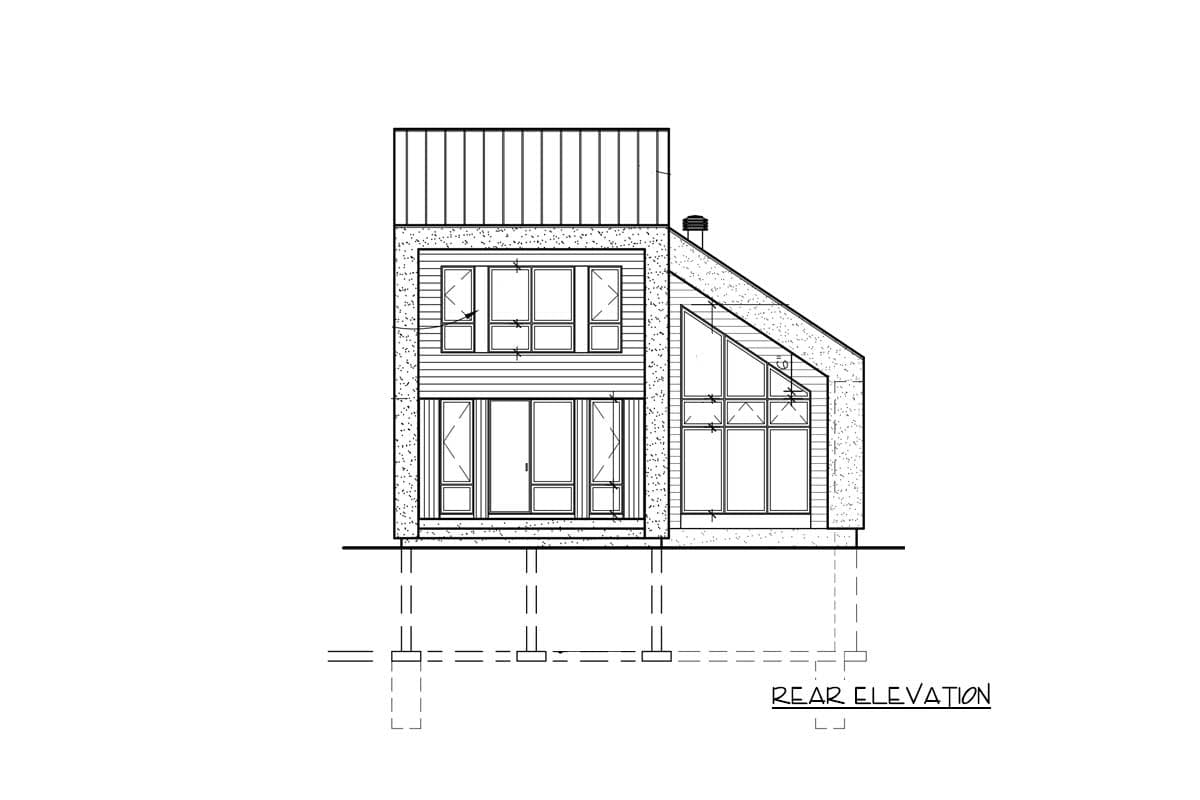

  2. Elevations
  3. Foundation plan
  4. Lower level floor plan
  5. Main level floor plan
  6. Upper level floor plan and roof plan
  7. Section


What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Narrow Lot Contemporary House Plan

  • 1,296

    Heated s.f.

  • 2

    Beds

  • 1.5

    Baths

  • 2

    Floors

Floor Plan

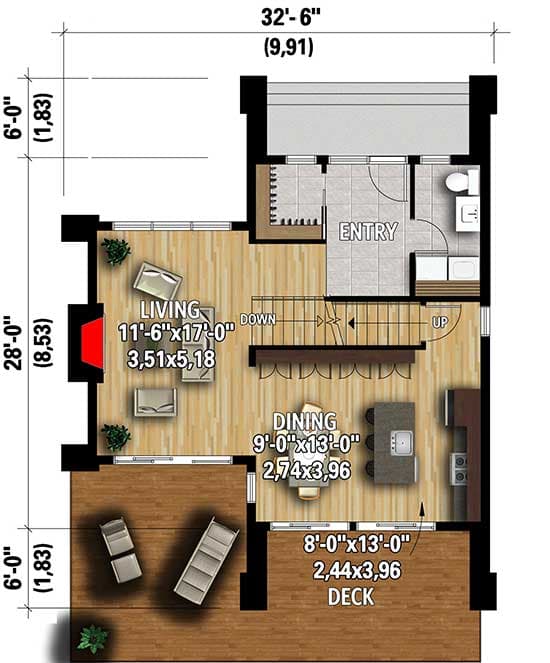

  • Main Level

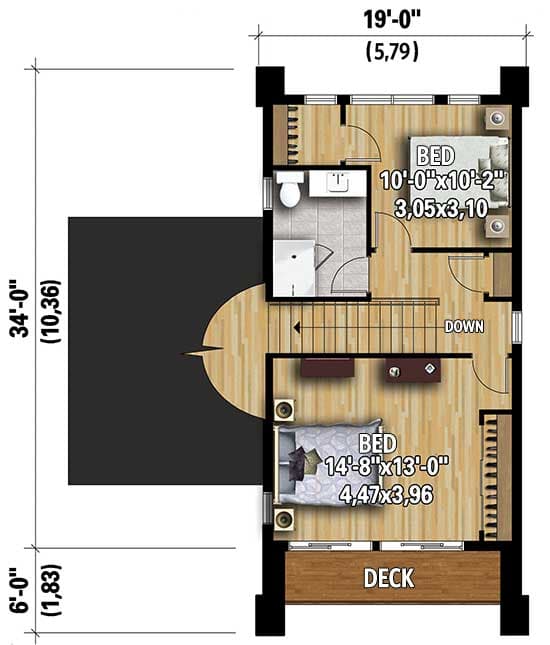

  • 2nd Floor
