Narrow Lot Contemporary House Plan

1,845 3 2 2 1
print
Pageloader

Narrow Lot Contemporary House Plan

Plan 80865PM

  • 1,845

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 2

    Stories

  • 1

    Cars

  • With a simple yet stylish exterior, this Contemporary house plan is designed to fit on a narrow lot.
  • Double doors open to reveal a sunken foyer where you are just one step away from the main living area.
  • The open layout enhances the home, making it feel larger.
  • There's a walk-in pantry and an island in the kitchen that seats 3 people.
  • Sliding glass doors in the dining area lead out to the back yard.
  • All the bedrooms are upstairs close by the large family room that sits on top of the one car garage.
  • A four piece washroom serves all three of the bedrooms.

Plan sets include the following:

  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.
  • **Plans DO NOT include electrical, HVAC or plumbing details (other than the location of plumbing fixtures)**


Floor Plan

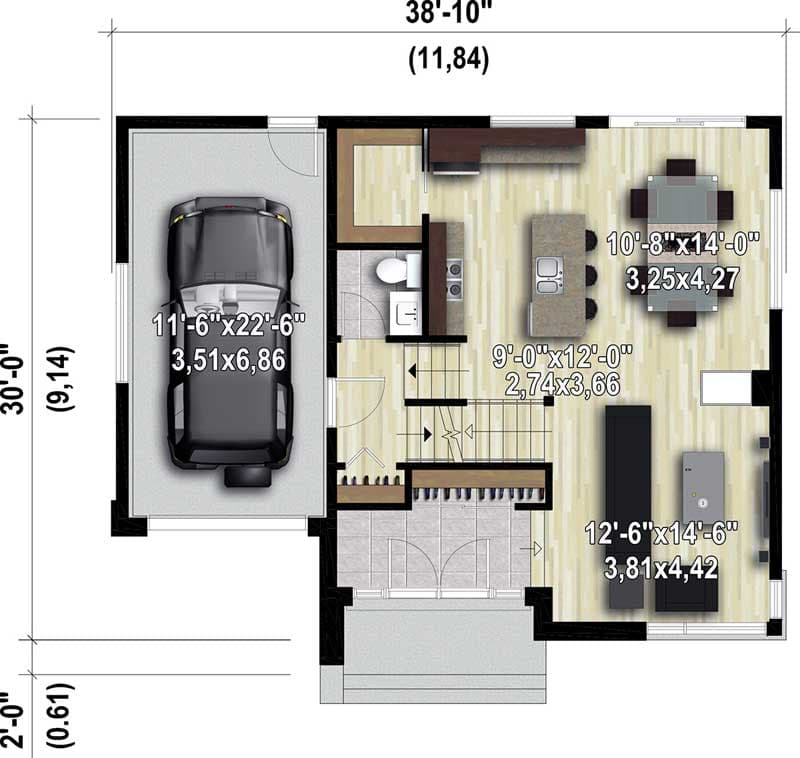

Main Level

Pinit white
Reverse Floor Plan
Narrow Lot Contemporary House Plan - 80865PM floor plan - Main Level

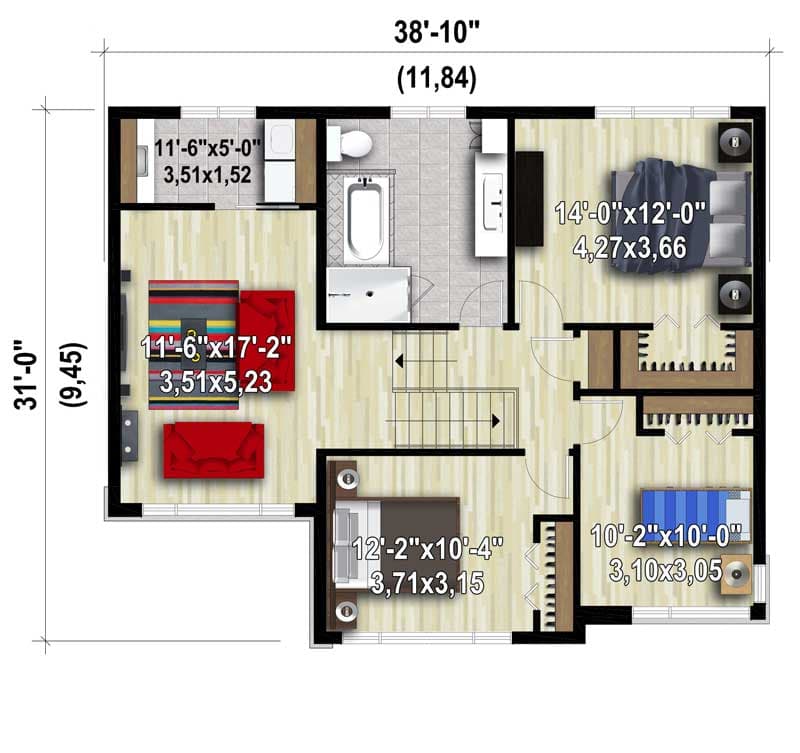

2nd Floor

Pinit white
Reverse Floor Plan
Narrow Lot Contemporary House Plan - 80865PM floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,845 sq. ft.
  • 1st Floor: 760 sq. ft.
  • 2nd Floor: 1,085 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 1
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 38' 10"
  • Depth: 30' 0"
  • Max ridge height: 30' 0"

Garage

  • Type: Attached
  • Area: 289 sq. ft.
  • Count: 1 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"
Room Type Height
Entry 10' 5"

Roof Details

  • Framing Type: Truss

Architectural Style

Special features

Plan Collections



Narrow Lot Contemporary House Plan

  • 1,845

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 2

    Floors

  • 1

    Car garage

Buy This Plan
  • 5 Sets $860
  • 8 Sets $905
  • Reproducible Set $1,125
  • PDF - single-use $1,125
  • CAD $1,710
  • View all purchase option online

About This Plan

  • With a simple yet stylish exterior, this Contemporary house plan is designed to fit on a narrow lot.
  • Double doors open to reveal a sunken foyer where you are just one step away from the main living area.
  • The open layout enhances the home, making it feel larger.
  • There's a walk-in pantry and an island in the kitchen that seats 3 people.
  • Sliding glass doors in the dining area lead out to the back yard.
  • All the bedrooms are upstairs close by the large family room that sits on top of the one car garage.
  • A four piece washroom serves all three of the bedrooms.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,845 sq. ft.
  • 1st Floor: 760 sq. ft.
  • 2nd Floor: 1,085 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 1
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 38' 10"
  • Depth: 30' 0"
  • Max ridge height: 30' 0"

Garage

  • Type: Attached
  • Area: 289 sq. ft.
  • Count: 1 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Framing Type: Truss

Architectural Style

  • Contemporary

Special features

  • 2nd Floor Master Suite
  • Butler Walk-in Pantry
  • CAD Available
  • Media-Game-Home Theater
  • PDF

Plan Collections

  • Canadian
  • Metric
