Narrow Lot Home with Finished Basement

Plan 23072JD

  • 3,261

    HEATED S.F.

  • 4 - 5

    BEDS

  • 3 +

    BATHS

  • 2

    FLOORS

  • 3

    CAR GARAGE

About this Plan

  • This roomy home plan features a vaulted living room that is open to the formal dining room with double tray ceiling.
  • A large family room has a fireplace and is open to the nook and kitchen. A covered patio in back is easily accessible.
  • The kitchen is spacious enough for a large island and a pantry is built into the space under the stairs.
  • The two-story foyer and living room can be viewed from the stairway.
  • The den is secluded and can make a fine home office.
  • The master-bedroom has a large walk-in closet and a five-fixture bath. The other bedrooms share a full bath.
    Related Plans: Get a crawlspace foundation with house plan 23028JD. Get more room with house plan 23050JD (2,765 sq. ft.).
    NOTE: Additional fees apply when building in the State of Washington. Contact us for more information..

See What's Included in this Plan...

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,261 sq. ft.

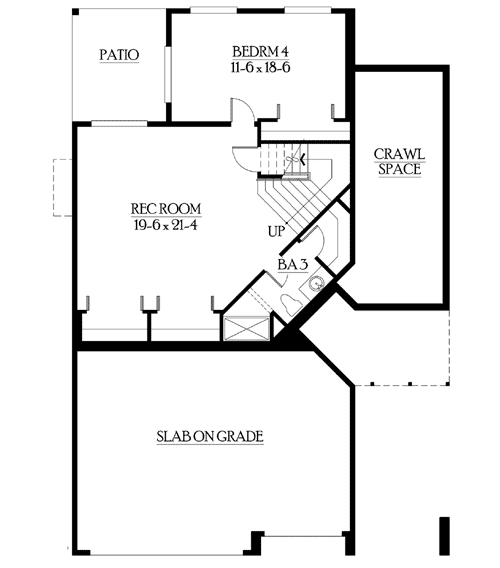

  • Lower Level: 846 sq. ft.

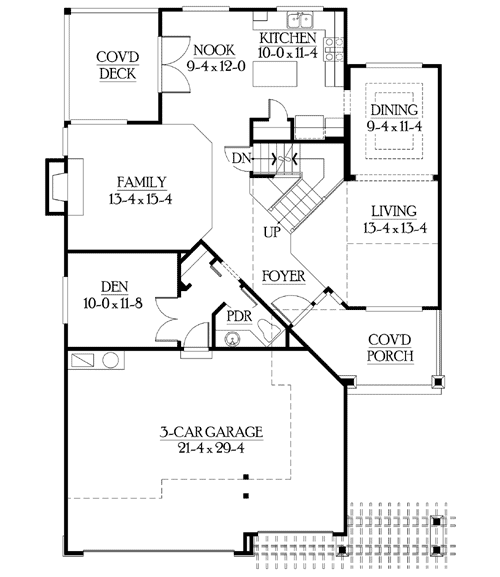

  • 1st Floor: 1,200 sq. ft.

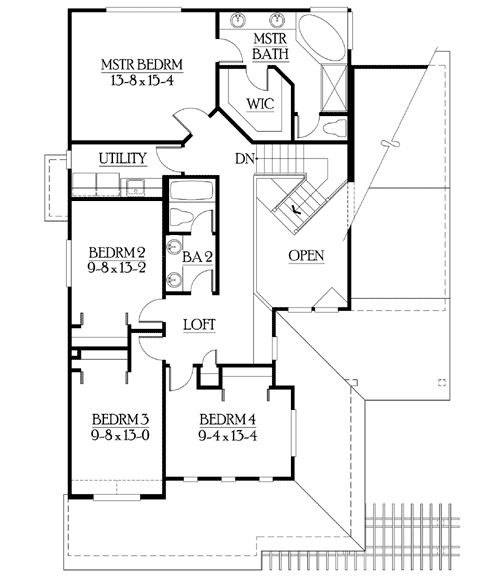

  • 2nd Floor: 1,215 sq. ft.

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Dimensions

  • Width: 40' 0"
  • Depth: 58' 0"
  • Max ridge height: 27' 6"

Garage

  • Type: Attached
  • Area: 623 sq. ft.
  • Details: 3 Cars
  • Location: Front

Foundation Type

  • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 8' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Truss
