Plan 22311DR Nature-Embracing Vacation Escape with a Screened Porch

Nature-Embracing Vacation Escape with a Screened Porch

Plan 22311DR

  • 1,356

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 2

    Stories

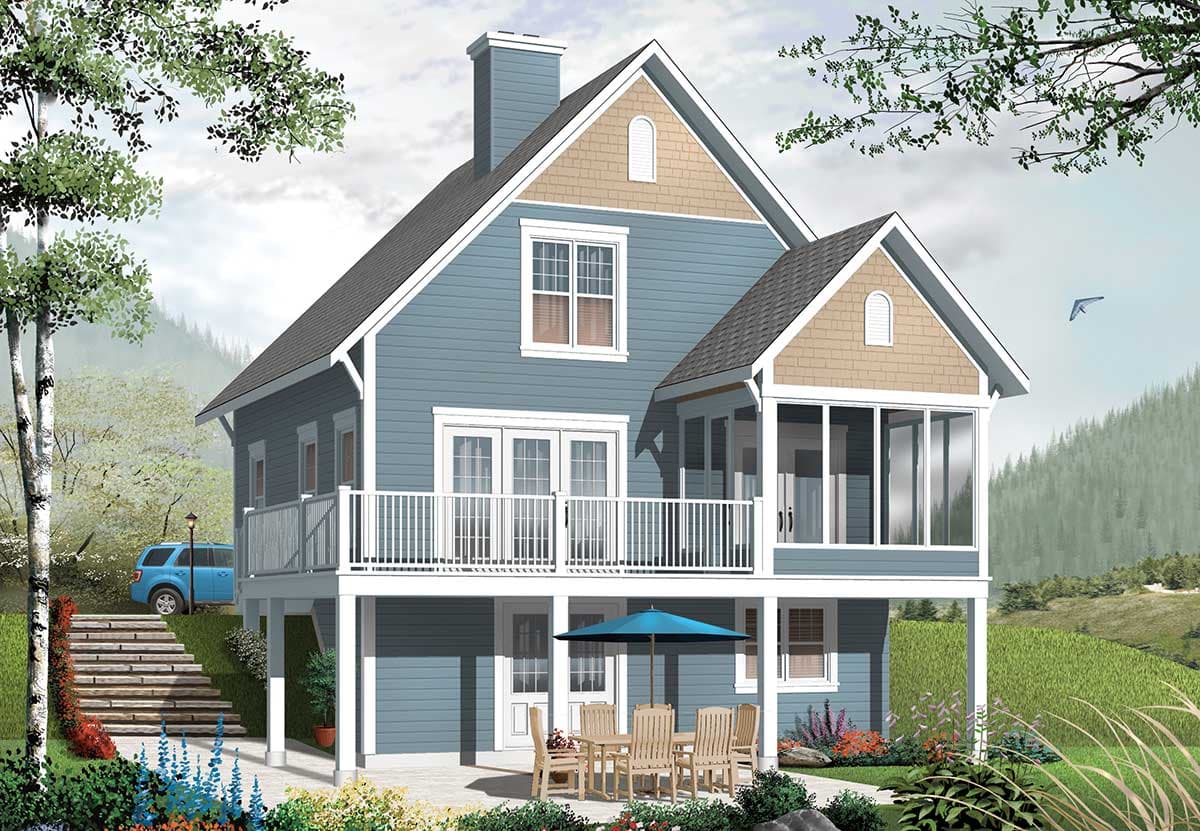

  • An inviting open deck and a screened porch - great for bug-free dining - give you two ways to enjoy the outdoors.
  • The main entry includes a mudroom area with closet and space for seating. Adjoining this, a conveniently located bathroom with shower and laundry makes the perfect spot for cleaning up after enjoying the outdoors.

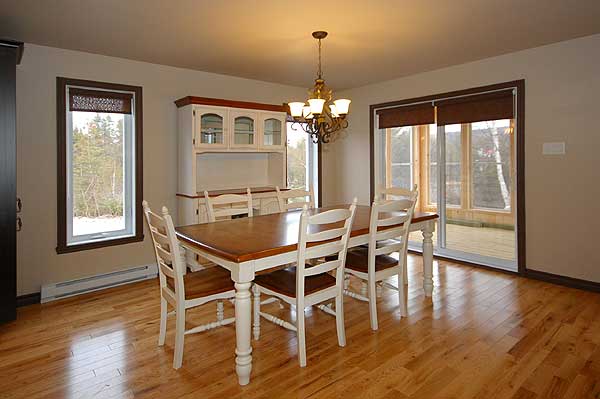

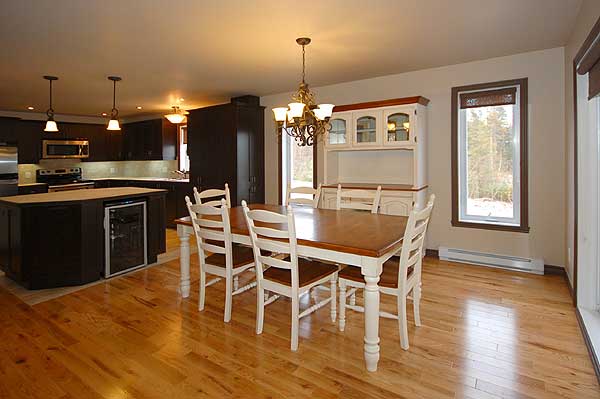

  • The main living area includes an open plan with kitchen, island with raised eating bar, and living room, all bathed in light from windows on three sides.
  • Chilly days are warmed by the central fireplace and garden doors beckon family and guests into the sheltered screen porch or onto the wraparound deck.

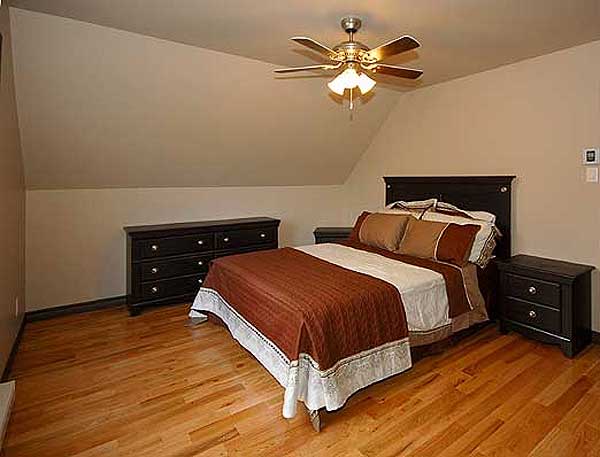

  • Upstairs, the master bedroom includes a master bathroom with generous shower. Two other bedrooms share a powder room for essential convenience.
  • An unfinished basement with walk-out is ready for your ideas now or in the future.
  • Related Plan: For a smaller version with a non-walkout basement see house plan 21478DR.

Each plan includes the following:

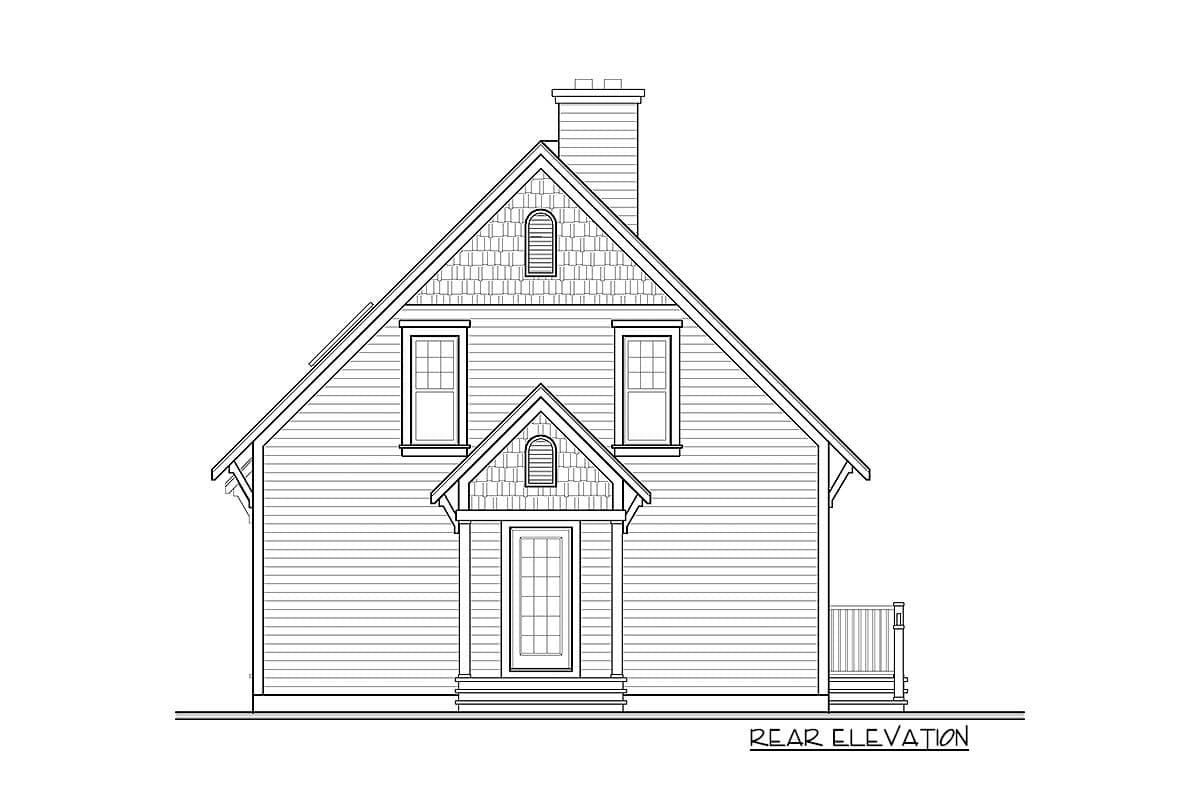

* 4 Elevations
* Foundation Plan
* Main Floor Plan
* Upper Floor Plans (if applicable)
* Roof Plan
* Truss Diagrams & Building Section
* Construction Details
* Typical Wall Section

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

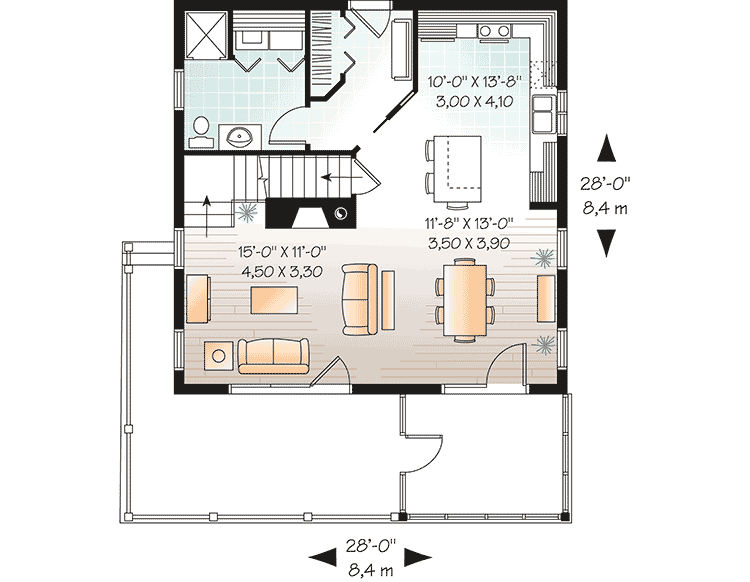

Nature-Embracing Vacation Escape with a Screened Porch - 22311DR floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

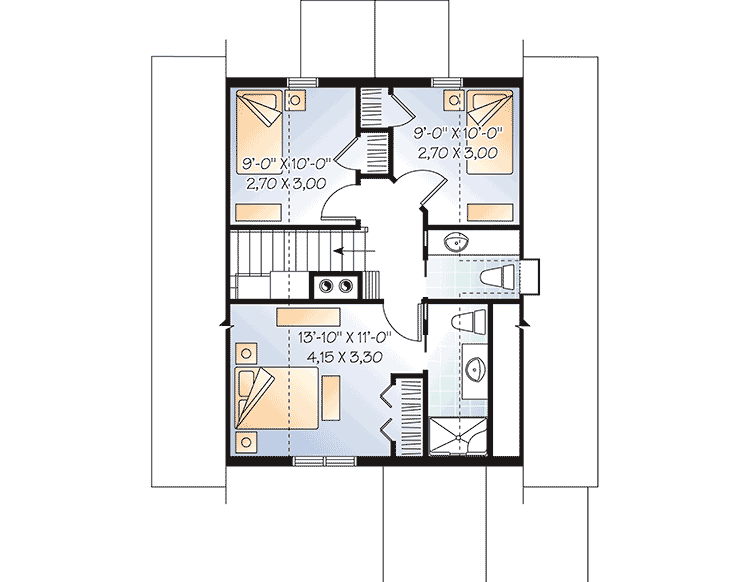

Nature-Embracing Vacation Escape with a Screened Porch - 22311DR floor plan - 2nd Floor

Plan details

Architectural Style

Nature-Embracing Vacation Escape with a Screened Porch

  • 1,356

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 2

    Floors

Buy This Plan
  • Reproducible Set $1,055
  • PDF - Single-Build $1,055
  • 5 Sets + PDF $1,180
  • CAD - Single-Build $1,655
  • View all purchase option online

About This Plan

  • An inviting open deck and a screened porch - great for bug-free dining - give you two ways to enjoy the outdoors.
  • The main entry includes a mudroom area with closet and space for seating. Adjoining this, a conveniently located bathroom with shower and laundry makes the perfect spot for cleaning up after enjoying the outdoors.
  • The main living area includes an open plan with kitchen, island with raised eating bar, and living room, all bathed in light from windows on three sides.
  • Chilly days are warmed by the central fireplace and garden doors beckon family and guests into the sheltered screen porch or onto the wraparound deck.
  • Upstairs, the master bedroom includes a master bathroom with generous shower. Two other bedrooms share a powder room for essential convenience.
  • An unfinished basement with walk-out is ready for your ideas now or in the future.
  • Related Plan: For a smaller version with a non-walkout basement see house plan 21478DR.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,356 sq. ft.
  • 1st Floor: 784 sq. ft.
  • 2nd Floor: 572 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Walkout, Daylight, Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 28' 0"
  • Depth: 28' 0"
  • Max ridge height: 34' 3"

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof

  • Framing Type: Truss
