New American Cottage Home Plan with Lower Level Game Room

Plan 270031AF

  • 2,901

    Heated s.f.

  • 3-5

    Beds

  • 2.5 - 3.5

    Baths

  • 2

    Stories

  • 2

    Cars

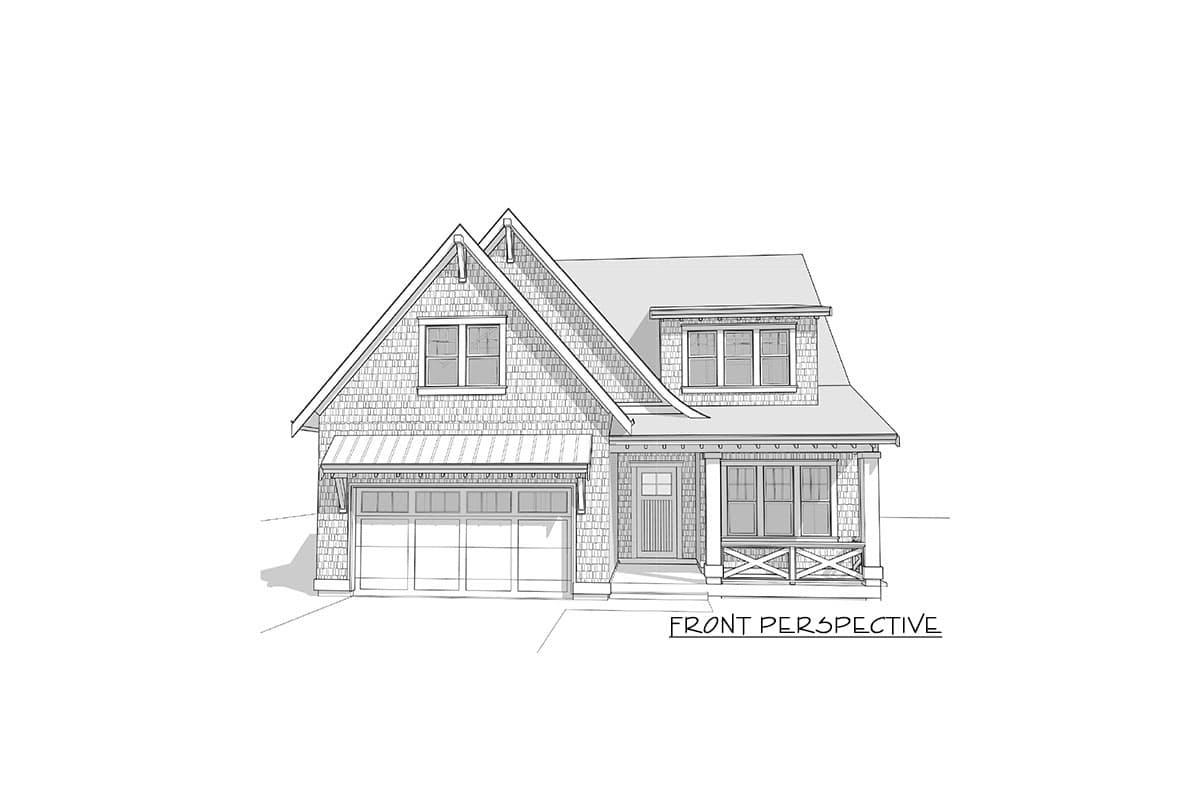

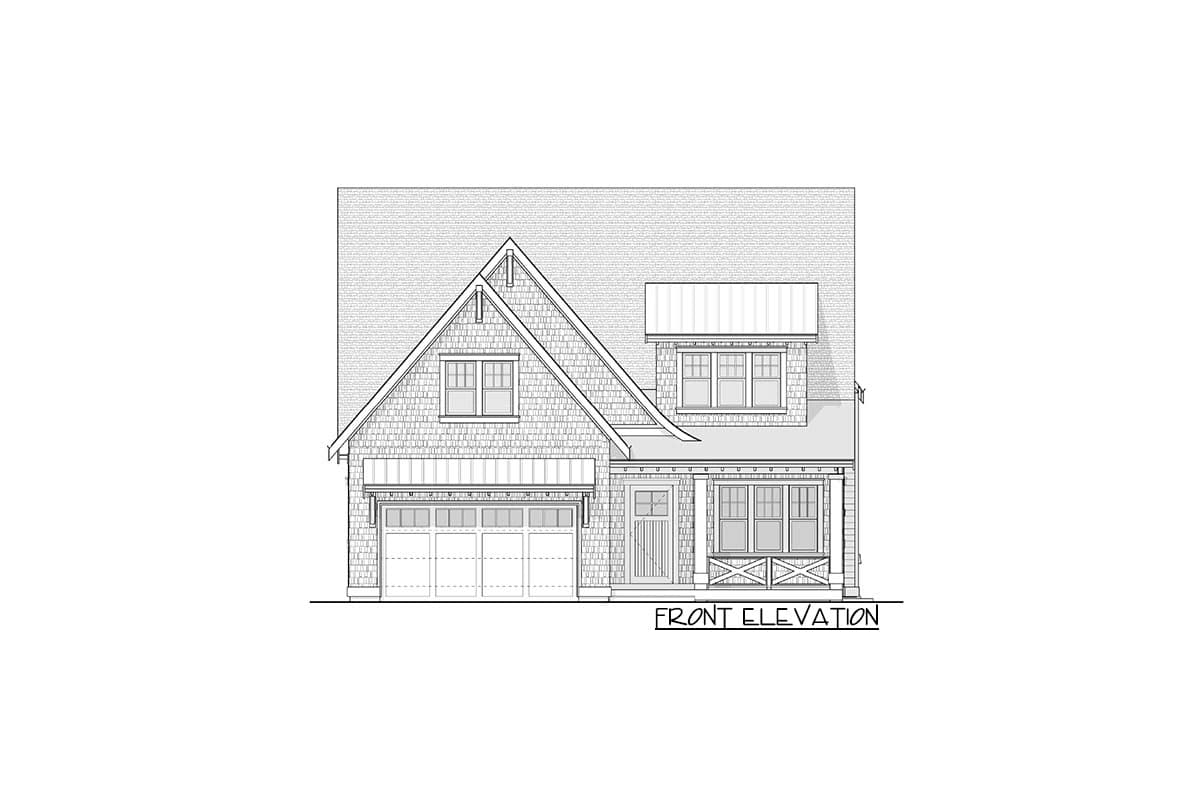

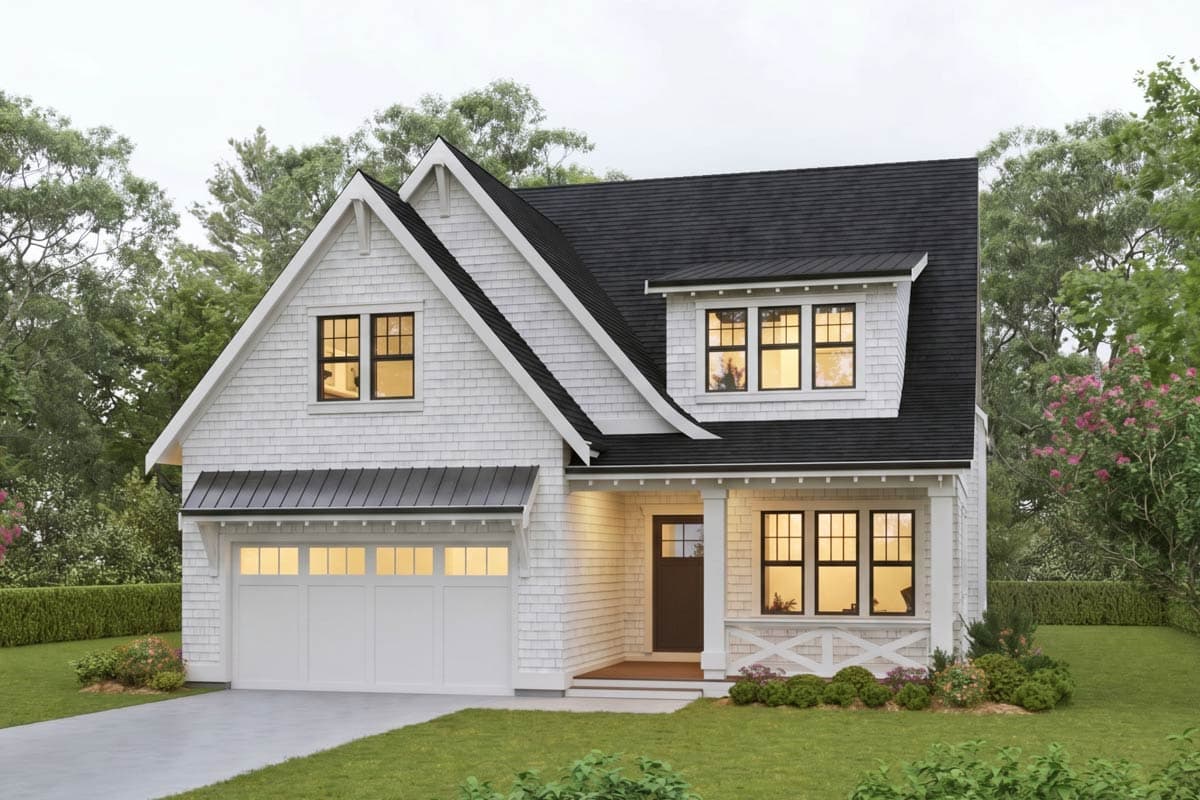

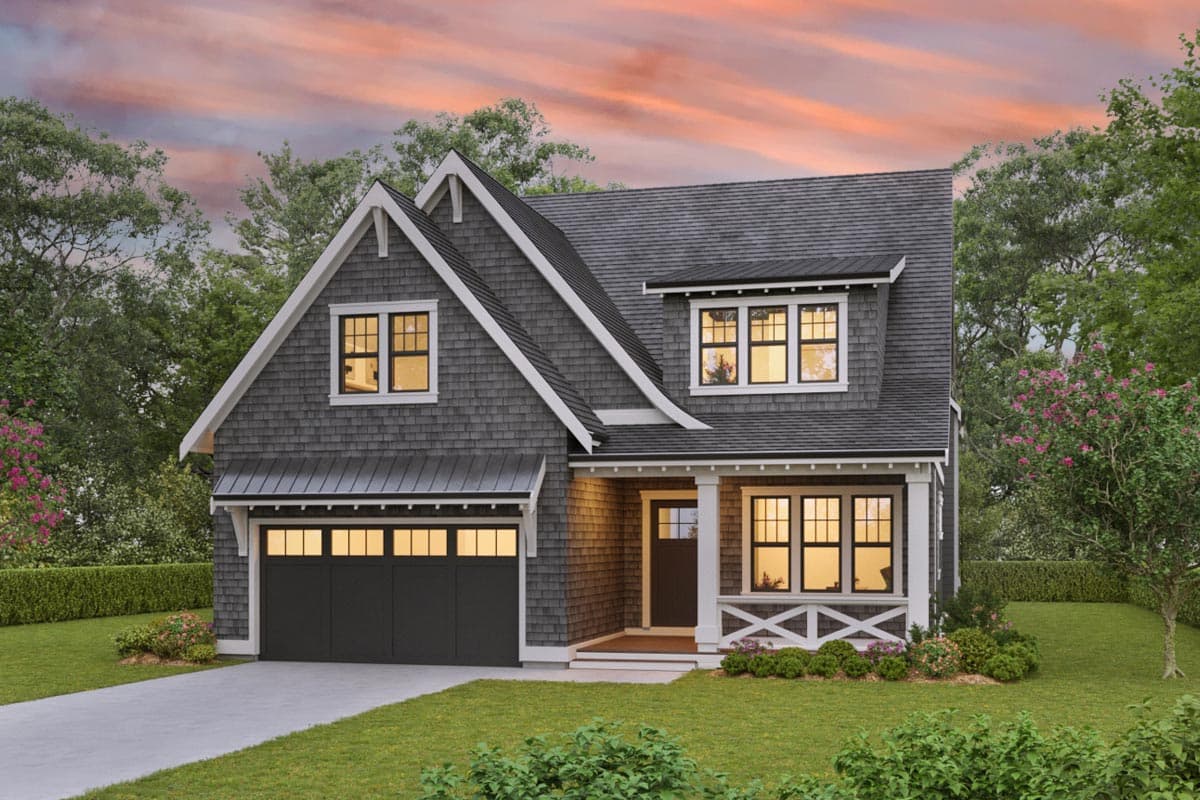

  • Two forward-facing gables sit side by side on the front elevation of this New American cottage home plan, wrapped in shingles, with exposed rafter tails adding to the immense curb appeal.
  • On the main level, you'll find a light and airy great room that flows into the dining area. The stairwell resides in the center of the design, and offers just enough separation between the great room and the kitchen.
  • The large island in the center of the kitchen serves multiple purposes, and an oversized sliding door on the rear wall encourages you to enjoy outdoor living on the covered patio.
  • Upstairs, discover four bedrooms with the largest reserved for the homeowner, along with the laundry room situated in the center.
  • The fun continues on the lower level with a sizable recreation room with a wet bar, game room, two bedrooms, and a full bath.

This plan set includes the following:

  • Foundation Plan - Footing sizes, slab thickness, floor framing notes, etc.
  • Floor Plan(s) - Detailed dimensions, window/door details, plumbing fixture type/locations, etc. for each level of the home.
  • Roof Plan - Roof framing notes, roof pitch, attic venting, overhangs, roof finish materials, etc.

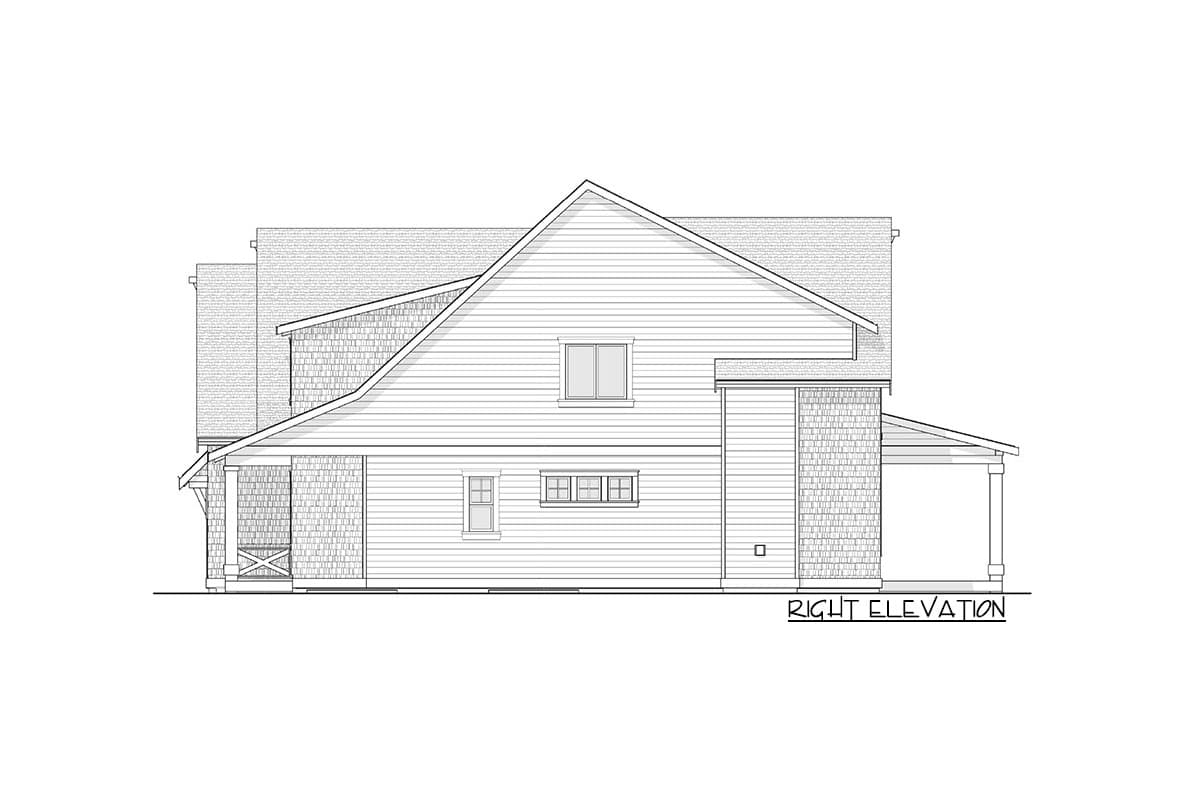

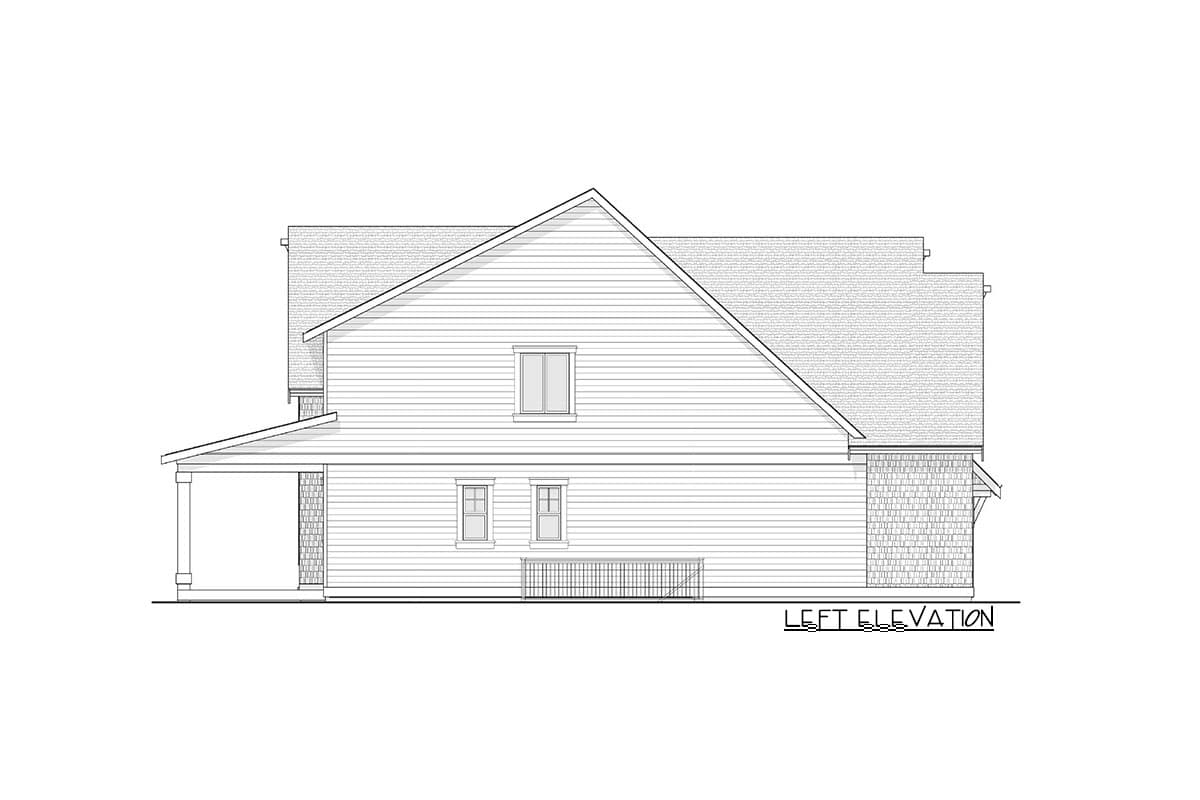

  • Exterior Elevations - Views of the front, rear, and sides of home detailing exterior finish work.
  • Building Sections and Notes - Cut through views of the home
  • Details - Dissected drawings of typical construction details
What is NOT included in the plans:

  •           Architectural or Engineering Stamp - handled locally if required
  •           Site Plan - handled locally when required
  •           Electrical plan
  •           Mechanical Drawings (location of heating and air equipment and duct work) — your subcontractors handle this
  •           Framing layouts with beam sizes and locations
  •           Material lists
  •           Energy calculations - handled locally when required
  •   Renderings, photography, or marketing imagery

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

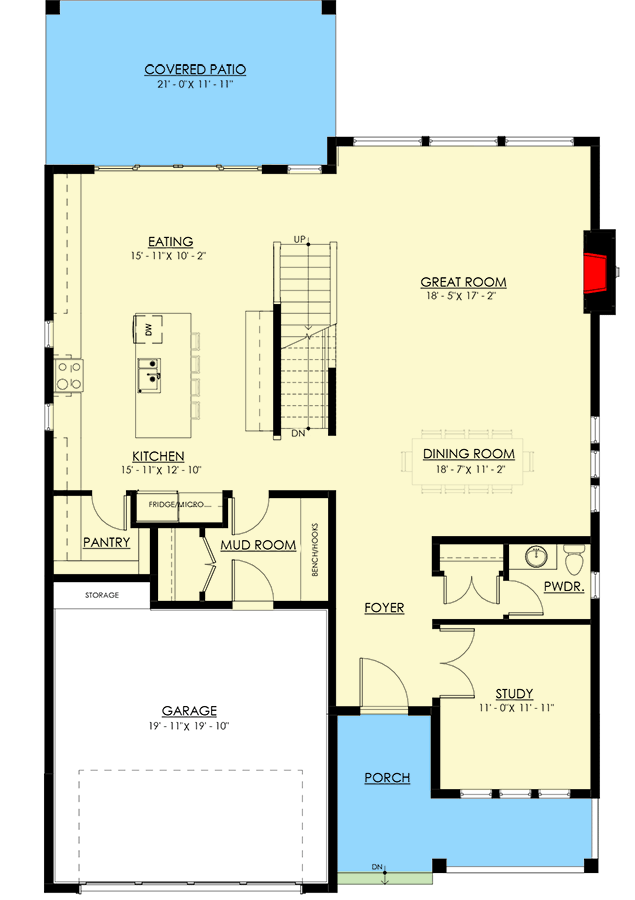

New American Cottage Home Plan with Lower Level Game Room - 270031AF floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

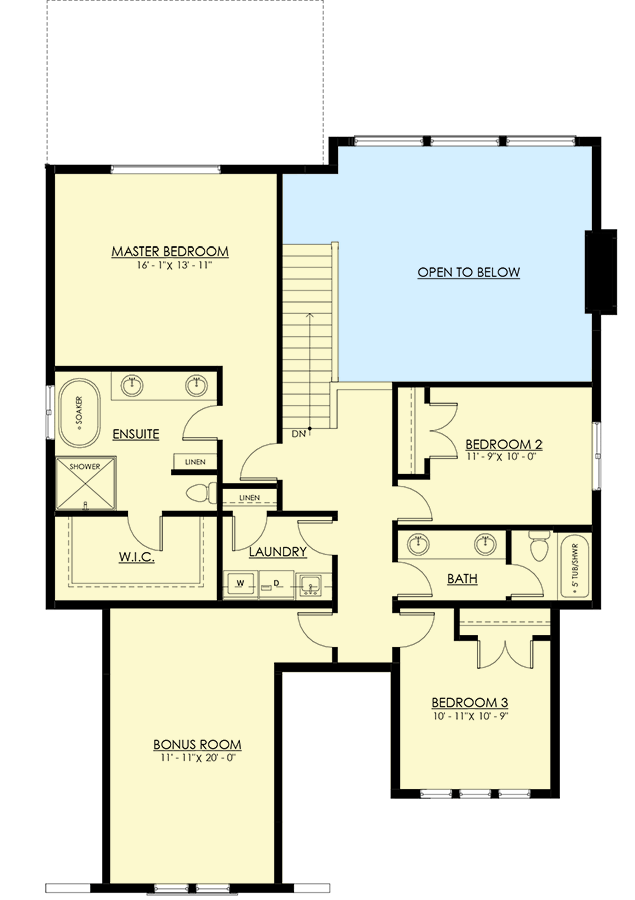

New American Cottage Home Plan with Lower Level Game Room - 270031AF floor plan - Second Level

Optional Finished Lower Level

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

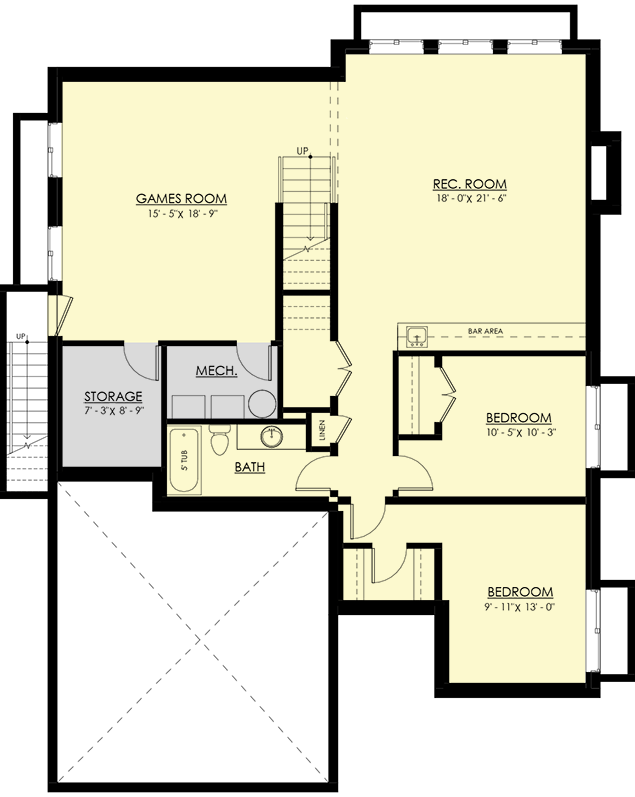

New American Cottage Home Plan with Lower Level Game Room - 270031AF floor plan - Optional Finished Lower Level

New American Cottage Home Plan with Lower Level Game Room

  • 2,901

    Heated s.f.

  • 3-5

    Beds

  • 2.5 - 3.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • Second Level

  • Optional Finished Lower Level

Plan Details

Square Footage Breakdown

  • Total: 2,901 sq. ft.
  • 1st Floor: 1,526 sq. ft.
  • 2nd Floor: 1,375 sq. ft.

Dimensions

  • Width: 40' 0"
  • Depth: 54' 6"
  • Max ridge height: 33' 8"

Beds/Baths

  • Bedrooms: 3, 4, or 5
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 441 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 11 on 12
  • Secondary Pitch: 14 on 12
  • Framing Type: Stick And Truss
All house plans are copyright ©2024 by the architects and designers represented on our web site

New American Cottage Home Plan with Lower Level Game Room

  • 2,901

    Heated s.f.

  • 3-5

    Beds

  • 2.5 - 3.5

    Baths

  • 2

    Floors

  • 2

    Car garage

New American Cottage Home Plan with Lower Level Game Room

  • 2,901

    Heated s.f.

  • 3-5

    Beds

  • 2.5 - 3.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Plan Details

Square Footage Breakdown

  • Total: 2,901 sq. ft.
  • 1st Floor: 1,526 sq. ft.
  • 2nd Floor: 1,375 sq. ft.

Dimensions

  • Width: 40' 0"
  • Depth: 54' 6"
  • Max ridge height: 33' 8"

Beds/Baths

  • Bedrooms: 3, 4, or 5
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 441 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 11 on 12
  • Secondary Pitch: 14 on 12
  • Framing Type: Stick And Truss

    Main Level

    Second Level

    Optional Finished Lower Level
