New American Cottage Just Under 2000 Square Feet with 2-Story Great Room

Plan 70798MK

  • 1,986

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • A gabled entry porch with decorative trusses and stone bases supporting paired columns welcomes you to this 3 bed, 2.5 bath 1,986 square foot New American cottage house plan. The exterior has an eye-pleasing combination of shingles and board and batten siding with a decorative gabled dormer and a functioning shed dormer adding to the curb appeal.
  • A 2-story great room with fireplace is open to the dining room which is set off from the kitchen and great room by square columns giving you the best of an open floor plan while providing subtle separation between spaces.
  • Enjoy casual meals in the breakfast room which has a door that takes you to the back porch or at the peninsula that seats four comfortably.
  • The vaulted master suite is the only bedroom on the main floor. Upstairs, two bedrooms share a bath.
  • Get 450 square feet of expansion space by finishing the bonus room over the garage. The shed dormer gives you headroom and natural light.

Each plan set includes the following:

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof Overview Plan (1/4"=1")
  • An electrical diagram showing a Birdseye view of rooms with lights, fans to switches
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

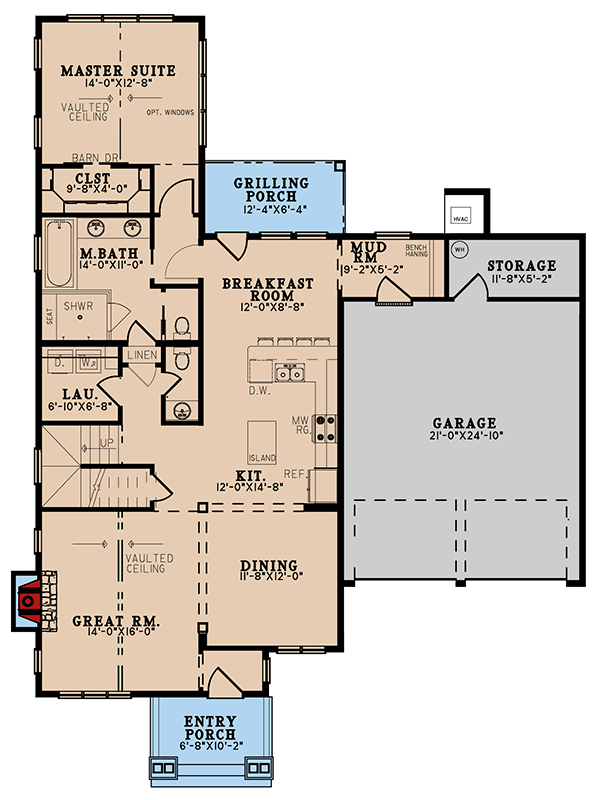

New American Cottage Just Under 2000 Square Feet with 2-Story Great Room - 70798MK floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

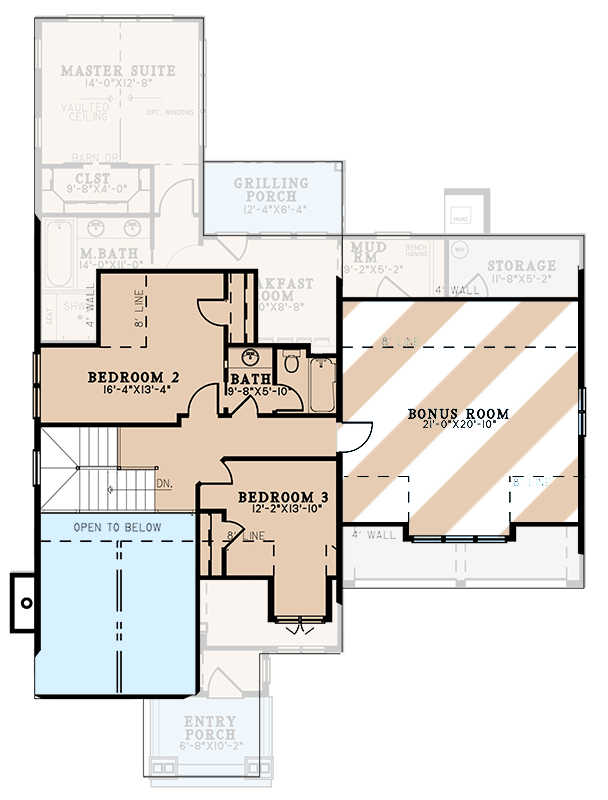

New American Cottage Just Under 2000 Square Feet with 2-Story Great Room - 70798MK floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,986 sq. ft.
  • 1st Floor: 1,456 sq. ft.
  • 2nd Floor: 530 sq. ft.
  • Porch, Combined: 146 sq. ft.
  • Bonus: 450 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab, Crawl
  • Optional Foundations: Basement, Daylight, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 48' 10"
  • Depth: 60' 6"
  • Max ridge height: 28' 0"

Garage

  • Type: Attached
  • Area: 618 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 12 on 12

Architectural Style

Special features

New American Cottage Just Under 2000 Square Feet with 2-Story Great Room

  • 1,986

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,000
  • 5 Sets $1,100
  • 5 Sets + PDF $1,350
  • PDF - Unlimited Build $1,700
  • CAD Unlimited + PDF $2,000
  • View all purchase option online

About This Plan

  • A gabled entry porch with decorative trusses and stone bases supporting paired columns welcomes you to this 3 bed, 2.5 bath 1,986 square foot New American cottage house plan. The exterior has an eye-pleasing combination of shingles and board and batten siding with a decorative gabled dormer and a functioning shed dormer adding to the curb appeal.
  • A 2-story great room with fireplace is open to the dining room which is set off from the kitchen and great room by square columns giving you the best of an open floor plan while providing subtle separation between spaces.
  • Enjoy casual meals in the breakfast room which has a door that takes you to the back porch or at the peninsula that seats four comfortably.
  • The vaulted master suite is the only bedroom on the main floor. Upstairs, two bedrooms share a bath.
  • Get 450 square feet of expansion space by finishing the bonus room over the garage. The shed dormer gives you headroom and natural light.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,986 sq. ft.
  • 1st Floor: 1,456 sq. ft.
  • 2nd Floor: 530 sq. ft.
  • Porch, Combined: 146 sq. ft.
  • Bonus: 450 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab, Crawl
    • Optional Foundations: Basement, Daylight, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 48' 10"
  • Depth: 60' 6"
  • Max ridge height: 28' 0"

Garage

  • Type: Attached
  • Area: 618 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 12
Plan 70798MK
View this and more for this plan by visiting www.architechtecturaldesigns.com/70798MK
|
