Plan 818026JSS
New American Craftsman Plan with Split-bedroom Layout
Heated S.F.
2,186
Beds
4
Baths
3
Stories
1
Cars
2
Floor Plan

Plan 818026JSS

Main Level
slide image 0

Plan 818026JSS

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
Plan Details
  • This New American Craftsman plan blends shake shingles with horizontal siding to offer an abundance of curb appeal.
  • The formal dining room features oversized openings into the foyer and vaulted family room. A multi-panel glass door brings the outdoors in and provides easy access to the 26'1" by 12' back porch.
  • The kitchen is a chef's dream with a large central island for meal prep surrounded by appliances and additional counter space. A walk-in pantry is located just across from the double garage to help when unloading groceries.
  • The split-bedeoom layout offers additional privacy to the primary suite which is crowned by a vaulted ceiling and accompanied by a 5-fixture bath and pass-thru closet that connects to the laundry room.
  • Three bedrooms line the left side of the design; two share a Jack-and-Jill bathroom.
  • Related Plan: Find an alternate exterior with plan 818025JSS.
What's Included
  • Foundation plan

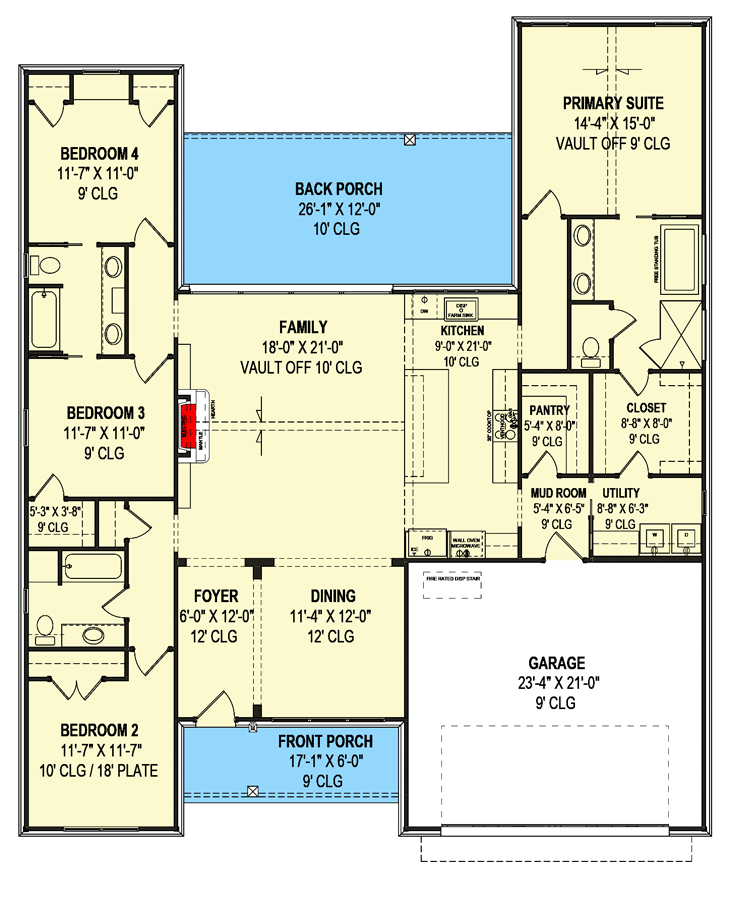

  • Detailed floorplans
  • Roof plan

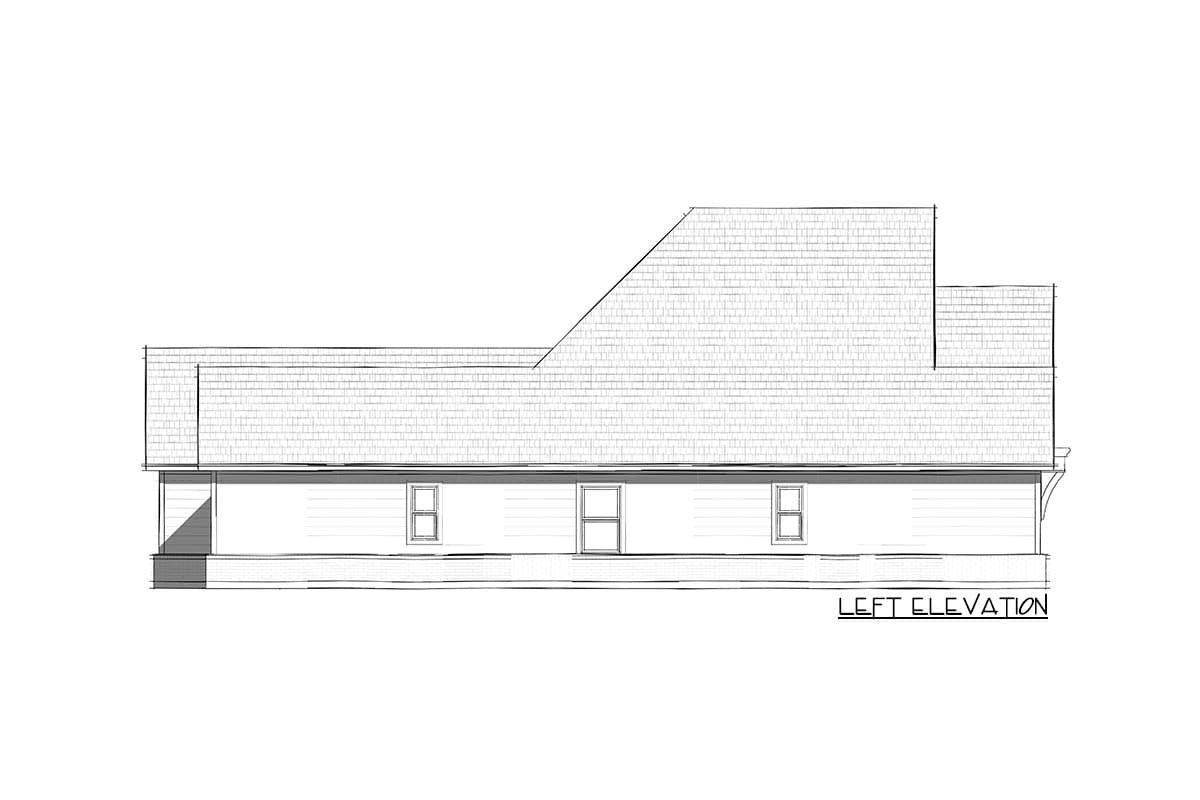

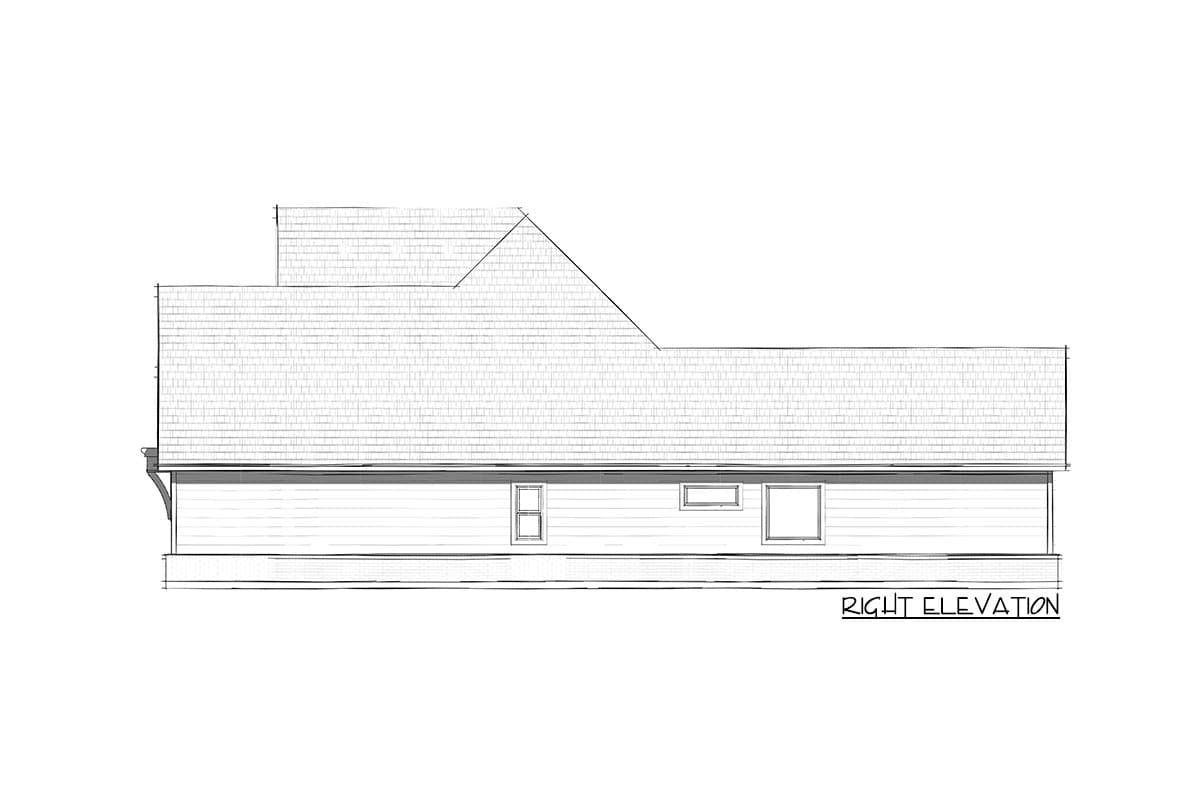

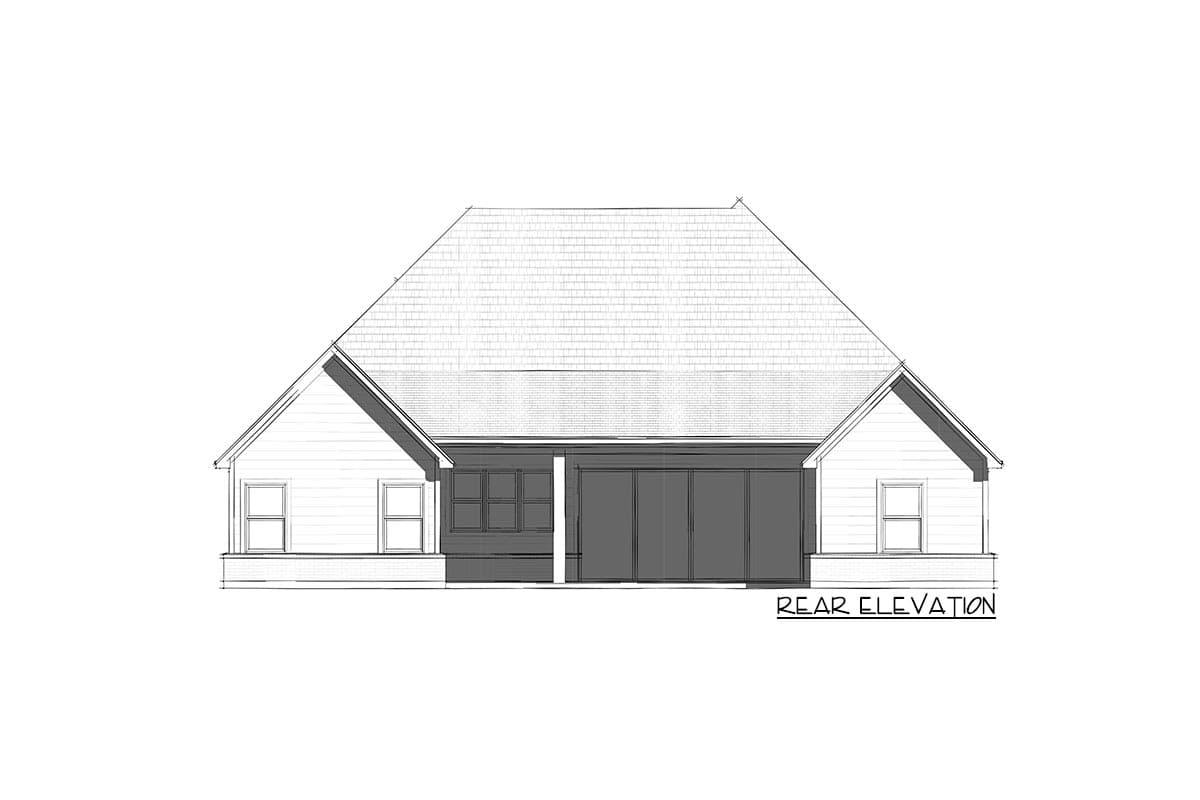

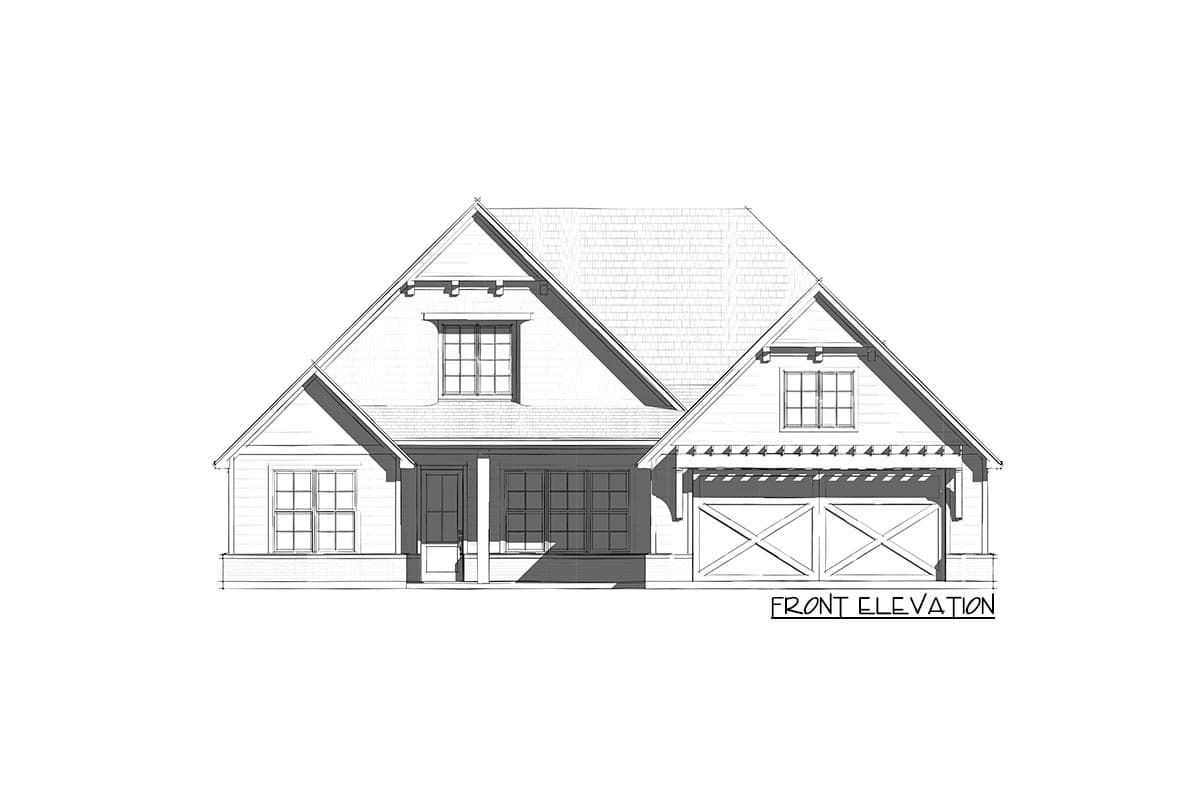

  • Four elevations
  • Electrical schematic
  • Cross section(s)
  • Rafter plan and ceiling joist plans (Beam, joist, and rafters to be sized locally by an engineer or framer)
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

2,186 sq. ft.

1st Floor

2,186 sq. ft.

Porch, Front

103 sq. ft.

Porch, Rear

313 sq. ft.

Porch, Combined

416 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Foundation Type

Standard Foundations

Monolithic Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

55' 0"

Depth

65' 0"

Max Ridge Height

27' 0"

Garage

Type

Attached

Area

514 sq. ft.

Count

2 Cars

Entry Location

Front, Side

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

4 on 12

Framing Type

Stick

Architectural Style

Country

Craftsman

New American

Ranch

Special Features

Bedrooms - Clustered

Butler Walk-in Pantry

Jack & Jill Bath

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Two Story Great Room

Square Footage Breakdown

Total Heated Area

2,186 sq. ft.

1st Floor

2,186 sq. ft.

Porch, Front

103 sq. ft.

Porch, Rear

313 sq. ft.

Porch, Combined

416 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Foundation Type

Standard Foundations

Monolithic Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

55' 0"

Depth

65' 0"

Max Ridge Height

27' 0"

Garage

Type

Attached

Area

514 sq. ft.

Count

2 Cars

Entry Location

Front, Side

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

4 on 12

Framing Type

Stick

Architectural Style

Country

Craftsman

New American

Ranch

Special Features

Bedrooms - Clustered

Butler Walk-in Pantry

Jack & Jill Bath

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Two Story Great Room
