Plan 22613DR New American Farmhouse with Home Office and a Large Upstairs Laundry Room

New American Farmhouse with Home Office and a Large Upstairs Laundry Room

Plan 22613DR

  • 2,041

    Heated s.f.

  • 3

    Beds

  • 1.5

    Baths

  • 2

    Stories

  • 1

    Cars

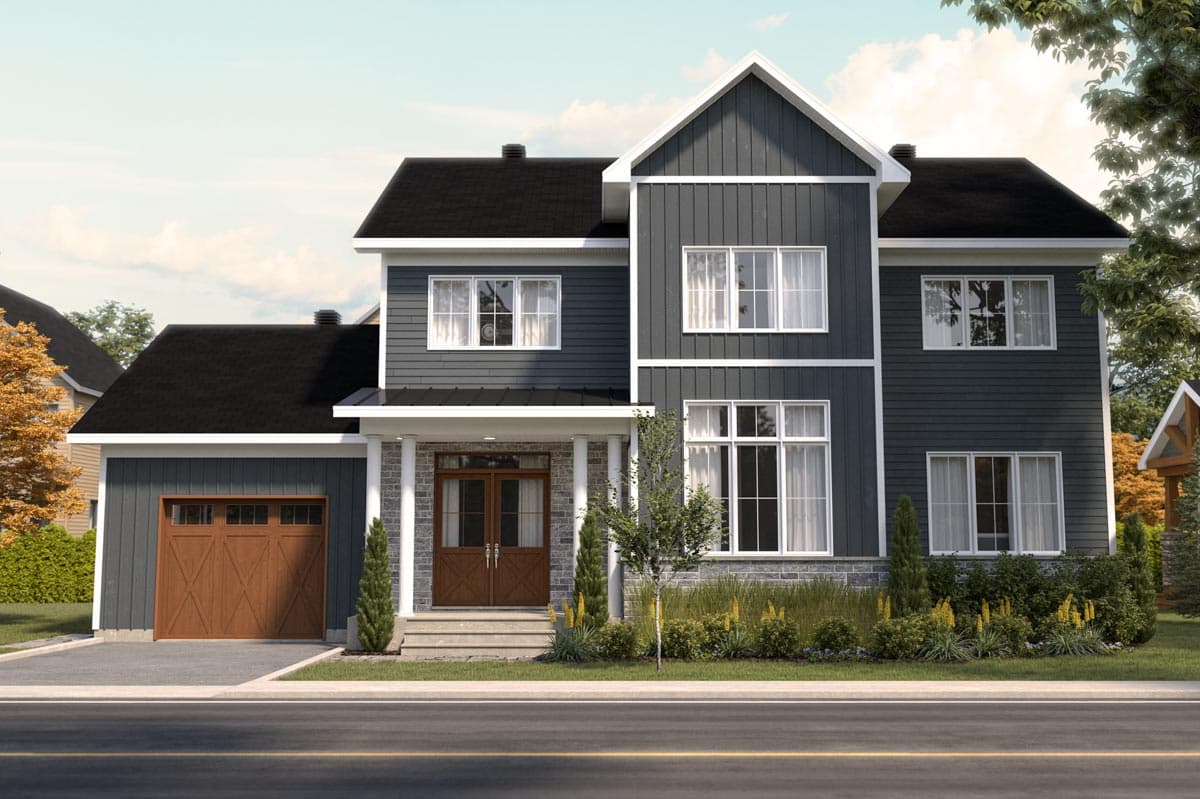

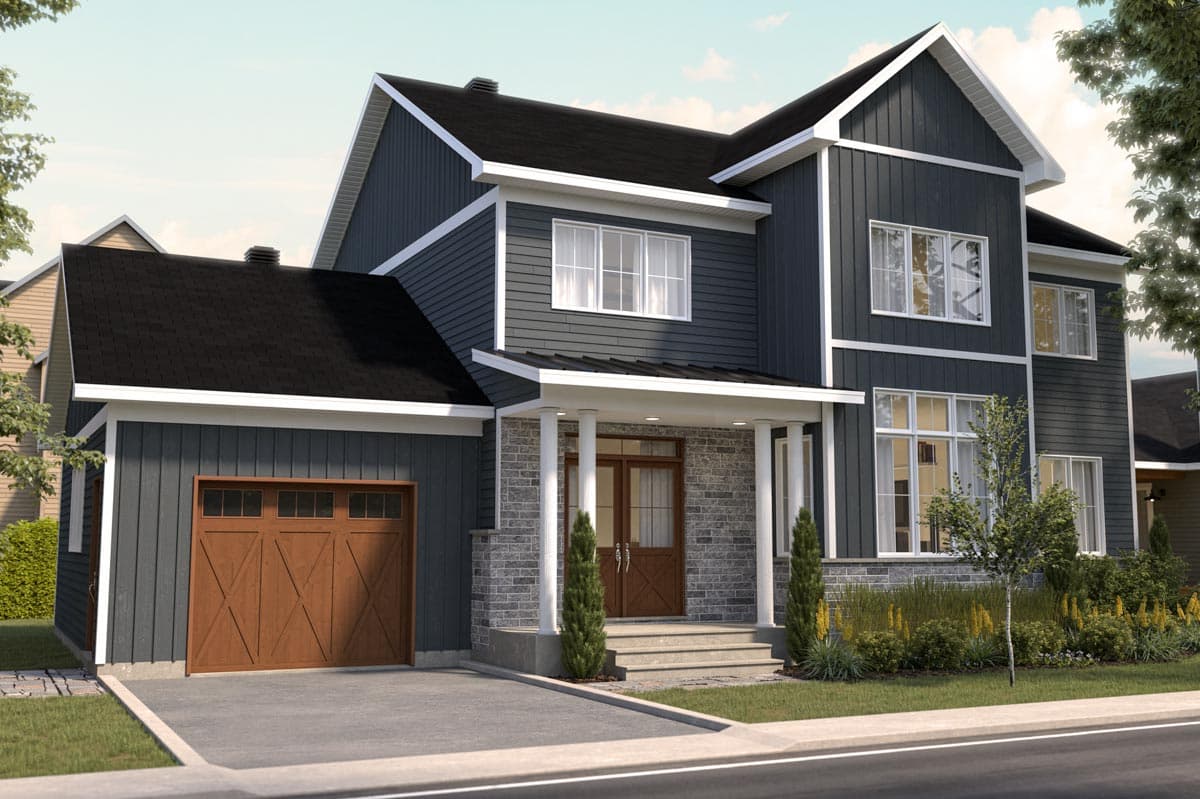

  • This 2-story New American Farmhouse plan boasts a bold and fresh front elevation with a board and batten in the gable and garage, stone in entry porch and siding above and on the right.
  • The main level features an open floor plan for the shared living spaces and sliding doors on the back wall that take you to the patio.
  • An oversized, prep island in the kitchen increases workspace and the pantry gives you great storage.
  • Upstairs, discover three bedrooms and a large laundry room.
  • An unfinished basement gives you expansion space and storage.
  • Related Plans: Get a 2-car garage with house plan 22560DR and a courtyard entry garage with house plan 22302DR.

Each plan includes the following:

* 4 Elevations
* Foundation Plan
* Main Floor Plan
* Upper Floor Plans (if applicable)
* Roof Plan
* Truss Diagrams & Building Section
* Construction Details
* Typical Wall Section

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

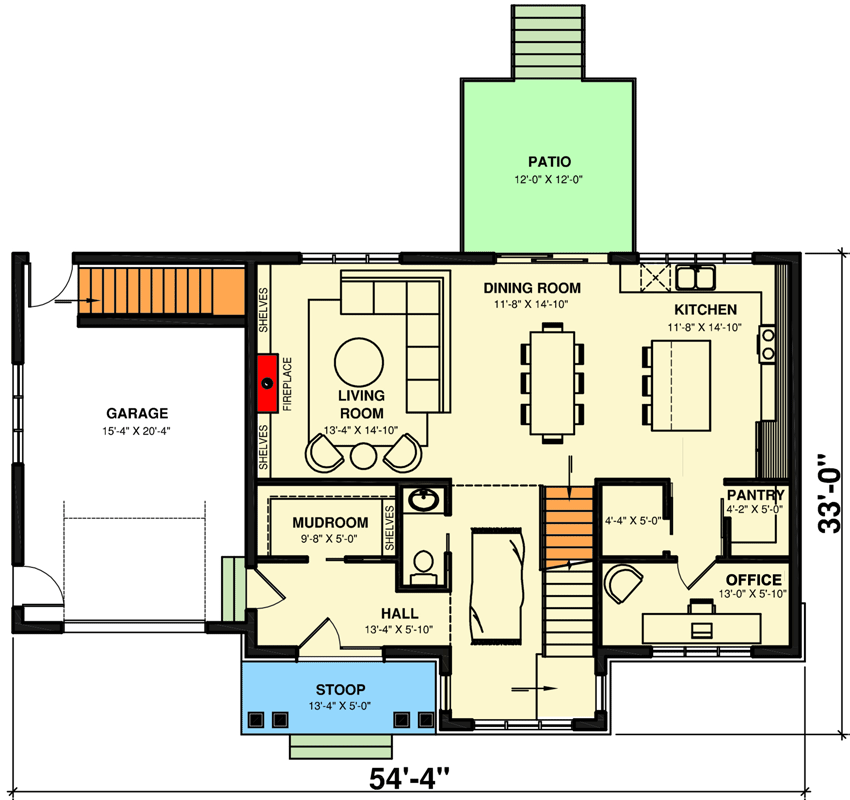

New American Farmhouse with Home Office and a Large Upstairs Laundry Room - 22613DR floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

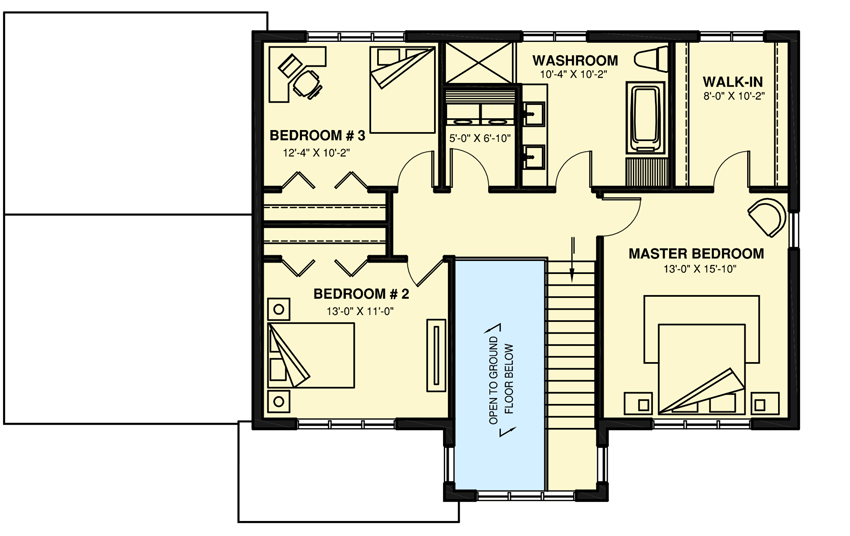

New American Farmhouse with Home Office and a Large Upstairs Laundry Room - 22613DR floor plan - 2nd Floor
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

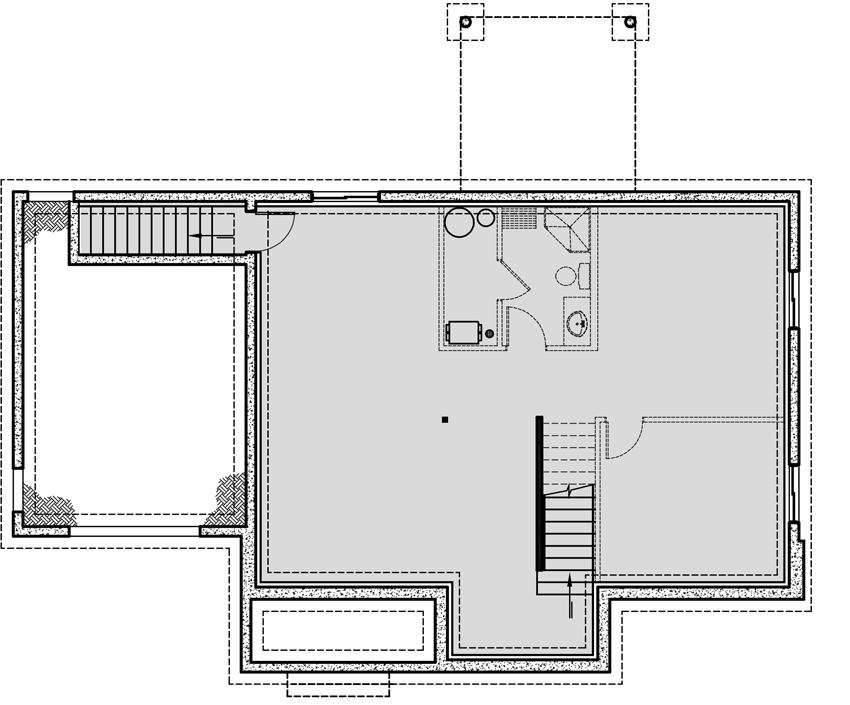

New American Farmhouse with Home Office and a Large Upstairs Laundry Room - 22613DR floor plan - Lower Level

Plan details

New American Farmhouse with Home Office and a Large Upstairs Laundry Room

  • 2,041

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 2

    Floors

  • 1

    Car garage

Buy This Plan
  • PDF - Single-Build $1,195
  • Reproducible Set $1,195
  • 5 Sets + PDF $1,320
  • CAD + PDF - Single-Build $1,795
  • View all purchase option online

About This Plan

  • This 2-story New American Farmhouse plan boasts a bold and fresh front elevation with a board and batten in the gable and garage, stone in entry porch and siding above and on the right.
  • The main level features an open floor plan for the shared living spaces and sliding doors on the back wall that take you to the patio.
  • An oversized, prep island in the kitchen increases workspace and the pantry gives you great storage.
  • Upstairs, discover three bedrooms and a large laundry room.
  • An unfinished basement gives you expansion space and storage.
  • Related Plans: Get a 2-car garage with house plan 22560DR and a courtyard entry garage with house plan 22302DR.

Floor Plans

  • Main Level

  • 2nd Floor

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,041 sq. ft.
  • 1st Floor: 1,108 sq. ft.
  • 2nd Floor: 933 sq. ft.
  • Optional Lower Level: 1,180 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 1
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Monolithic Slab, Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 54' 4"
  • Depth: 33' 0"
  • Max ridge height: 29' 8"

Garage

  • Type: Attached
  • Area: 416 sq. ft.
  • Count: 1 Cars

Ceiling Heights

  • Floor / Height: Lower Level / 8' 0" First Floor / 9' 0"

Roof

  • Primary Pitch: 7 on 12
  • Framing Type: Truss
