Plan 23916JD
New American Farmhouse with Upstairs Bedrooms, Laundry and Playroom - Architectural Designs
Heated S.F.
3,571
Beds
5
Baths
4.5
Stories
2
Cars
2-3
Plan Details

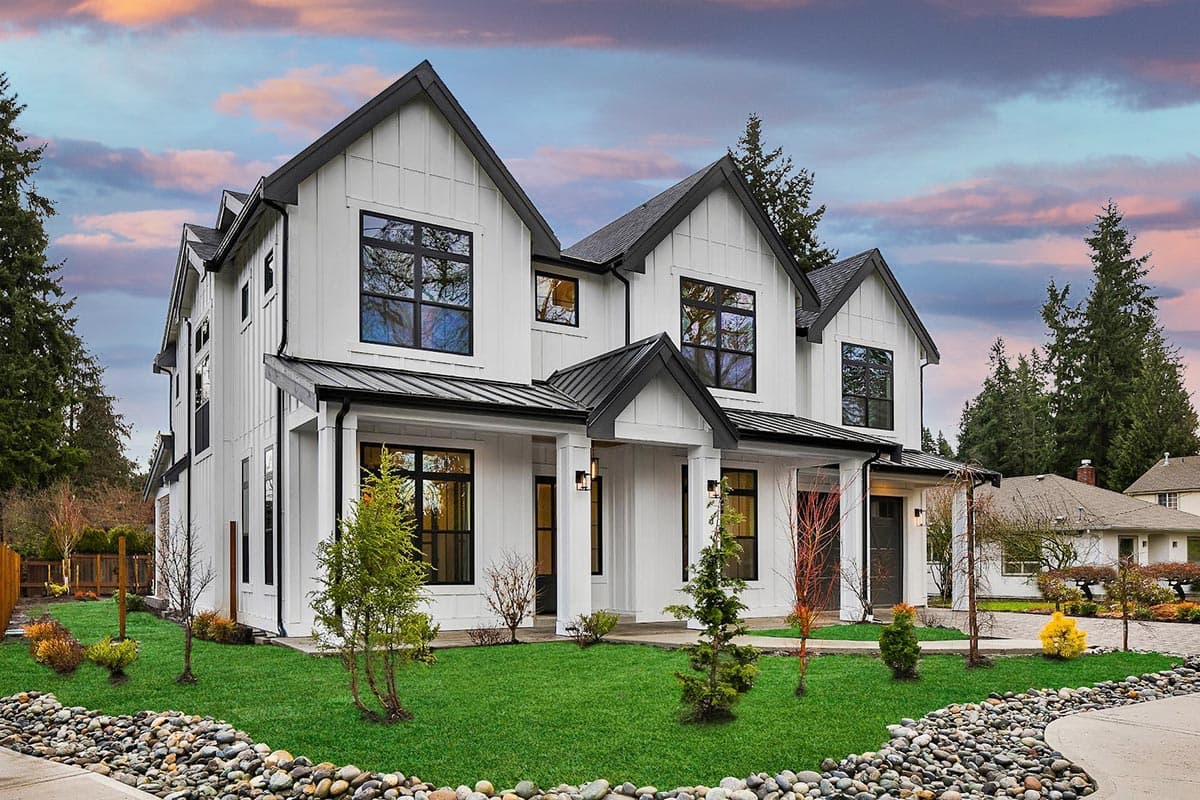

  • This fresh, 5-bedroom New American farmhouse plan has a contemporary farmhouse look with board and batten siding on the first floor and across all three gables. A standing seam shed roof provides cover for the front door and extends across to the front-facing garage.

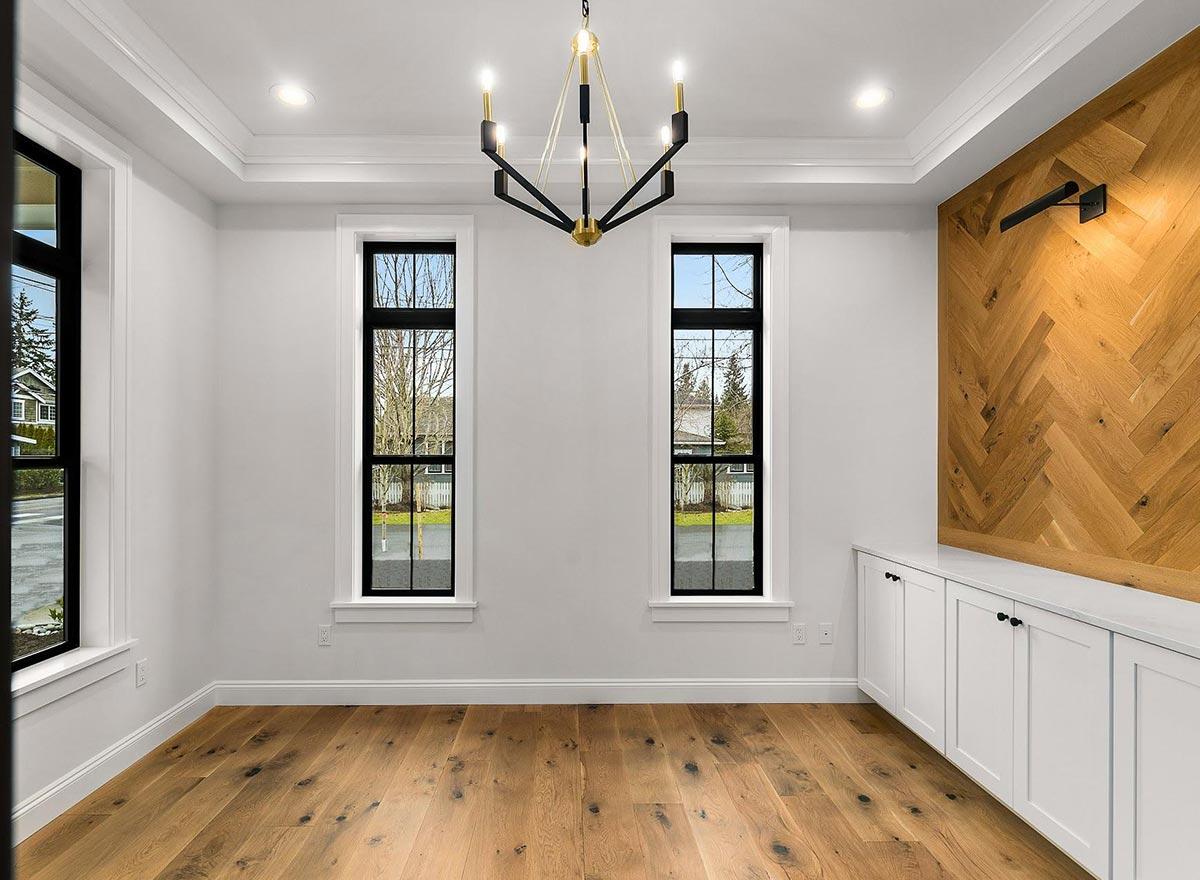

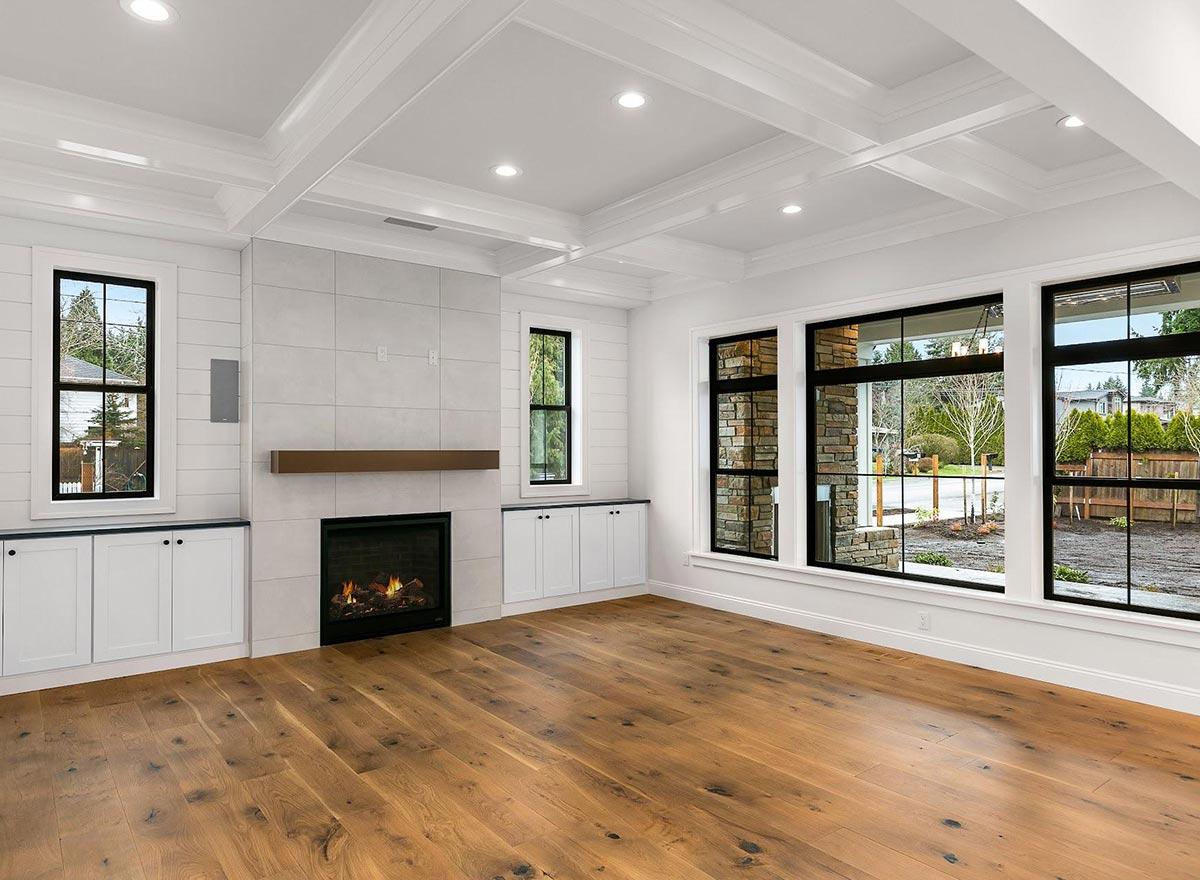

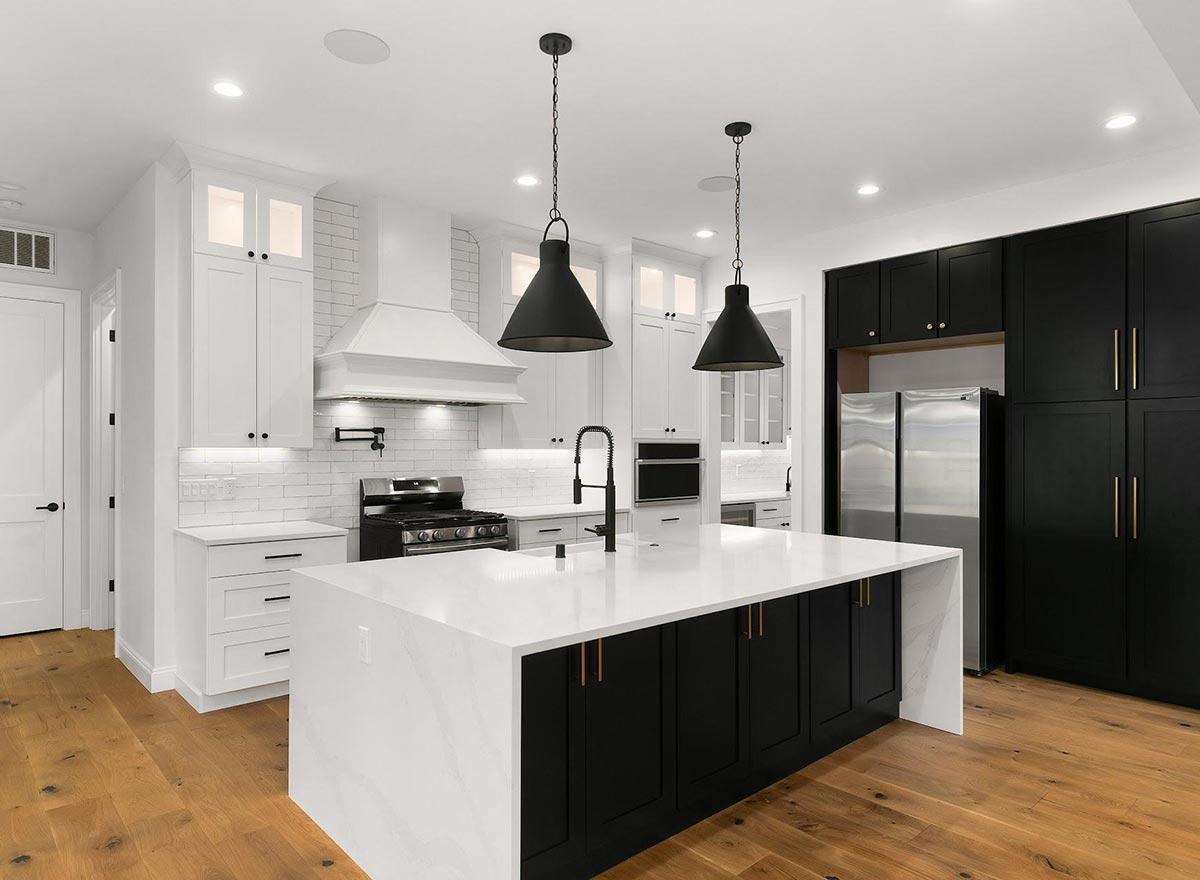

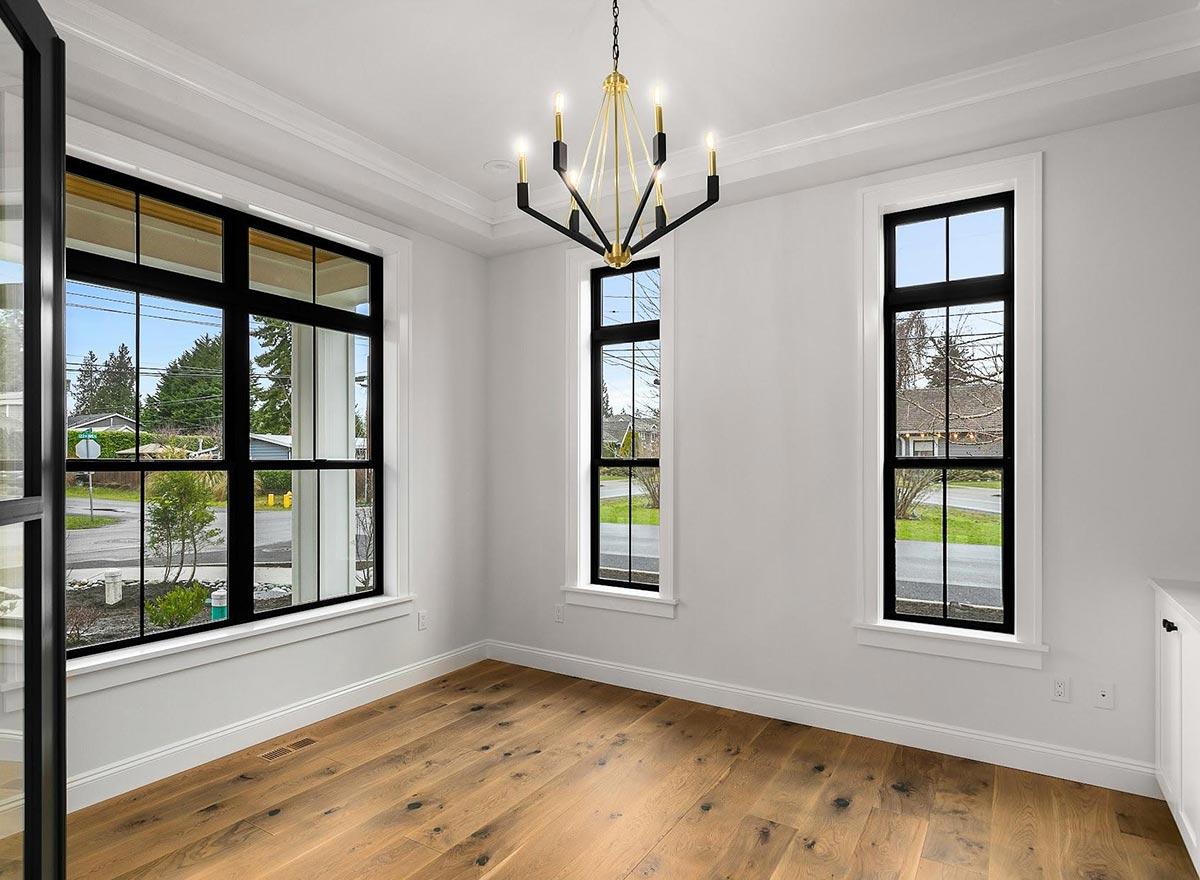

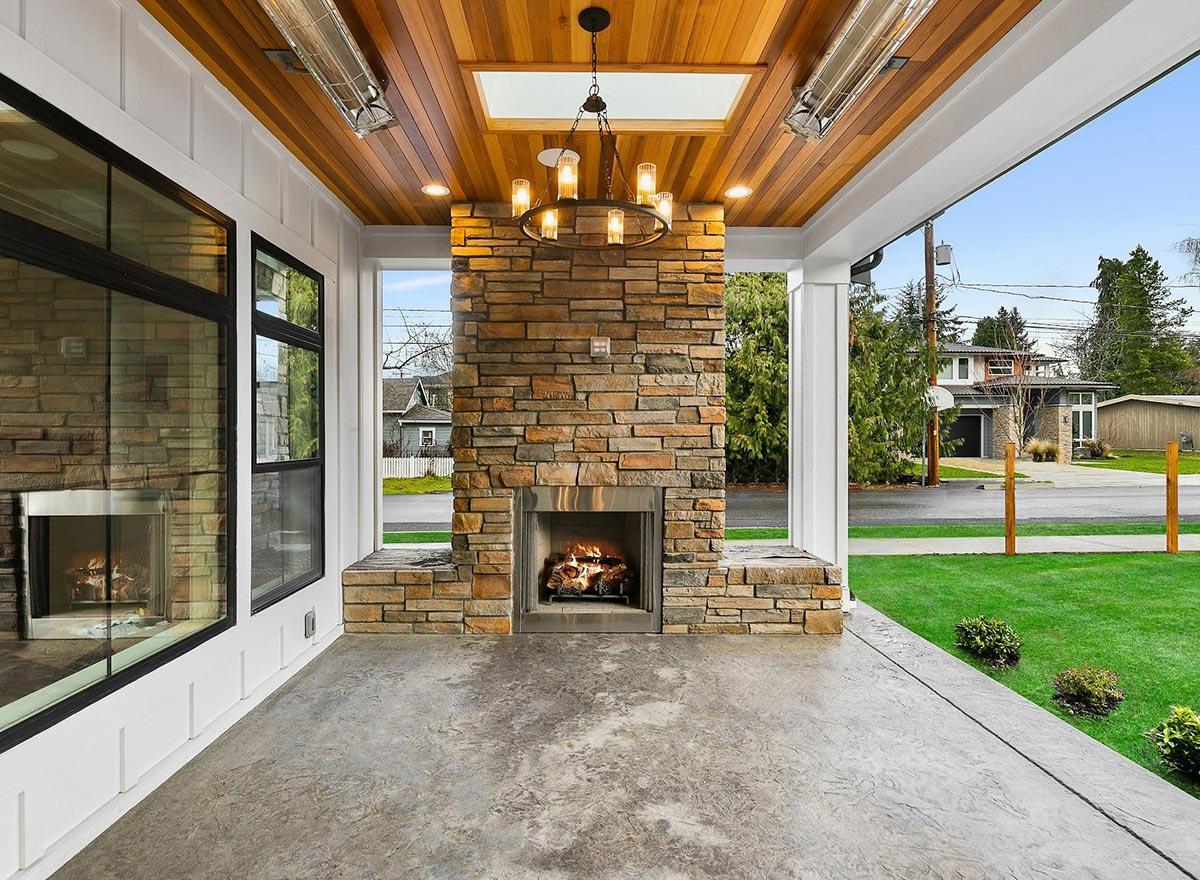

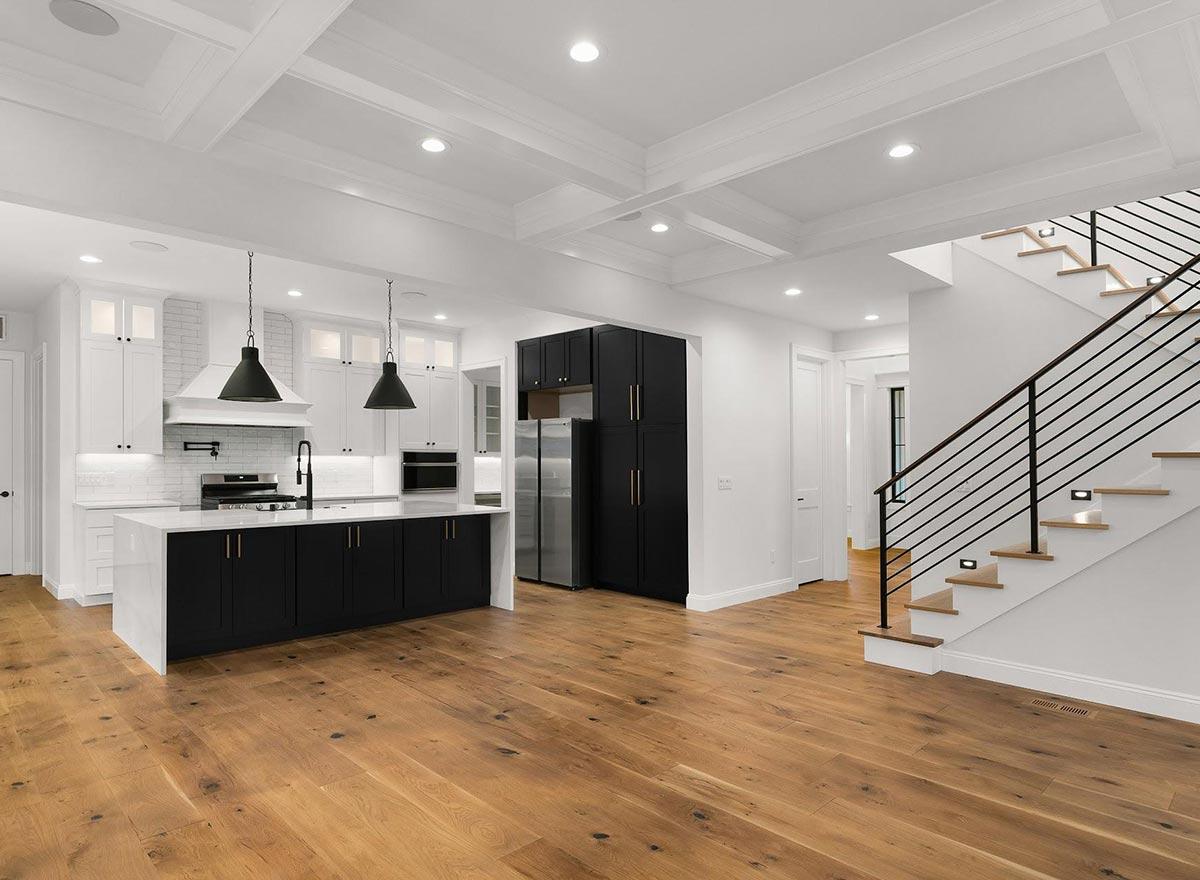

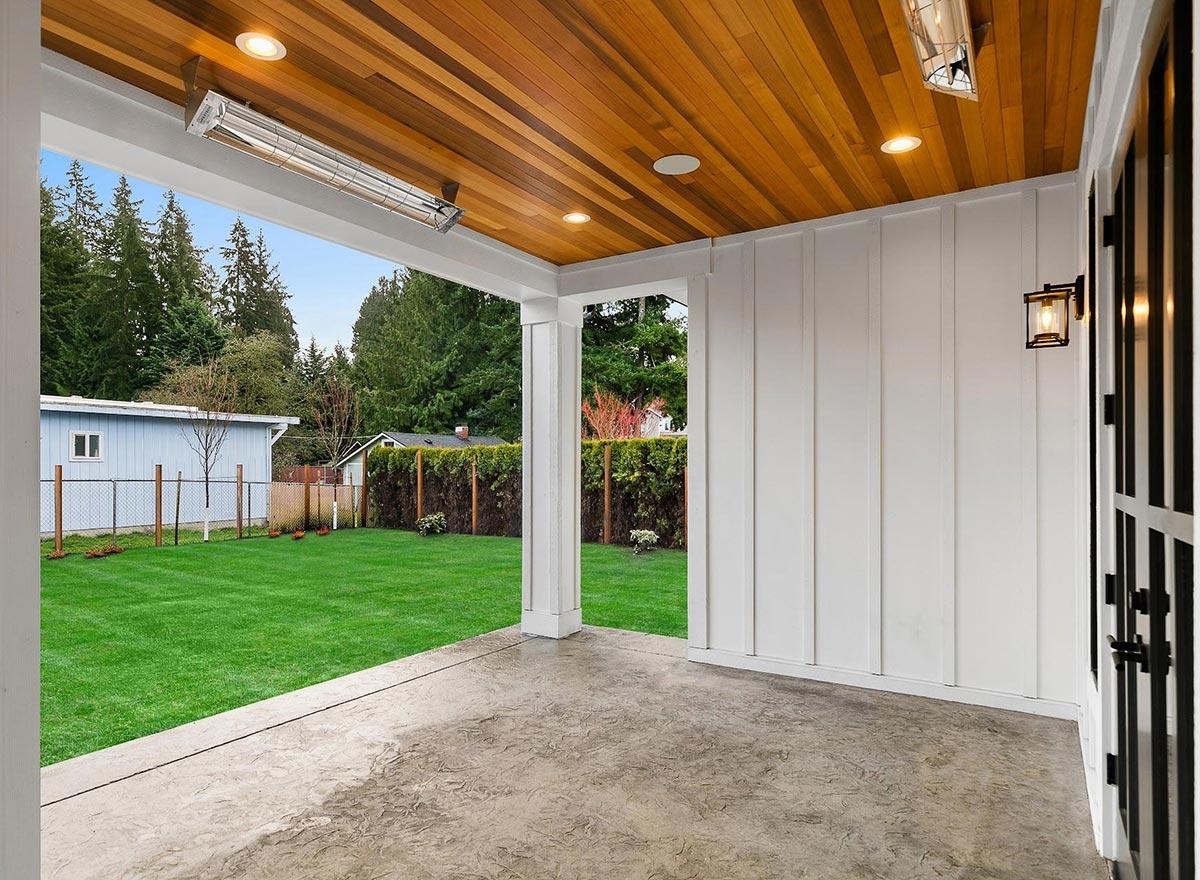

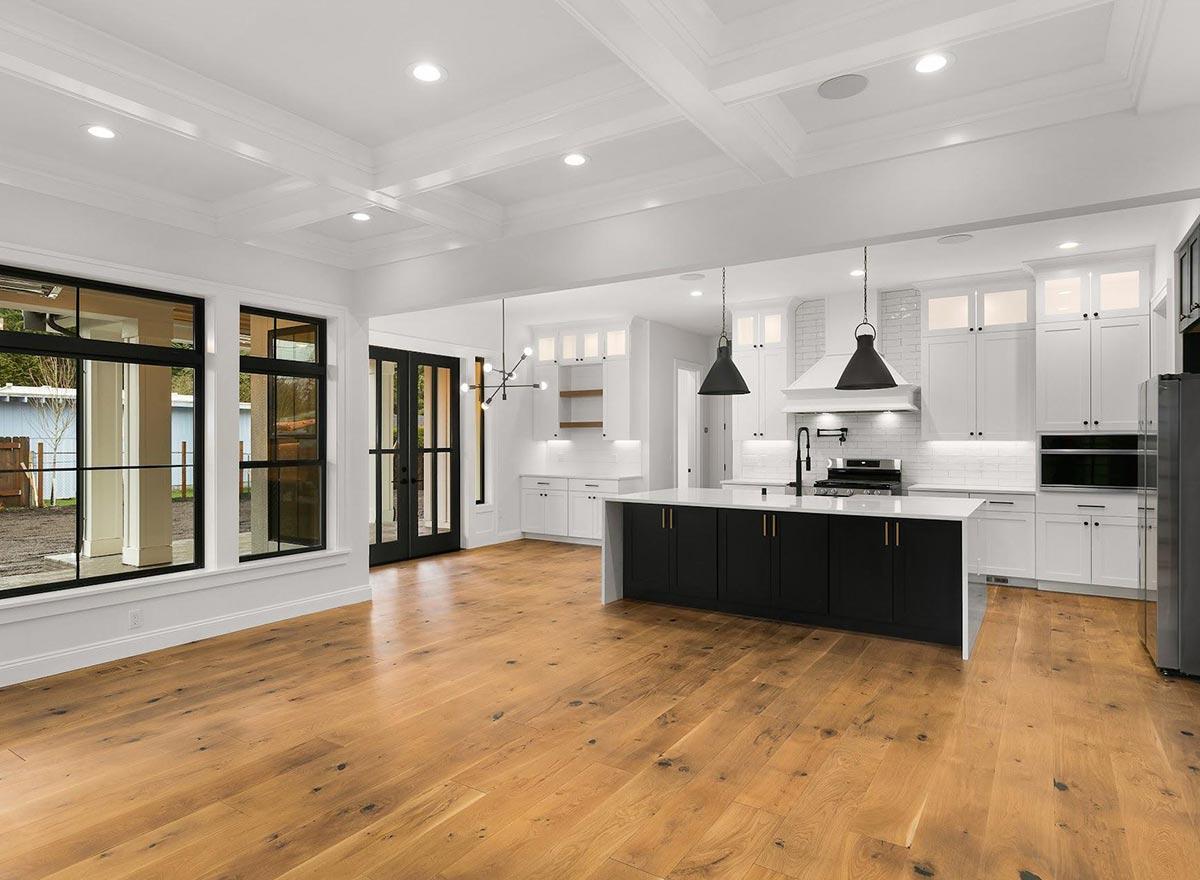

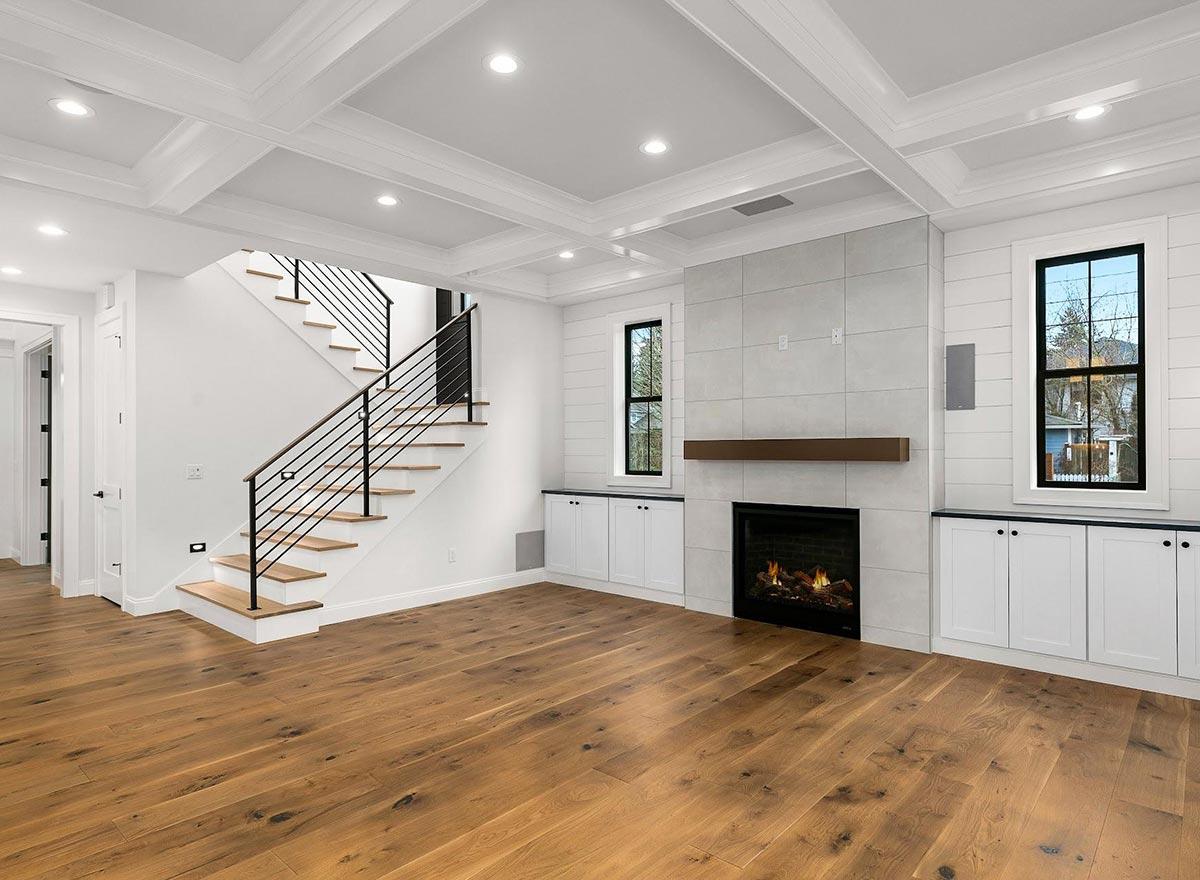

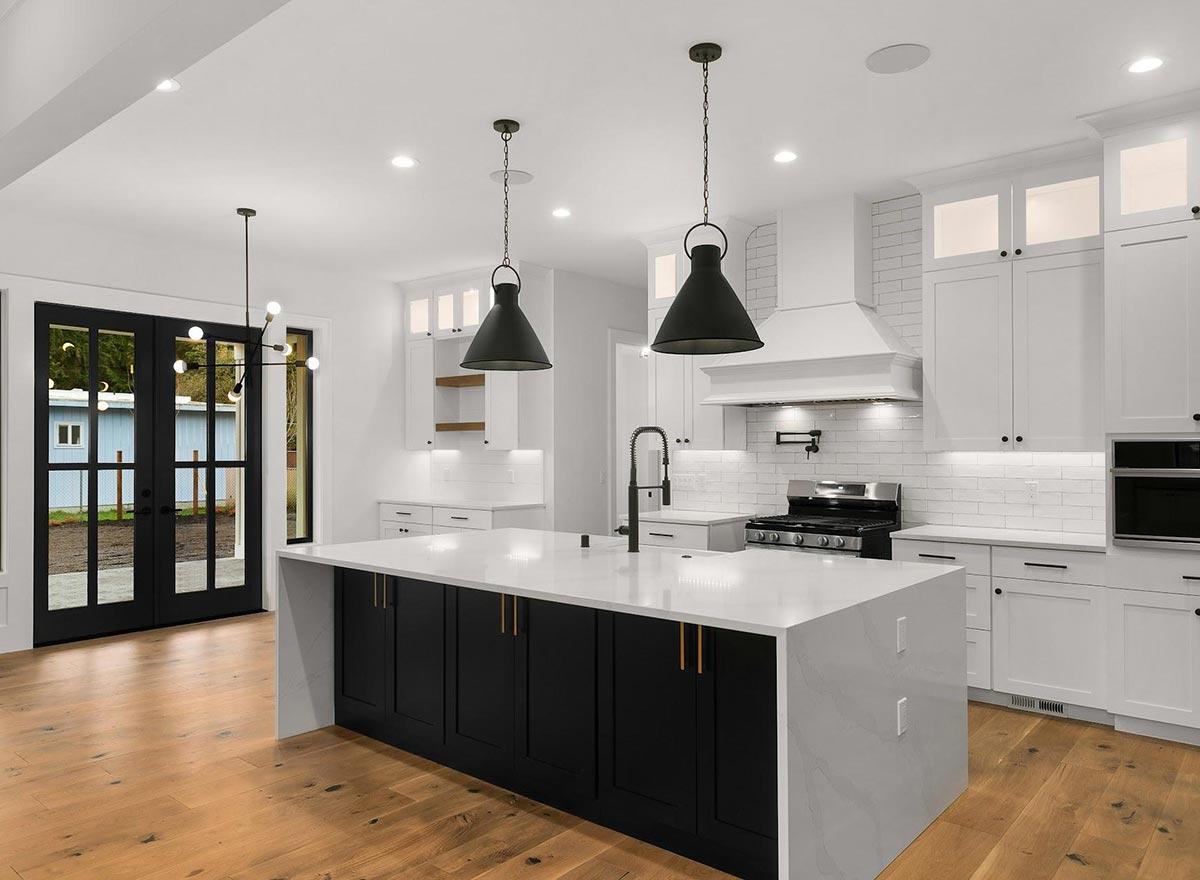

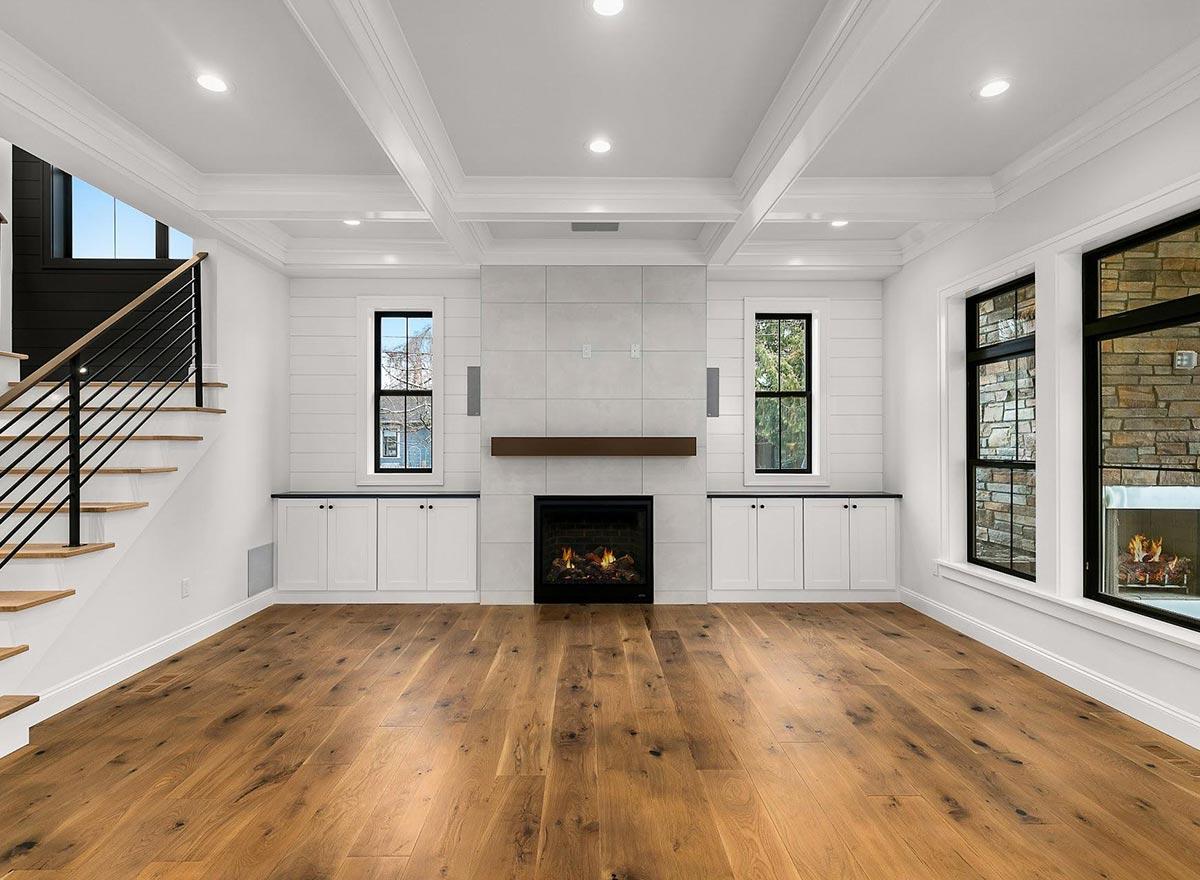

  • French doors on the left of the foyer open to your private den. This would make a great home office for those shunning the commute. The dining room, on the other side of the foyer, connects to the kitchen by way of a butler's pantry. The combined great room, kitchen, and breakfast nook provides a light and airy environment, and extends onto a covered patio. A bedroom on the main level is ideal for guests and has a full bath.

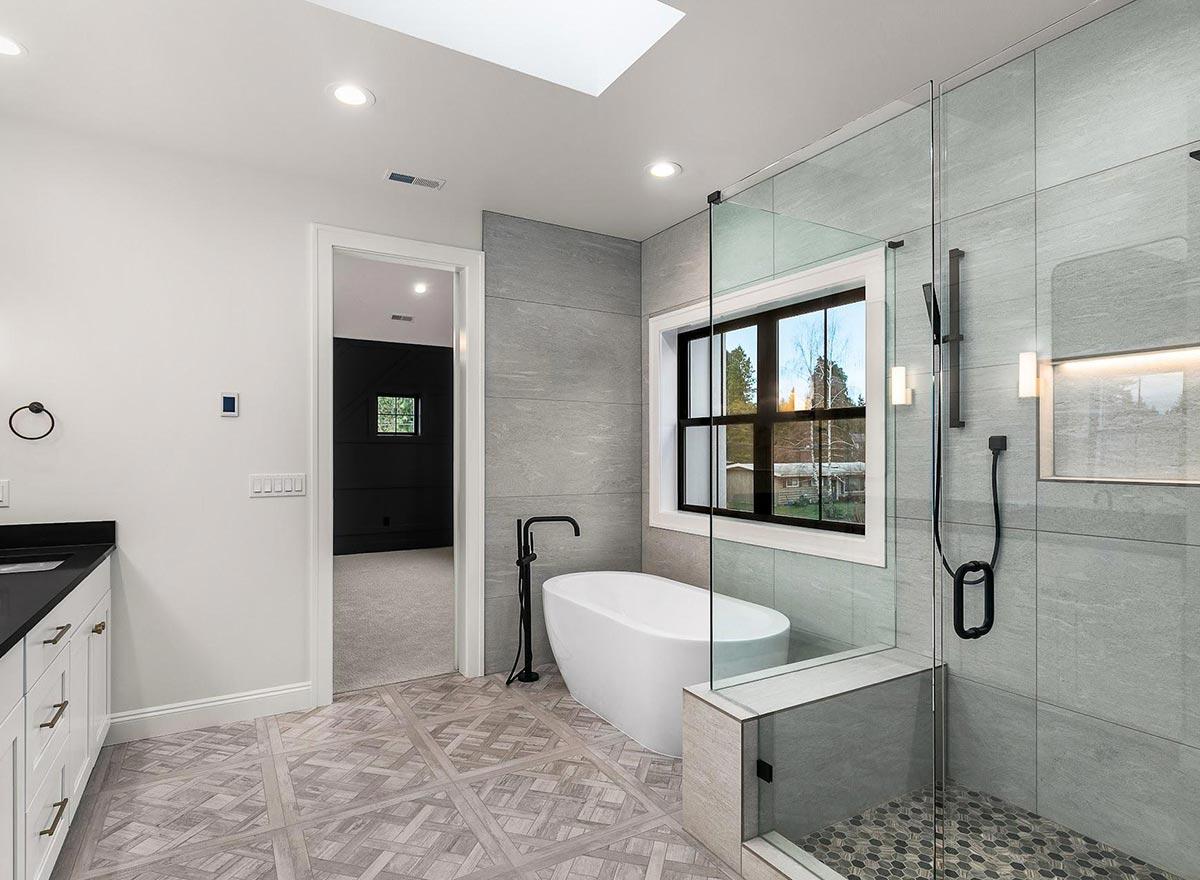

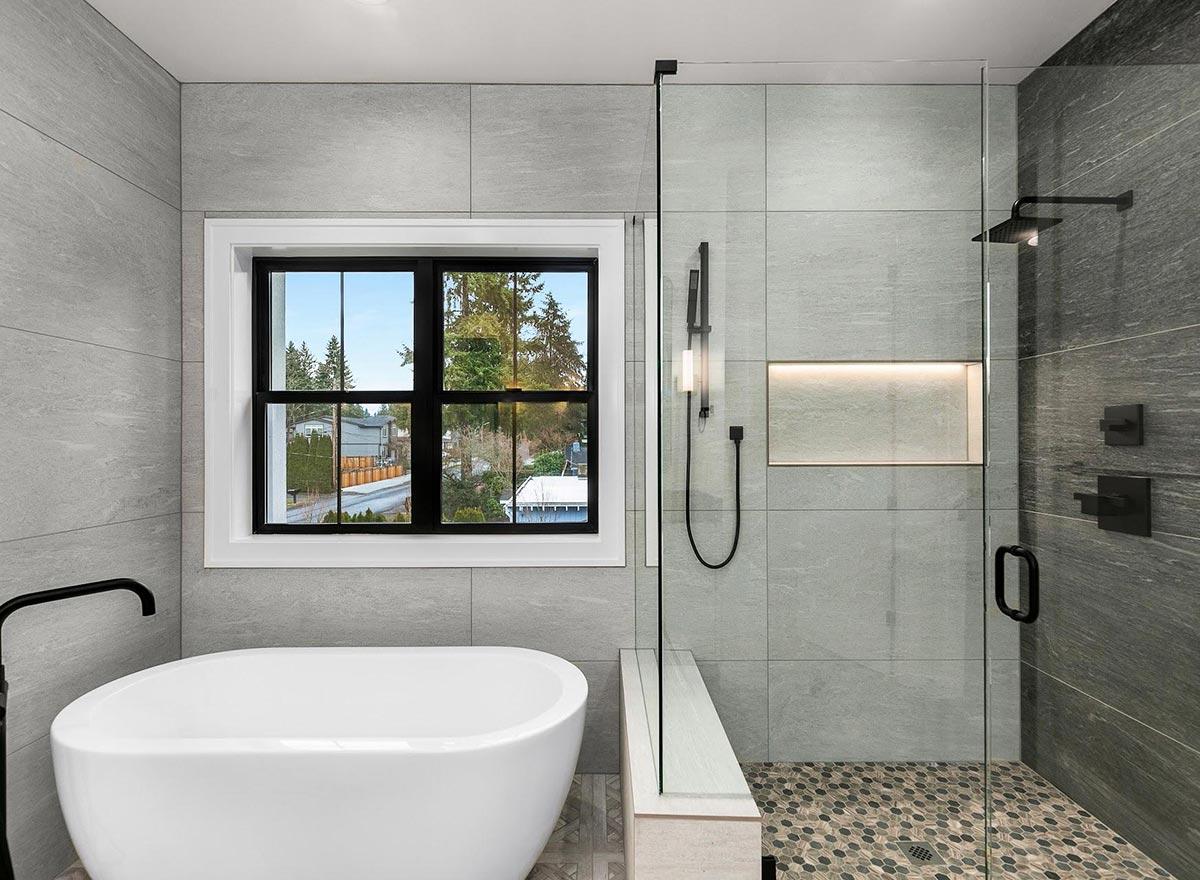

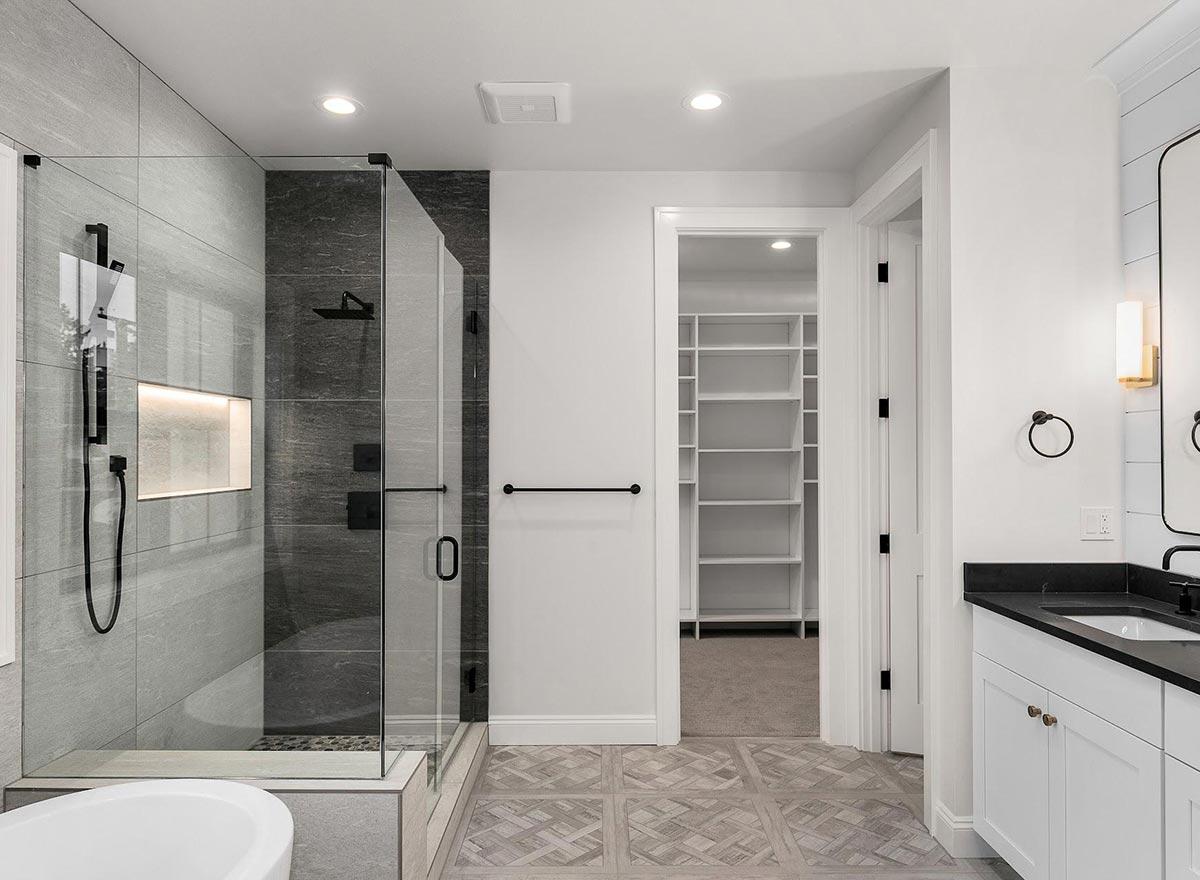

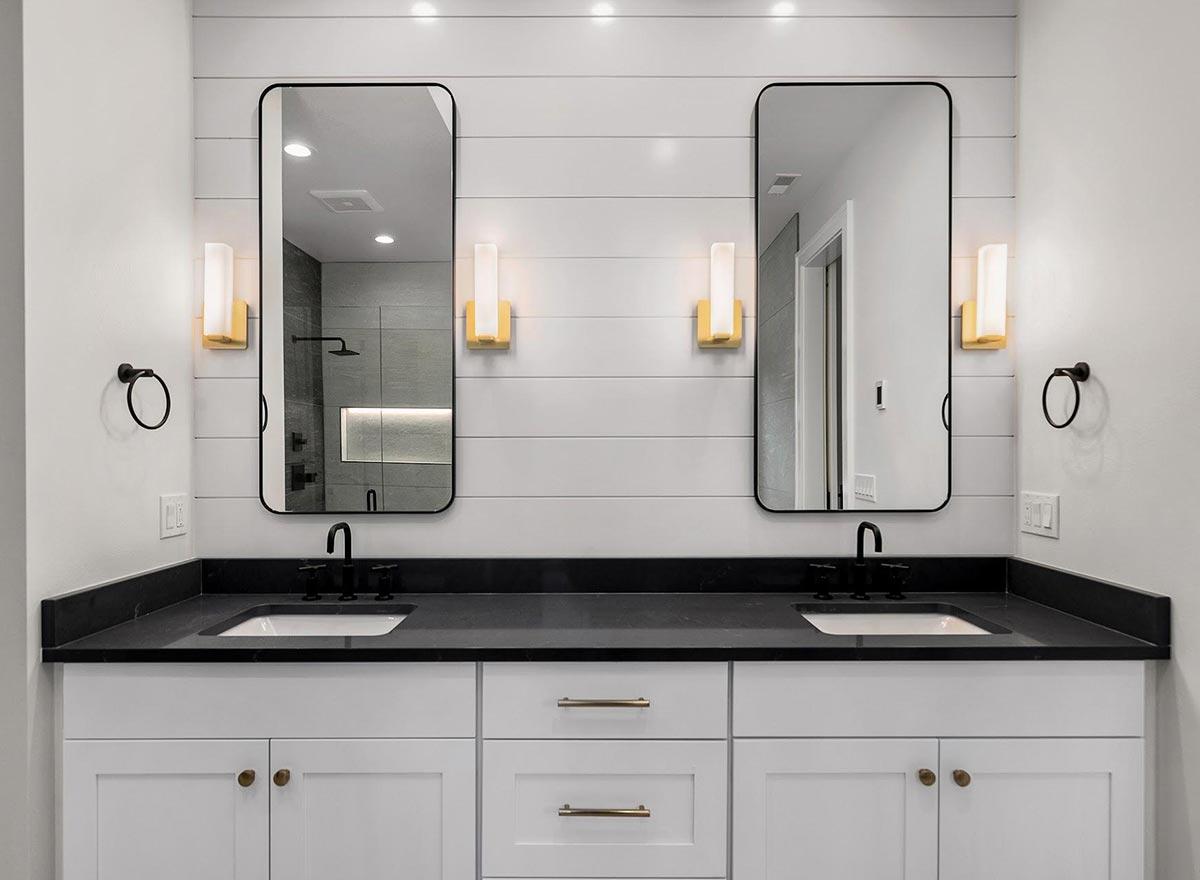

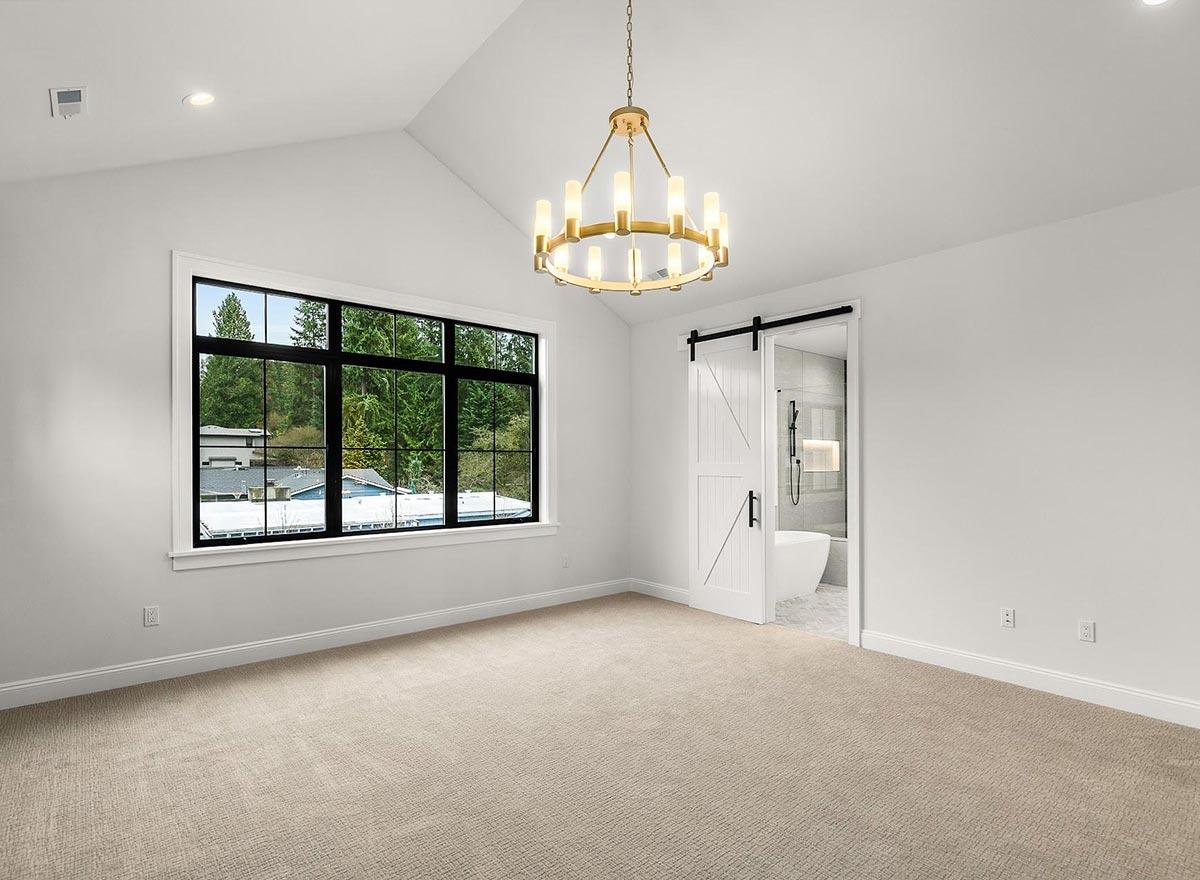

  • The best bedroom on the second level is reserved for the homeowner, and includes large walk-in closet and a 5-fixture bathroom.

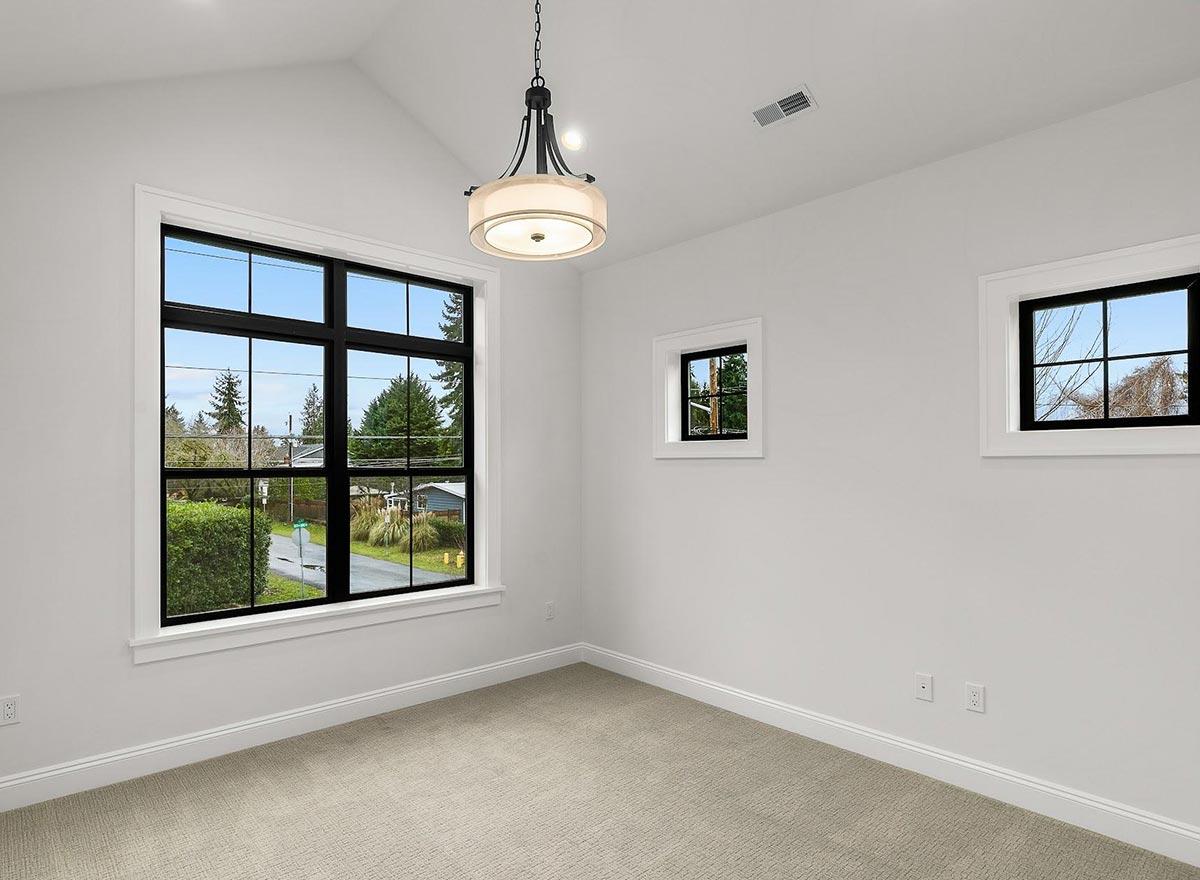

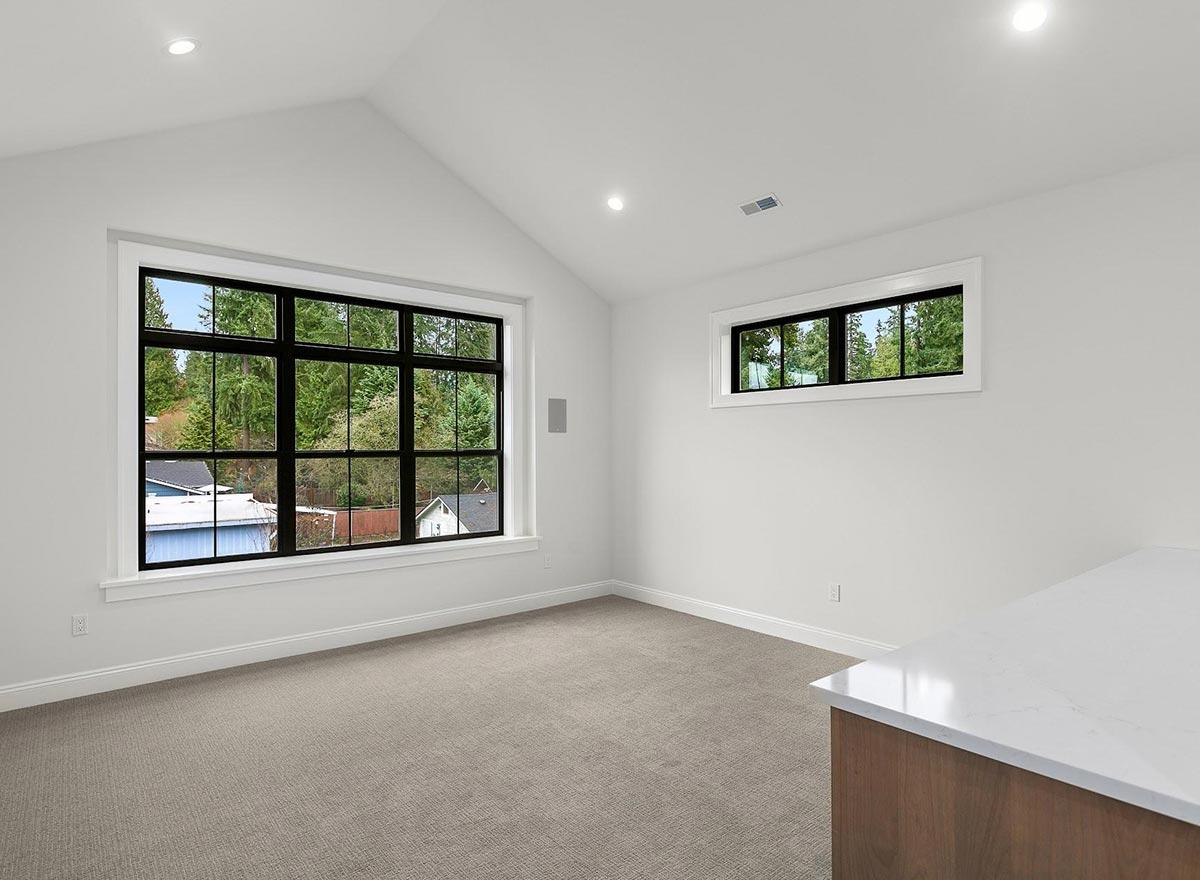

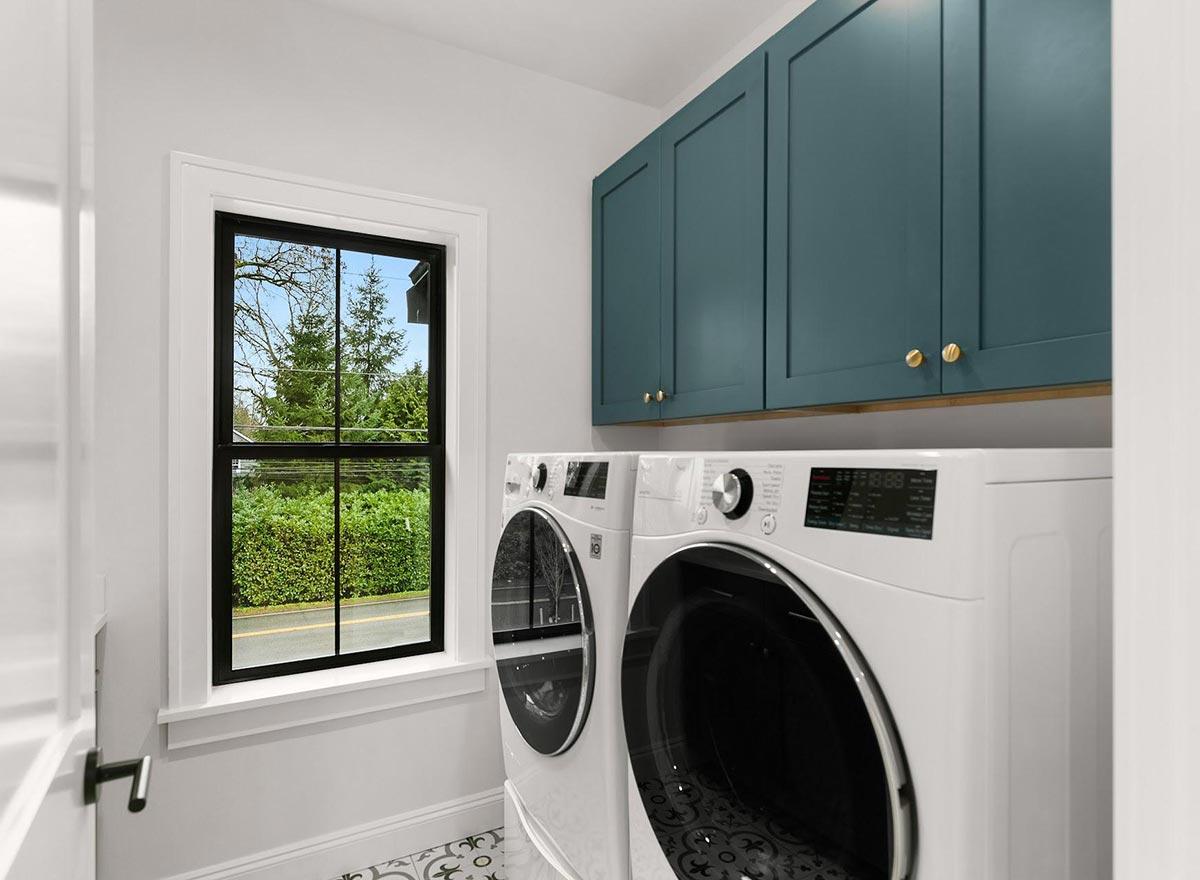

  • Laundry is conveniently located upstairs, as are three bedrooms and two baths. The kids will appreciate the vaulted playroom.
  • The 3-car tandem garage faces forward and enters into a mudroom to help organize outdoor gear. Architectural Designs.
  • Related Plans: Get alternate exteriors with house plans 23821JD (Craftsman) and 23611JD (contemporary).
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.
What's Included
  • Cover Sheet - The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
  • Schedule Sheet - The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
  • Detail Sheet - The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
  • Foundation Plan Sheet - The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
  • Floor Plan Sheet - Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
  • Roof Framing Plan Sheet - The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.

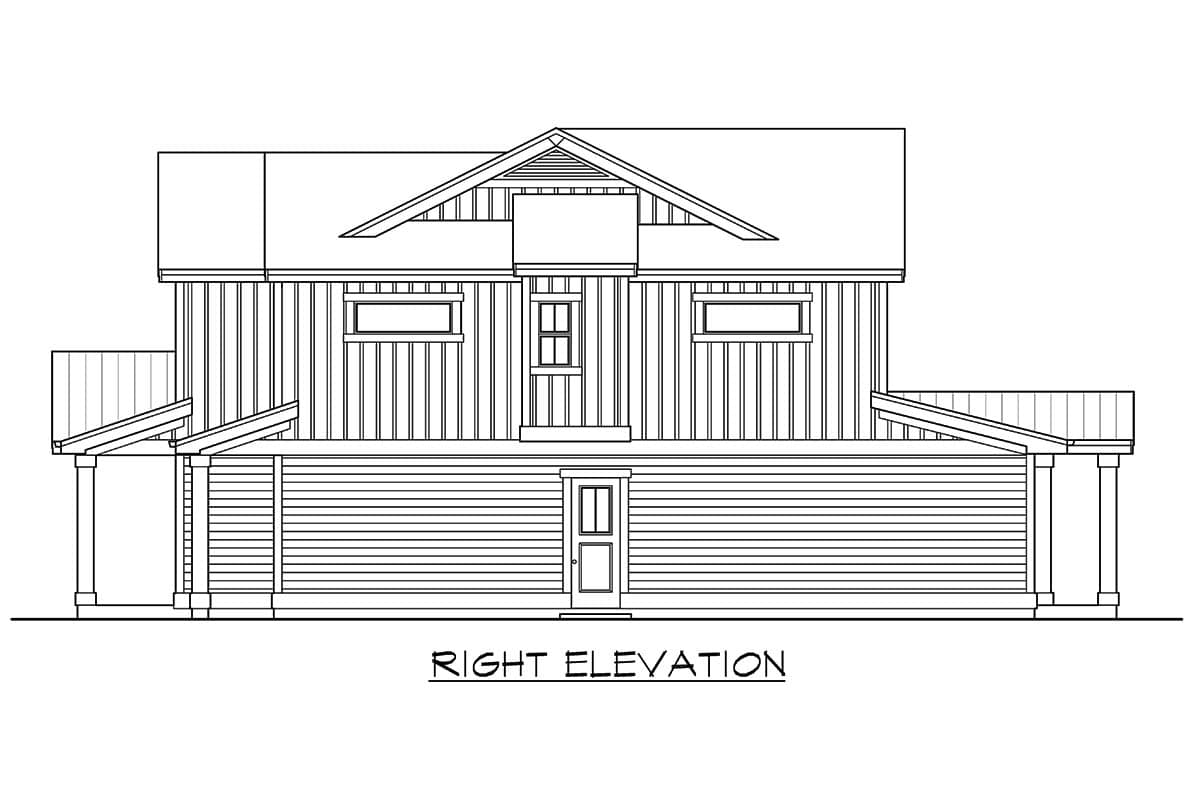

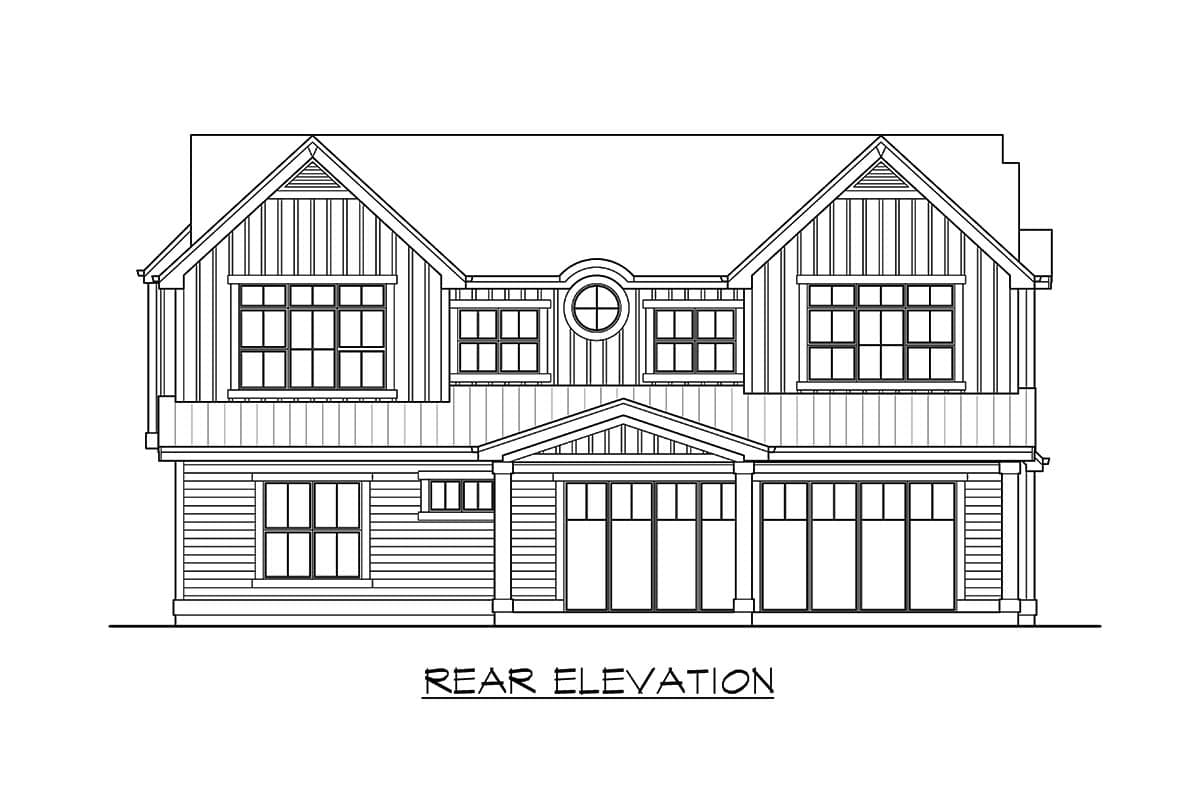

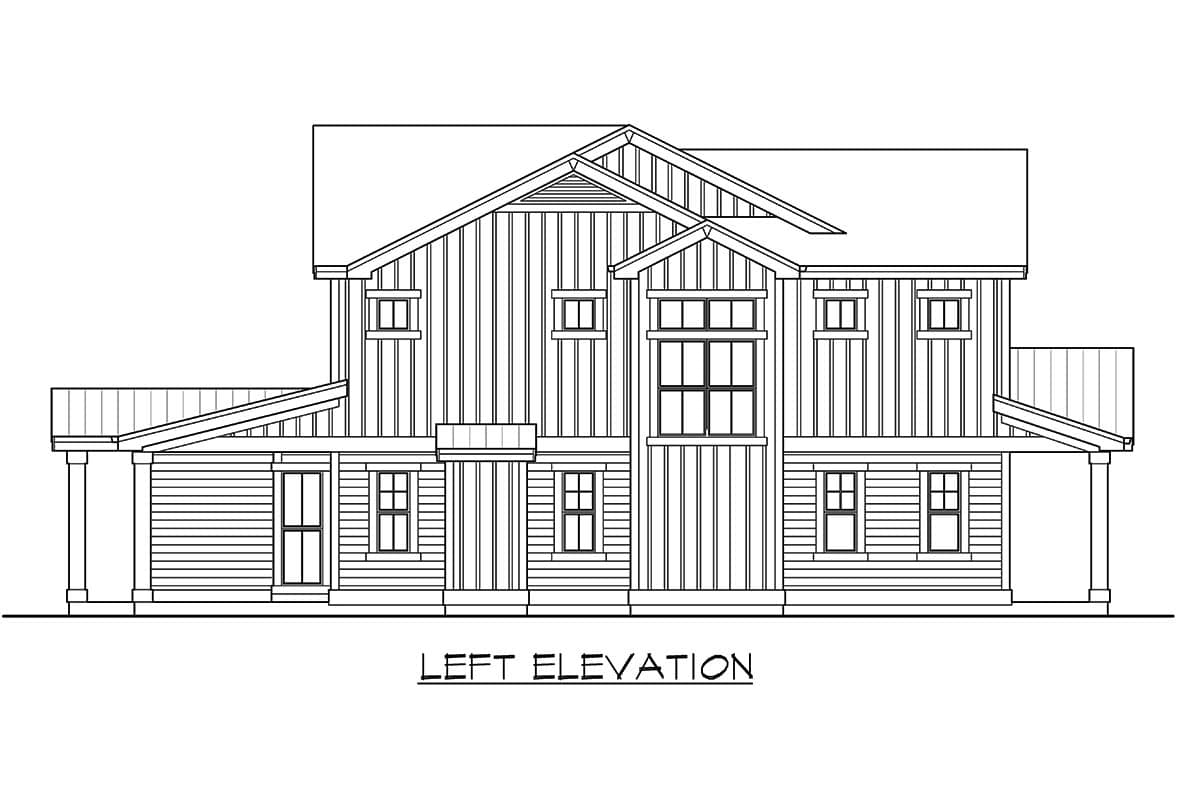

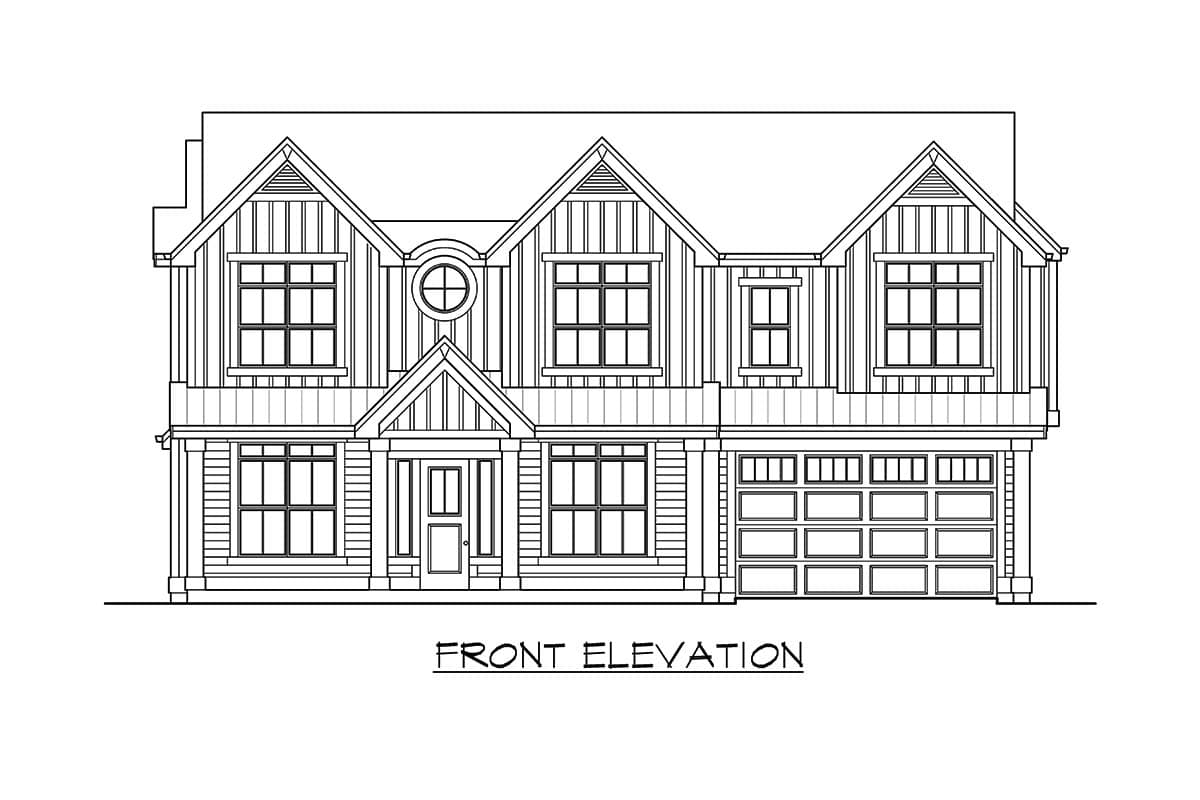

  • Elevation Sheet - Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
  • Building Section Sheet - Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.
What's Not Included
  • Electrical Plan - handled by your subcontractor to match your individual needs
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

New American Farmhouse with Upstairs Bedrooms, Laundry and Playroom - Architectural Designs

  • 3,571

    Heated s.f.

  • 5

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 2 - 3

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 3,571 sq. ft.
  • 1st Floor: 1,726 sq. ft.
  • 2nd Floor: 1,845 sq. ft.

Dimensions

  • Width: 52' 6"
  • Depth: 63' 6"
  • Max ridge height: 29' 2"

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 4
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 566 sq. ft.
  • Count: 2 or 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 11 on 12
  • Secondary Pitch: 6 on 12
  • Framing Type: Truss
All house plans are copyright ©2024 by the architects and designers represented on our web site

New American Farmhouse with Upstairs Bedrooms, Laundry and Playroom - Architectural Designs

  • 3,571

    Heated s.f.

  • 5

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 2 - 3

    Car garage

New American Farmhouse with Upstairs Bedrooms, Laundry and Playroom - Architectural Designs

  • 3,571

    Heated s.f.

  • 5

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 2 - 3

    Car garage

Plan Details

Square Footage Breakdown

  • Total: 3,571 sq. ft.
  • 1st Floor: 1,726 sq. ft.
  • 2nd Floor: 1,845 sq. ft.

Dimensions

  • Width: 52' 6"
  • Depth: 63' 6"
  • Max ridge height: 29' 2"

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 4
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 566 sq. ft.
  • Count: 2 or 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 11 on 12
  • Secondary Pitch: 6 on 12
  • Framing Type: Truss

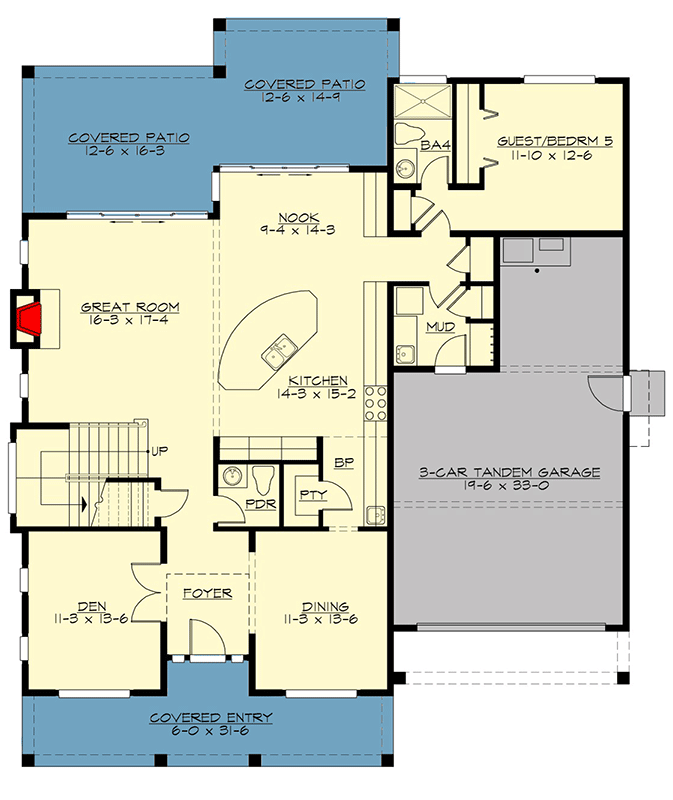

    Main Level

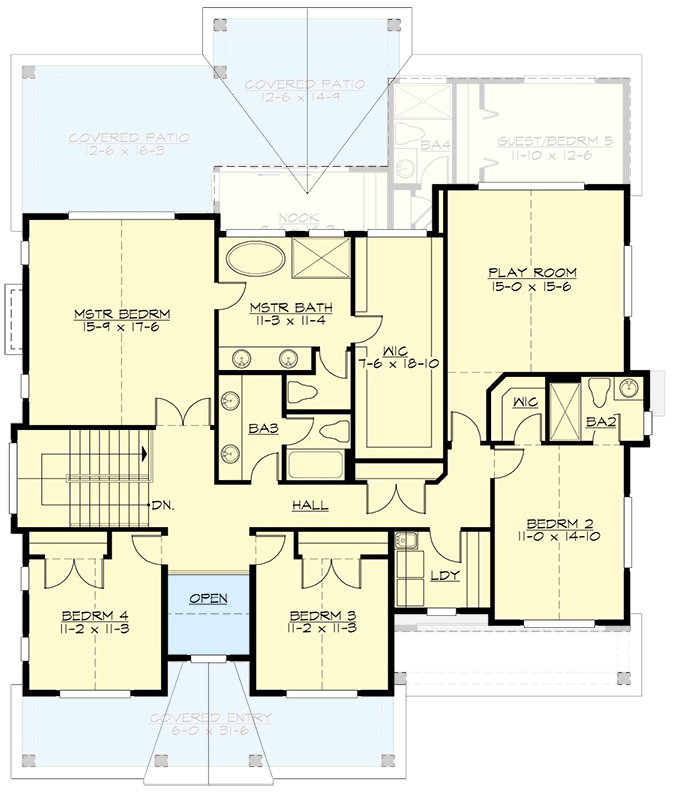

    2nd Floor
