Plan 25448TF

New American Garage Apartment with 1-Bed Attached Apartment - 893 sq Ft

Heated S.F.
893
Beds
1
Baths
1.5
Stories
2
Cars
3
Tour

Floor Plan

Plan 25448TF

Main Level
Main Level
2nd Floor
2nd Floor

Plan 25448TF

M-F 9am-5pm EST |

1-203-761-8500

Main Level

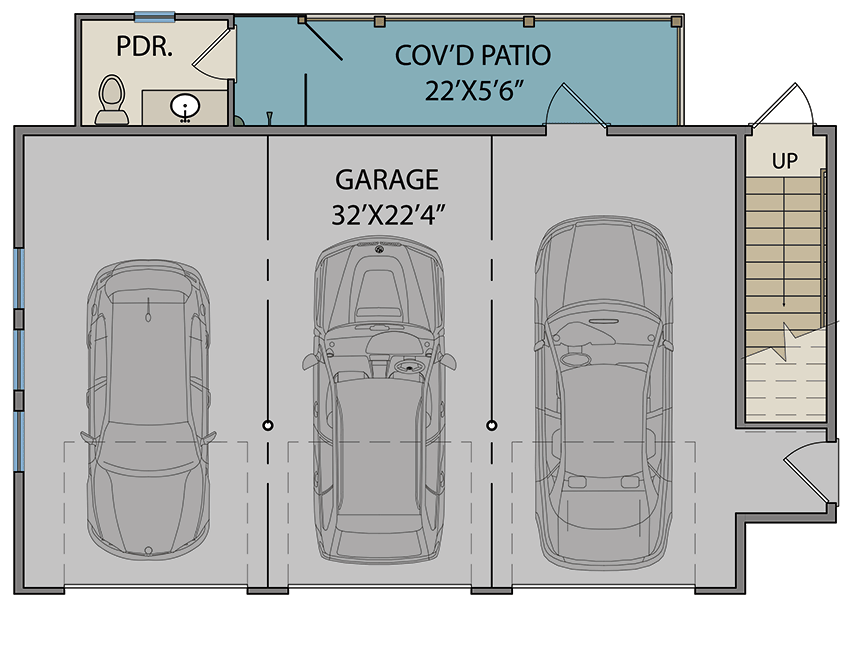

Plan 25448TF: New American Garage Apartment with 1-Bed Attached Apartment - 893 sq Ft - Floor Plan - Main Level - Carriage, Country, Craftsman, New American

2nd Floor

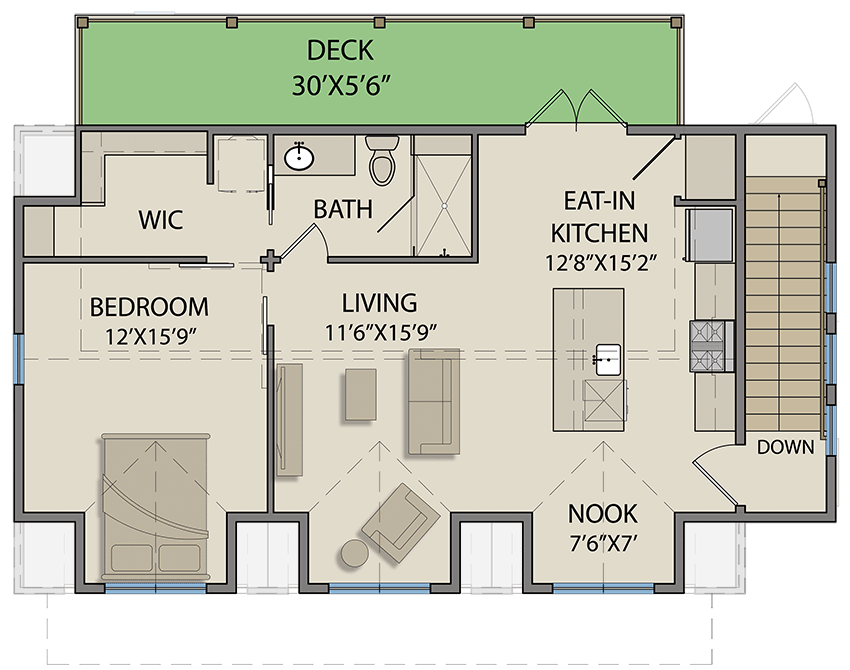

Plan 25448TF: New American Garage Apartment with 1-Bed Attached Apartment - 893 sq Ft - Floor Plan - 2nd Floor - Carriage, Country, Craftsman, New American

Plan Details

  • Three dormer windows protrude from the gable roof of this New American Garage Apartment, each centered above an overhead garage door.
  • The staircase, attached to the interior of the garage, guides you up to the second-level apartment. An open kitchen and living area greet you, complete with a sitting nook (or study).
  • The kitchen provides enough space for a central dining table that can double as an island for additional workspace.
  • The kitchen also gives you access to a rear deck.
  • A barn door reveals the bedroom, which includes a walk-in closet, stackable washer / dryer unit, and access to a full bath.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
  • Related Plan: Get a smaller alternative version with garage plan 25419TF (708 sq. ft.).
