Plan 51288MM

New American House Plan with Flex Room and Closed Concept Floor Plan

Heated S.F.
2,389
Beds
3
Baths
2.5
Stories
1
Cars
2

Floor Plan

Plan 51288MM

Main Level
Main Level

Plan 51288MM

M-F 9am-5pm EST |

1-203-761-8500

Main Level

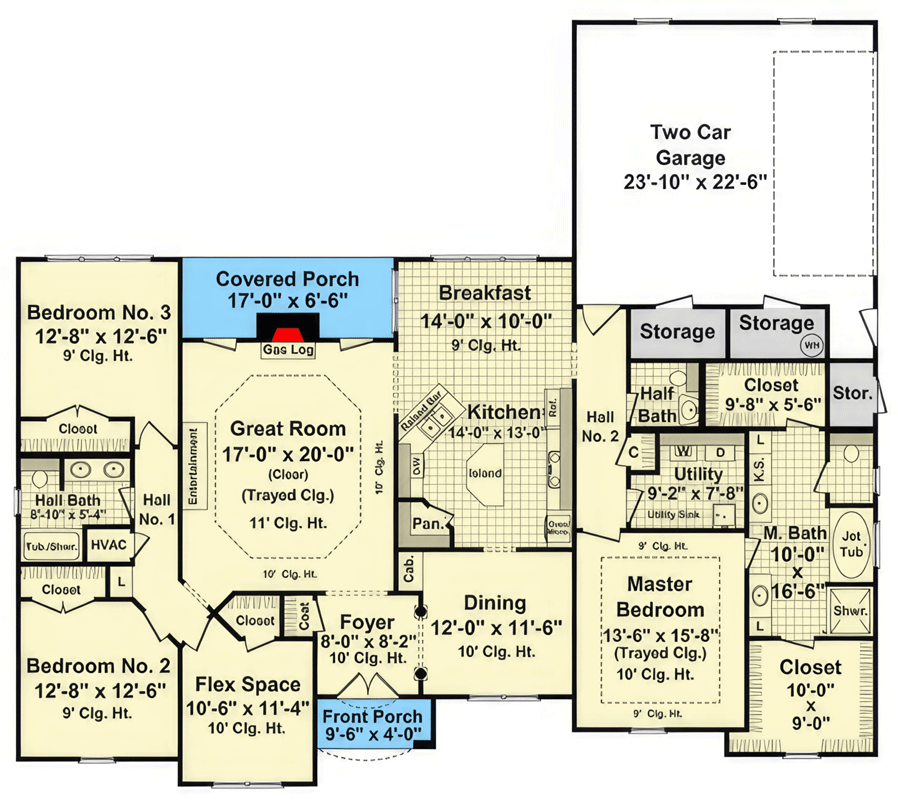

Plan 51288MM: New American House Plan with Flex Room and Closed Concept Floor Plan - Floor Plan - Main Level - Country, New American, Ranch, Traditional

Plan Details

  • This 2,389 sq. ft. New American style house plan offers 3 bedrooms, 2 full baths, 1 half bath, and an attached 666 sq. ft. two-car garage.
  • Upon entering, a welcoming foyer ushers you into a thoughtfully designed layout, with a formal dining room to your right and a versatile flex room or library/study to your left, perfect for a home office.
  • The heart of the home unfolds into an open-concept great room, seamlessly connecting to a gourmet kitchen featuring a central island and a charming breakfast nook for casual dining.
  • The luxurious main-level master suite, privately situated on the right, boasts a tray ceiling, an expansive walk-in closet with direct access to the laundry room, and a spa-like bathroom with a separate tub and shower, while two additional bedrooms are split to the left side of the home for privacy.
  • The adaptable flex space near the front entry can serve as a quiet library, a productive home office, or a cozy den tailored to your lifestyle needs.
  • Step out from the great room onto a spacious covered rear porch, providing an ideal setting for al fresco dining or enjoying a quiet morning coffee, complementing the inviting front porch.

What's Included

  • Cover Sheet: Showing architectural rendering of residence.
  • Floor Plan(s): In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule.
  • Foundation Plan and Details
  • Electrical Plan with Symbols Legend: In general, each house plan set includes an electrical plan which will show the suggested locations of lights, receptacles, switches, etc.
  • Roof Drainage Plan: In general, each house plan set may include a roof drainage plan which will show the layout of all roof sections/planes.
  • Exterior Elevations: In general, each house plan set includes all applicable front, side and rear elevations, as well as any special exterior details.
  • Interior Elevations: Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
  • Building Sections and Details


What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,389 sq. ft.

1st Floor

2,389 sq. ft.

Porch, Front

38 sq. ft.

Porch, Rear

101 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Monolithic Slab, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

69' 2"

Depth

61' 6"

Max Ridge Height

26' 4"

Garage

Type

Attached

Area

666 sq. ft.

Count

2 Cars

Entry Location

Side

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Country

New American

Ranch

Traditional

Special Features

Bedrooms - Split

Breakfast Nook

Flex Room

Formal Dining

Laundry Access from Master Suite

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Plan Collections

Closed Floor Plans
