Plan 23838JD

New American House Plan with Vaulted Great Room and One-Level Living - 2210 Sq Ft

Name: Plan 23838JD: New American House Plan with Vaulted Great Room and One-Level Living - 2210 Sq Ft
Brand: Architectural Designs
SKU: 23838JD
Price: 1228.25 USD
Availability: InStock

Heated S.F.

2,210

Beds

2 - 3

Baths

2.5

Stories

Cars

Client Photos

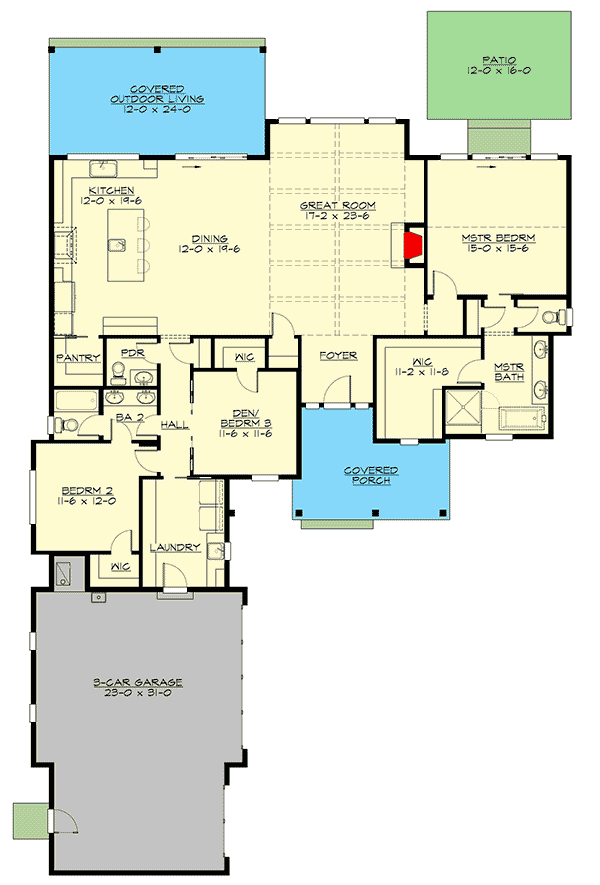

Floor Plan

Main Level

Plan Details

We've given a modern farmhouse-like exterior to our rugged one-level Craftsman (plan 23705JD) and created this beautiful house plan. It has a mix of board and batten and clapboard siding and a 3-car courtyard-entry garage.
The foyer and great room are vaulted and you get dramatic views through to the back of the home the second you step inside.
The floor plan is open left-to-right giving the cook views of the fireplace across the great room.
The master bedrooms is vaulted and privately located on the main floor. Across the home, two bedrooms share a Jack and Jill bath.
A large laundry room is accessible right off the garage.
Related Plan: Add a bonus room over the garage with house plan 23868JD (3-car garage) and 23839JD (2-car garage) and get an alternate exterior with house plan 23705JD.
NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.

Build Gallery

See and hear from existing customers with real photos, videos, and reviews.

House Plan 23838JD comes to life in Washington

Photos

What's Included

Cover Sheet - The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
Schedule Sheet - The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
Detail Sheet - The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
Foundation Plan Sheet - The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
Floor Plan Sheet - Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
Roof Framing Plan Sheet - The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.
Elevation Sheet - Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
Building Section Sheet - Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.

View Sample Plan

What's Not Included

Electrical Plan - handled by your subcontractor to match your individual needs
Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
