Plan 270039AF

Newport-Style House Plan with Angled Garage and Optional Finished Lower Level - 3481 Sq Ft

Heated S.F.

3,481

Beds

5 - 7

Baths

3.5 - 5.5

Stories

2

Cars

2

Floor Plan

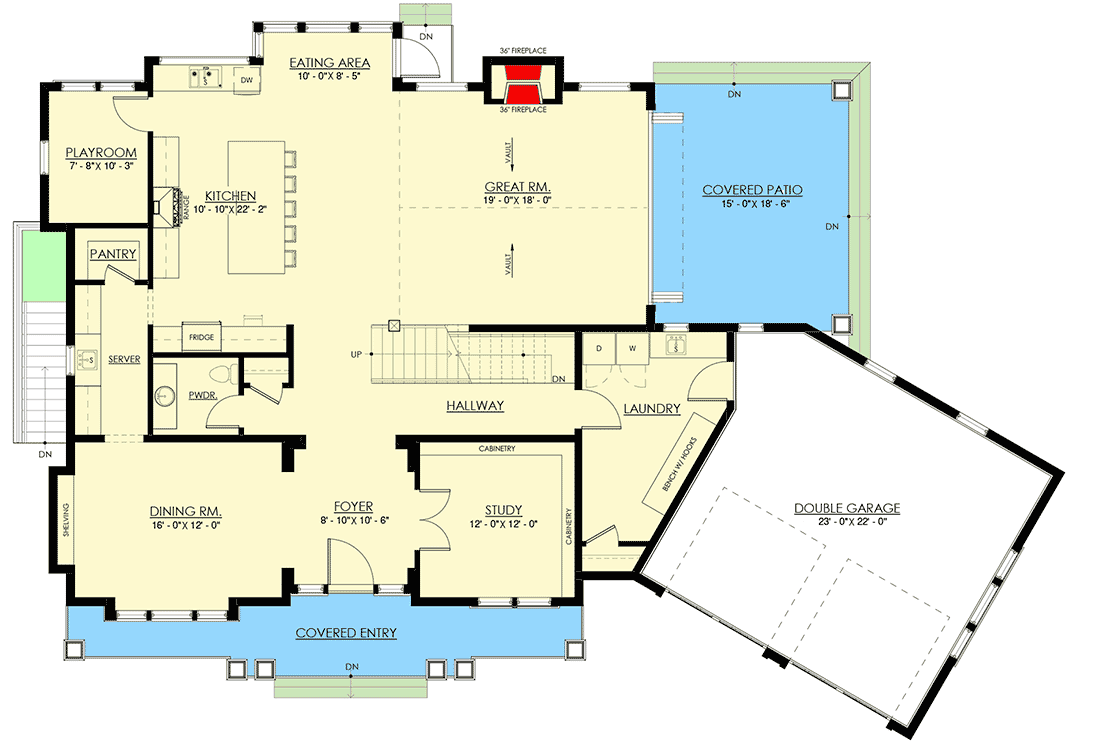

Main Level

Plan 270039AF: Newport-Style House Plan with Angled Garage and Optional Finished Lower Level - 3481 Sq Ft - Floor Plan - Main Level - Cape Cod, Coastal, New American, Shingle, Traditional

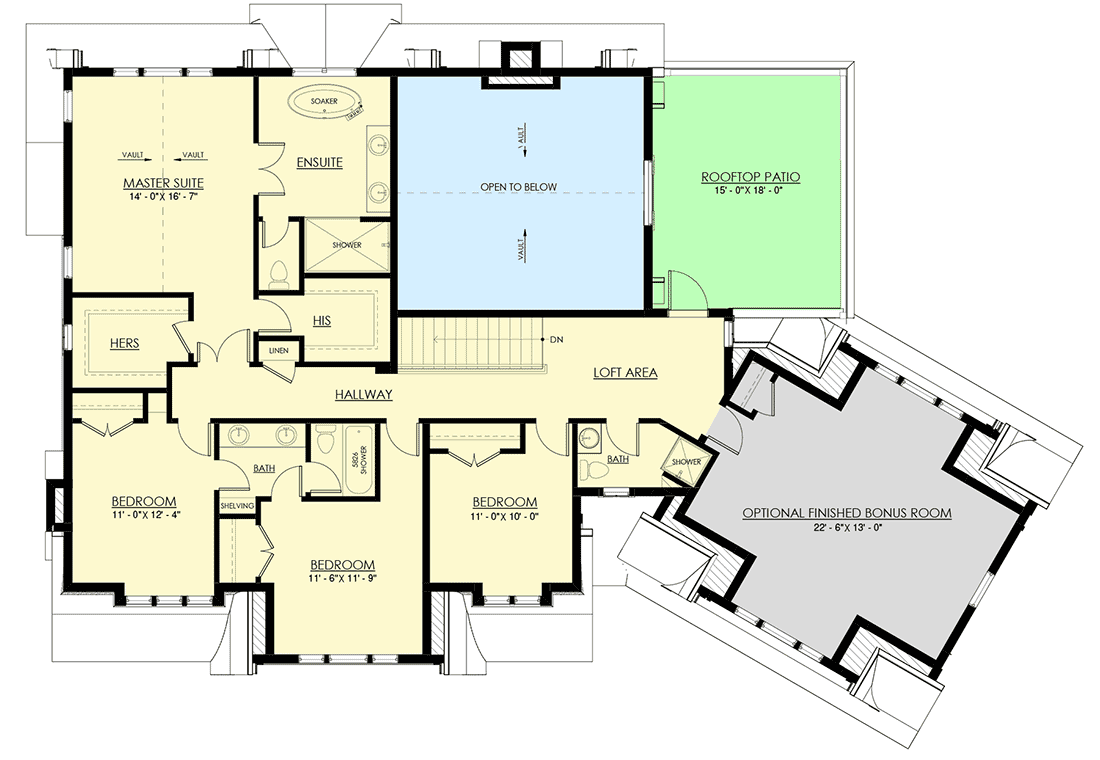

2nd Floor

Plan 270039AF: Newport-Style House Plan with Angled Garage and Optional Finished Lower Level - 3481 Sq Ft - Floor Plan - 2nd Floor - Cape Cod, Coastal, New American, Shingle, Traditional

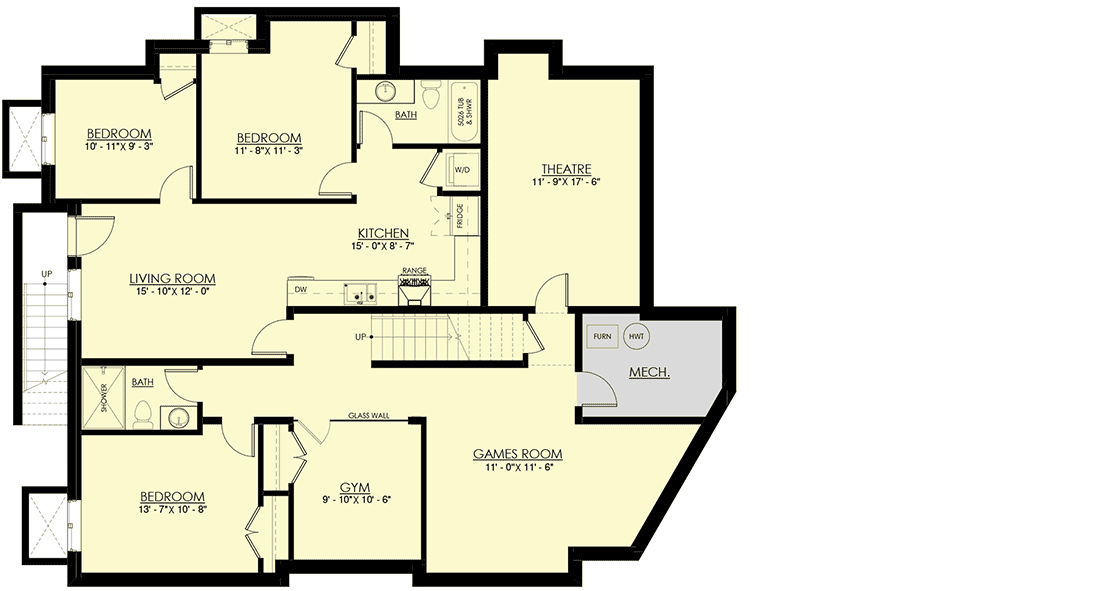

Lower Level

Plan 270039AF: Newport-Style House Plan with Angled Garage and Optional Finished Lower Level - 3481 Sq Ft - Floor Plan - Lower Level - Cape Cod, Coastal, New American, Shingle, Traditional

Plan Details

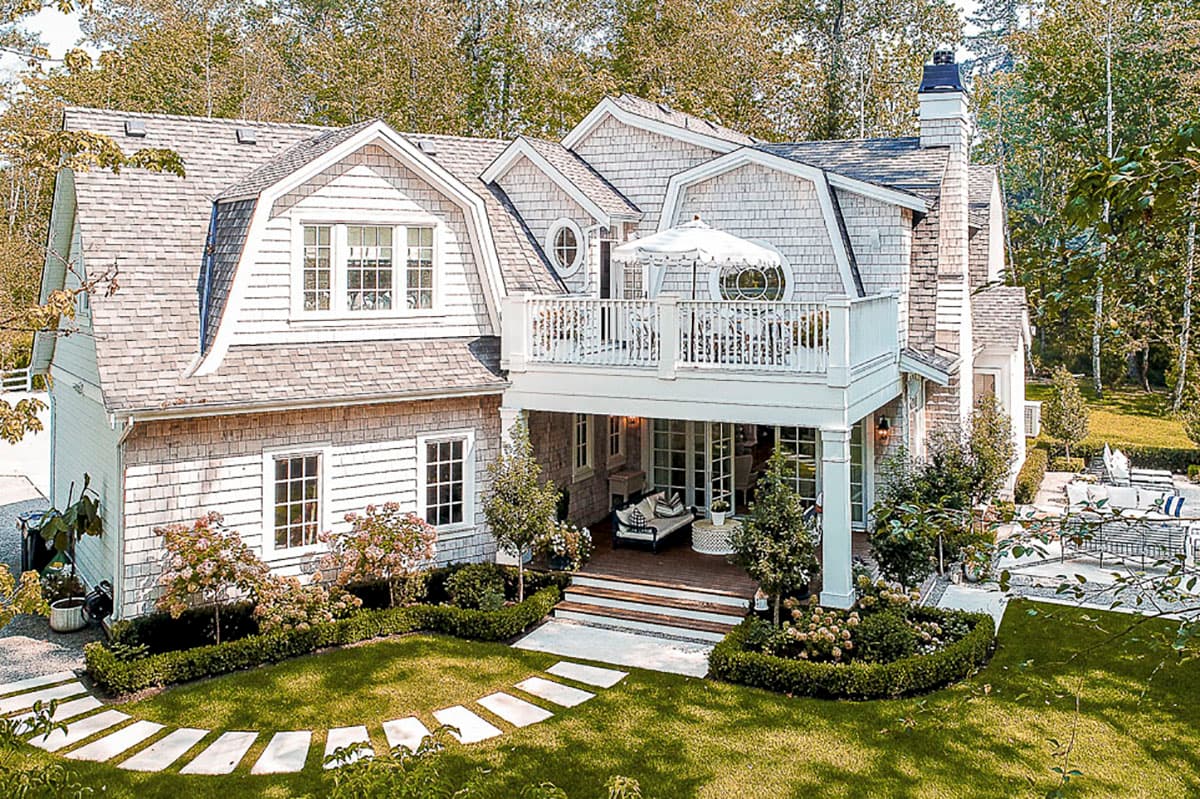

Shake siding lies beneath gambrel roof lines on the exterior of this Newport-style house plan.
An elongated covered entry welcomes you inside, where you'll find a quiet study and formal dining room on either side of the foyer. The combined great room and kitchen is enhanced by an accordion-style door that retracts to extend the living space outdoors.

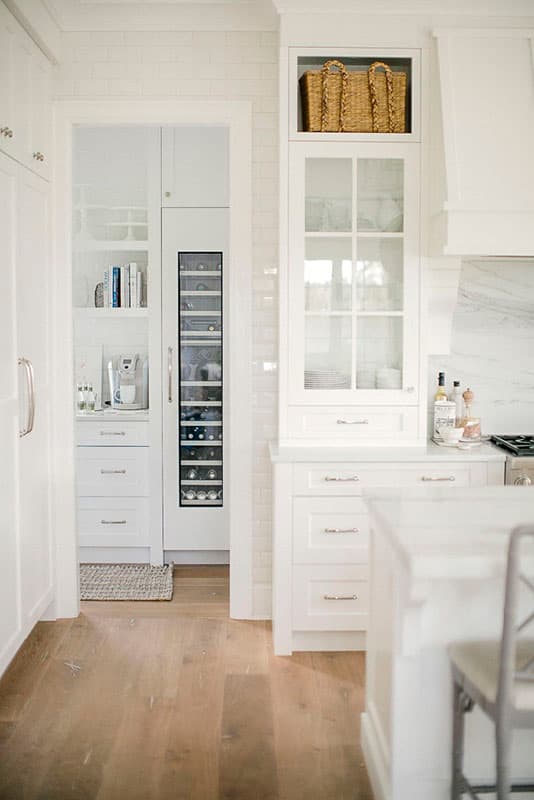

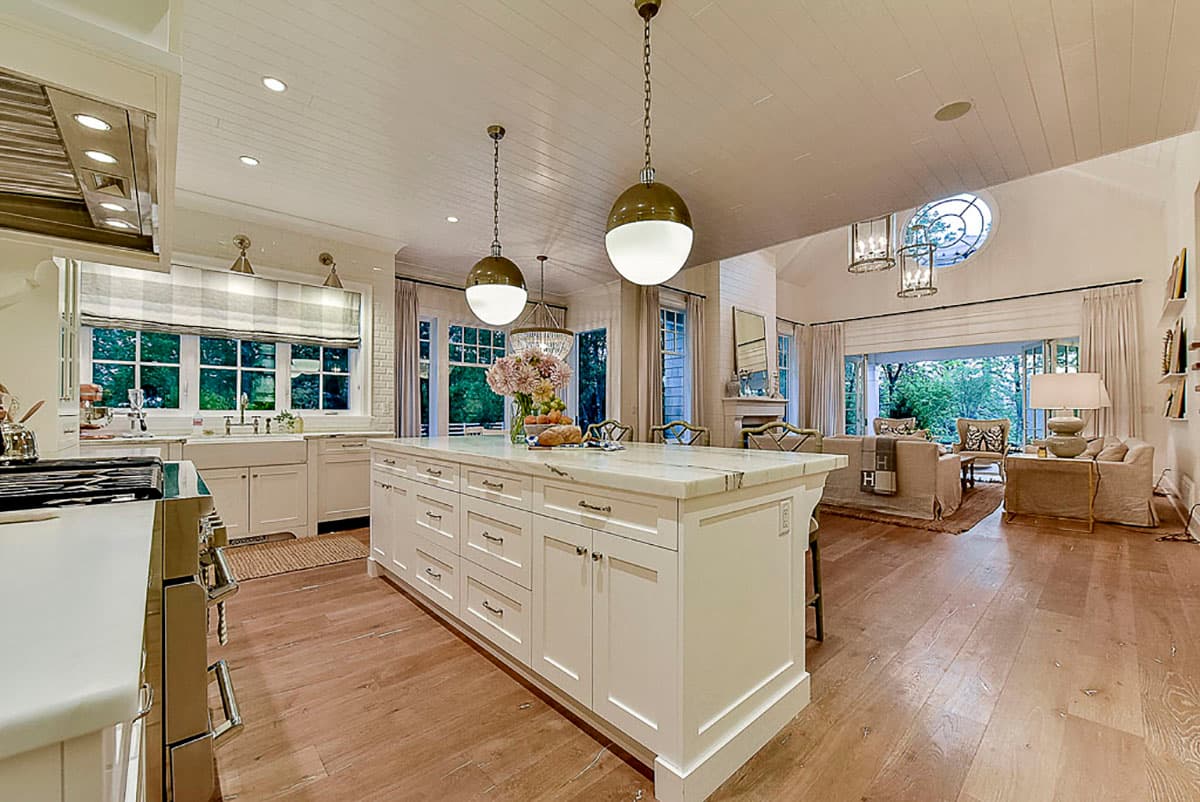

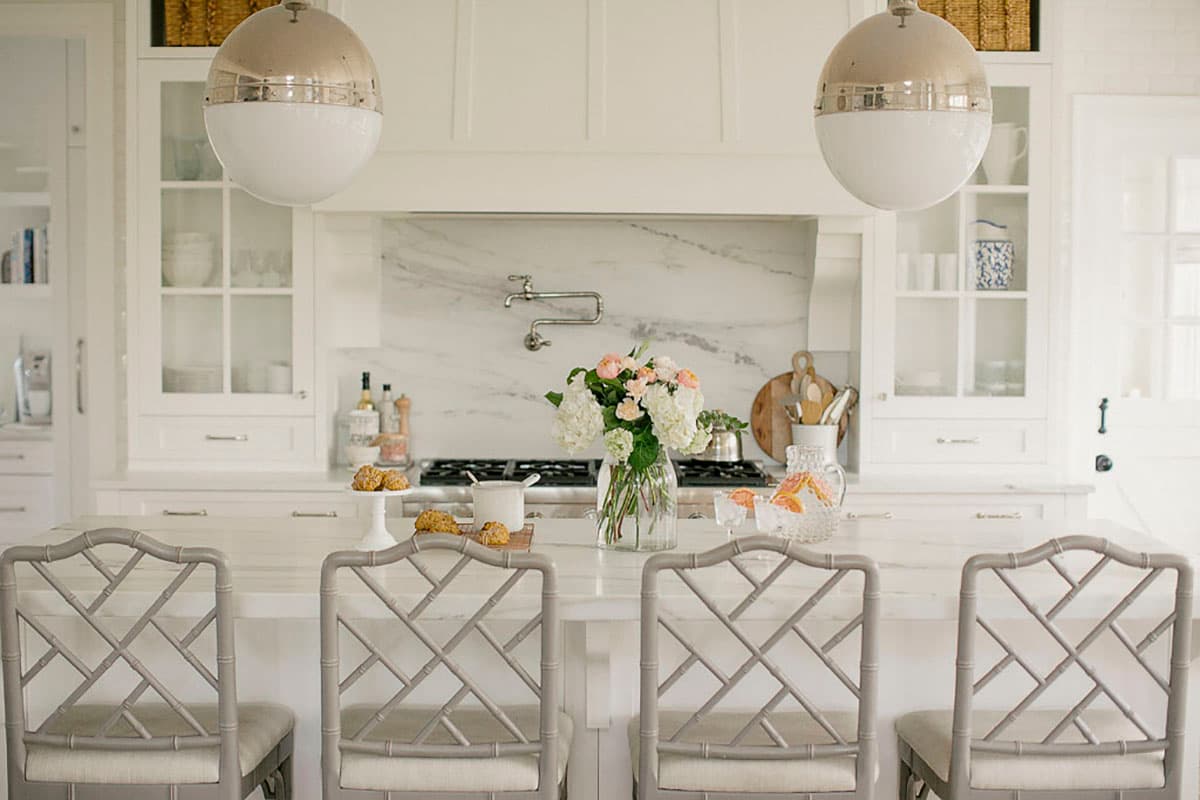

The massive island provides ample workspace in the kitchen, and a walk-in pantry neighbors a butler's pantry with a bar sink. A convenient playroom sits next to the kitchen so you can multi-task and keep toys contained to a particular area.

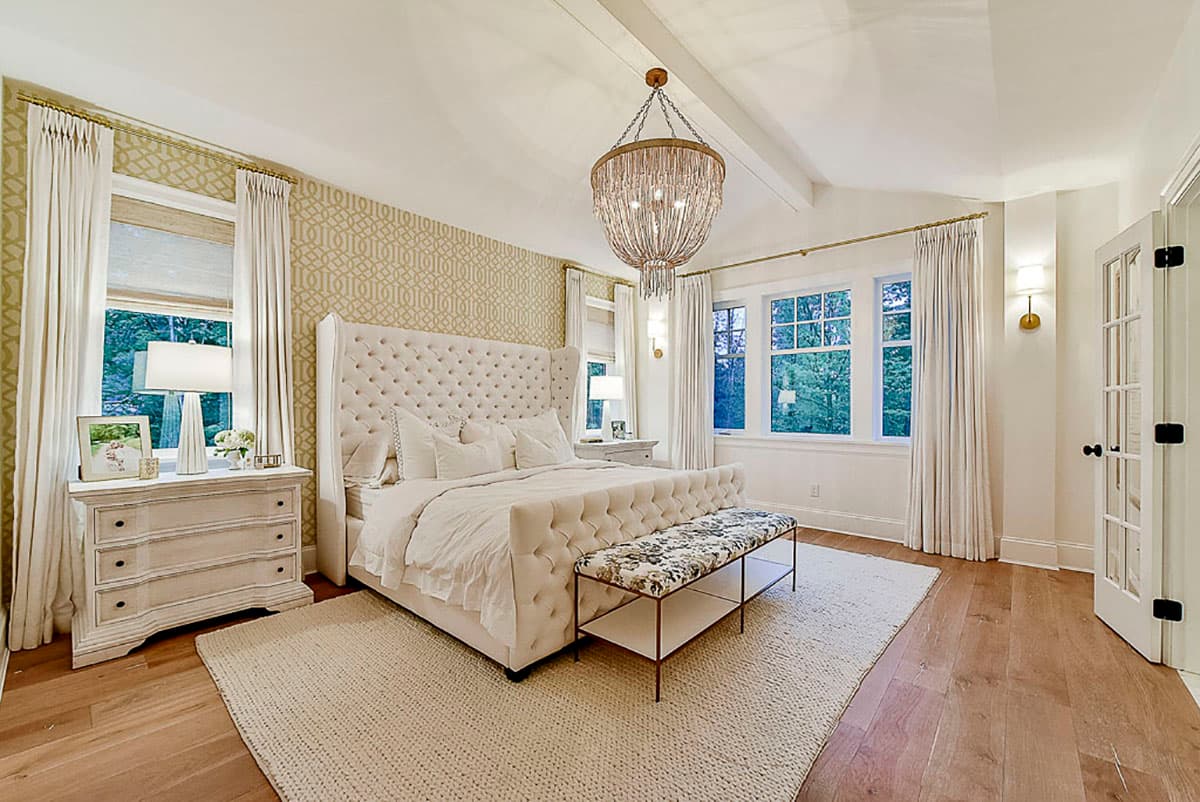

Upstairs, the master suite is joined by three secondary bedrooms, and a rooftop patio offers a fun space to get some vitamin D. Finish the optional bonus room for an additional 418 sq ft of living space.
Retreat to the optionally finished lower level to find a home theatre, game room, gym, and bedroom. The 2-bedroom apartment with a private entrance can be used as an in-law suite or income property.
Related Plan: Get an alternate version with a non-angled garage with Plan 270058AF

What's Included

Foundation Plan
Floor Plan(s) with Door and Window Opening Sizes
Roof Plan showing pitches, valleys, ridges
Exterior Elevations
Building Section
Typical Construction Details/Sections

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Framing - layouts with beam sizes and locations
Electrical plan
Plumbing Details
Mechanical Drawings (location of heating and air equipment and duct work)
Energy calculations - handled locally when required
Renderings, photography, or marketing imagery

Cost to Build Report

Still deciding? Calculate the cost to build this house in your area.

Customize This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Cost to Furnish Report

Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

3,481 sq. ft.

1st Floor

1,927 sq. ft.

2nd Floor

1,553 sq. ft.

Optional Lower Level

1,955 sq. ft.

Bonus

418 sq. ft.

Porch, Front

185 sq. ft.

Porch, Combined

185 sq. ft.

Deck

279 sq. ft.

Covered Patio

279 sq. ft.

Beds/Baths

Bedrooms

5, 6, or 7

Full bathrooms

3, 4, or 5

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

78' 6"

Depth

54' 9"

Max Ridge Height

31' 7"

Garage

Type

Attached

Area

584 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

10'

Second Floor

9'

Room

Ceiling Type

Height

Master Bedroom

Vaulted

0' 0''

Living Room

Vaulted

0' 0''

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick And Truss

Architectural Style

Special Features

Bedrooms - Clustered

Butler Walk-in Pantry

Jack & Jill Bath

Laundry - Lower Level

Laundry - Main Level

Master Suite - 1st Floor

Optionally Finished Bonus Room

Two Master Suites

Two Story Great Room

Plan Collections

Canadian House Plans

Premium Collection
