Plan 81673AB
Northwest House Plan with Bonus Room and Den
Heated S.F.
2,526
Beds
3
Baths
2.5
Stories
2
Cars
2
What's Included
Plan Details

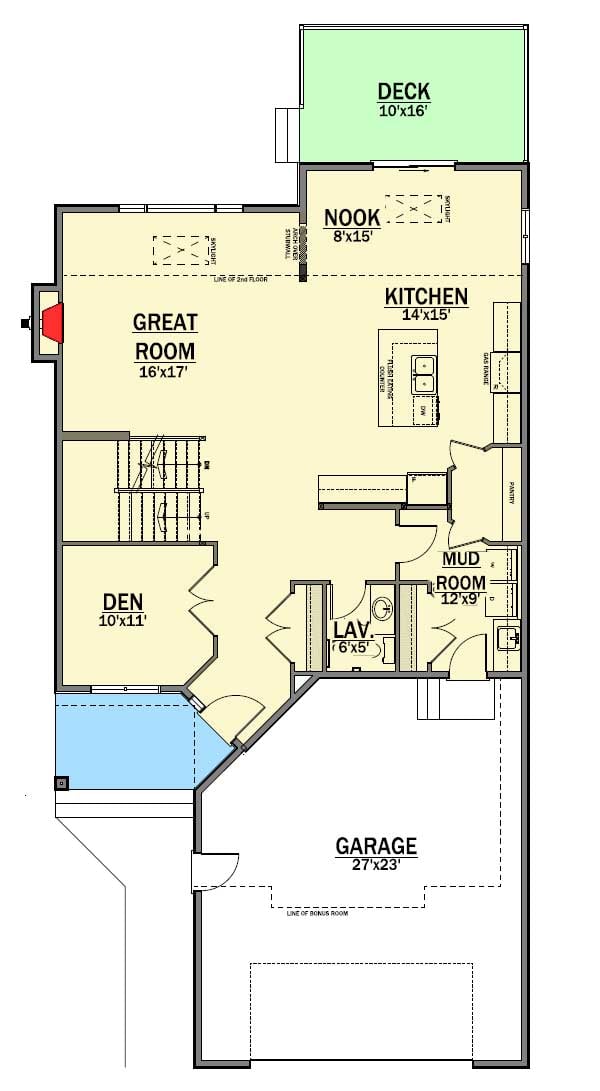

  • A quiet den off the foyer of this Northwest house plan is the perfect place to work from home or relax with a book.
  • In back, two skylights brighten the open concept main living area.
  • Sliding glass doors in the eating area easily take you outside to the open deck.

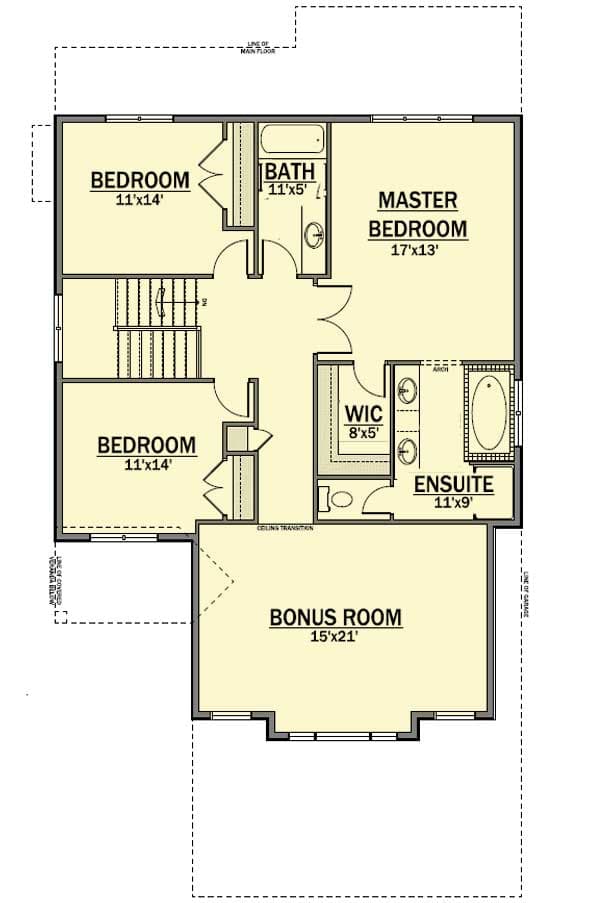

  • The upper floor holds all three bedrooms and the big bonus room that faces front.
  • Related Plan: Get a smaller version of this house plan without a den with 81677AB (2,230 sq. ft.)
What's Included

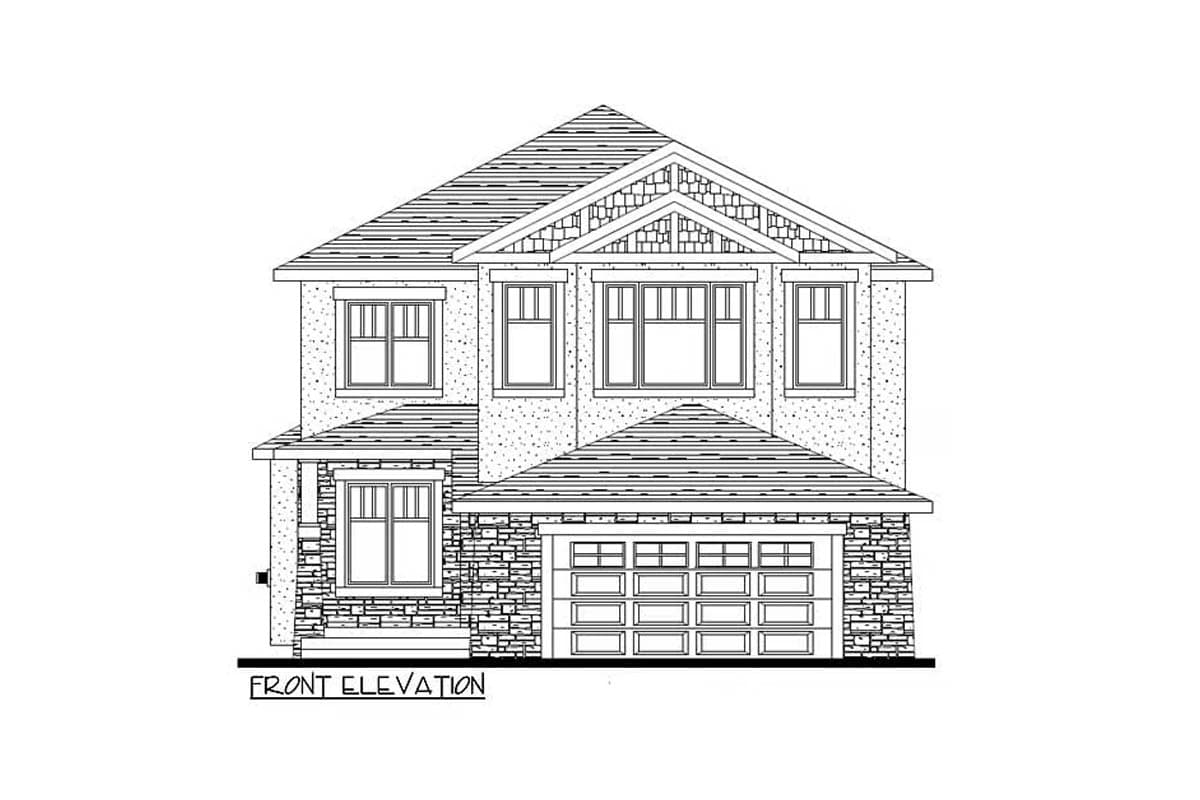

  • Elevations (Front, Rear, Left and Right)
  • Floor plans
  • Foundation plan
  • Cross section
  • Roof plan

We also include a list of building specifications, and notes for each page, with any important info the builder may need.

What's Not Included
  • Electrical plan
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
