Plan 81677AB

Northwest House Plan with Three Bedrooms and a Bonus Room

Northwest House Plan with Three Bedrooms and a Bonus Room

Plan 81677AB

  • 2,230

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • A foyer rises up with a two-story ceiling, giving you a wonderful impression as you first enter this Northwest home.
  • A half wall in the kitchen opens up the sight-lines to show the nook and big great room with its fireplace flanked by built-ins.
  • Double doors easily get you outside to the open deck.
  • The upper floor holds all three bedrooms, the laundry room and the big bonus room.
  • Related Plan: Get more space and a den with house plan 81673AB (2,526 sq. ft.).

Plans include the following:

  • 4 elevations (Front, Rear, Left and Right)
  • Floor plans
  • Foundation plan
  • Cross section
  • Roof plan

 We also include a list of building specifications, and notes for each page, with any important info the builder may need.

 What is not included in the plans:

  •           Architectural or Engineering Stamp
  •           Site Plan
  •           Mechanical Drawings (location of heating and air equipment and duct work)
  •           Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  •           Framing layouts with beam sizes and locations
  •           Energy calculations

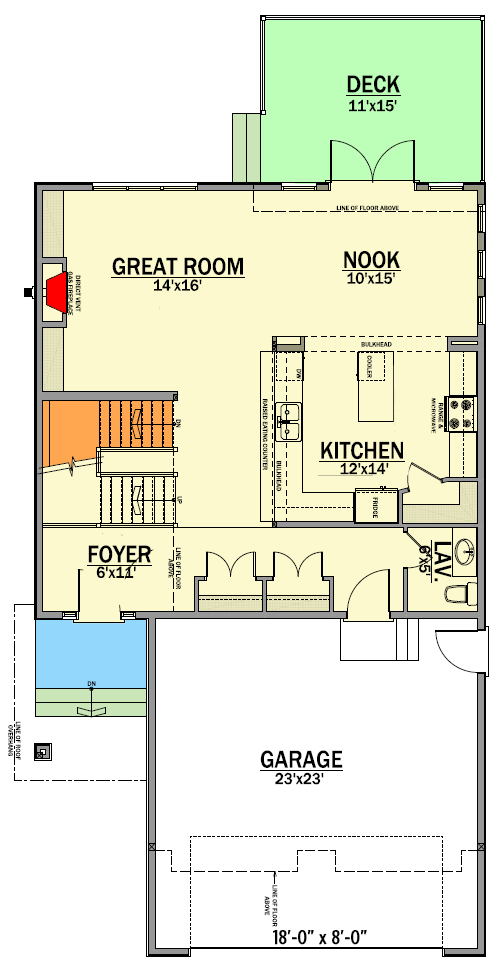

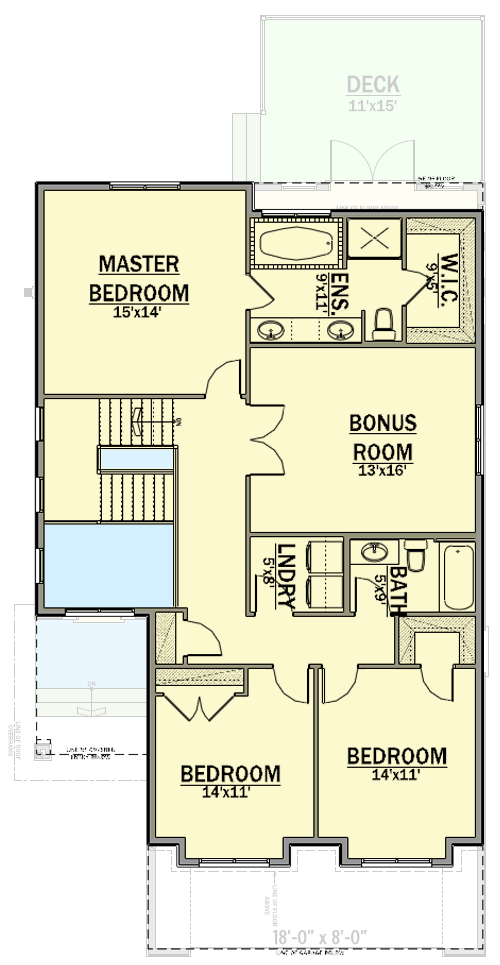

Floor Plan

Plan details



Northwest House Plan with Three Bedrooms and a Bonus Room

  • 2,230

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - single-use $995
  • CAD $1,395
  • View all purchase option online

About This Plan

  • A foyer rises up with a two-story ceiling, giving you a wonderful impression as you first enter this Northwest home.
  • A half wall in the kitchen opens up the sight-lines to show the nook and big great room with its fireplace flanked by built-ins.
  • Double doors easily get you outside to the open deck.
  • The upper floor holds all three bedrooms, the laundry room and the big bonus room.
  • Related Plan: Get more space and a den with house plan 81673AB (2,526 sq. ft.).

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,230 sq. ft.
  • 1st Floor: 992 sq. ft.
  • 2nd Floor: 1,238 sq. ft.
  • Deck: 192 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 32' 0"
  • Depth: 67' 0"
  • Max ridge height: 43' 8"

Garage

  • Type: Attached
  • Area: 576 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss
