Plan 66202WE
Old Florida Feel
Heated S.F.
3,522
Beds
4
Baths
4.5
Stories
2
Cars
2
What's Included
Plan Details
  • Metal roof and a wraparound front porch gives this home plan an Old Florida feel. Inside, you can't help but be captivated by the soaring 25' vaulted great room ceiling. The outside and inside relationship appears seamless with six sets of French doors off of the great room and dining room.
  • Within the great room are built-in niches flanking the corner fireplace, one for storage, and the other for a television. Two separate suites are downstairs, each tucked away for the utmost privacy.
  • A wine cellar sits just off the main living and outside, the summer kitchen creates a great gathering area.
  • Upon entering upstairs, both the great room and foyer are open to the bridge that separates them simply with open guard rail and a pleasing colonnade abundant in openness and natural light. The master suite encompasses half of the upstairs with a covered balcony, sun deck and a private spiral staircase leading to the first floor lanai, perfect for a late night swim.
  • A secluded study and loft complete the second floor, both of which have stunning views outdoors and to the great room below.
What's Included

Elevations

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  Material Labels
  Floor-to-Floor Heights
  Roof Slope Indicators


Floor Plans

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  Door and Window Sizes
  Completely Dimensioned Floor Plan
  Room Labels and Interior Room Sizes


Electrical Layouts

Building Section Markers
All Electrical Outlets, Fixtures, and Switching


*Slab Plan

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
Floor and Deck Joist Size and Spacing
Rough-in Plumbing Location (if applicable)
Mechanical Equipment Locations (if applicable)
Electrical Locations (if applicable)



Roof Design Plan

Drawn at 1/8″ to 1/4″ = 1′-0″scale, and Includes:
All Beam and Header Heights and Locations
All Hips, Gables, Ridges, and Valleys
Building Section Markers


Building Sections

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
Floor Joist Size and Spacing
Floor-to-Floor Heights
Non-Typical Plate Heights Indicated


Typical Wall Sections

Drawn at 1/8″ to 1/2″ = 1′-0″ Scale, and Includes:
All Labels Indicating Wall Construction
Foundation Wall Thickness and Reinforcing
Insulation Type and Thickness


Miscellaneous Notes and Details

Miscellaneous General Notes
Stairway details (if applicable)



*We do provide a slab plan, however, the structural foundation plan is to be provided by the structural engineer selected by your builder or yourself. This is done because our slab plan cannot anticipate the variations in soil, footings and other conditions per your specific site. We provide the design of the roof as well, however, the truss layouts need to be provided by a truss engineer or your lumber company. Your builder can provide these contacts for you.  Please keep in mind that these are additional expenses outside of the cost of the original plan that you purchase from us.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Old Florida Feel

  • 3,522

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 3,522 sq. ft.
  • 1st Floor: 1,972 sq. ft.
  • 2nd Floor: 1,550 sq. ft.

Dimensions

  • Width: 70' 10"
  • Depth: 62' 2"
  • Max ridge height: 30' 0"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 797 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)
  • Optional Type(s): 2x6

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Truss
All house plans are copyright ©2024 by the architects and designers represented on our web site

Old Florida Feel

  • 3,522

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Old Florida Feel

  • 3,522

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Plan Details

Square Footage Breakdown

  • Total: 3,522 sq. ft.
  • 1st Floor: 1,972 sq. ft.
  • 2nd Floor: 1,550 sq. ft.

Dimensions

  • Width: 70' 10"
  • Depth: 62' 2"
  • Max ridge height: 30' 0"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 797 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)
  • Optional Type(s): 2x6

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Truss

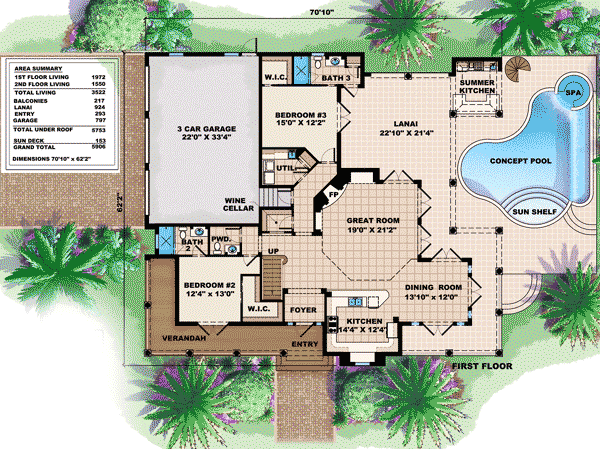

    Main Level

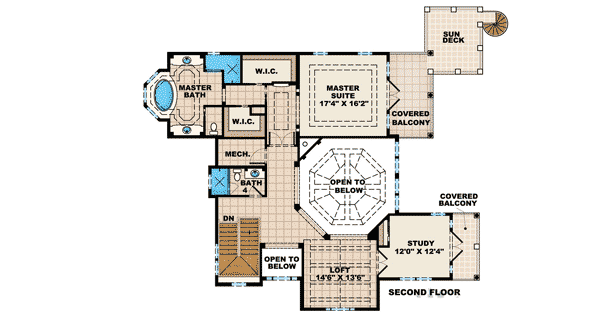

    2nd Floor
