Old World Charmer

Plan 4201MJ

  • 2,733

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 2

    Cars

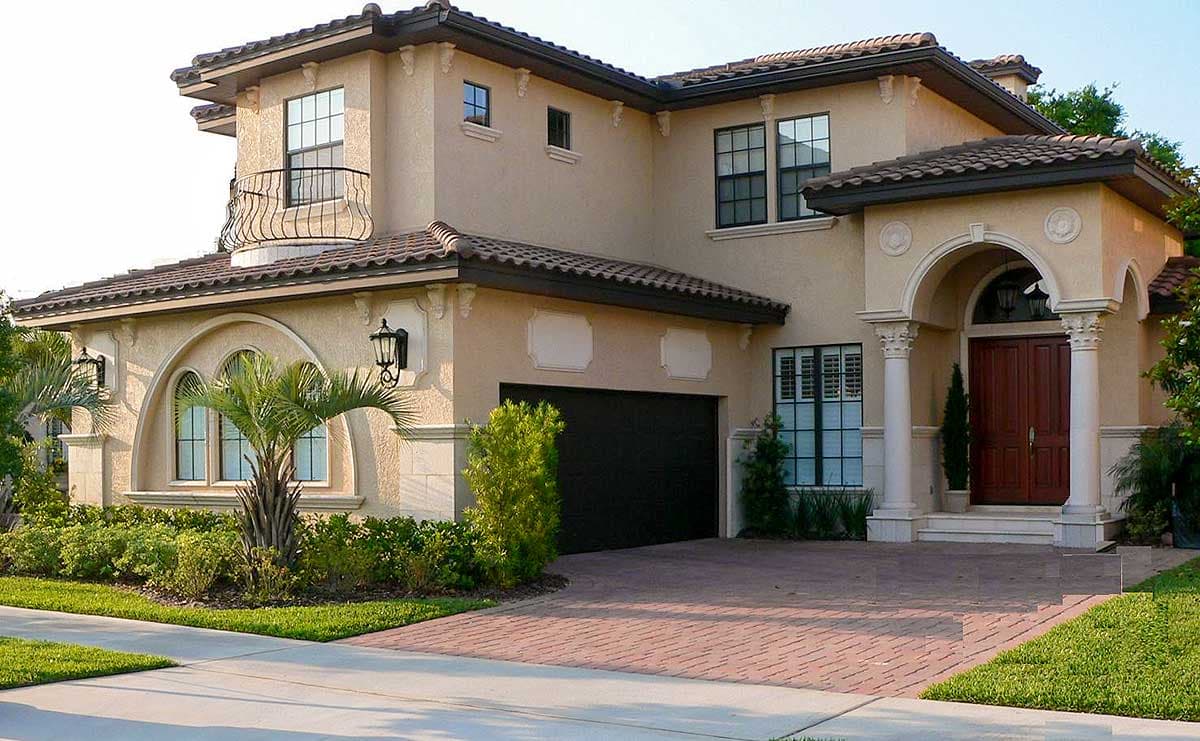

  • At almost 47 feet wide, this house is designed to dominate the lot with an impressive Mediterranean texture from its terra cotta roof to its tasteful use of Coquina stone and delightful architectural trim and details.
  • The spacious feeling continues from the high ceiling in the foyer with powder room, to the nook to the two-story ceiling in the gathering room that has a media wall. Grand expanses of glass bring wonderful light into the first floor space.
  • The master suite with its abundant closet space and large walk-in shower will indeed live up to expectation for the suite.
  • The kitchen, complete with work island, looks beyond the columned breakfast nook to a covered patio. The staircase to the second floor wraps around behind the pantry.
  • The second floor bridge leads to the loft space, perfect for the home computer.
  • Foundation: slab.
  • FLORIDA RESIDENTS: We can coordinate engineering for you. Contact us for pricing.

  • Cover Sheet
  • Floor Plans
  • Slab Foundation Plan  (plumbing layout)
  • Elevations
  • Sections
  • Stair Sections if applicable
  • Electrical Layout
  • Basic Details Sheet
Some plans may not include sections. Please contact us for availability.

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

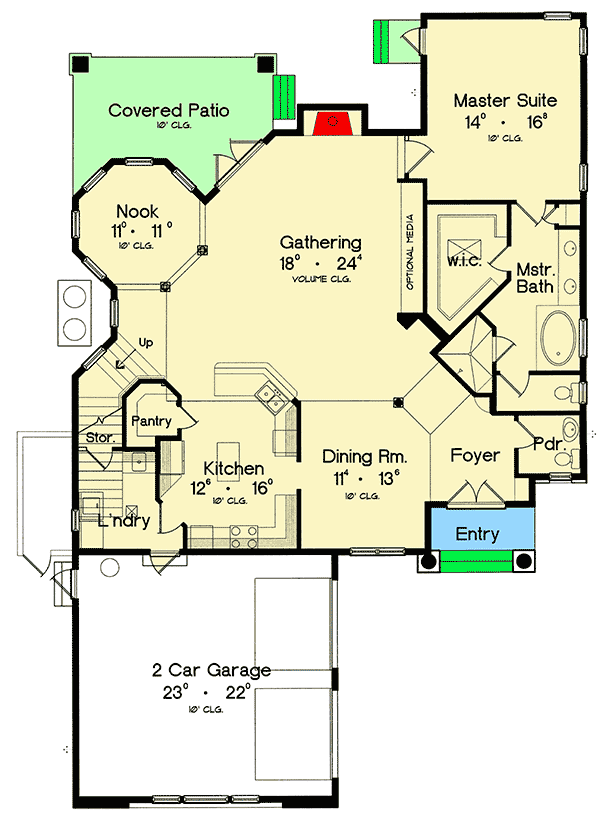

Old World Charmer - 4201MJ floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

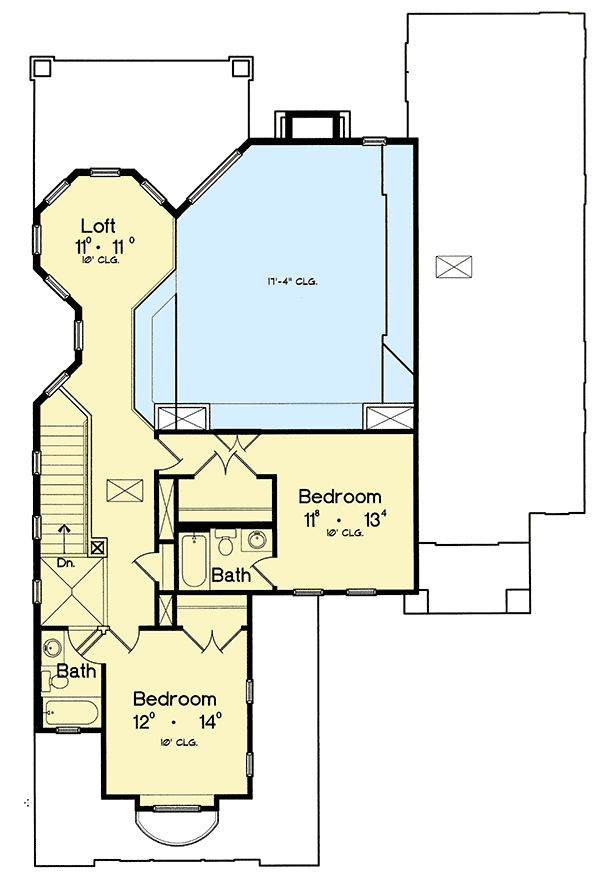

Old World Charmer - 4201MJ floor plan - 2nd Floor

Old World Charmer

  • 2,733

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,733 sq. ft.
  • 1st Floor: 1,808 sq. ft.
  • 2nd Floor: 925 sq. ft.

Dimensions

  • Width: 46' 8"
  • Depth: 72' 6"
  • Max ridge height: 30' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 506 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 10' 0"

Roof

  • Primary Pitch: 5 on 12
  • Framing Type: Stick
