One Bed Cottage with Covered Entry

Plan 22117SL

  • 923

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 1

    Stories

  • A beautiful covered porch entry shelters the front door set at an angle on this one bedroom cottage house plan. The bsae of the plan is clad in stone and the main portion is clapboard. Shingles fill in the two fields of the gables.
  • The angled entry creates a dynamic floor plan with the sitting area and breakfast area open to each other on an axis.
  • There is seating for two at the peninsula in the kitchen and a corner pantry for storage.
  • The bedroom is in back and has access to the rear covered porch. A second door accesses the porch fromthe sitting room.

Each plan set includes the following:

  • Foundation plan
  • Fully dimensioned floor plans

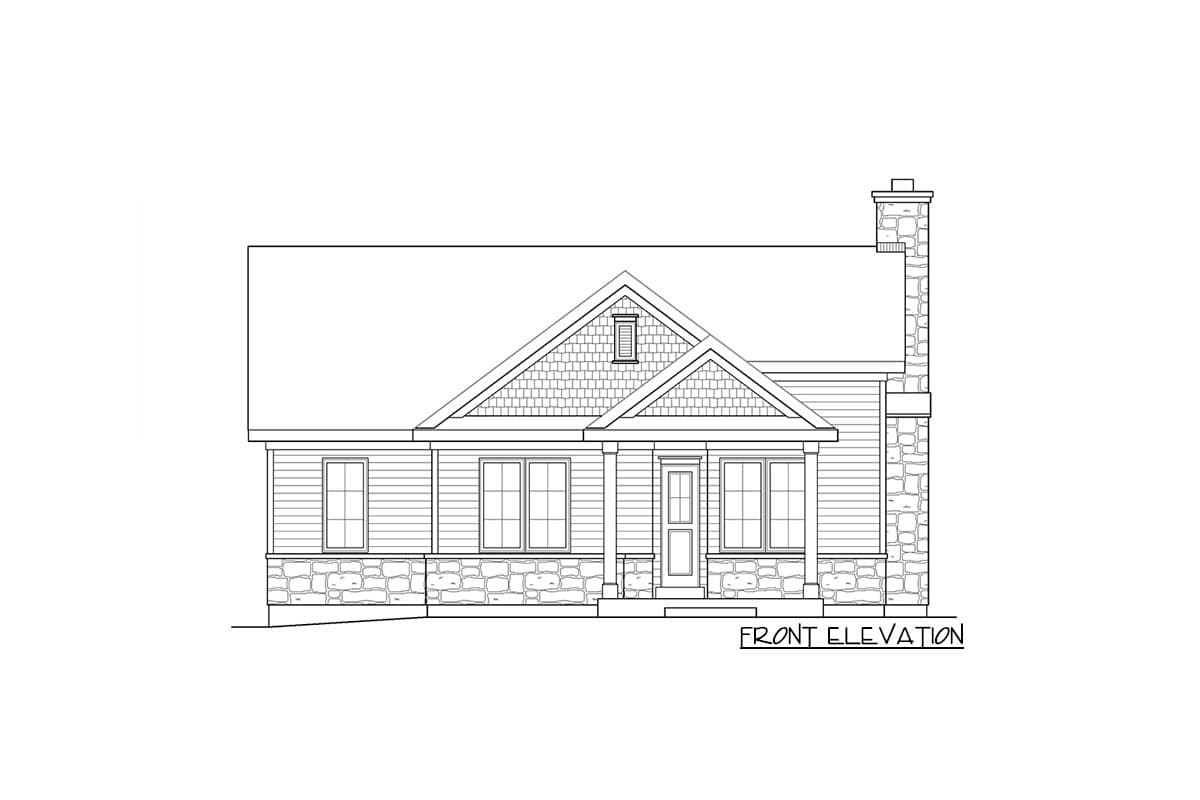

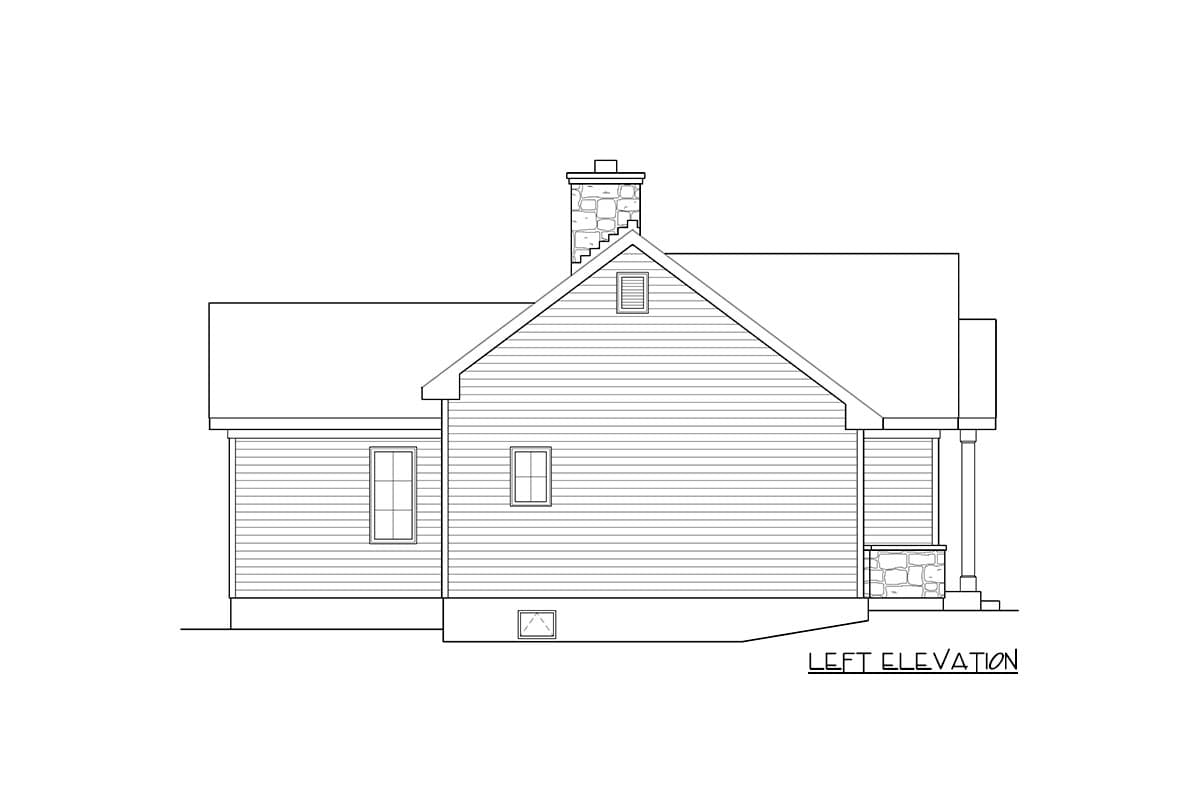

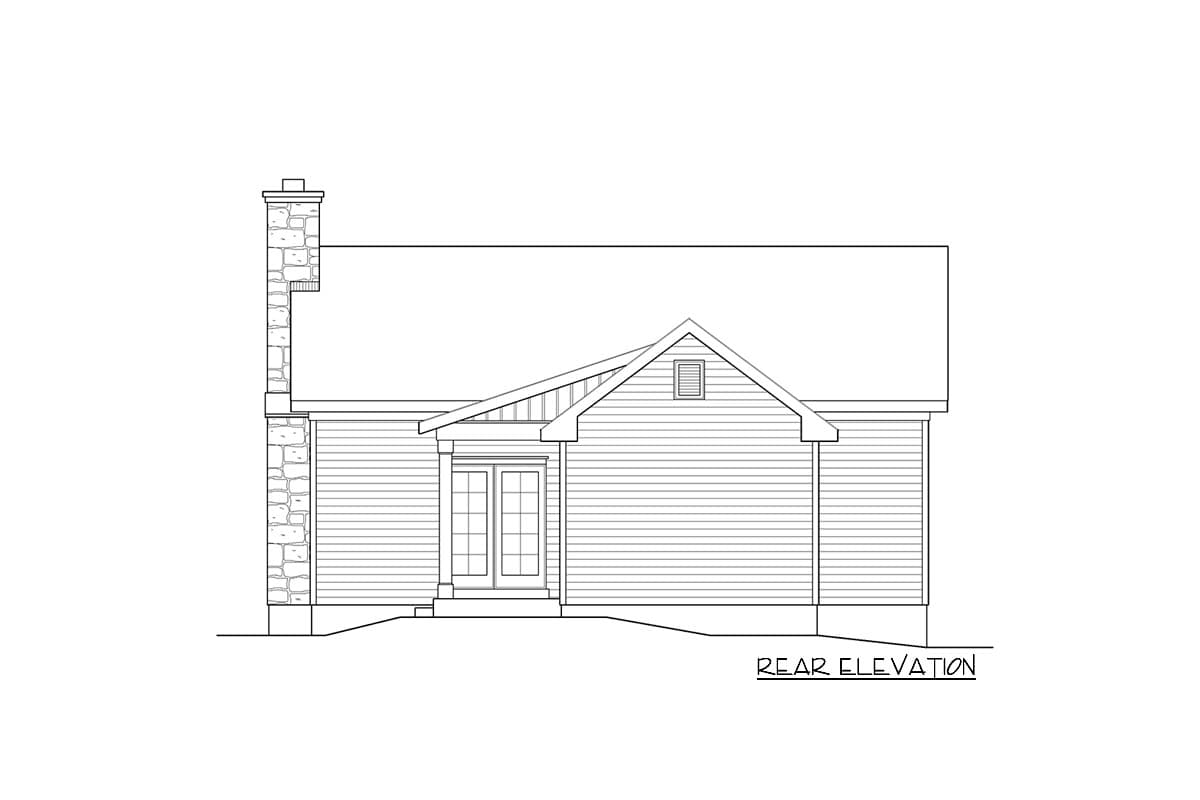

  • Exterior elevations
  • Roof plan
  • Electrical plan
  • Cabinet elevations
  • Building section
  • Typical stair and wall sections and other related details
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

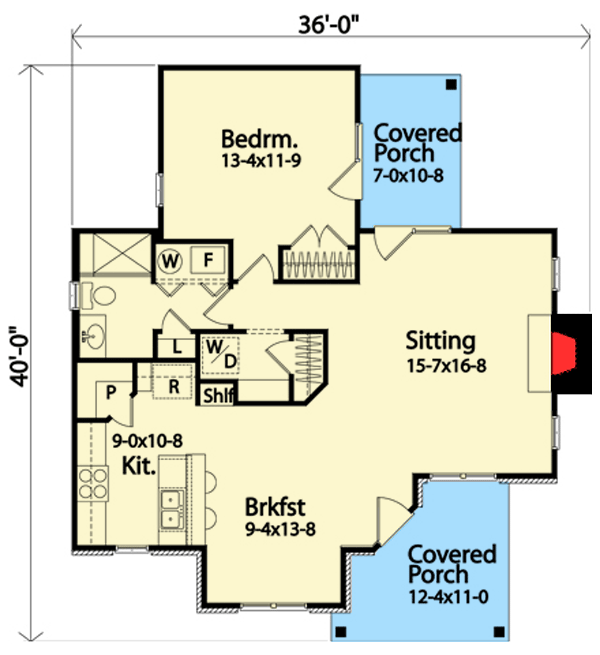

One Bed Cottage with Covered Entry - 22117SL floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 923 sq. ft.
  • 1st Floor: 923 sq. ft.
  • Porch, Rear: 75 sq. ft.

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 36' 0"
  • Depth: 40' 0"
  • Max ridge height: 21' 0"

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof Details

  • Primary Pitch: 9 on 12
  • Framing Type: Truss
