Plan 86105BW
One-level Coastal Home Plan with Study and Deluxe Master Suite
Heated S.F.
3,306
Beds
4
Baths
3
Stories
1
Cars
3
Plan Details
  • This one-level coastal home plan features a modern aesthetic with a functional and luxurious interior including ornamental ceiling treatments, large service areas, and a covered lanai for comfortable outdoor living.
  • Enjoy cooking and entertaining in this spacious kitchen where you will find an eating bar at the island, adjacent dining room, and a spice kitchen / pantry.
  • A quiet study is just off the great room, next to the master suite that boasts a vaulted ceiling, access to the lanai, twin closets, and a 5-fixture bathroom with an oversized shower.
  • Three additional bedrooms are sprinkled along the right side of the design, and a compartmentalized pool bath offers access to the lanai.
  • Step inside from the 3-car garage to find a storage closet across from the laundry room.
  • NOTE:  Restrictions may apply if building in Lee or Collier County, Florida.  Please contact us for details.
What's Included

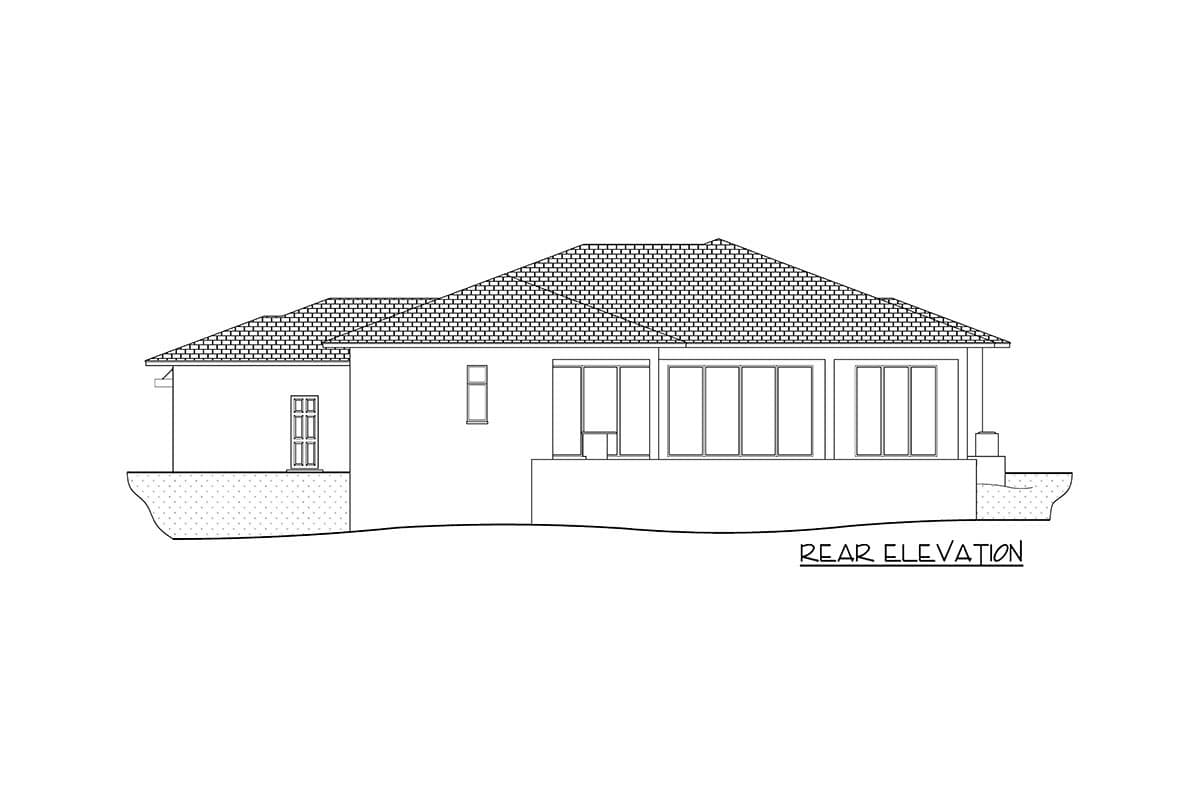

Elevations - Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:

  • Material Labels
  • Floor-To-Floor Heights
  • Roof Slope Indicators

Floor Plans - Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:

  • Door and Window Sizes
  • Completely Dimensioned Floor Plan
  • Room Labels and Interior Room Size

Electrical Layouts

  • Building Section Markers
  • Electrical Outlets, Fixtures and Switching

Foundation Plan - Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:

  • Floor and Deck Joist Sizes, Spacing and Direction
  • Electrical Locations

Roof Plan - Drawn to 1/8″ to 1/4″ = 1’0″ scale and includes:

  • All Beam and Header Heights and Locations
  • All Hips, Gables, Ridges and Valley
  • Building Section Markers

Building Sections - Drawn to 1/8″ to 1/4″ = 1’0″ scale and includes:

  • Floor Joist Size and Spacing
  • Floor-To-Floor Heights
  • Non-Typical Plate Heights Indicated

Typical Wall Sections - Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:

  • All Labels Indicating Wall Construction
  • Foundation Wall Thickness and Reinforcing
  • Insulation Type and Thickness

Miscellaneous Notes and Details

  • Miscellaneous General Notes
  • Stairway Details (if applicable)

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

One-level Coastal Home Plan with Study and Deluxe Master Suite

  • 3,306

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 1

    Floors

  • 3

    Car garage

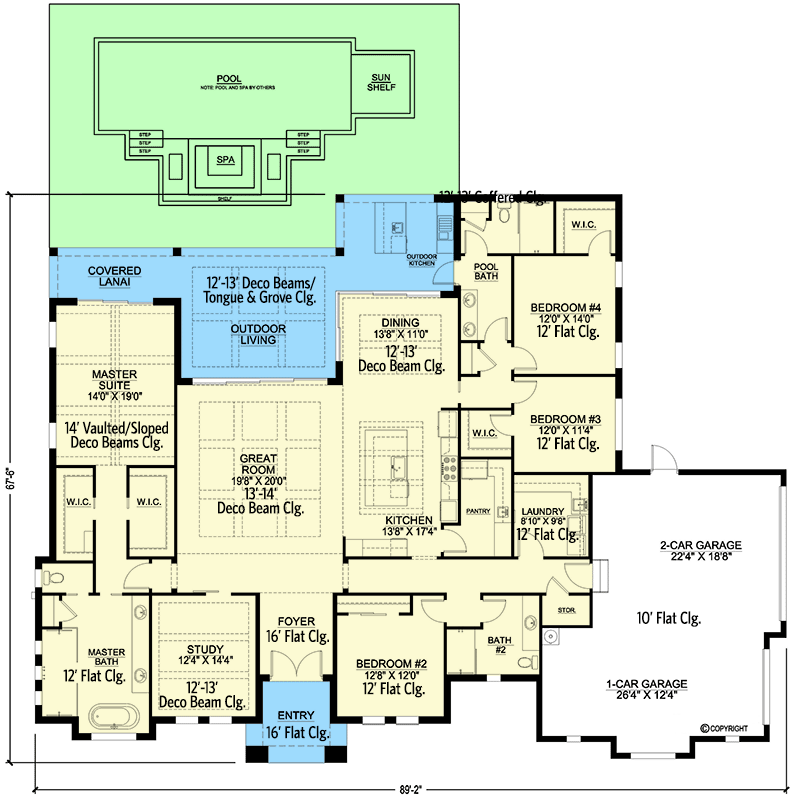

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 3,306 sq. ft.
  • 1st Floor: 3,306 sq. ft.
  • Pool Deck: 1,314 sq. ft.

Dimensions

  • Width: 89' 2"
  • Depth: 67' 6"
  • Max ridge height: 24' 0"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3

Garage

  • Type: Attached
  • Area: 822 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Stem Wall

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)
  • Optional Type(s): 2x6

Ceiling Heights

Roof

  • Primary Pitch: 4.5 on 12
  • Framing Type: Truss
All house plans are copyright ©2024 by the architects and designers represented on our web site

One-level Coastal Home Plan with Study and Deluxe Master Suite

  • 3,306

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 1

    Floors

  • 3

    Car garage

One-level Coastal Home Plan with Study and Deluxe Master Suite

  • 3,306

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 1

    Floors

  • 3

    Car garage

Plan Details

Square Footage Breakdown

  • Total: 3,306 sq. ft.
  • 1st Floor: 3,306 sq. ft.
  • Pool Deck: 1,314 sq. ft.

Dimensions

  • Width: 89' 2"
  • Depth: 67' 6"
  • Max ridge height: 24' 0"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3

Garage

  • Type: Attached
  • Area: 822 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Stem Wall

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)
  • Optional Type(s): 2x6

Ceiling Heights

Roof

  • Primary Pitch: 4.5 on 12
  • Framing Type: Truss

    Main Level
