Plan 90236PD
One Level Contemporary Home Plan
Heated S.F.
1,223
Beds
3
Baths
1
Stories
1
What's Included
Plan Details
  • Big transom windows bring extra light into this bold Contemporary home plan.
  • Both the living room and dining room are open to each other, creating a wonderful flow when entertaining.
  • The kitchen is also open to both rooms so you can keep an eye on the activity.
  • A pocket door in the master walk-in closet opens to the large bathroom that is shared by the other two bedrooms.
  • Sliding glass doors in the dining room lead to a covered balcony.
  • Add the optional carport at your leisure.
  • Related Plan: Downsize and build in reverse with house plan 90166PD (1,025 sq. ft.).
  • NOTE: Please allow up to 10 business days for delivery of this house plan.
What's Included
Please note this plan is designed to the National Building Code of Canada.
  • Elevations
  • Lower level plan -- including floor above structure, concrete level and thickness, electrical layout
  • Main floor plan w/ structure for the roof above, electrical layout
  • Building section
  • Construction details
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

One Level Contemporary Home Plan

  • 1,223

    Heated s.f.

  • 3

    Beds

  • 1

    Baths

  • 1

    Floors

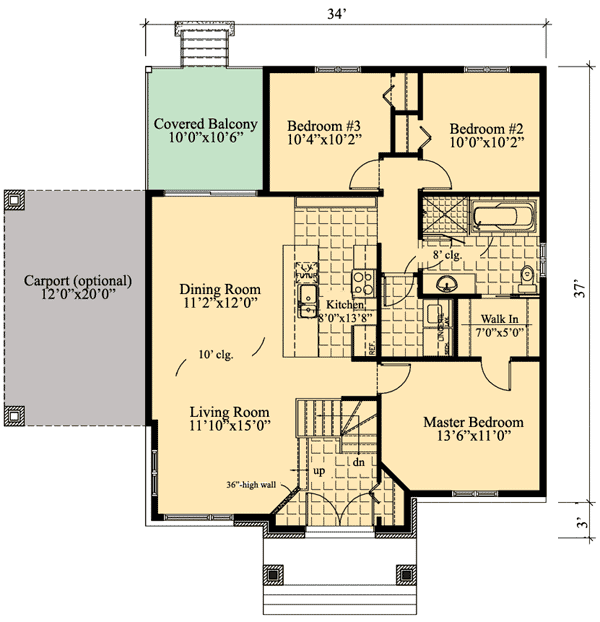

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,223 sq. ft.
  • 1st Floor: 1,223 sq. ft.

Dimensions

  • Width: 34' 0"
  • Depth: 40' 0"
  • Max ridge height: 20' 7"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss
