Plan: 89967AH

One Level Flexible Tuscan Home Plan

2,507 2-3 3 1 3
Pageloader

One Level Flexible Tuscan Home Plan

Plan 89967AH

  • 2,507

    Heated s.f.

  • 2-3

    Beds

  • 3

    Baths

  • 1

    Stories

  • 3

    Cars

  • This Tuscan-inspired one level house plan has an attractive stone exterior and a flexible layout giving you two or three bedrooms.
  • Inside, a cathedral ceiling greets you in the entry and continues to the back of the home through the great room.
  • The open-concept floor plan includes a kitchen with center island and large walk-in pantry.
  • The dining room features a unique step ceiling is conveniently located near the kitchen and the rear covered porch.
  • The den is located off the entry behind french doors and can double as an extra bedroom if needed.
  • The master suite includes a step ceiling, spacious walk-in closet and direct access to the laundry. It also enjoys porch access.
  • A second bedroom is located off the entry for maximum privacy.
  • The 3 car split-load garage gives you lots of room for your cars and storage.



Plans include the following

  • General Notes
  • Rendering
  • Elevations
  • Fully dimensioned floor plans
  • Foundation
  • Typical wall section & stair section
  • Cross section
  • Cabinet elevations
  • Electrical Plan
  • Roof plan

Framing plans are NOT included.


Floor Plan

Plan details



One Level Flexible Tuscan Home Plan

  • 2,507

    Heated s.f.

  • 2 - 3

    Beds

  • 3

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • 5 Sets $1,025
  • 8 Sets $1,075
  • Reproducible Set $1,290
  • PDF - single-use $1,290
  • CAD $2,050
  • View all purchase option online

About This Plan

  • This Tuscan-inspired one level house plan has an attractive stone exterior and a flexible layout giving you two or three bedrooms.
  • Inside, a cathedral ceiling greets you in the entry and continues to the back of the home through the great room.
  • The open-concept floor plan includes a kitchen with center island and large walk-in pantry.
  • The dining room features a unique step ceiling is conveniently located near the kitchen and the rear covered porch.
  • The den is located off the entry behind french doors and can double as an extra bedroom if needed.
  • The master suite includes a step ceiling, spacious walk-in closet and direct access to the laundry. It also enjoys porch access.
  • A second bedroom is located off the entry for maximum privacy.
  • The 3 car split-load garage gives you lots of room for your cars and storage.

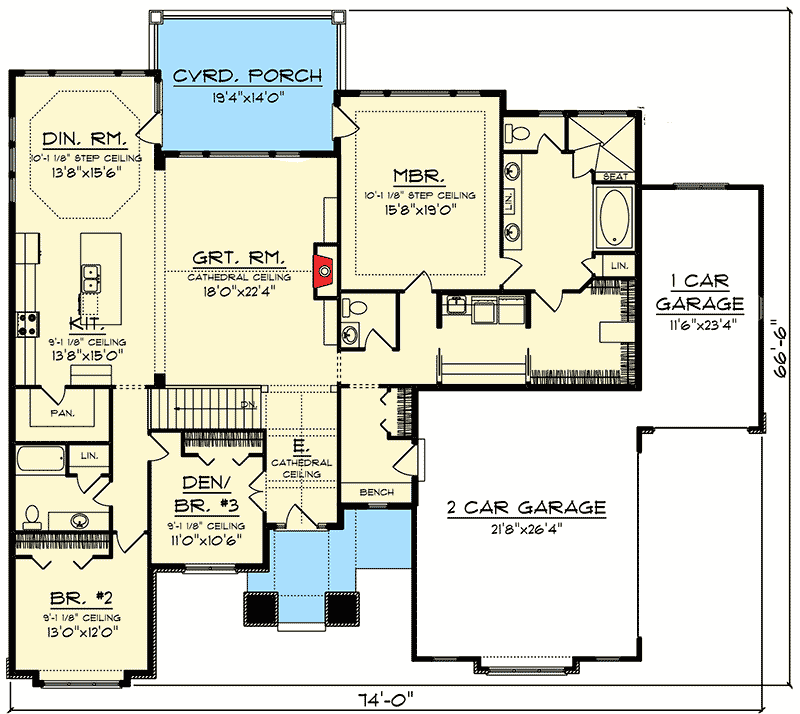

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,507 sq. ft.
  • 1st Floor: 2,507 sq. ft.

Beds/Baths

  • Bedrooms: 2 or 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 74' 0"
  • Depth: 66' 6"
  • Max ridge height: 22' 6"

Garage

  • Type: Attached
  • Area: 838 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front, Side

Ceiling Heights

  • Floor / Height: Lower Level / 8' 0" First Floor / 9' 0"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 6 on 12
  • Framing Type: Truss

Architectural Style

  • European
  • Mediterranean
  • Ranch
  • Tuscan

Special features

  • 2nd Floor Master Suite
  • Butler Walk-in Pantry
  • CAD Available
  • Den-Office-Library-Study
  • PDF
  • Split Bedrooms
