Plan 36681TX
One-level Hill Country Home Plan with Laundry in Owner's Closet
Heated S.F.
4,554
Beds
4
Baths
4.5
Stories
1
Cars
4
Plan Details
  • Dormer windows match the gabled peaks along the front elevation of this one-level Hill Country home plan that delivers over 4,500 square feet of living space.
  • A spacious family room flows into the kitchen that boasts two islands and extends into a large pantry tucked behind a pocket door. The adjoining dining nook provides access to the outdoor living area with plenty of room for a grill, lounge, and dining furniture.
  • The car enthusiast will appreciate the 4-car garage and a mudroom just inside is the perfect drop zone.
  • The communal living spaces enjoy 11' ceilings, while the owner's retreat features a vaulted ceiling, along with a fireplace. The owner's bath includes a freestanding tub, toilet room, and laundry closet in the wardrobe.
  • Sprinkled throughout the design, you will find three additional bedrooms, a home office, bonus space, and game room with a charming window seat.
What's Included
  • Cover sheet
  • Foundation Plan

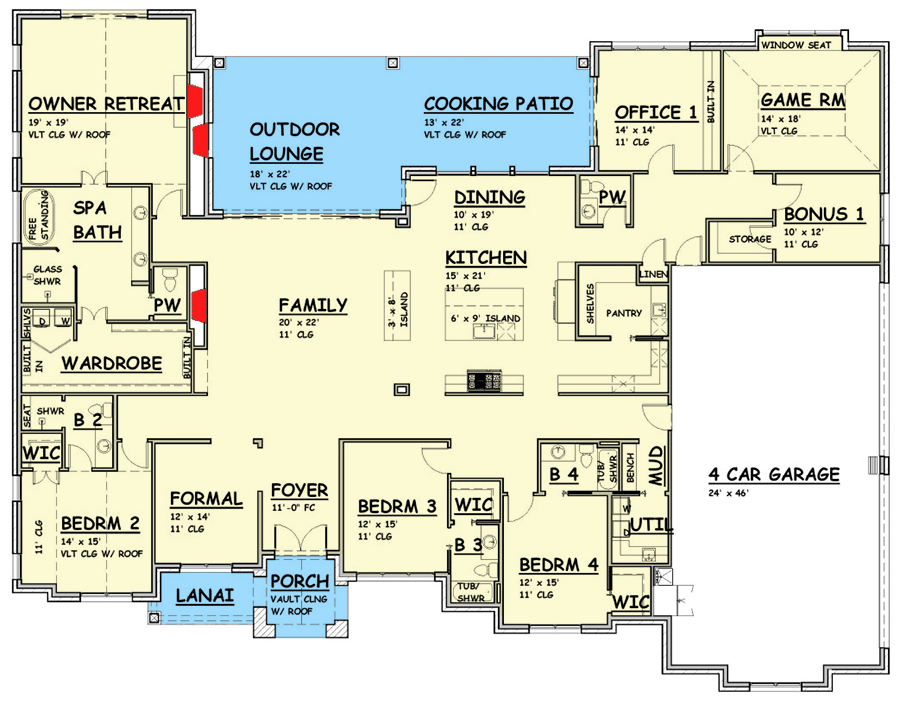

  • First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.
  • Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.
  • First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.
  • Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

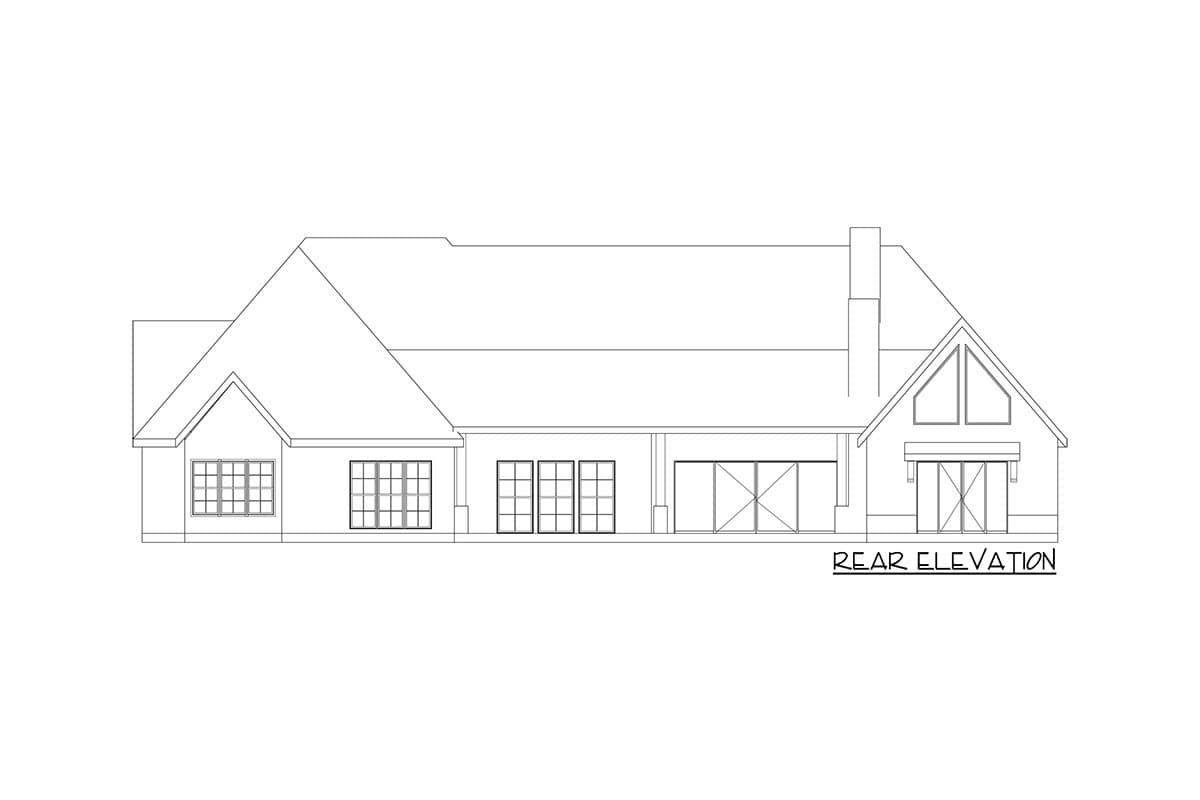

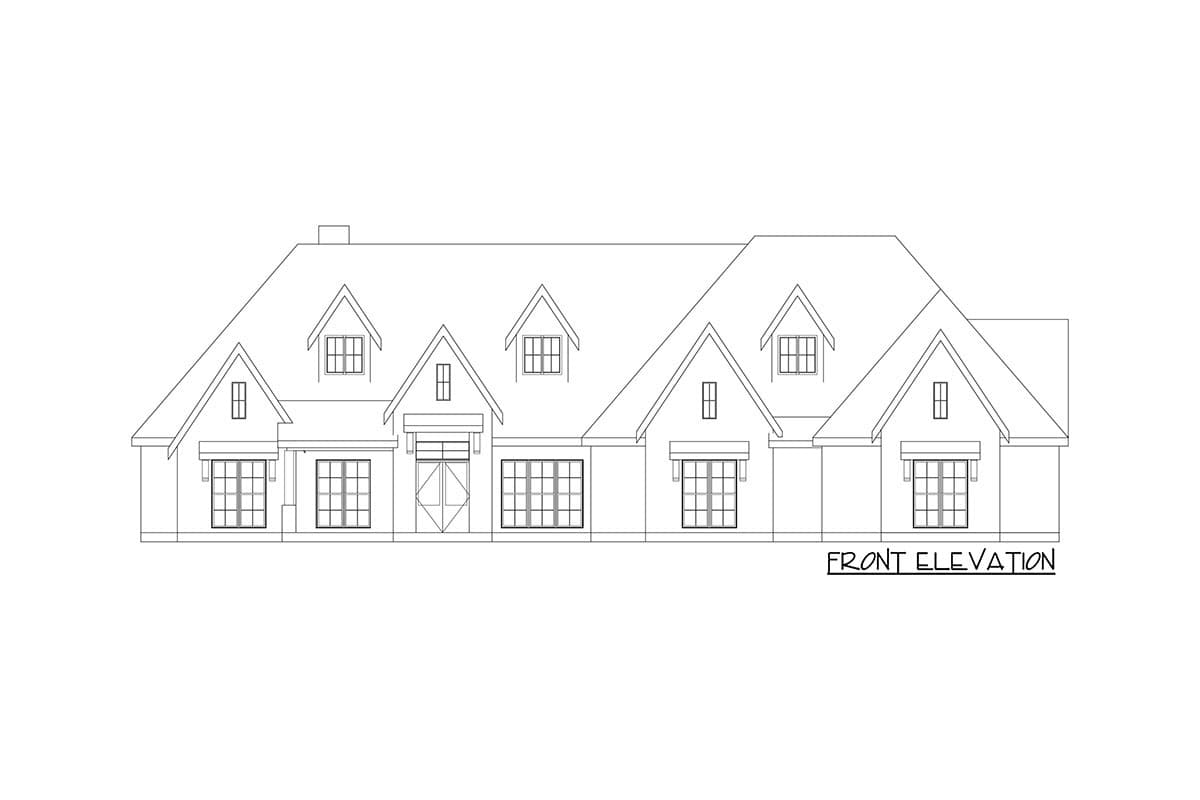

  • Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

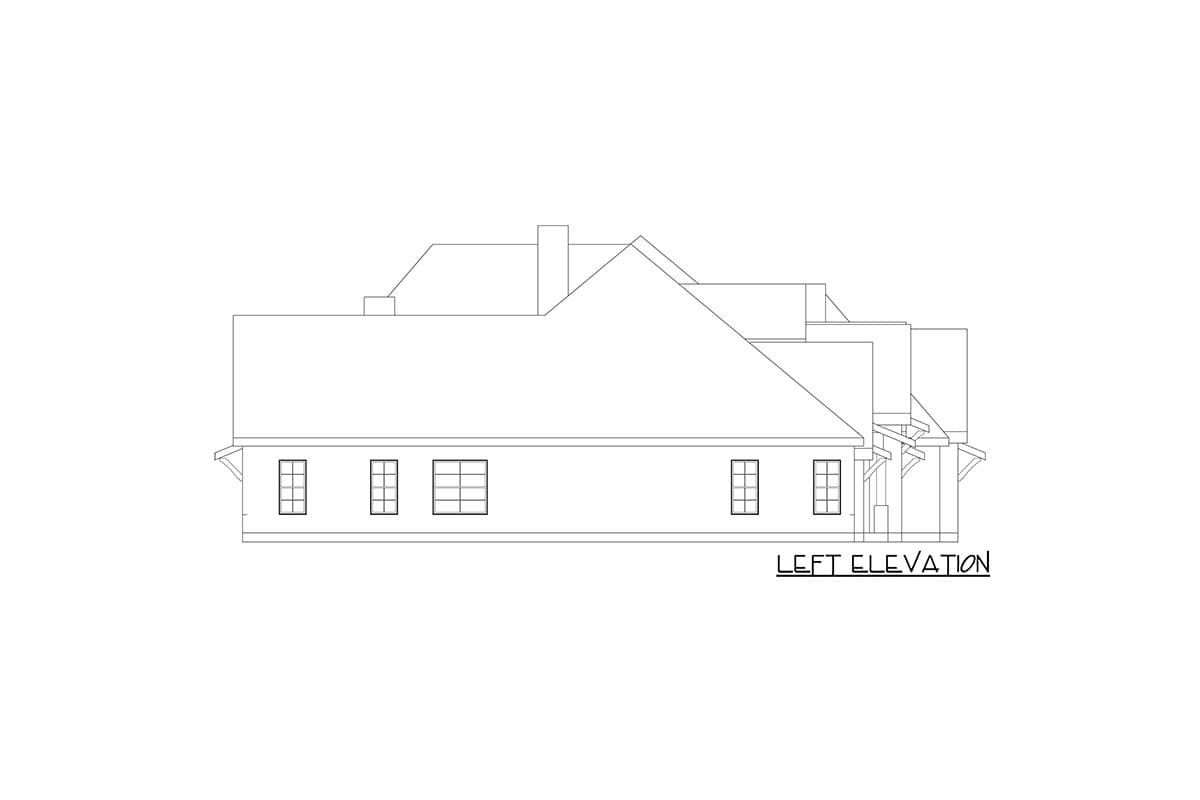

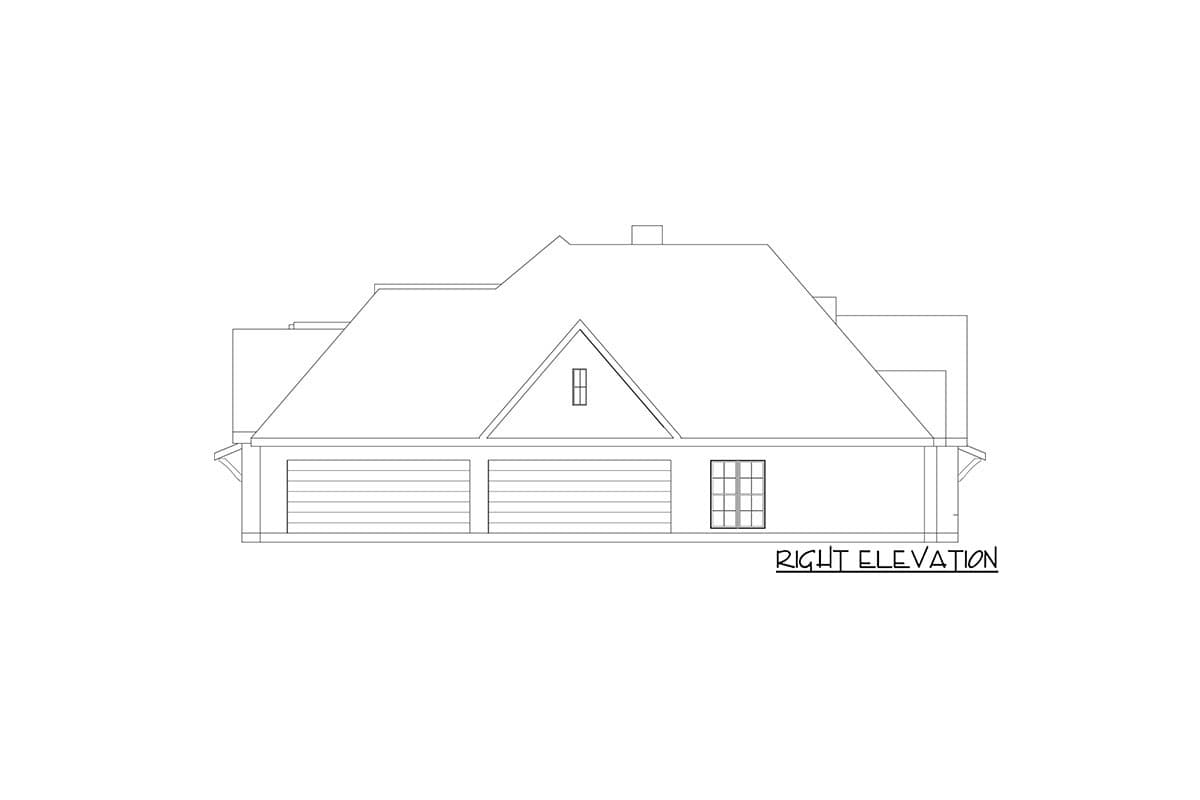

  • Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.
  • Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.
  • Sections page
  • Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

One-level Hill Country Home Plan with Laundry in Owner's Closet

  • 4,554

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 1

    Floors

  • 4

    Car garage

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 4,554 sq. ft.
  • 1st Floor: 4,554 sq. ft.

Dimensions

  • Width: 101' 0"
  • Depth: 78' 0"
  • Max ridge height: 34' 0"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 1165 sq. ft.
  • Count: 4 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 11' 0"

Roof

  • Primary Pitch: 14 on 12
  • Secondary Pitch: 18 on 12
  • Framing Type: Stick
