One-Level Mid-Century Modern House Plan with Courtyard

Name: Plan 493011GNT: One-Level Mid-Century Modern House Plan with Courtyard
Brand: Architectural Designs
SKU: 493011GNT
Price: 1100.75 USD
Availability: InStock

Heated S.F.

2,418

Beds

Baths

2.5

Stories

Cars

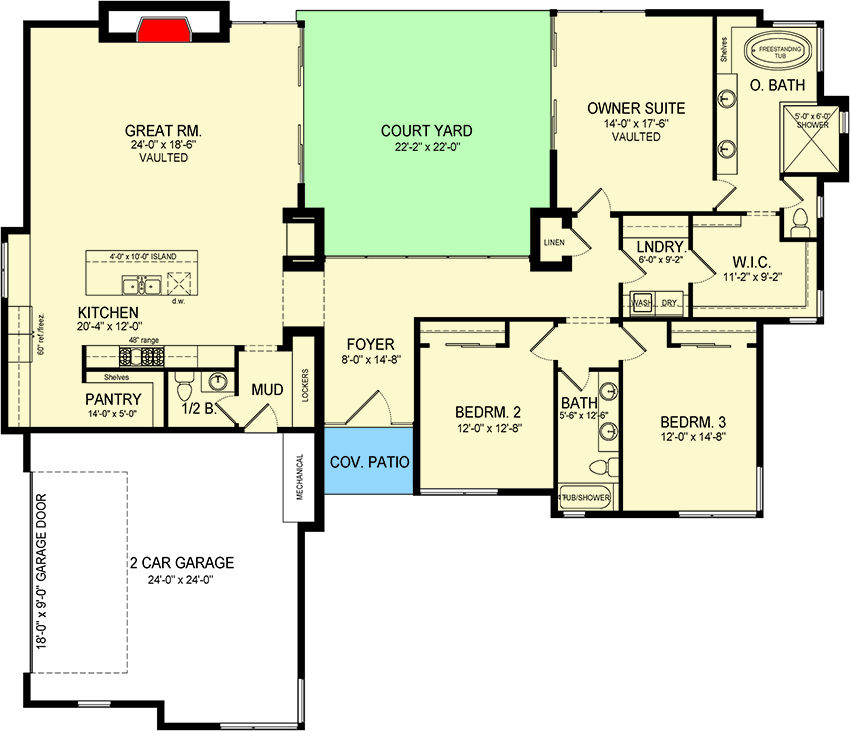

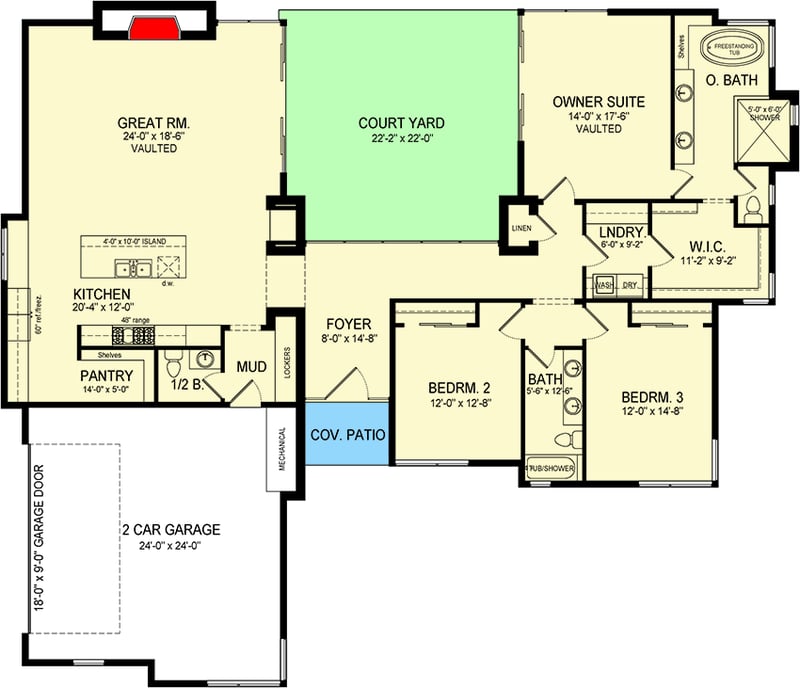

Floor Plan

Main Level

Plan Details

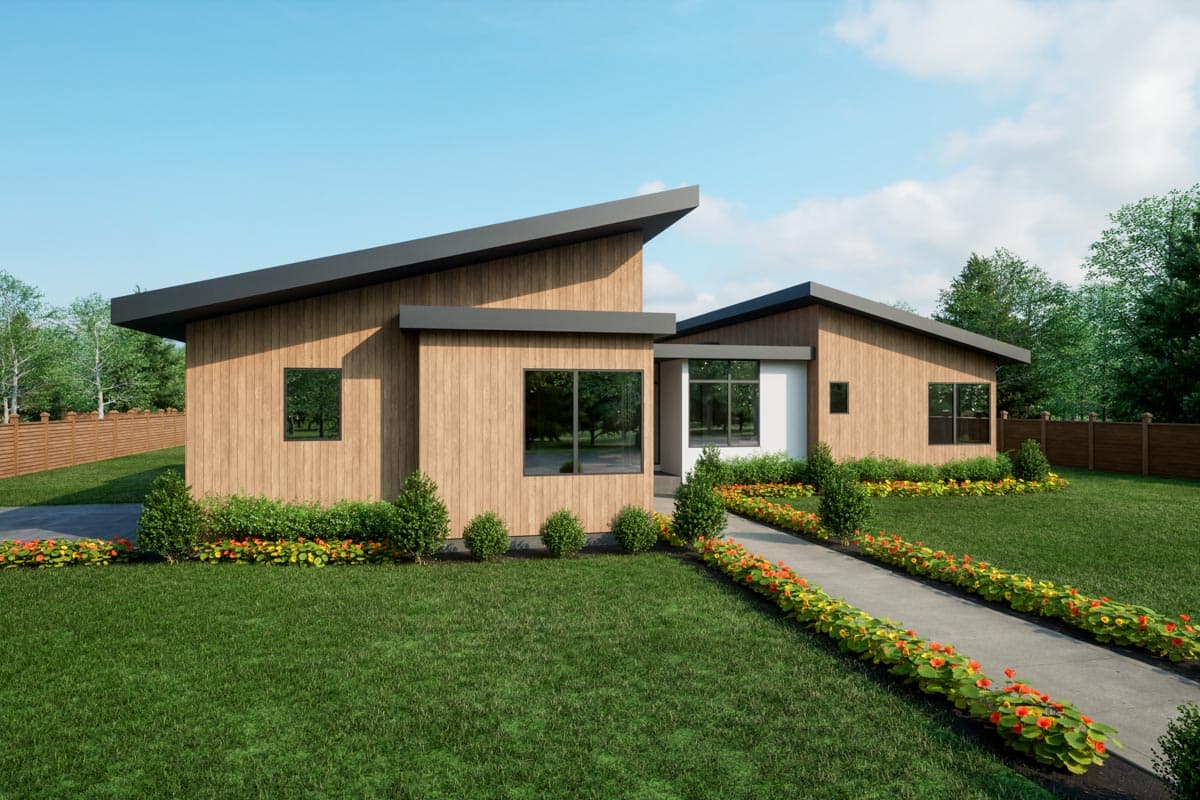

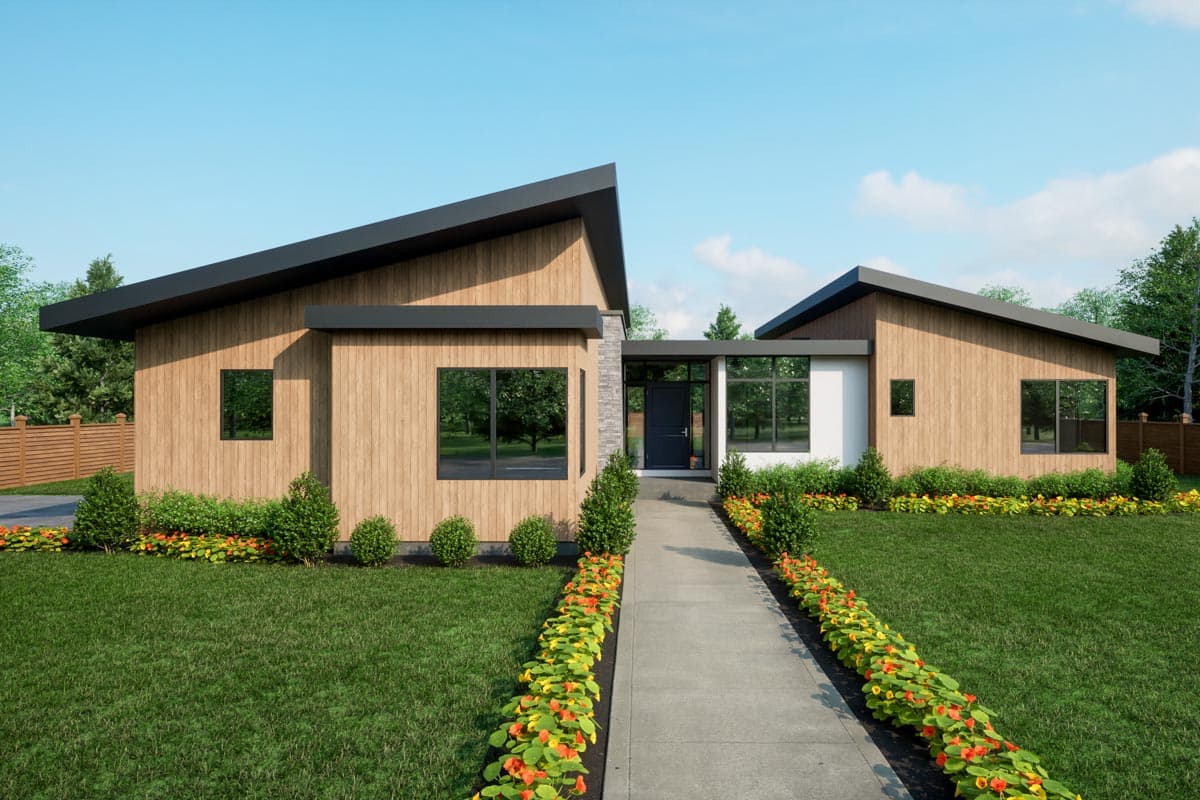

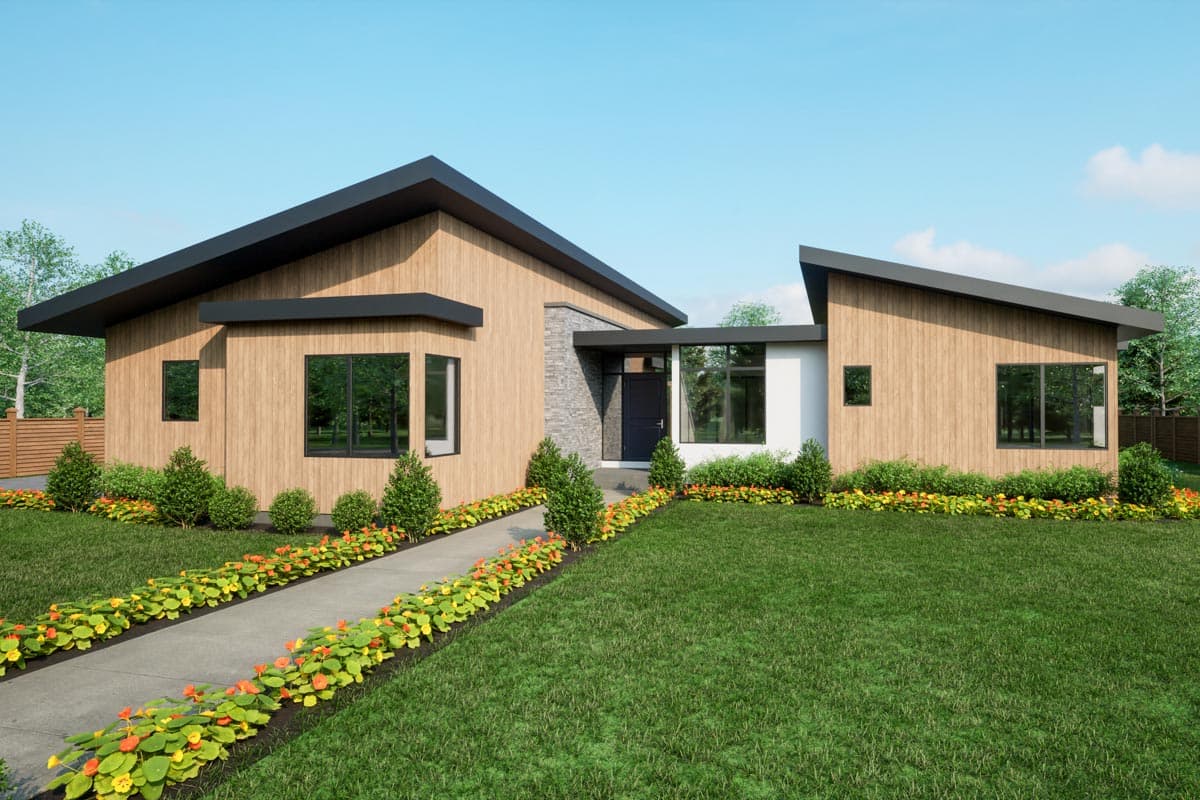

Opposing shed roofs flank the center entry of this mid-century modern style house plan that gives you over 2,418 square feet of living space.
The foyer and courtyard separate the open living space to the left from the bedrooms on the right.
A vaulted ceiling soars above the great room, anchored by a grand fireplace and open to the island kitchen. Elongated cabinetry expands the kitchen into the pantry for additional storage space.
The double garage offers entry from the side through a 18' by 9' overhead door. A convenient powder bath and mudroom await inside.

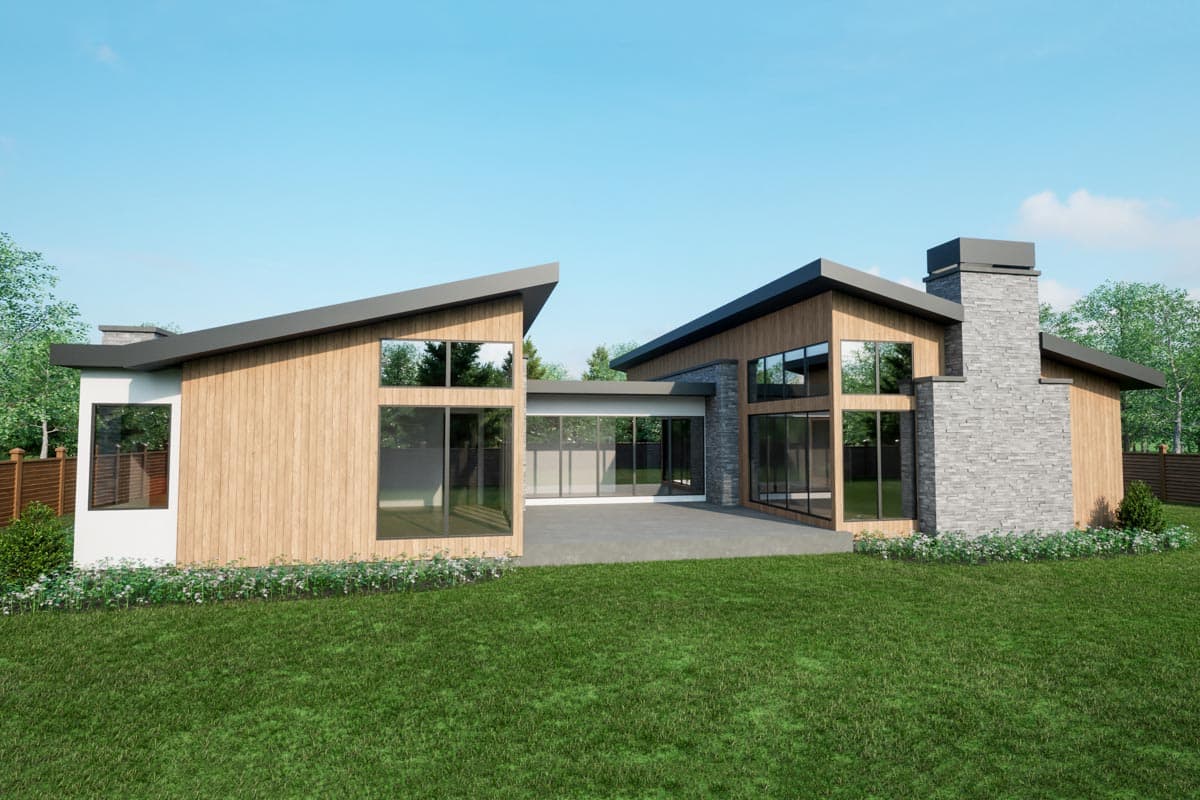

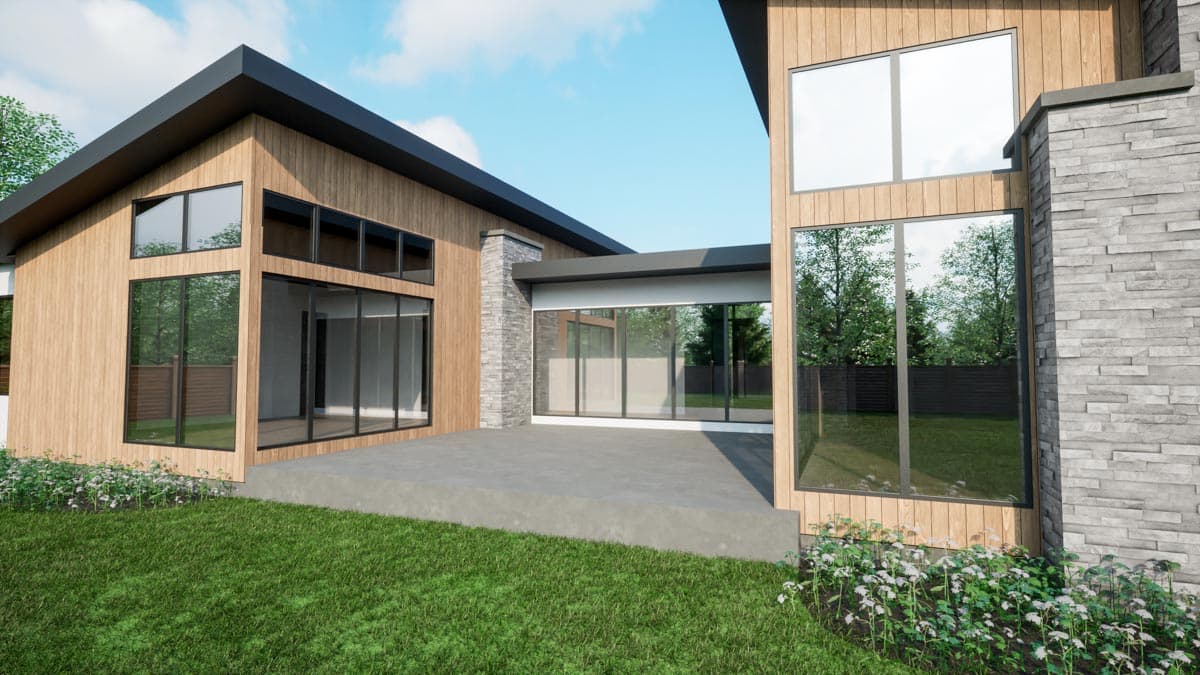

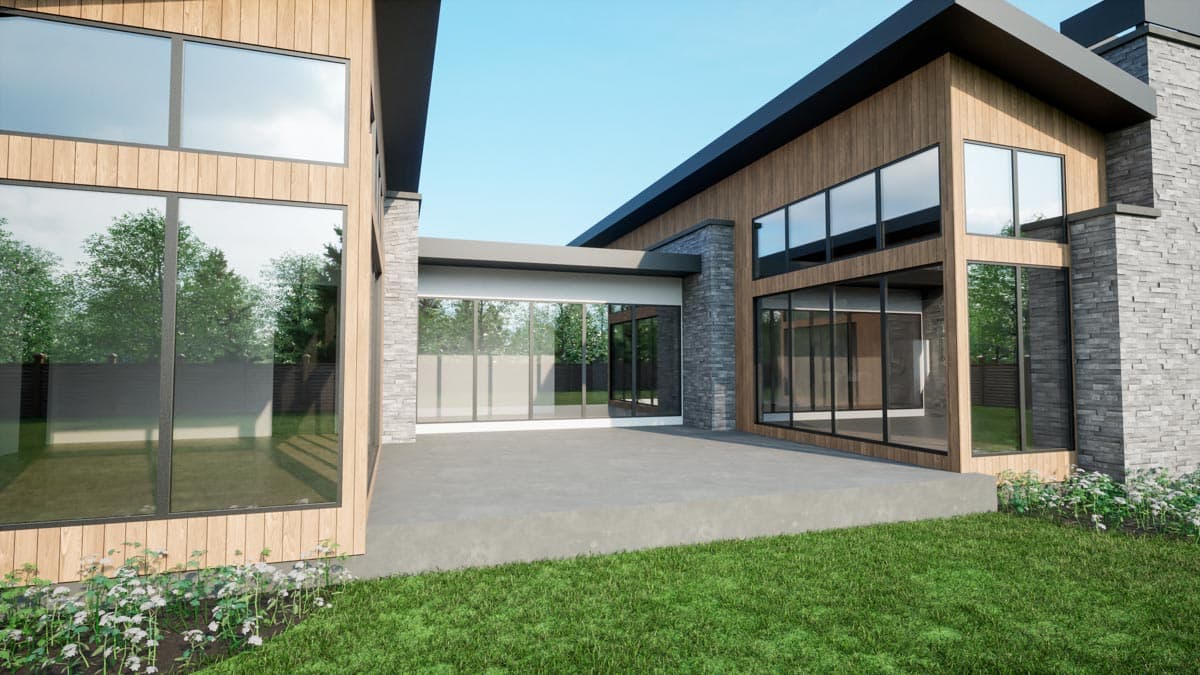

The clustered bedrooms feature a rear facing owner's suite, lined with glass. Sliding doors open onto the courtyard, and the ensuite provides access to the laundry room through the walk-in closet
Related Plan: Get an alternate exterior with house plan 493010GNT (2,418 sq. ft.).

What's Included

Cover Sheet
General Notes
Foundation Plan
Main Level/Second Level (if applicable) door and window schedules
Fully Dimensioned Floor Plans
Elevations
Exterior Perspective Views
Building Section
Typical Construction Details
Bird's Eye Roof Plan
Suggested Electrical Layout (Outlets, Fixtures, Switches)

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
