One-level Mountain Modern Plan with 12'-Deep Back Porch

Plan 818055JSS

  • 3,028

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 1

    Stories

  • 2

    Cars

  • Stone and metal roof accents enhance the exterior of this Mountain Modern home plan that presents 3,028 square feet of living space.
  • A grand fireplace anchors the left wall of the combined family / dining room, crowned by a vaulted ceiling. An oversized opening leads you into the island kitchen that boasts a large range and hidden walk-in pantry.
  • The secluded primary suite gives you access to the expansive back porch through french doors, and a freestanding tub, large shower, and pass-thru closet can be found in the ensuite.
  • French doors off the foyer open to a home office with 15 ft ceilings, while 3 bedroom suites line the left side of the design.
  • The double garage includes a storage room and the mudroom just inside serves as a catchall when arriving home for the day.
  • Related Plan: Find an alternate exterior with plan 818054JSS.

  • Foundation plan

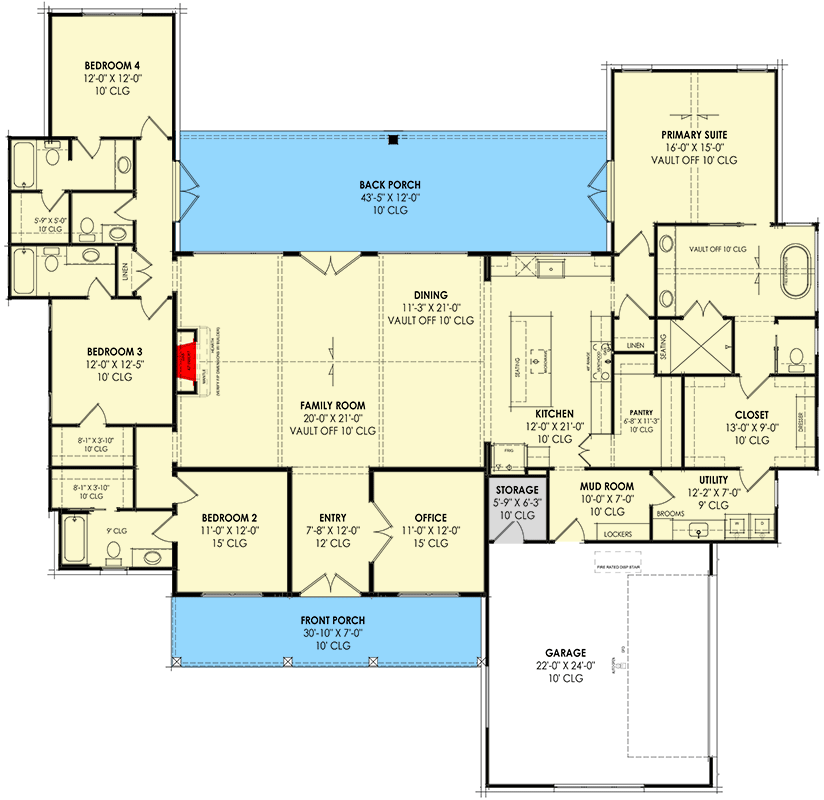

  • Detailed floorplans
  • Roof plan

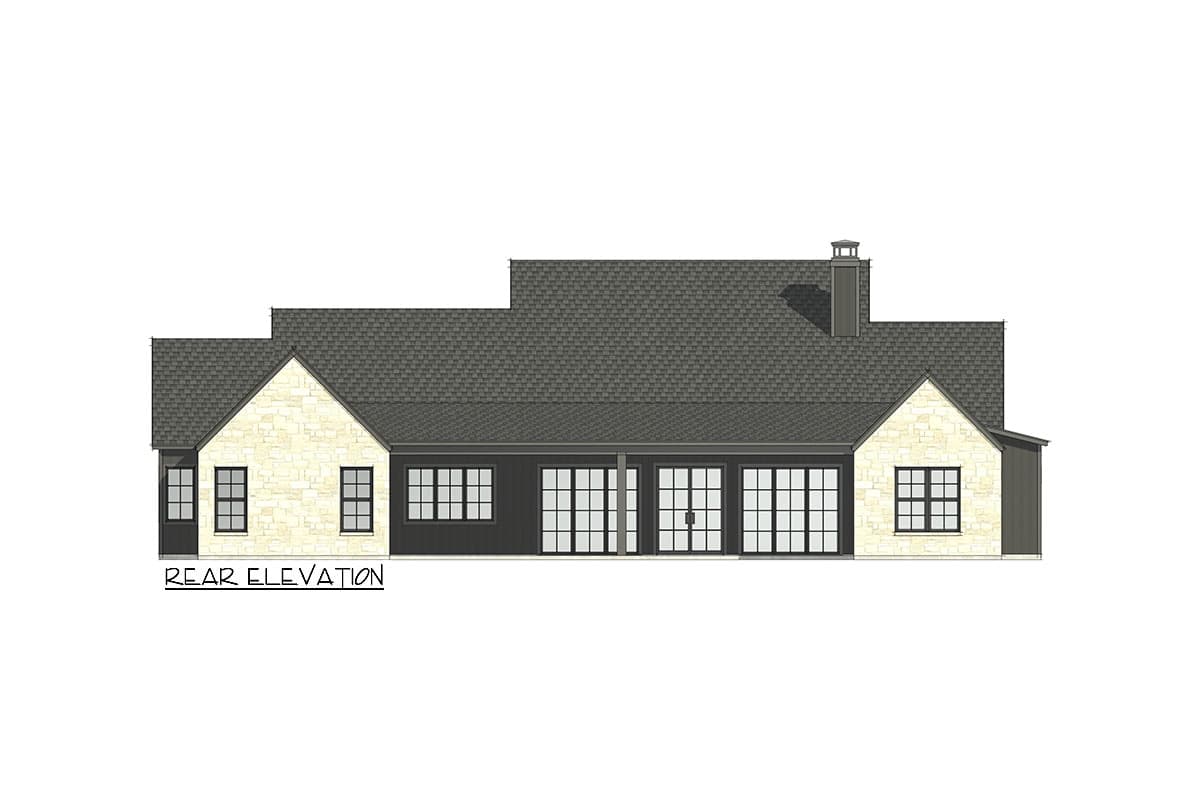

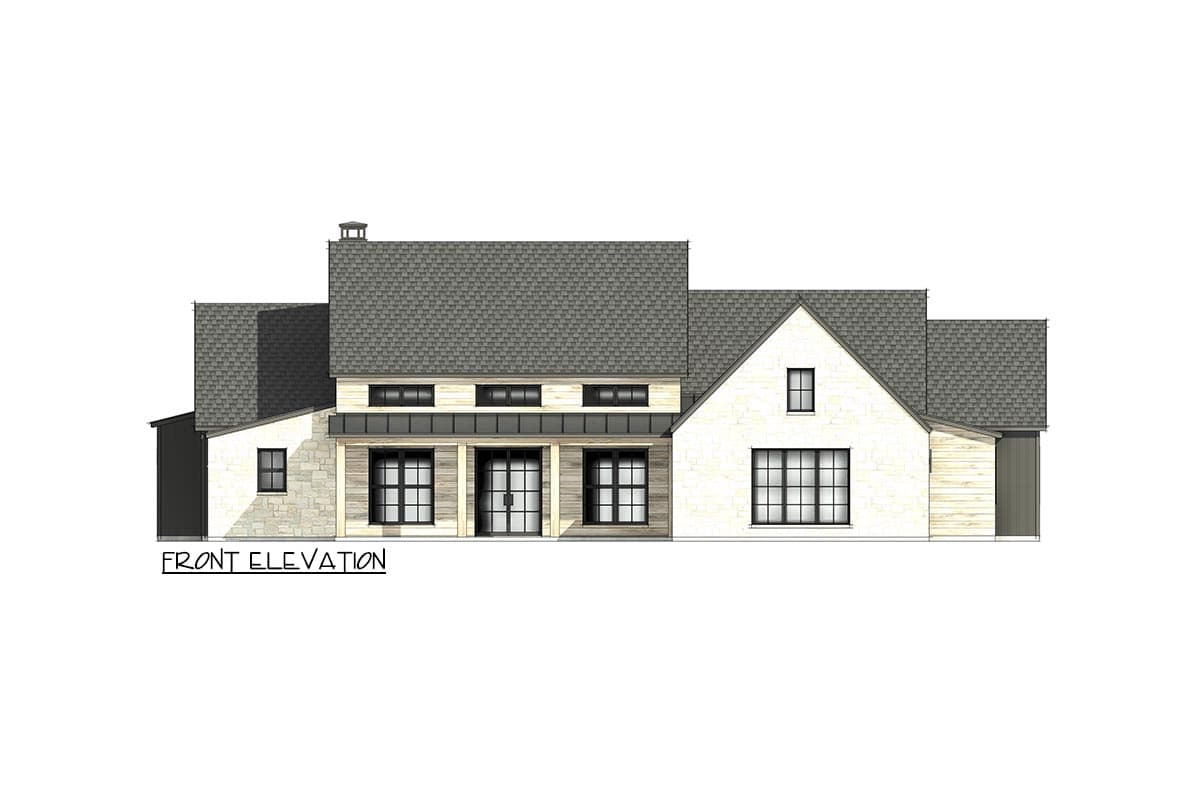

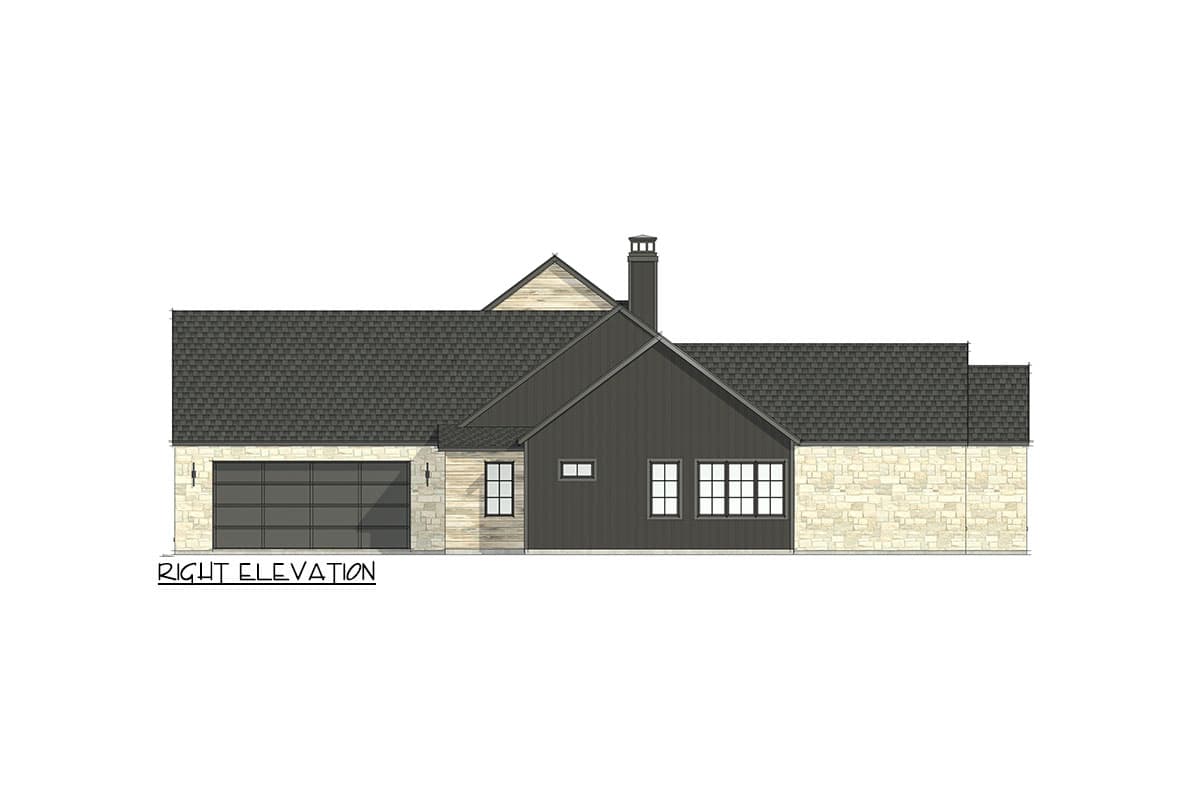

  • Four elevations
  • Electrical schematic
  • Cross section(s)
  • Rafter plan and ceiling joist plans
The following details are NOT included in the plans:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
