Plan 860032MCD One-Level Southern Home Plan with Large Covered Porches

One-Level Southern Home Plan with Large Covered Porches

Plan 860032MCD

  • 2,891

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 1

    Stories

  • 3

    Cars

  • Outdoor porches, both front and rear, are perfect for entertaining and enjoying the views on this Southern home plan.
  • French doors lead into the foyer, and beyond to a large living room overlooking the rear porch. The gourmet kitchen and adjoining keeping room is the ideal setting for family gatherings.
  • The master bedroom is accessed by its own foyer and allows refuge from the rest of the home. The master bathroom boasts a garden tub, dual vanities, and a commode room.
  • Bedrooms 2 and 3 are just off the foyer and share a 4-fixture bath. A fourth bedroom is set off by itself, with a private side entrance, giving guests a quiet space to recharge.
  • A powder bath, adjacent the mudroom and 3-car garage, assists when trying to get out of the door.
  • Related Plans: Get more room with house plans 860034MCD (2,963 sq. ft.) and 860013MCD (3,274 sq. ft.). Get smaller versions with house plan 860011MCD (2,800 sq. ft.)

This set of working drawings contains the following components
  • Exterior elevations
  • Roof Plan
  • Floor plan(s)
  • Window, door and finish schedules
  • Slab foundation plan
  • Footing details
  • Building section
  • Wall Sections
  • Electrical plan
  • General notes
These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

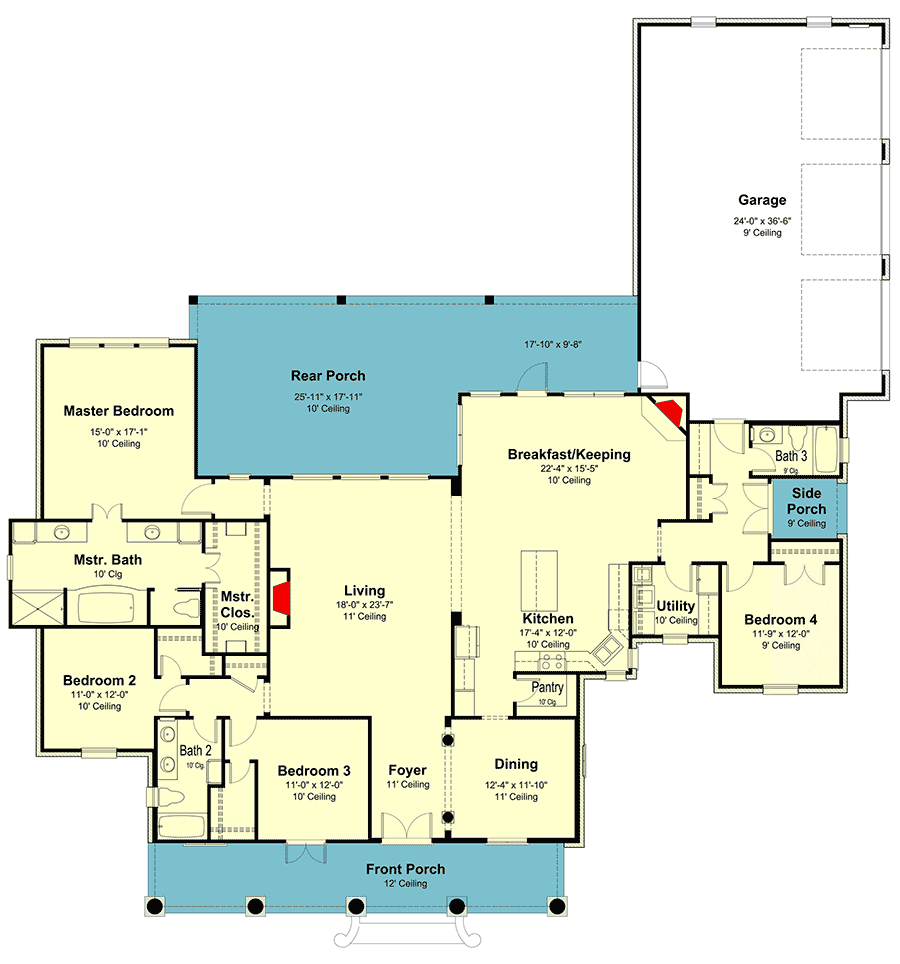

One-Level Southern Home Plan with Large Covered Porches - 860032MCD floor plan - Main Level

Plan details

One-Level Southern Home Plan with Large Covered Porches

  • 2,891

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,705
  • 5 Sets $1,785
  • CAD - Single-Build $2,580
  • PDF - Unlimited Build $2,885
  • View all purchase option online

About This Plan

  • Outdoor porches, both front and rear, are perfect for entertaining and enjoying the views on this Southern home plan.
  • French doors lead into the foyer, and beyond to a large living room overlooking the rear porch. The gourmet kitchen and adjoining keeping room is the ideal setting for family gatherings.
  • The master bedroom is accessed by its own foyer and allows refuge from the rest of the home. The master bathroom boasts a garden tub, dual vanities, and a commode room.
  • Bedrooms 2 and 3 are just off the foyer and share a 4-fixture bath. A fourth bedroom is set off by itself, with a private side entrance, giving guests a quiet space to recharge.
  • A powder bath, adjacent the mudroom and 3-car garage, assists when trying to get out of the door.
  • Related Plans: Get more room with house plans 860034MCD (2,963 sq. ft.) and 860013MCD (3,274 sq. ft.). Get smaller versions with house plan 860011MCD (2,800 sq. ft.)

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,891 sq. ft.
  • 1st Floor: 2,891 sq. ft.
  • Porch, Combined: 981 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 87' 7"
  • Depth: 89' 4"
  • Max ridge height: 29' 8"

Garage

  • Type: Attached
  • Area: 992 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 9 on 12
  • Framing Type: Stick
