Plan 54033LK One-Story 4400 Square Foot Mountain Craftsman with Large Outdoor Living Porch

4,405 4 4.5+ 1 3
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

One-Story 4400 Square Foot Mountain Craftsman with Large Outdoor Living Porch

Plan 54033LK

  • 4,405

    Heated s.f.

  • 4

    Beds

  • 4.5+

    Baths

  • 1

    Stories

  • 3

    Cars

  • This one-story mountain Craftsman house plan gives you 4,405 square feet of heated living with a vaulted-and-beamed great room and outdoor living porch beyond.
  • The kitchen has a large island with seating for 4 and is open to a casual dining area and the great room. A roomy walk-in pantry and access to the garage via drop zone tell you convenience of use was a priority in the design.
  • All the bedrooms are located on the left with the master suite having windows to the back and a beamed tray ceiling. The five-fixture bath, two walk-in closets and direct access to the laundry make this a great retreat.
  • Across the home, a bunk room is located next to the vaulted game room making this home a favorite sleepover destination.
  • The study has a pair of French doors - located near the foyer - gives you a great work-from-home space.
  • There are 3 10' by 8' overhead doors giving you access to the side-load garage.

Each plan set includes the following:


  • FLOOR PLAN: Showing all dimensions, window & door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, window & door schedules and specifications
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, brick shelves reinforcing steel, direction and size of ceiling joists, Laminate beam locations, specifications covering soil pressure, concrete strength, and requirements for the contractor to follow accepted practices.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches and outlets.
  • ELEVATIONS: The front, rear and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, and locations of chimney, exterior vents, etc. and also includes any necessary details.
  • ROOF PLANS: Provides a bird's eye view of the roof's valleys, ridges and dormers, if applicable
  • BUILDING CROSS SECTION: Shows details of the house as though it were cut in slices from the roof to the foundation. The cross sections detail the construction of the home, insulation, flooring and roofing.
  • INTERIOR ELEVATIONS: Show's how the details of cabinets such as those found in the kitchen, bathroom and utility room, fireplaces and other special interior features.
  • NOTES AND DETAILS: Provides information for structural specifications, excavating and grading, masonry and concrete work, carpentry and wood specifications, thermal and moisture protection and specifications about drywall, tile, flooring, glazing, caulking and sealants.
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

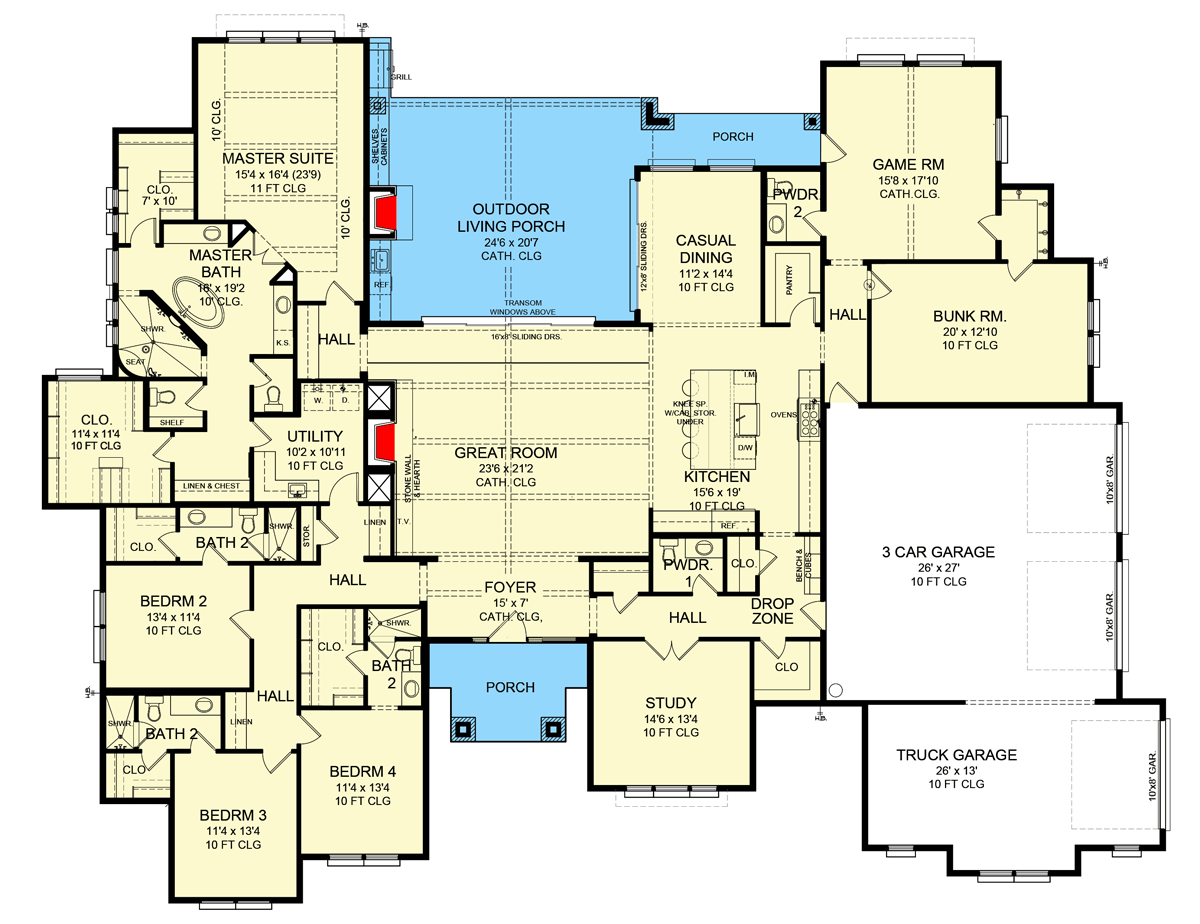

One-Story 4400 Square Foot Mountain Craftsman with Large Outdoor Living Porch - 54033LK floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 4,405 sq. ft.
  • 1st Floor: 4,405 sq. ft.
  • Porch, Combined: 703 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 2

Foundation Type

  • Standard Foundations: Slab
  • Optional Foundations: Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 103' 0"
  • Depth: 79' 0"

Garage

  • Type: Attached
  • Area: 1158 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof Details

  • Framing Type: Stick

Architectural Style

Special features

One-Story 4400 Square Foot Mountain Craftsman with Large Outdoor Living Porch

  • 4,405

    Heated s.f.

  • 4

    Beds

  • 4.5+

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,995
  • CAD - Single-Build $2,995
  • View all purchase option online

About This Plan

  • This one-story mountain Craftsman house plan gives you 4,405 square feet of heated living with a vaulted-and-beamed great room and outdoor living porch beyond.
  • The kitchen has a large island with seating for 4 and is open to a casual dining area and the great room. A roomy walk-in pantry and access to the garage via drop zone tell you convenience of use was a priority in the design.
  • All the bedrooms are located on the left with the master suite having windows to the back and a beamed tray ceiling. The five-fixture bath, two walk-in closets and direct access to the laundry make this a great retreat.
  • Across the home, a bunk room is located next to the vaulted game room making this home a favorite sleepover destination.
  • The study has a pair of French doors - located near the foyer - gives you a great work-from-home space.
  • There are 3 10' by 8' overhead doors giving you access to the side-load garage.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,405 sq. ft.
  • 1st Floor: 4,405 sq. ft.
  • Porch, Combined: 703 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 2

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 103' 0"
  • Depth: 79' 0"

Garage

  • Type: Attached
  • Area: 1158 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Framing Type: Stick
Plan 54033LK
