Plan 86107BW
One-Story Coastal Home Plan for the Outdoor Lifestyle - 2744 Sq Ft
Heated S.F.
2,744
Beds
4
Baths
3.5
Stories
1
Cars
3
Floor Plan

Plan 86107BW

Main Level
slide image 0

Plan 86107BW

1-800-854-7852

1-262-521-4596

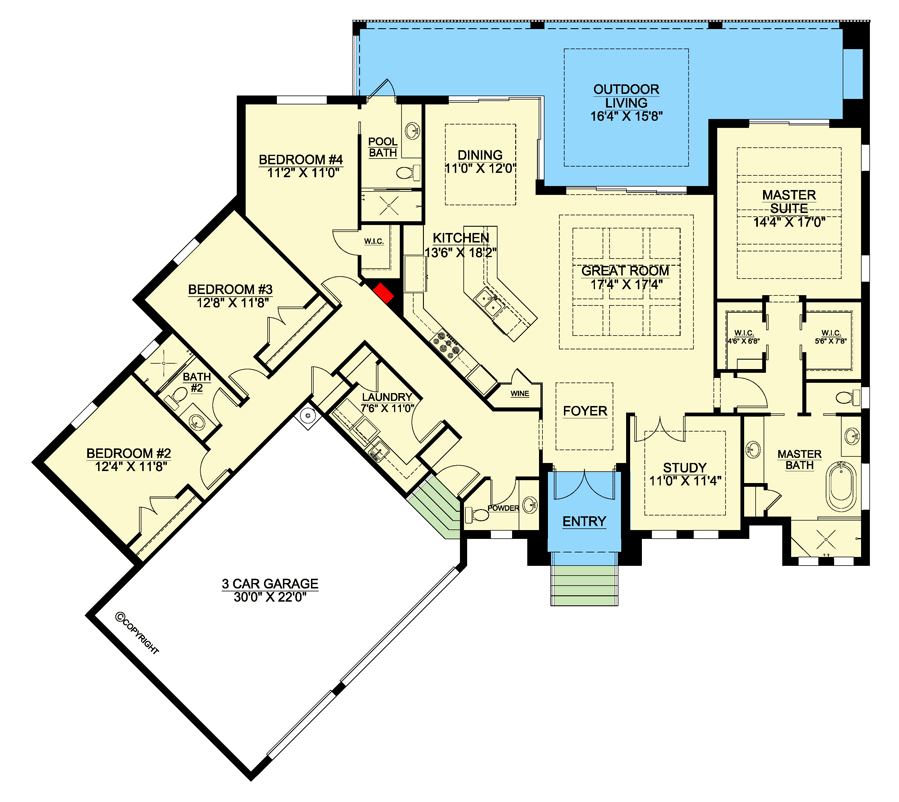

Main Level
floor plan image Main Level
Plan Details
  • A cement tile roof caps this One-story Coastal home plan that features 4 bedrooms, 3.5 baths, and a 3-car garage, compiled on one level for a simplified lifestyle.
  • A coffered ceiling defines the great room and an oversized sliding door encourages you to spend time on the covered lanai.
  • Enjoy cooking in the elongated kitchen with a large range, breakfast bar, and wine room. Retractable walls in the adjoining dining area make it feel as though you're eating outdoors.
  • The master bedroom suite includes dual sinks, shower, free-standing tub, and 2 walk-in closets.
  • Other amenities include a study, sizable laundry room, and a 3 family bedrooms.
What's Included

Elevations - Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:

  • Material Labels
  • Floor-To-Floor Heights
  • Roof Slope Indicators

Floor Plans - Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:

  • Door and Window Sizes
  • Completely Dimensioned Floor Plan
  • Room Labels and Interior Room Size

Electrical Layouts

  • Building Section Markers
  • Electrical Outlets, Fixtures and Switching

Foundation Plan - Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:

  • Floor and Deck Joist Sizes, Spacing and Direction
  • Electrical Locations

Roof Plan - Drawn to 1/8″ to 1/4″ = 1’0″ scale and includes:

  • All Beam and Header Heights and Locations
  • All Hips, Gables, Ridges and Valley
  • Building Section Markers

Building Sections - Drawn to 1/8″ to 1/4″ = 1’0″ scale and includes:

  • Floor Joist Size and Spacing
  • Floor-To-Floor Heights
  • Non-Typical Plate Heights Indicated

Typical Wall Sections - Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:

  • All Labels Indicating Wall Construction
  • Foundation Wall Thickness and Reinforcing
  • Insulation Type and Thickness

Miscellaneous Notes and Details

  • Miscellaneous General Notes
  • Stairway Details (if applicable)

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,744 sq. ft.

1st Floor

2,744 sq. ft.

Entry

79 sq. ft.

Lanai

561 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Stem Wall

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Optional Type(s)

2x6

Dimensions

Width

83' 3"

Depth

75' 5"

Max Ridge Height

26' 0"

Garage

Type

Attached

Area

722 sq. ft.

Count

3 Cars

Entry Location

Side

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Coastal

Square Footage Breakdown

Total Heated Area

2,744 sq. ft.

1st Floor

2,744 sq. ft.

Entry

79 sq. ft.

Lanai

561 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Stem Wall

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Optional Type(s)

2x6

Dimensions

Width

83' 3"

Depth

75' 5"

Max Ridge Height

26' 0"

Garage

Type

Attached

Area

722 sq. ft.

Count

3 Cars

Entry Location

Side

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss
