One-story Contemporary with Home Office or Fourth Bedroom

Plan 660000JMD

  • 2,440

    Heated s.f.

  • 3-4

    Beds

  • 3

    Baths

  • 1

    Stories

  • 3

    Cars

  • This 2.440 square foot one story home plan offers a wide range of space for its owners. A generous combination of a mix of materials and varying roof lines gives this home great curb appeal.
  • Once inside, the foyer (with 12' to 13' coffered ceiling) leads you to the open great room (12' to 13' coffered ceiling) with expansive sliders comprising the entire back wall facilitating indoor/outdoor living. The dining room (12' to 14' coffered ceiling) opens to the kitchen in this entertaining-friendly design.
  • The master suite with tray ceiling occupies the entire left side of the home and has sliders taking you to the lanai in back. Across the home, two bedrooms share a bath.
  • A room off the foyer can be used a fourth bedroom or as a home office or study.
  • The garage has room for 3 cars if you park them tandem-style on the right.

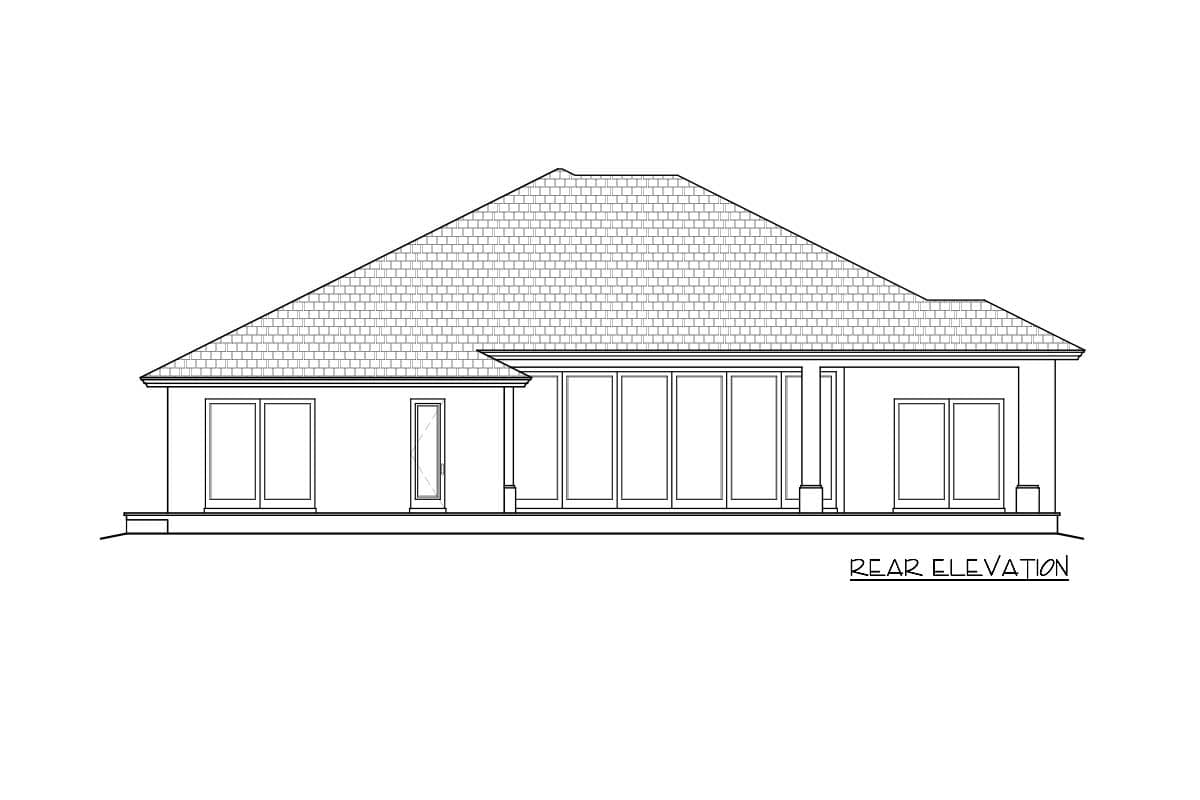

Elevations

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  Material Labels
  Floor-to-Floor Heights
  Roof Slope Indicators


Floor Plans

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  Door and Window Sizes
  Completely Dimensioned Floor Plan
  Room Labels and Interior Room Sizes


Electrical Layouts

Building Section Markers
All Electrical Outlets, Fixtures, and Switching


*Slab Plan

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
Floor and Deck Joist Size and Spacing
Rough-in Plumbing Location (if applicable)
Mechanical Equipment Locations (if applicable)
Electrical Locations (if applicable)



Roof Design Plan

Drawn at 1/8″ to 1/4″ = 1′-0″scale, and Includes:
All Beam and Header Heights and Locations
All Hips, Gables, Ridges, and Valleys
Building Section Markers


Building Sections

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
Floor Joist Size and Spacing
Floor-to-Floor Heights
Non-Typical Plate Heights Indicated


Typical Wall Sections

Drawn at 1/8″ to 1/2″ = 1′-0″ Scale, and Includes:
All Labels Indicating Wall Construction
Foundation Wall Thickness and Reinforcing
Insulation Type and Thickness


Miscellaneous Notes and Details

Miscellaneous General Notes
Stairway details (if applicable)



*We do provide a slab plan, however, the structural foundation plan is to be provided by the structural engineer selected by your builder or yourself. This is done because our slab plan cannot anticipate the variations in soil, footings and other conditions per your specific site. We provide the design of the roof as well, however, the truss layouts need to be provided by a truss engineer or your lumber company. Your builder can provide these contacts for you.  Please keep in mind that these are additional expenses outside of the cost of the original plan that you purchase from us.


These items are NOT included:


Architectural or Engineering Stamp - handled locally if required

Site Plan - handled locally when required

Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this

Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this

Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

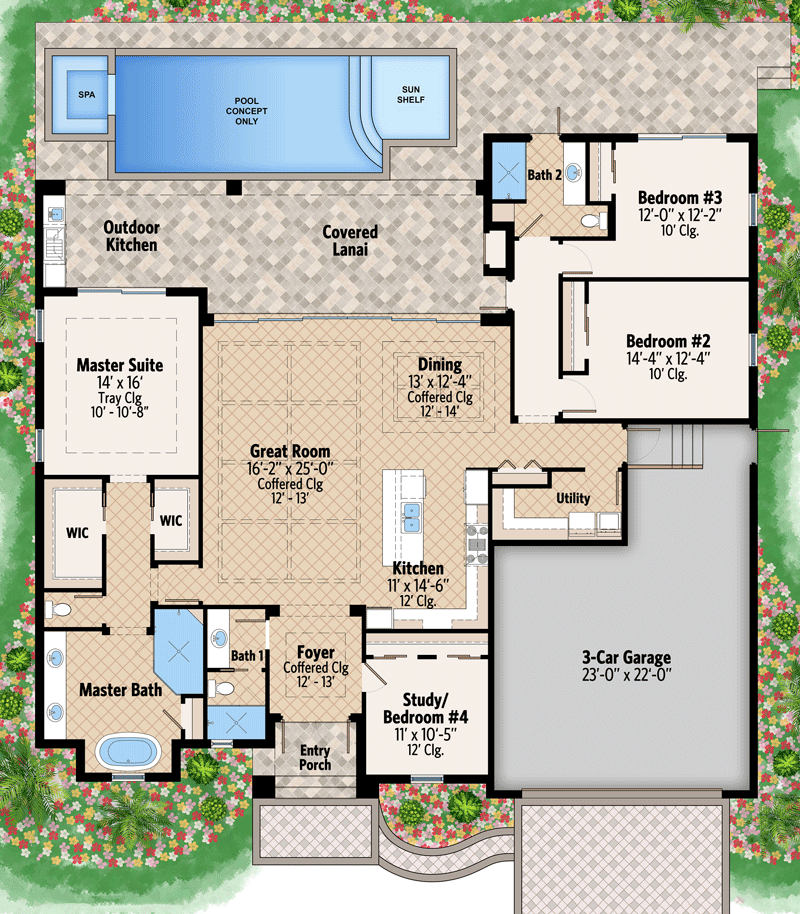

One-story Contemporary with Home Office or Fourth Bedroom - 660000JMD floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,440 sq. ft.
  • 1st Floor: 2,440 sq. ft.
  • Lanai: 462 sq. ft.
  • Entry: 62 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)
  • Optional Type(s): 2x6

Dimensions

  • Width: 64' 10"
  • Depth: 59' 8"
  • Max ridge height: 27' 6"

Garage

  • Type: Attached
  • Area: 665 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

Room Details Ceiling Type Width Depth Height
Foyer Coffered 12' 0" to 13' 0"
Great Room Coffered 12' 0" to 13' 0"
Kitchen Flat 12' 0"
Dining Room Coffered 12' 0" to 14' 0"
Master Bedroom Coffered 10' 0" to 10' 8"
Bedroom 2 Flat 10' 0"
Bedroom 3 Flat 10' 0"
Study Flat 12' 0"

Roof Details

  • Primary Pitch: 6 on 12
  • Framing Type: Truss

Architectural Style

Special features

One-story Contemporary with Home Office or Fourth Bedroom

  • 2,440

    Heated s.f.

  • 3-4

    Beds

  • 3

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • CAD - Single-Build $2,100
  • PDF - Single-Build $2,100
  • View all purchase option online

About This Plan

  • This 2.440 square foot one story home plan offers a wide range of space for its owners. A generous combination of a mix of materials and varying roof lines gives this home great curb appeal.
  • Once inside, the foyer (with 12' to 13' coffered ceiling) leads you to the open great room (12' to 13' coffered ceiling) with expansive sliders comprising the entire back wall facilitating indoor/outdoor living. The dining room (12' to 14' coffered ceiling) opens to the kitchen in this entertaining-friendly design.
  • The master suite with tray ceiling occupies the entire left side of the home and has sliders taking you to the lanai in back. Across the home, two bedrooms share a bath.
  • A room off the foyer can be used a fourth bedroom or as a home office or study.
  • The garage has room for 3 cars if you park them tandem-style on the right.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,440 sq. ft.
  • 1st Floor: 2,440 sq. ft.
  • Lanai: 462 sq. ft.
  • Entry: 62 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)
  • Optional Type(s): 2x6

Dimensions

  • Width: 64' 10"
  • Depth: 59' 8"
  • Max ridge height: 27' 6"

Garage

  • Type: Attached
  • Area: 665 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss
Plan 660000JMD
View this and more for this plan by visiting www.architechtecturaldesigns.com/660000JMD
|
