Plan 623197DJ

One-Story Mediterranean-Style House Plan Under 1800 Square Feet with 3 Bedrooms

Heated S.F.
1,742
Beds
3
Baths
2
Stories
1
Cars
2
Tour

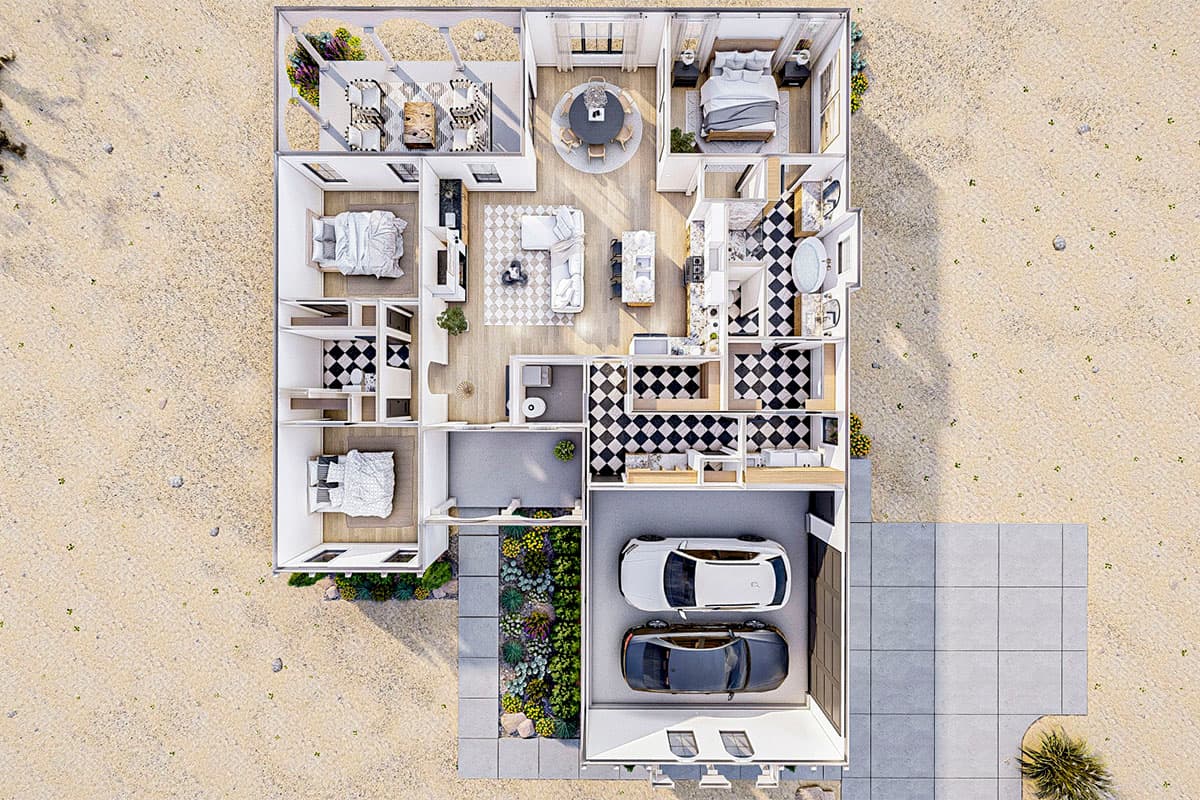

Floor Plan

Plan 623197DJ

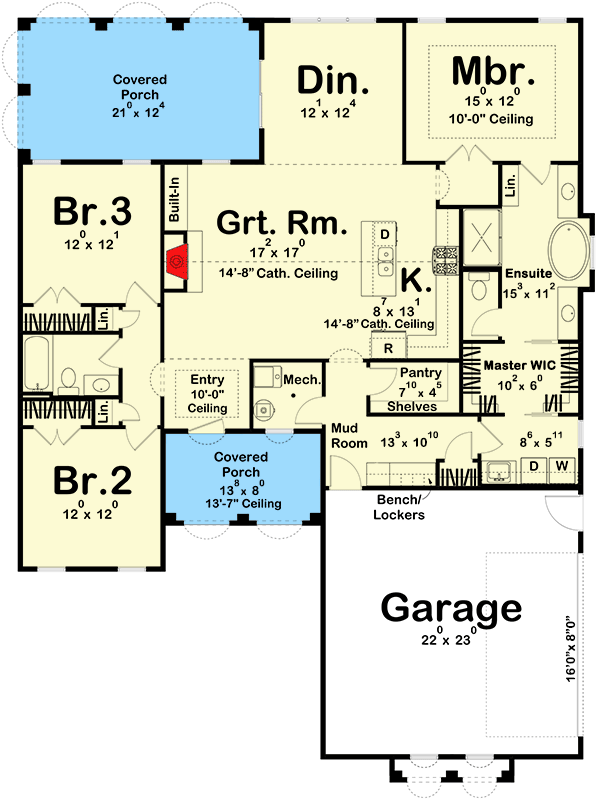

Main Level
Main Level

Plan 623197DJ

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 623197DJ: One-Story Mediterranean-Style House Plan Under 1800 Square Feet with 3 Bedrooms - Floor Plan - Main Level - European, Mediterranean, Ranch, Southern, Tuscan

Plan Details

  • This Mediterranean-style one-story house plan gives you 3 beds, 2.5 baths and 1,742 square feet with a functional floor plan and a unique exterior. The stucco finish and large pillars give this home great curb appeal.

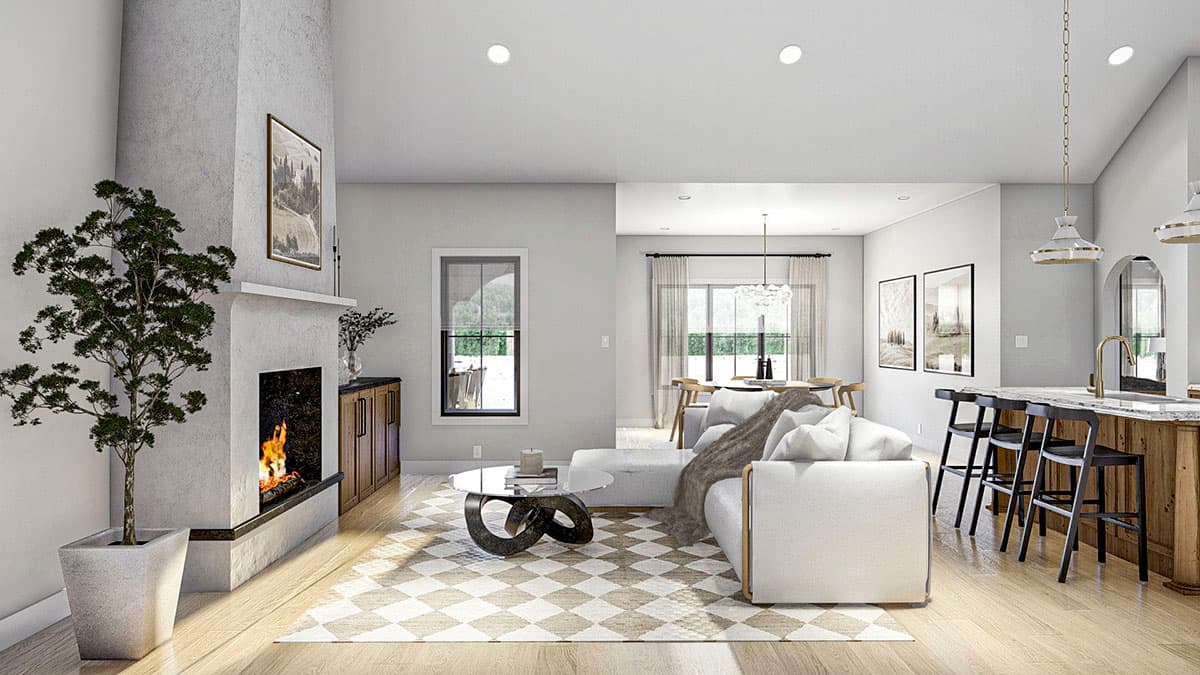

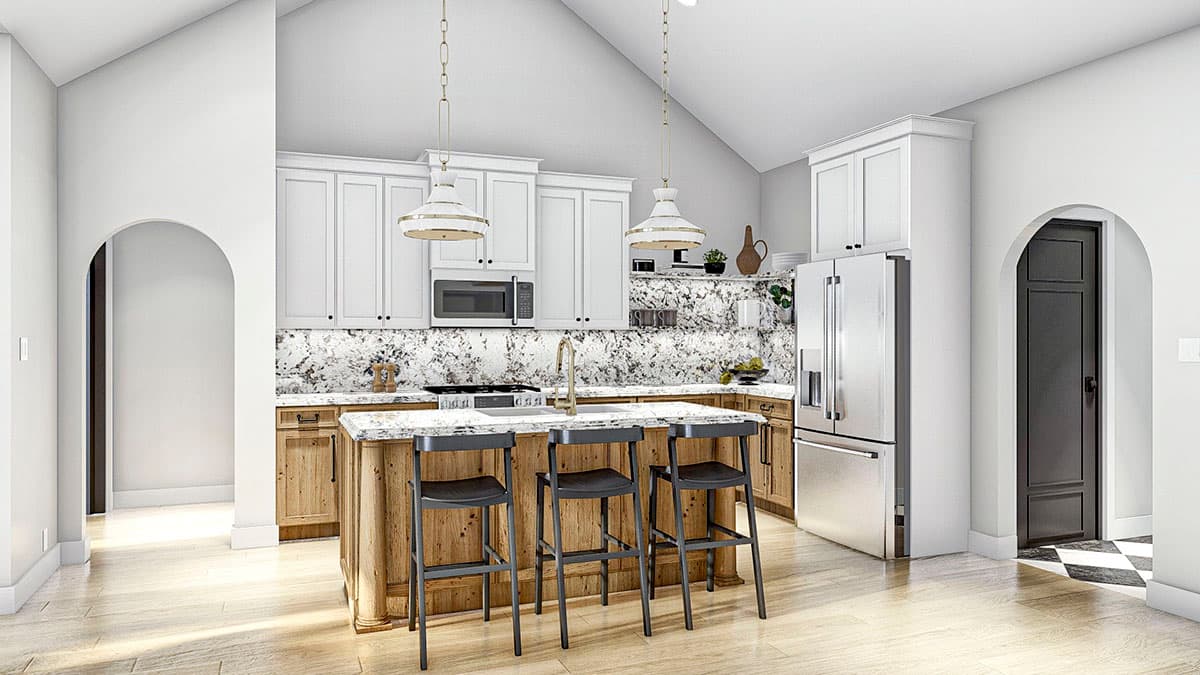

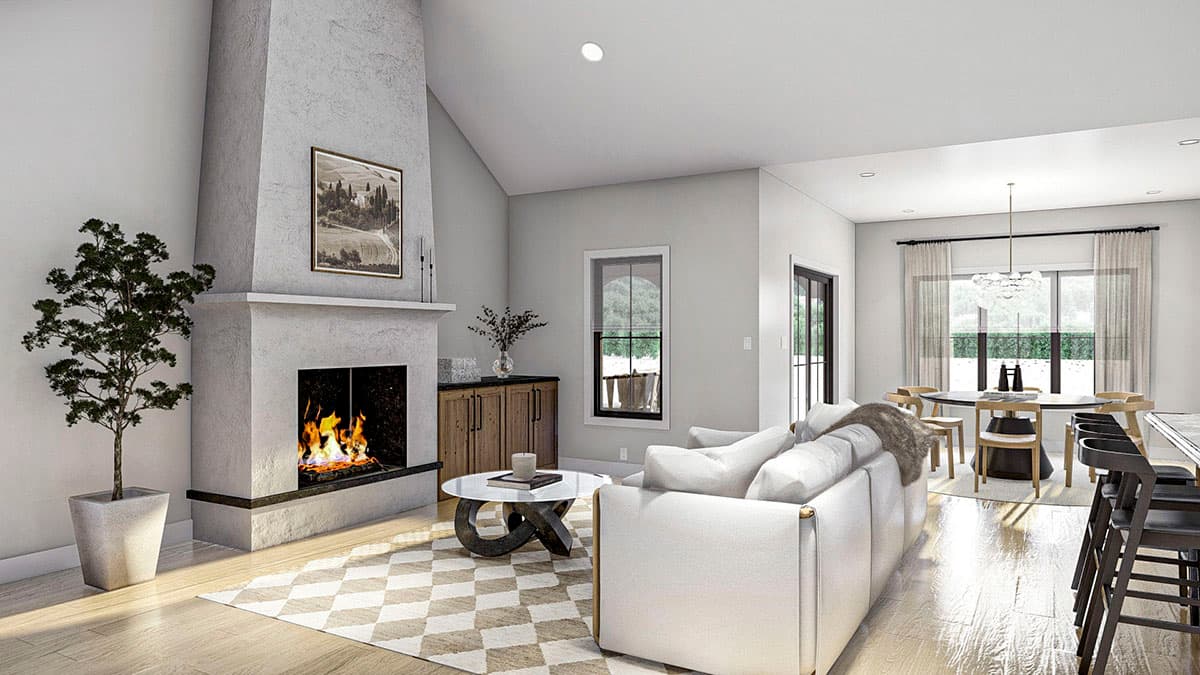

  • After passing the entry, you are greeted by cathedral ceilings throughout the great room and kitchen. The kitchen has an island with double sink and casual seating and a deep walk-in pantry. Have a more formal dinner in the dining room or even outside on the roomy covered porch.

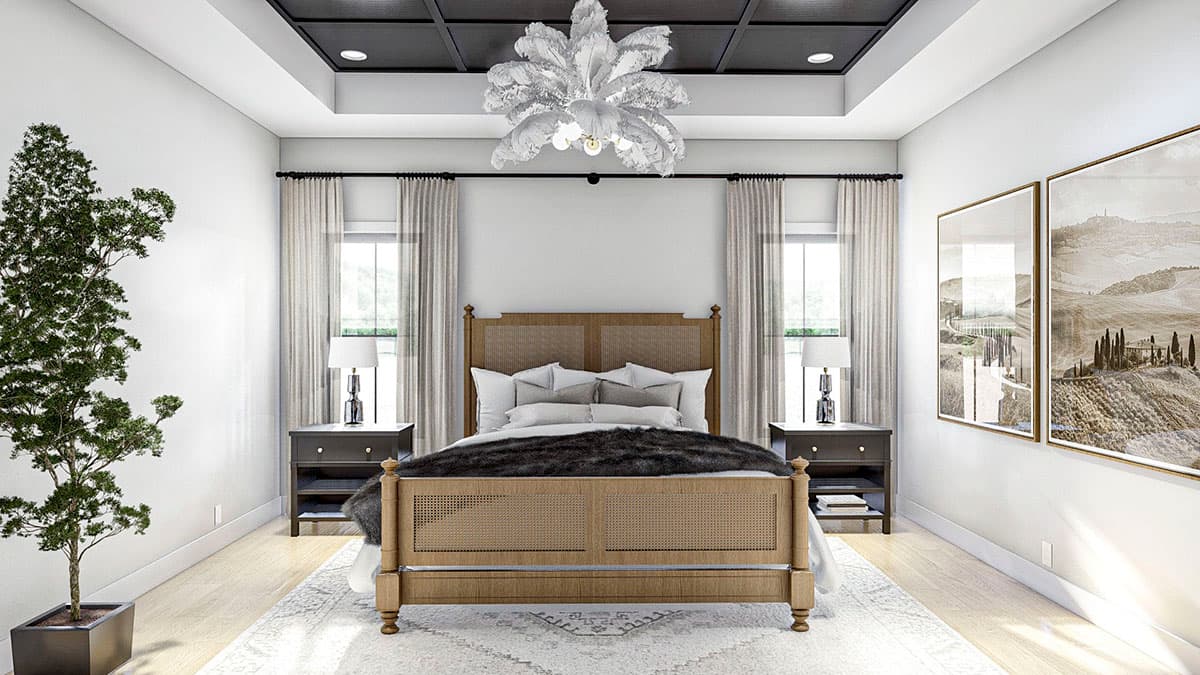

  • The master bedroom has a 10' tray ceiling and direct access to the laundry from the walk-in closet with pocket doors on each end. The master bathroom has two vanities, a shower and a soaker tub. Across the home, two bedrooms share a hall bathroom.
  • The side load garage offers 529 square feet for your vehicles.

What's Included

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

1,742 sq. ft.

1st Floor

1,742 sq. ft.

Porch, Front

109 sq. ft.

Porch, Rear

259 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

50' 0"

Depth

66' 4"

Max Ridge Height

18' 10"

Garage

Type

Attached

Area

529 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

6 on 12

Architectural Style

European

Mediterranean

Ranch

Southern

Tuscan

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Two Story Great Room

Square Footage Breakdown

Total Heated Area

1,742 sq. ft.

1st Floor

1,742 sq. ft.

Porch, Front

109 sq. ft.

Porch, Rear

259 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

50' 0"

Depth

66' 4"

Max Ridge Height

18' 10"

Garage

Type

Attached

Area

529 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

6 on 12

Architectural Style

European

Mediterranean

Ranch

Southern

Tuscan

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Two Story Great Room
